Product Overview

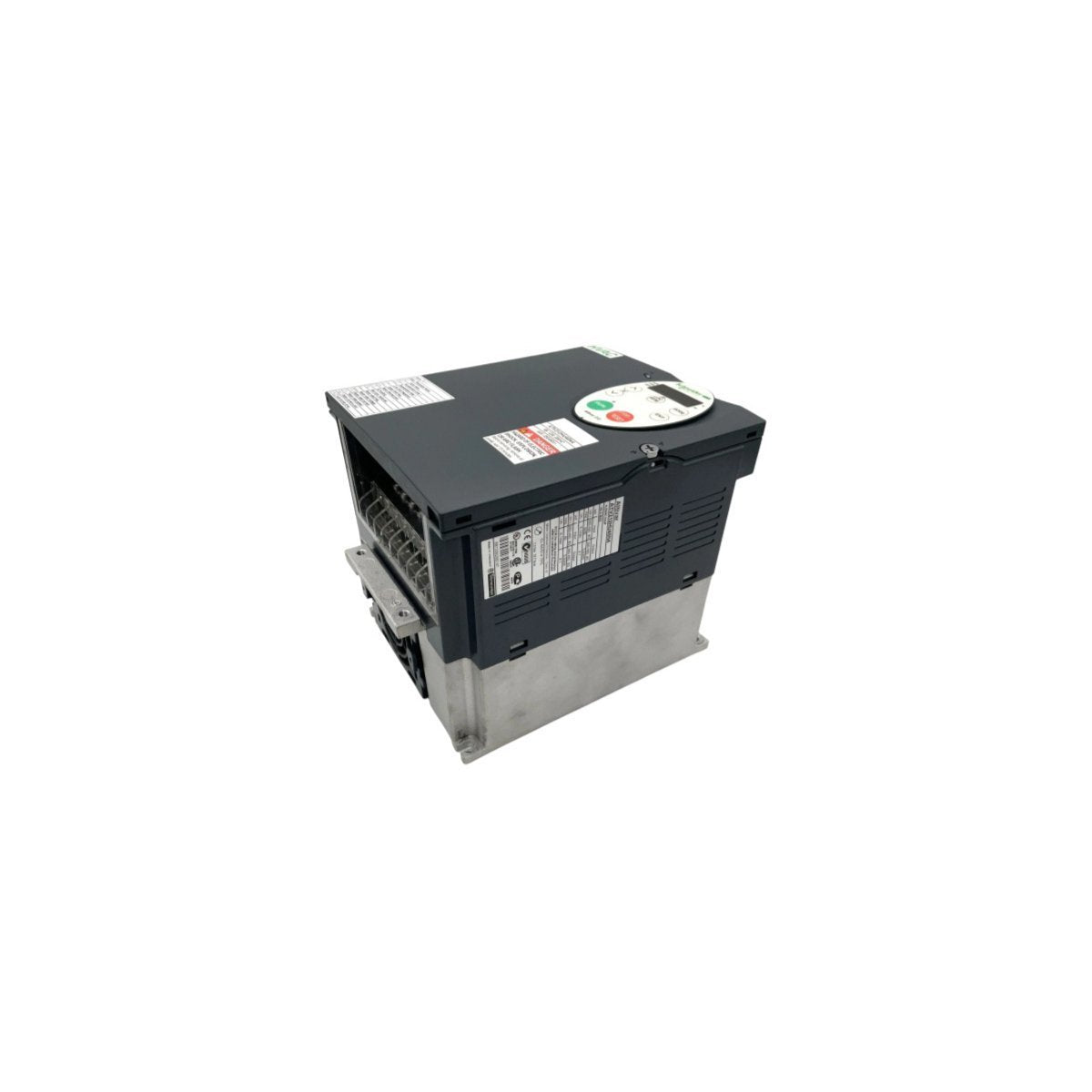

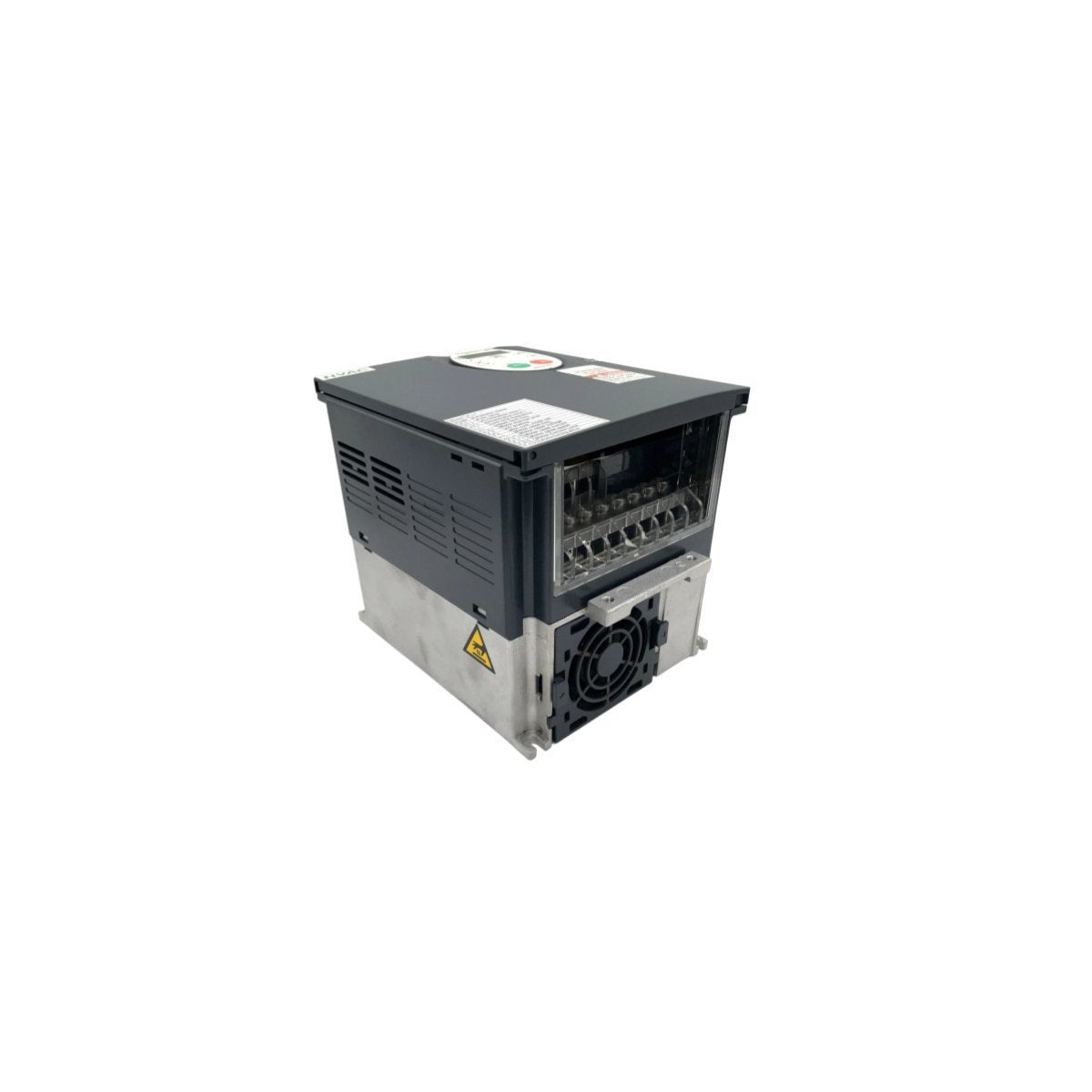

The Schneider Electric ATV212HU40N4 is a dedicated Altivar 212 series frequency inverter engineered specifically for the intelligent control of three-phase asynchronous motors. With a power rating of 4 kW (5 HP), this drive is optimized for HVAC (Heating, Ventilation, and Air Conditioning) infrastructure in the tertiary sector. The unit operates within a 380V to 480V range and is characterized by its high-efficiency design, which can reduce operational energy costs by up to 70%. By utilizing advanced motor control algorithms, the ATV212HU40N4 provides precise fluid management for pumps and fans while maintaining a compact physical footprint that simplifies cabinet integration.

Core Hardware Specifications and Performance Metrics

The ATV212HU40N4 is built to provide high-reliability motor regulation without the need for extensive peripheral hardware:

• Power Output: Rated for 4 kW (5 HP) with a continuous output current tailored for centrifugal loads.

• Voltage Range: Supports a wide 3-phase input of 380V to 480V AC (50/60 Hz).

• Integrated Suppression: Features a built-in Class C2 EMC filter to minimize electromagnetic interference and internal C-less technology to limit line harmonics.

• Network Interfacing: Equipped with native support for Modbus, BACnet, METASYS N2, and APOGEE FLN P1 protocols for Building Management System (BMS) integration.

• Environmental Rating: IP21 protected housing designed for vertical panel mounting with optimal heat dissipation.

• Safety & Compliance: Fully compliant with IEC/EN 61800-5-1 and 61800-3, carrying UL, CSA, CE, and C-Tick certifications.

• Mechanical Data: Dimensions of 27.9 x 21.6 x 6.3 cm with a lightweight 1.9 kg frame for easy handling.

Industrial Applications and System Implementation

This variable frequency drive is the preferred solution for sophisticated building automation and fluid handling tasks:
