Product Overview

The Bently Nevada 330101-00-50-10-01-00 3300 XL 8 mm Proximity Probe drives uninterrupted mechanical tracking within high-reliability machinery protection architectures. This heavy-duty non-contact sensor continuously measures shaft radial vibration, dynamic position displacement, and axial thrust clearance variations across critical high-speed rotating components.

Instrumentation teams deploy this extended 5.0-inch case version within demanding Turbine Supervisory Instrumentation (TSI) installations to monitor critical plant equipment, including large-scale industrial steam turbines, high-velocity centrifugal compressors, and primary fluid process pumps. The advanced probe electronics transmit a clean, low-noise analog raw signal to downstream monitoring cards without delay. This precise tracking feeds the automated emergency shutdown loops and distributed DCS interlocks required to trip operations instantly before catastrophic mechanical breakdown or bearing collapse occurs.

Part Number Structural Block Decoupling

330101 [3300 XL 8 mm Probe Core Profile]

Designates the standard 8 mm eddy current probe tip structure combined with an imperial 3/8-24 UNF external thread profile for high-torque mechanical fastening into standard mounting ports.

-00 [Unthreaded Length Metric]

Specifies a 0.0-inch unthreaded barrel layout, indicating that full structural threads cover the entire stainless steel sleeve to deliver maximum depth versatility during field positioning.

-50 [Threaded Case Length Metric]

Establishes a 5.0-inch total case length segment, providing the extra-long reach necessary to pass entirely through thick machine casings, insulation blankets, or internal fluid-deflecting structures.

-10 [Total Cable Length Metric]

Defines a 1.0-meter (3.3 feet) integrated coaxial lead cable, measured from the tip of the probe head directly to the distal electrical connector face.

-01 [Connector Protection & Material Profile]

Equips the standard unarmored coaxial line with a male miniature ClickLoc connector and includes a factory-molded connector protector component to shield the joint interface against mechanical disruption.

-00 [Agency Approval Metric]

Supplied with basic non-hazardous area operational certification, optimized for high-performance plant locations requiring standard mechanical tracking compliance without specialized explosive safety ratings.

Transducer Core Performance Metrics

Proximity Loop Geometric Alignment Field Manual

Field engineers must verify perfect physical positioning using an accurate digital voltmeter during sensor configuration. Thread the 5.0-inch probe barrel smoothly through the casing port while measuring the raw DC voltage at the remote 3300 XL Proximitor test points. Rotate the probe assembly until the voltmeter displays approximately -10.0 VDC, securing the sensor tip exactly at the mathematical midpoint of the calibrated 2.0 mm linear tracking field.

Maintain a strict minimum bend radius of 25.4 mm (1.0 inch) along the 1.0-meter unarmored coaxial line to prevent internal conductor degradation or impedance variations. Route this unarmored sensor lead inside isolated, grounded steel conduits to prevent electromagnetic interference (EMI) from distorting the vibration telemetry. Slide the integrated connector protector securely over the intermediate cable joint to lock out ambient humidity and process fluids.

Harsh-Environment Survival & DCS Network Integration

The high-grade design of the 330101-00-50-10-01-00 probe uses a tough polyphenylene sulfide (PPS) composite tip, molded directly over the internal wire coil to create an airtight seal. This structural barrier prevents degradation when the sensor body remains constantly submerged in hot synthetic lubricants, aggressive chemical fumes, or high-pressure steam within bearing housings.

The low-loss unarmored coaxial line routes the raw analog displacement telemetry directly to the input channels of a centralized Bently Nevada 3500/42M machinery protection rack. The rack system transmits these real-time dynamic profiles to a plant-wide Honeywell Experion PKS or Siemens S7 PLC architecture via dedicated analog loops or automated Modbus TCP interfaces. This layout gives the control room access to split-second machinery safety trips and deep predictive diagnostic data simultaneously.

Commercial Box Inventory

The factory-sealed individual carton contains the following equipment:

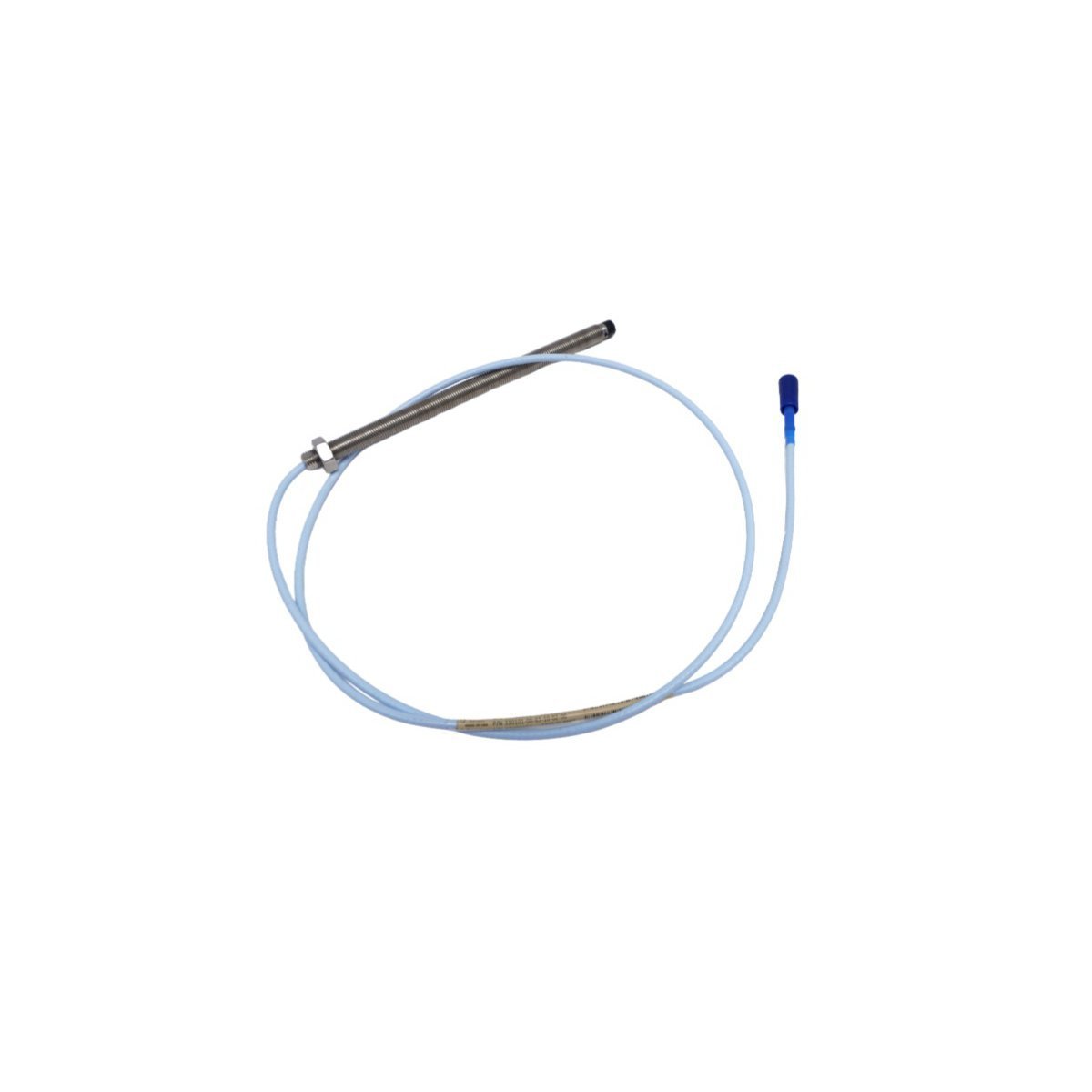

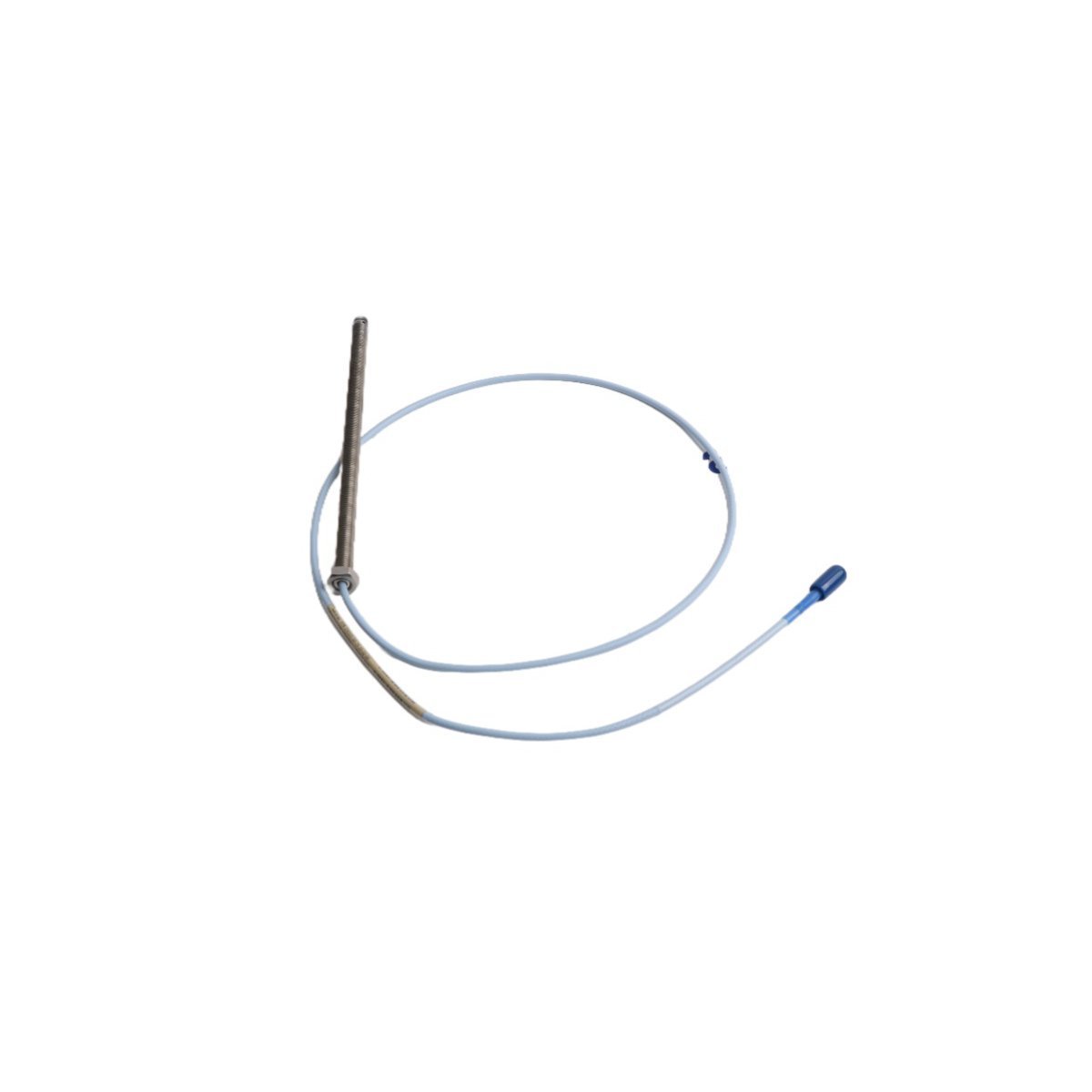

(1) Original Bently Nevada 330101-00-50-10-01-00 3300 XL 8 mm Proximity Probe

(2) Factory-installed male miniature coaxial ClickLoc connector terminal

(3) Rugged, chemical-resistant composite connector protector sleeve

(4) Complete material traceability card and individual physical calibration sheet

Premium Cargo Security & Distribution Dispatch

Our international logistics hub processes and dispatches all verified industrial orders within 2-7 days after confirming payment details. We route all critical asset components through express global carriers, including DHL, FedEx, and UPS, to ensure rapid, fully trackable, and insured delivery to your plant site.

Our warehouse wraps each 1.0-meter probe assembly within heavy-duty anti-static industrial packaging sheets before securing it into customized shock-absorbing foam inserts. This strict packaging process provides complete protection against electrostatic discharge, severe transit drops, and ambient moisture entry along international shipping routes.

Site Machinery Instrumentation Diagnostics

Q1: What specific installation problem does the 5.0-inch fully threaded barrel option solve?

A1: The deep 5.0-inch fully threaded case option (-50 code) allows the probe to pass through thick outer machinery structures, insulated shells, or heavy cooling jackets without requiring internal extensions. Because the threads cover the entire barrel length, field crews can adjust the depth easily to place the probe tip exactly at the target surface.

Q2: Can I connect this 1.0-meter probe directly to an 8.0-meter 3300 XL extension cable?

A2: Yes. Pairing this 1.0-meter probe lead with an 8.0-meter extension cable creates a total electrical loop length of exactly 9.0 meters. You must ensure that your remote 3300 XL Proximitor sensor is calibrated for a 9.0-meter system length to maintain accurate scale factor tracking and prevent signal errors.

Q3: Why does this specific model omit external stainless steel armor?

A3: The unarmored design (-01 option) minimizes the outer diameter of the cable run and increases physical flexibility. This makes it ideal for routing through tight internal conduits, narrow terminal boxes, or complex wire tracks where heavy armored cables cannot bend or fit easily.

Q4: What action should I take if the monitoring loop reads a constant 0 VDC terminal voltage?

A4: A 0 VDC output from the proximity loop indicates a short circuit to ground. Inspect the unarmored coaxial cable along its run for physical pinholes, pinches, or exposed shielding touching the machine frame. Check inside the ClickLoc connector protector for fluid or metal dust ingress, and dry or clean the terminal faces to restore the proper isolation barrier.
