Product Overview

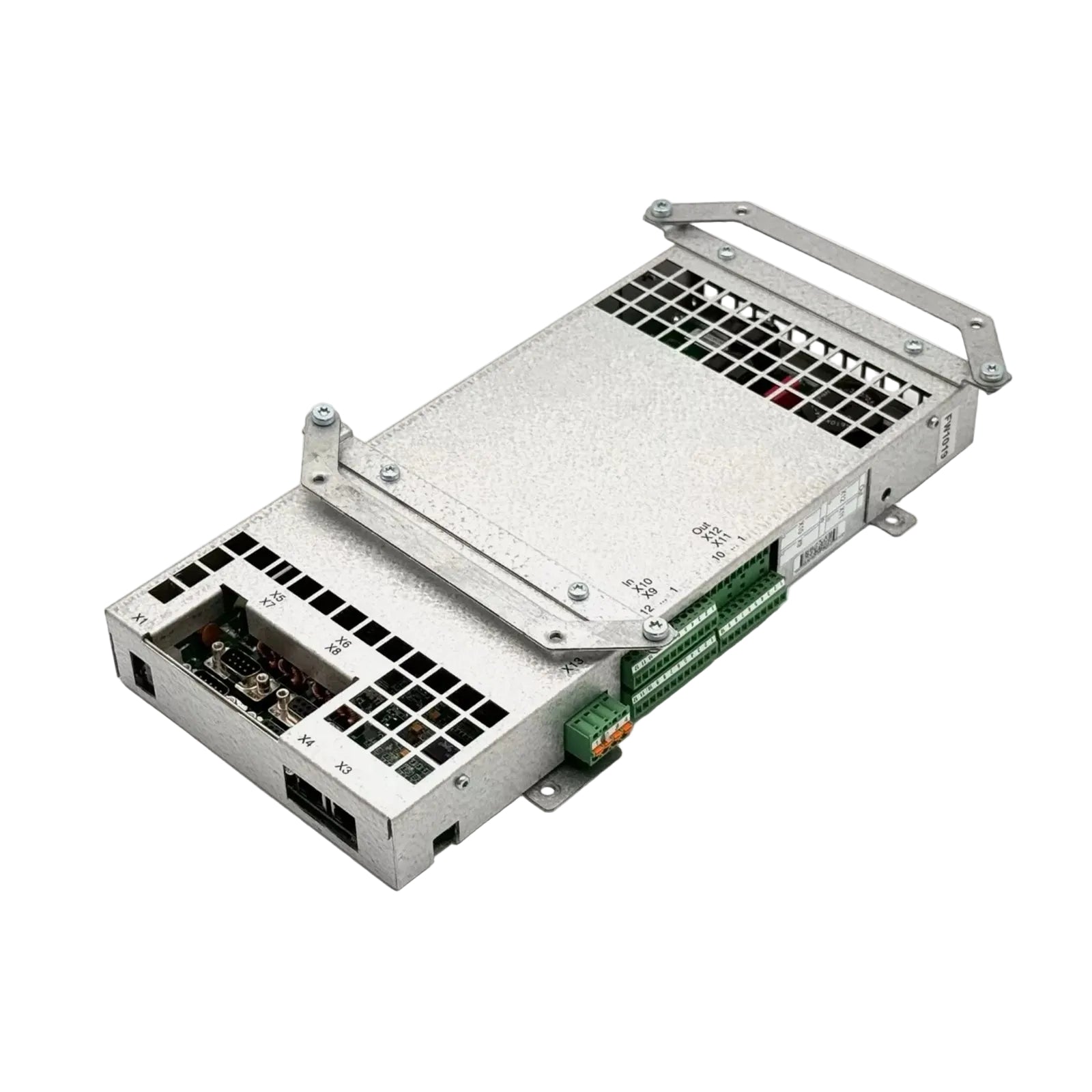

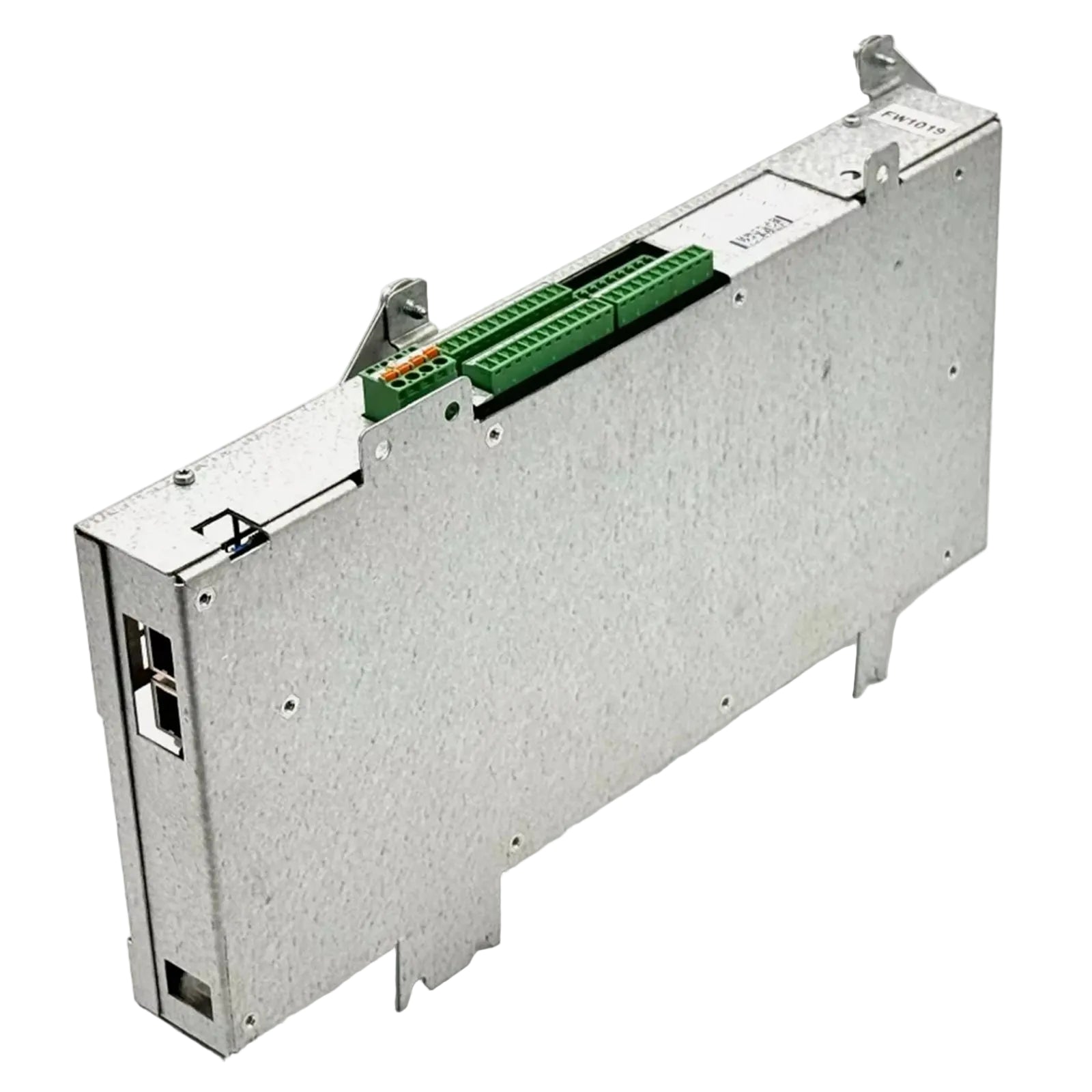

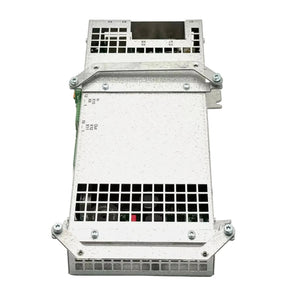

The ABB DSQC647 3HAC026272-001 acts as a core safety supervision board within the ABB IRC5 single robot controller ecosystem, providing advanced SafeMove functionality. This hardware-based safety controller delivers precise, real-time monitoring of robotic motion, joint speeds, and spatial positioning without relying on external mechanical switches or complex light curtains. It executes deterministic safety functions directly at the drive layer, enabling close human-robot collaboration while safeguarding assembly lines, heavy material handling spaces, and automotive welding cells. By enforcing strict zone supervision and speed restrictions, the DSQC647 eliminates the physical footprint of traditional safety fencing. Plant managers rely on this unit to reduce cell cycle times, protect field personnel, and maintain full compliance with international robotic safety directives.

Embedded Safety Processing Architecture

The micro-architecture of the DSQC647 implements a dual-channel redundant processor topology to satisfy stringent SIL 3 and PL e safety ratings. It monitors structural drive encoder feedback loops continuously, translating raw electrical pulses into absolute geometric data. The dual internal processors verify position and speed vectors independently; any mathematical discrepancy between the two channels instantly triggers an emergency category 0 or category 1 stop sequence to halt the manipulator safely.

This specialized safety board interfaces directly with the main drive module and the IRC5 main computer via a dedicated, high-speed internal safety bus. It hosts its own flash memory subsystem to store safety configuration profiles securely, ensuring that user-defined safety zones, speed limits, and tool orientations remain intact across power cycles. The unit manages onboard safety I/O channels that use dual-channel diversity to eliminate single points of failure, protecting the system from common-cause electronic malfunctions.

Hardware Matrix and Field Ratings

The technical dataset outlines the physical constraints, environmental thresholds, and compliance markers necessary for system engineering and international trade.

Internal Mounting and Safety Commissioning Guidelines

Proper electronic installation prevents internal signal degradation and avoids communication drops on the internal main control bus. Mount the DSQC647 card vertically within its designated slot location inside the IRC5 single controller cabinet framework, ensuring that the module slides smoothly along the guide rails to prevent physical damage to the rear pin connectors. Ensure that the cabinet cooling fans operate efficiently to provide adequate air cross-flow, keeping the local ambient temperature inside the housing beneath the +50°C maximum threshold.

Technicians must link the module ground securely to the central logic common plate of the IRC5 frame using the factory-fitted mechanical grounding clips. When routing external safety I/O connections to external safety devices, utilize industrial shielded multi-conductor cables with a minimum bend radius of 45 mm to safeguard internal copper strands from fatigue. Following physical card installation, operators must connect via RobotStudio engineering software to download and lock the verified safety configuration file, applying a unique cryptographic checksum to prevent unauthorized modifications.

Plant Safety Synthesis and System Integration

The DSQC647 module delivers superior structural survivability when exposed to intense electromagnetic interference generated by adjacent servo drives and high-frequency inverter systems. Its localized electronic shielding layout effectively blocks stray radio frequencies, ensuring precise calculation of tool center point (TCP) dynamics even during sudden line voltage shifts or heavy machine decelerations.

This safety unit enables deep structural integration between robotic cells and plant-wide automation networks. By maintaining precise control over spatial safety zones, it feeds clean status data directly to supervisory distributed control systems. This allows the IRC5 controller to communicate smoothly with surrounding machinery health setups or plant emergency networks like Honeywell Experion PKS platforms. It routes safety stop status metrics over standard field networks without requiring extra relay hardware, allowing operators to oversee complete process lines from a single interface.

Inventory Allocation and Packing Checklists

Every component shipment dispatched through our global supply hubs undergoes thorough physical validation.

The standard logistical package includes:

(1) One Factory-Certified ABB DSQC647 SafeMove Safety Controller Unit.

(2) Pre-loaded internal firmware matrix optimized for IRC5 single systems.

(3) Technical terminal interface layout documentation.

(4) Final physical quality test verification certificate sheet.

Secure Freight Routing and Logistics Controls

Dispatched Transit Timeline: Orders leave our Xiamen facility within 2-7 days when payment finish, governed by immediate inventory verification and clearing protocols.

We route all international automation hardware orders exclusively via premium express air carriers, utilizing DHL, FedEx, and UPS network tracking to guarantee rapid and safe delivery to your site. To protect the sophisticated microprocessors on the DSQC647 from electro-static discharge (ESD), our team handles each board under strict clean-room protocols. We seal each unit inside an anti-static industrial packaging sleeve equipped with localized moisture desiccants. The assembly is nested within form-fitted, shock-absorbing foam cushions and placed inside a heavy-duty, double-walled rigid industrial carton to withstand physical vibration during international flight routes.

Functional Safety Engineering FAQs

Q1: What is the mechanical procedure required when replacing a damaged DSQC647 unit to ensure safety parameters are not lost?

A1: Because safety configuration data is locked to the specific controller framework, a new DSQC647 board must be re-commissioned using ABB RobotStudio software. After physically seating the new card into the IRC5 slot, the automation engineer must upload the original safety configuration file, verify that the unique safety checksum matches the facility documentation exactly, and execute a physical validation safety test before returning the robot to automatic production mode.

Q2: How does the DSQC647 process dual-channel encoder signals without causing signal lag in the primary robot motion loops?

A2: The DSQC647 works on a high-speed parallel tracking architecture. It intercepts encoder pulses passively through a high-impedance split-bus connection. This hardware setup allows the safety processors to capture and analyze velocity data simultaneously without introducing propagation delay or loading down the primary control paths utilized by the main servo controller.

Q3: Can the DSQC647 handle multi-robot setups within a single IRC5 cabinet configuration?

A3: This specific DSQC647 variant is designed and rated strictly for IRC5 Single Controller topologies managing a single manipulator arm. For multi-robot safety cell architectures, such as MultiMove configurations, you must utilize the upgraded multi-channel safety expansion units or independent networked safety PLC modules to supervise multiple safety zones concurrently across separate arms.
