Product Overview

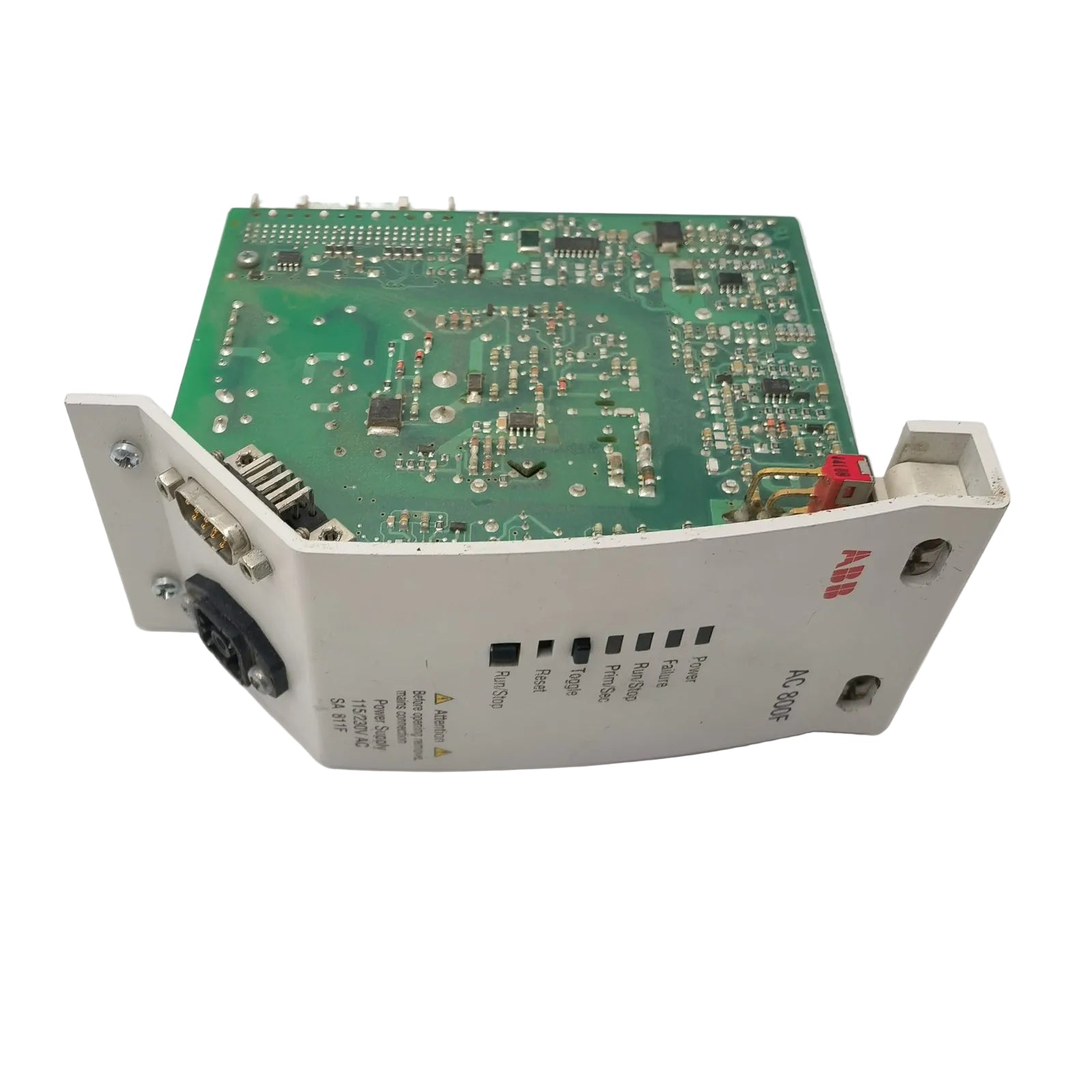

The ABB SA811F 3BDH000013R1 functions as the foundational power infrastructure component for the AC800F distributed control system (DCS) platform. Engineered to deliver stable, highly filtered direct current directly to sensitive CPU modules and communication interfaces, this power supply module isolates critical control logic from volatile grid fluctuations. It manages demanding industrial automation processing environments, providing clean energy to sustain continuous monitoring loops, batch processing operations, and safety interlocks. Control engineers select the SA811F for its advanced internal protection metrics, ensuring that power disruptions do not translate into unplanned system shutdowns or raw data corruption. Its high efficiency and robust thermal architecture guarantee long-term operational stability within central control rooms and remote field enclosures alike.

Internal Power Architecture and Grid Isolation

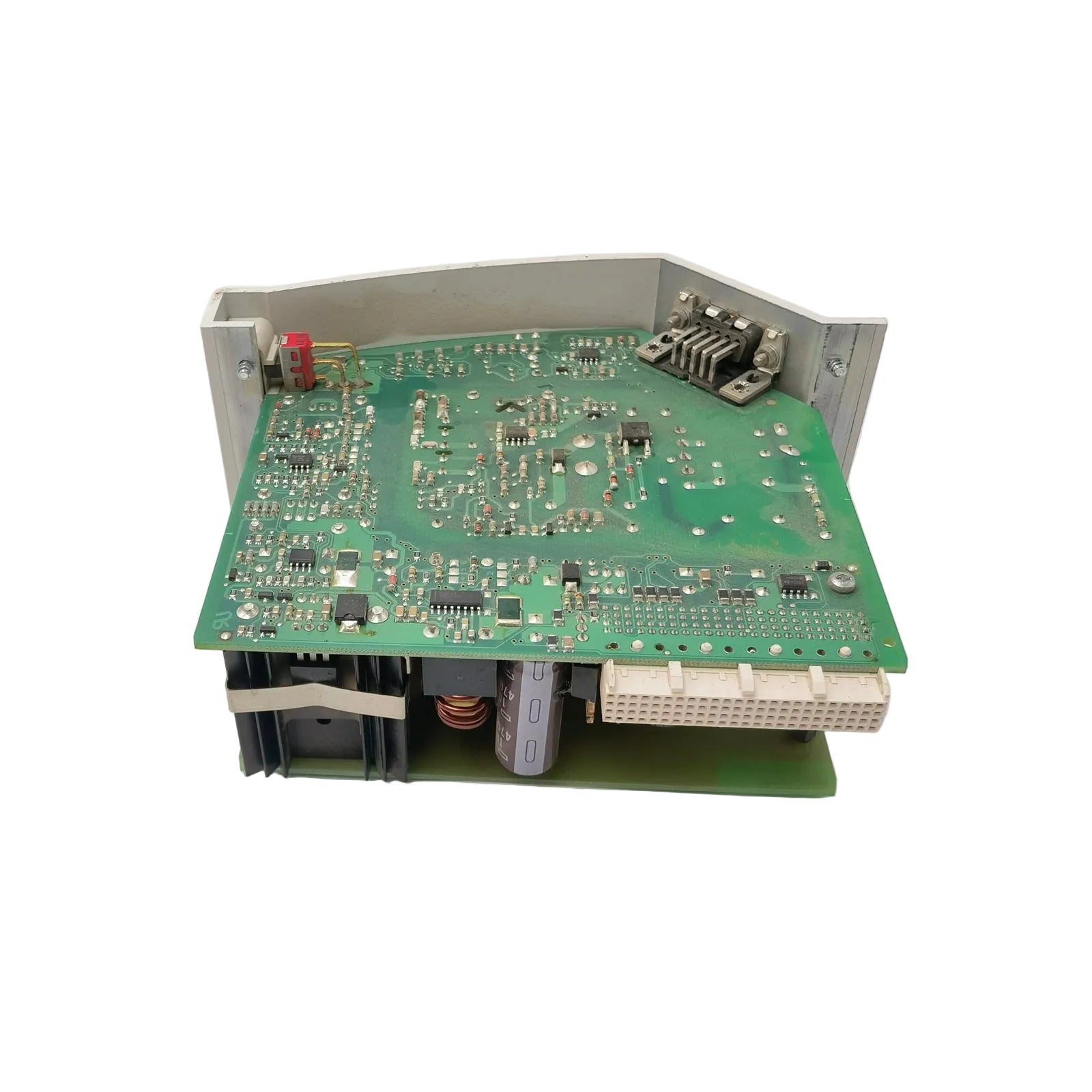

The hardware design of the SA811F relies on an industrial-grade switch-mode power supply topology engineered for extreme reliability. It features a wide-range input stage capable of handling universal nominal voltages without requiring physical jumper adjustments or manual switch configurations. The module incorporates a highly efficient power factor correction (PFC) circuit that reduces harmonic distortions back into the local plant grid while maximizing energy throughput.

To shield the AC800F backplane logic from severe industrial electrical anomalies, the unit utilizes advanced galvanic isolation technologies between the high-voltage input mains and the low-voltage output rails. Integrated overvoltage, overcurrent, and short-circuit monitoring mechanisms continuously supervise the output status. In the event of a field-side power surge or a localized component fault, the internal protection matrix limits the output current instantaneously or initiates a controlled safety shutdown, thereby preventing damage from spreading to adjacent processor or I/O modules on the rack.

Electrical Manifest and Physical Data

The technical table outlines the structural, electrical, and commercial parameters required for engineering integration and global trade documentation.

Cabinet Mounting and Electrical Connection Protocols

Proper physical deployment minimizes thermal stress and prevents voltage drops across the internal distribution rails. Mount the SA811F module horizontally onto standard symmetrical DIN rails inside a well-ventilated enclosure. Maintain a minimum vertical clearance of 40 mm above and below the module housing to establish an unobstructed path for convective airflow, avoiding heat accumulation from nearby components.

Execute all incoming primary mains connections using heavy-gauge, multi-strand copper wire with a minimum cross-section of 1.5 mm². Strip insulation back precisely to the manufacturer's specification to avoid loose strands or high-resistance terminal points. Bond the dedicated earth terminal of the SA811F directly to the main copper grounding plate of the control cabinet using a short, low-impedance conductor. Ensure that the incoming mains line contains appropriate external branch-circuit overcurrent protection, such as a certified industrial circuit breaker, to isolate the module safely during maintenance cycles.

Subsystem Harmonization and Environmental Resilience

The SA811F exhibits excellent structural resilience when deployed in demanding industrial sectors characterized by ambient vibration and broad temperature swings. It operates consistently across a temperature window down to –20°C without requiring supplemental pre-heating elements, making it suitable for unheated field auxiliary rooms or outdoor monitoring stations.

The module plays a vital role in unifying diverse plant assets under a single control hierarchy. By stabilizing the primary power layer of the AC800F controller, it provides a dependable hardware platform that facilitates seamless data exchange between legacy plant systems and high-level enterprise networks. This stable power foundation allows the controller to aggregate critical status values from Honeywell Experion PKS environments or interface directly with specialized turbine supervisory instrumentation (TSI) subsystems, ensuring reliable transmission of interlocking signals and diagnostic data to the central operations center.

Component Allocation and Package Contents

Every logistical fulfillment order dispatched from our facility includes all necessary components for immediate field installation.

The standard factory kit consists of:

(1) One Brand New ABB SA811F 3BDH000013R1 Power Supply Module.

(2) Original factory-printed installation reference guide and wiring map.

(3) Removable terminal blocks pre-fitted into the module sockets.

(4) Certified compliance documentation indicating final QA testing success.

Shipping Architecture and Freight Logistics

Processing Window: Shipments go forward within 2-7 days when payment finish, subject to instantaneous warehouse stock authorization.

We coordinate all global transportation tasks through Tier-1 expedited express lines, including DHL, FedEx, and UPS, guaranteeing predictable and fast arrival at your facility. Our packaging protocol provides maximum mechanical protection for sensitive electronics during long-distance transit. We wrap each SA811F module within a heavy, multi-layered anti-static industrial packaging shell that forms a reliable ESD barrier. The packed module is then cushioned inside thick, impact-rated foam inserts before being sealed into a reinforced, moisture-resistant industrial outer carton to withstand rigorous international distribution paths.

Hardware Diagnostics FAQs

Q1: What does a high in-rush current specification of ≤ 15 A mean for external breaker selection?

A1: The in-rush current represents the temporary peak input current drawn by the module's internal capacitors during the initial power-up sequence. Because this peak lasts only a few milliseconds, it does not trip standard slow-blow circuit breakers. Engineers must specify industrial-grade miniature circuit breakers with Type C or Type D tripping characteristics to prevent nuisance tripping during system startup or power restoration sequences.

Q2: Does the SA811F require manual adjustments to switch between 115 V AC and 230 V AC inputs?

A2: No, the module features an advanced auto-ranging input stage that handles any voltage within the true operational spectrum of 85 V AC to 264 V AC. It automatically adjusts its internal conversion cycles to accommodate the incoming grid voltage without requiring manual toggle switches, jumpers, or software parameter modifications.

Q3: How does the module indicate an internal fault or loss of output voltage to field operators?

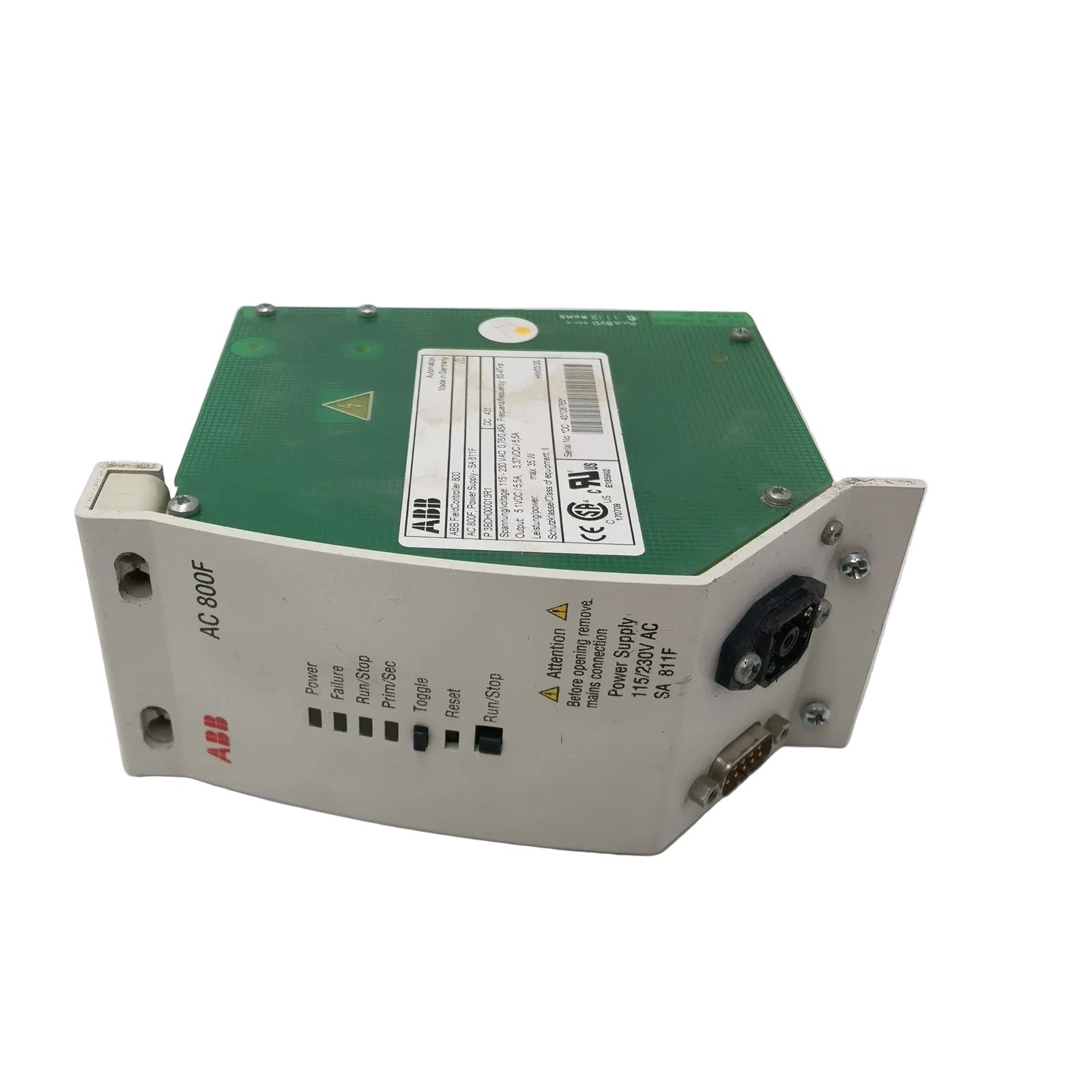

A3: The front panel of the SA811F contains clear diagnostic status LEDs that reveal operational health at a glance. A solid green LED indicates that input power is present and the output stages are delivering stable direct current within specification. If an overvoltage condition, a short-circuit, or a critical thermal overload state occurs, the green light extinguishes or changing states reveal a fault condition, indicating an automated protective shutdown.
