Product Overview

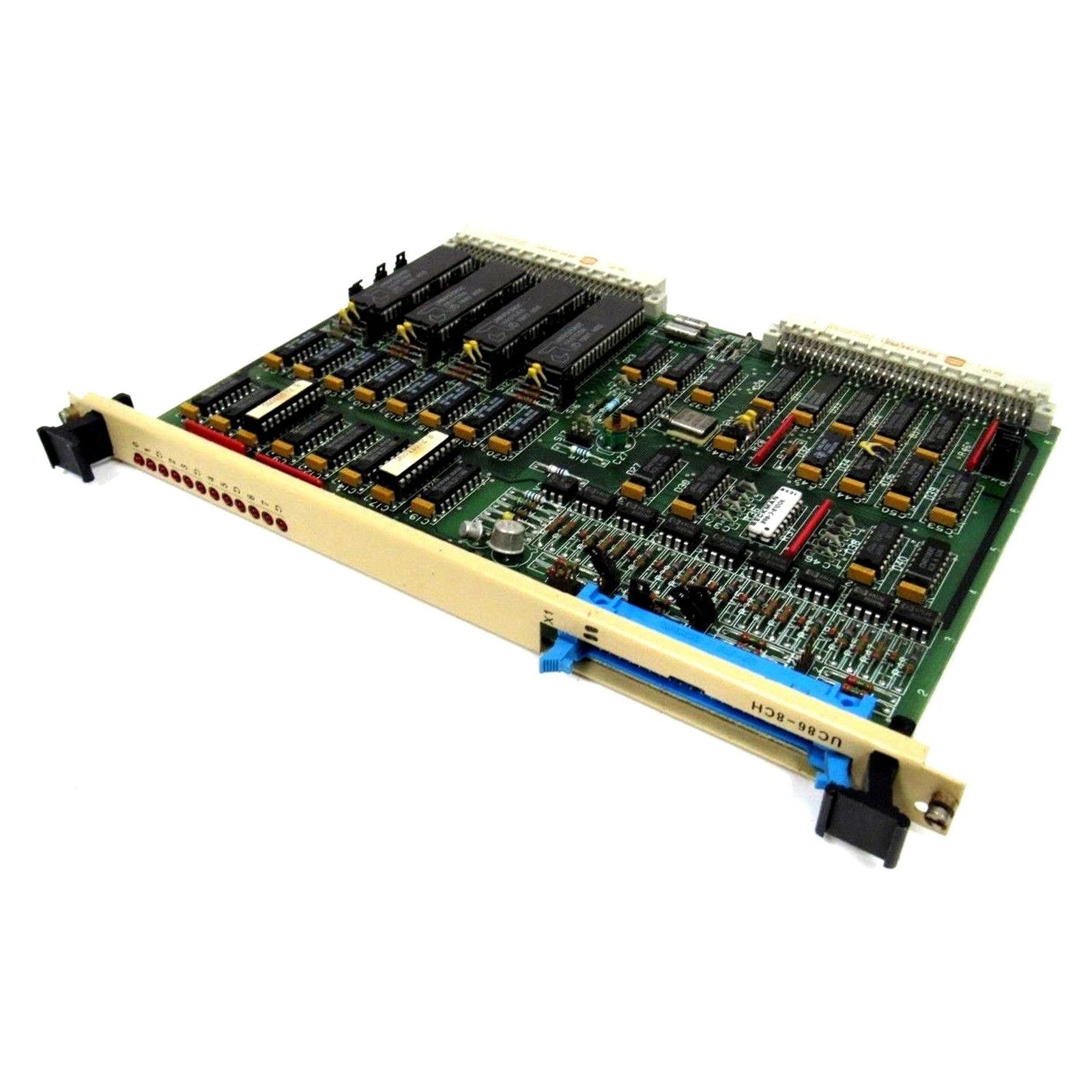

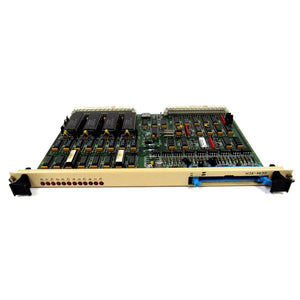

The ABB UC86-8CH 57275871 operates as a high-density, high-speed 8-channel universal counter board tailored for sophisticated industrial drive networks and complex automation setups. This hardware module excels in tracking high-frequency pulse inputs from incremental encoders, flow meters, and positioning sensors, converting raw physical movement into highly precise velocity vectors. It resolves complex positioning demands within continuous rolling mills, heavy paper machines, and critical turbine supervisory instrumentation (TSI) feedback loops. Control engineers select the UC86-8CH for its exceptional processing bandwidth and deterministic performance metrics, which avoid signal clipping during intense machine acceleration phases. By offloading resource-heavy counting tasks from the main drive processor, this dedicated card maintains continuous system loop tracking, reducing latency and securing smooth operational transitions across multi-drive line control clusters.

Dedicated Architecture and System Timing Engines

The underlying hardware platform of the UC86-8CH integrates four independent, high-performance system timing controllers designed to execute concurrent data operations without task bottlenecks. This multi-engine architecture allows each pairs of channels to run advanced logic variations, including frequency measurement, pulse-width determination, and absolute quadrant encoder decoding. Onboard electronic components analyze incoming wave structures instantaneously, applying automatic hardware debouncing to eliminate false triggers caused by mechanical contact vibrations or high-frequency background interference.

To streamline maintenance and secure interconnect stability under physical strain, the card utilizes a specialized latching front connector framework. This physical interface locks external field wiring assemblies tightly to the card substrate, preventing intermittent contact drops in high-vibration engine rooms. A comprehensive row of front-end status LEDs connects directly to the internal sensor bus, offering field technicians real-time, channel-by-channel physical visualization of incoming pulses, error states, and terminal voltage status at a glance.

Processing Matrix and Technical Dimensions

The structured table defines the essential environmental boundaries, physical dimensions, and electrical parameters required for system integration and customs declaration.

Slot Insertion and Wiring Configuration Guide

Proper physical deployment limits stray signal induction and protects the module backplane logic from destructive ground potential differences. Insert the UC86-8CH board vertically into its allocated drive rack controller slot, verifying that the integrated alignment tracks match the card edge guides perfectly before pushing the module home. Engage the latching mechanisms fully to prevent the card from walking out of the backplane socket due to ongoing low-frequency factory vibrations.

Route all high-speed encoder input lines using dedicated, low-attenuation shielded twisted-pair cables with a verified minimum bend radius of 40 mm to protect internal conductors from micro-fractures. Terminate the outer copper shield mesh directly to the system grounding bar located at the bottom entry point of the drive cabinet; do not connect the shield at both ends to avoid generating ground current loops. Ensure that the sensor power supply lines match the rated differential signal thresholds of the UC86-8CH inputs, preventing voltage drops across long field cable runs by using appropriately sized wire gauges.

Network Integration and Severe Environment Durability

The UC86-8CH features robust internal electrical isolation and advanced layer component selection, enabling it to survive in demanding process environments characterized by thermal spikes and electromagnetic field pollution. The circuit board incorporates localized metal shielding over its high-speed counting chips, blocking induced radio frequency interference (RFI) produced by neighboring high-power IGBT inverter switches and variable frequency drives.

This universal counter board offers excellent integration capabilities, allowing legacy and current-generation drive controllers to synchronize data smoothly with overarching plant distributed control systems. By processing speed data directly at the drive layer, it passes high-integrity velocity values to central Honeywell Experion PKS arrays or turbine supervisory instrumentation (TSI) setups. This direct communication path bypasses slow intermediate converters, feeding critical overspeed and diagnostic feedback metrics straight to safety interlocking stations to protect capital equipment.

Logistics Procurement Kit and Components

Every industrial components package processed through our distribution network contains a complete assembly for immediate installation.

The shipment package comprises the following elements:

(1) One Brand New ABB UC86-8CH 57275871 8-Channel Counter Board.

(2) Heavy-duty latching front terminal block connector shell.

(3) Factory-certified quality control checkout and calibration certificate.

(4) Hard-copy technical pinning blueprint and terminal jumper diagram sheet.

Expedited Freight Management and Protective Control

Logistical Processing Window: All orders move forward within 2-7 days when payment finish, contingent upon immediate warehouse inventory verification checks.

We distribute all high-value industrial automation spares globally using premium air carriers, including DHL, FedEx, and UPS expedited tracking services to secure timely delivery. Because high-speed CMOS counting chips are highly sensitive to electrostatic voltage surges, our packaging technicians follow strict ESD mitigation procedures. We seal each UC86-8CH card inside an airtight, multi-layer anti-static industrial packaging pouch injected with a low-moisture nitrogen purge. The wrapped card is placed inside customized shock-absorbing foam inserts and housed within a thick, moisture-resistant rigid outer cardboard container to withstand rough handling during international transit routes.

Control System Diagnostic FAQs

Q1: What is the primary function of the four system timing controllers embedded on the UC86-8CH?

A1: The four system timing controllers act as dedicated hardware co-processors. They manage the high-frequency input counting routines independently across the 8 channels, executing tasks like time-stamping, pulse-period measurement, and frequency calculations without using the primary drive CPU's cycles. This parallel processing architecture guarantees zero dropped pulses, even when multiple channels run at maximum input frequency concurrently.

Q2: How do the front-end status LEDs assist technicians during a field commissioning fault?

A2: The front-end status LEDs provide immediate, physical visualization of the input signal states without requiring an active software connection. The flashing rate of individual LEDs correlates directly with the incoming pulse frequency from the field sensors. A dark LED reveals a total loss of sensor signal or broken field wiring, while a solid red indicator points to an internal channel overvoltage fault, allowing maintenance teams to pinpoint issues quickly.

Q3: Does the latching front connector support hot-swapping of the sensor wiring bundle?

A3: The latching front connector allows for rapid physical removal of the wiring arm for maintenance, but the parent drive chassis must be powered down before disconnecting or swapping the module. Removing the connector while the board is live can generate inductive spikes across the terminal contacts, risking permanent damage to the input isolation barriers and causing diagnostic fault traps within the drive controller software.
