Product Overview

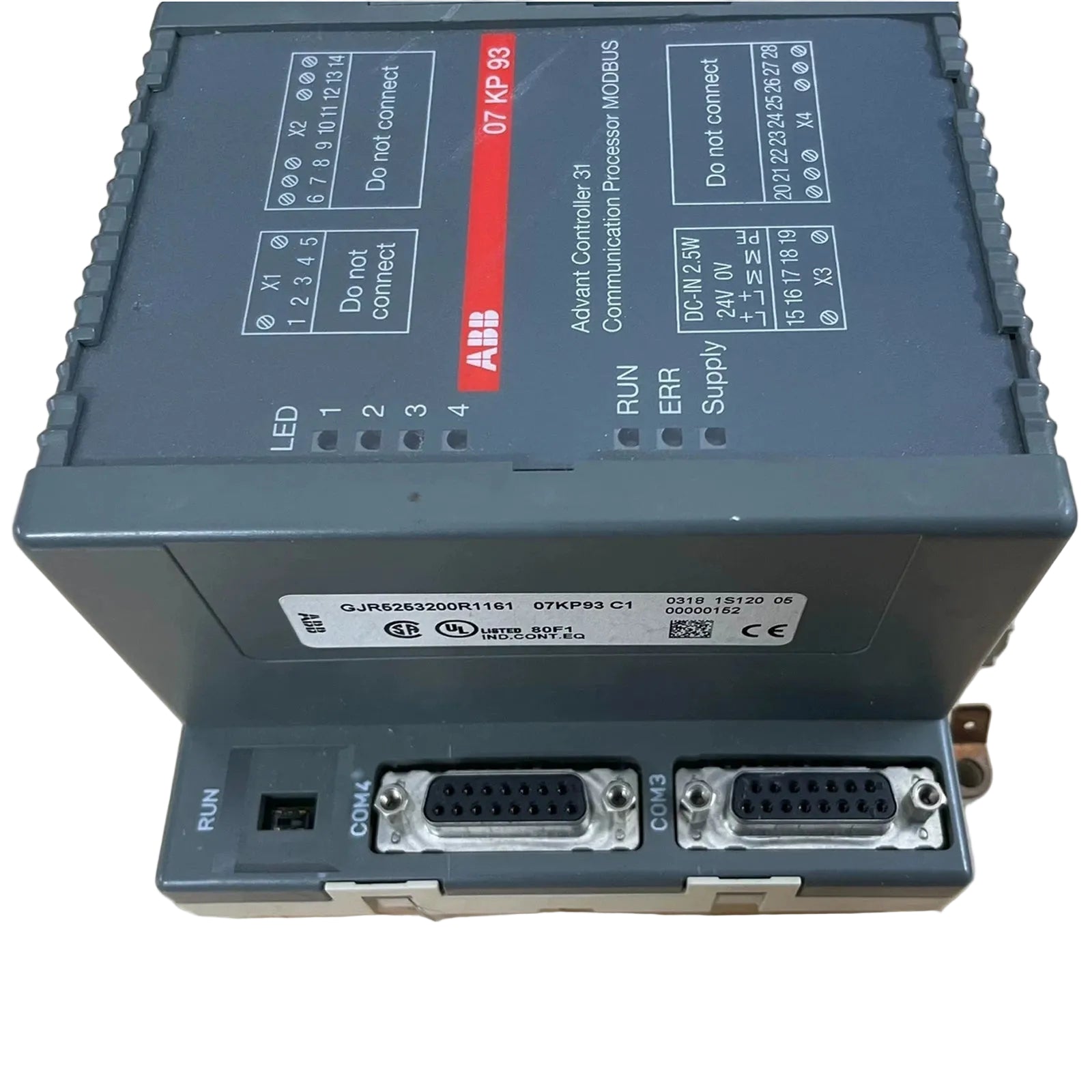

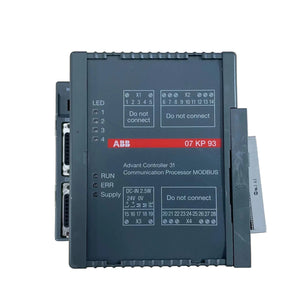

The ABB AC31 07KP93 GJR5253200R1161 functions as a dedicated Modbus communication processor designed for the legacy Advant Controller AC31 series ecosystem. Although discontinued by the original manufacturer, this essential interface module remains crucial for sustaining critical infrastructure, factory automation systems, and continuous process plants worldwide. It establishes deterministic, bidirectional communication channels between master control units and diverse field-level devices like motor drives, smart instrumentation clusters, and power meters. By handling complex protocol serialization, the 07KP93 isolates the central processing unit from heavy communication handling overhead. Industrial facilities rely on this robust processor to maintain reliable network operations, bridge modern SCADA nodes with legacy hardware layers, and ensure seamless data exchange across extensive manufacturing topologies without requiring complete system retrofits.

Micro-Architecture and Protocol Mechanics

The core hardware layout of the 07KP93 focuses on a high-reliability communication sub-processor engineered to manage industrial Modbus RTU and ASCII protocols. It features independent serial transmission circuitry that handles baud rates up to 19.2 kbps seamlessly. Onboard buffer memory storage retains transmission frames temporarily, preventing message collisions or data truncation during peak communication cycles on the master bus.

The hardware architecture incorporates continuous parity validation and cyclic redundancy checking (CRC) logic to maintain high data integrity. It addresses the precise scheduling demands of distributed control networks by executing rapid query-response loops. Dual isolation barriers guard the internal logic components, completely decoupling the sensitive backplane bus from external serial line transients, voltage surges, and common-mode noise generated by neighboring high-power industrial equipment.

Network Interface and Structural Parameters

The data table contains the verified physical properties, environmental thresholds, and custom tariff classifications required for international engineering integration and supply chain planning.

Bus Integration and Field Shielding Protocols

Proper physical layout ensures clean serial communication and minimizes packet retransmissions over long network segments. Snap the 07KP93 processor firmly onto standard DIN rails alongside the main AC31 processor base unit, verifying that the integrated backplane connection pins lock securely into the bus socket. Allow a minimal clearance window of 25 mm around the housing perimeter to guarantee adequate thermal dissipation through natural convection.

When setting up RS-485 network legs, connect standard 120-ohm matching termination resistors across the signal lines at both extreme ends of the network trunk to prevent signal reflections. Route all serial communication wiring through dedicated shielded twisted-pair cables, keeping lines a minimum of 300 mm away from high-power AC motor drives and distribution lines. Connect the outer cable shield braid to the central cabinet common earth plate at a single point to prevent ground loops from passing noise into the receiver chips.

Automation Synthesis and Environmental Survival

The 07KP93 provides exceptional environmental resilience inside demanding manufacturing facilities exposed to localized thermal fluctuations and heavy machinery vibrations. Its hardened plastic enclosure and specialized component layout shrug off industrial electromagnetic fields, maintaining strict timing cycles during heavy data queries.

This communication interface enables comprehensive network consolidation across hybrid automation topologies. By acting as a robust protocol translator, it links legacy AC31 setups directly into higher-level supervisory architectures. This enables seamless integration with modern distributed control networks, including Honeywell Experion PKS platforms or specialized turbine supervisory instrumentation (TSI) setups. By translating specialized register arrays into standard Modbus formats, the 07KP93 supplies real-time operational status, diagnostic faults, and variable trends directly to central control rooms.

Component Allocation and Procurement Package

Every hard-to-find legacy part supplied through our automated logistics network includes a full set of basic components.

The complete standard package contains:

(1) One Brand New ABB AC31 07KP93 GJR5253200R1161 Communication Processor.

(2) Original protective terminal socket dust plug protectors.

(3) Factory reference sheet specifying pin-out configurations and port jumpers.

(4) Quality assurance tracking slip confirming final hardware inspection.

Air Freight Management and Industrial Packaging

Shipping Cycle Timeline: All packages leave our fulfillment facility within 2-7 days when payment finish, subject to instantaneous stock allocation validation.

We coordinate international transport via premium air freight carriers, prioritizing DHL, FedEx, and UPS tracking channels to ensure rapid, dependable arrival at your site. To safeguard the vintage microcontrollers within the 07KP93 from destructive static discharge, we handle all modules under strict ESD protection controls. We seal each processor inside a specialized anti-static, moisture-barrier industrial packaging shell accompanied by a dedicated desiccant pouch. The sealed card sits nested within custom-cut, shock-absorbing foam inserts inside a heavy-duty, double-walled rigid industrial carton to eliminate transit impact risks completely.

Communication Interface Diagnostics FAQs

Q1: How can a technician configure the 07KP93 port for an RS-485 multi-drop network rather than an RS-232 link?

A1: Determining the interface standard requires adjusting specific physical jumpers located under the removable front cover plate of the module, alongside proper terminal wire connections. The terminal wiring alignment changes based on whether you need a 2-wire or 4-wire configuration. Technicians must check the pin-out layout sheet before power-up to confirm the internal settings match the field wiring configuration.

Q2: Does this module require specialized software code downloads during a direct hardware replacement?

A2: The 07KP93 operates primarily as a slave or master protocol handler whose network parameters (such as baud rate, station address, and parity) are initialized directly by the application program running inside the primary AC31 CPU via configuration data blocks. When replacing a damaged board, you can perform a direct physical swap; the main controller will automatically push the correct operational profile down across the backplane bus upon system boot.

Q3: What diagnostic steps should be executed if the 07KP93 stops responding and communication timeouts occur?

A3: First, inspect the front-facing diagnostic status LEDs to verify the module's power state and detect internal hardware faults. If the power LED shows normal status but data transmission is frozen, verify the integrity of the external 120-ohm line termination resistors and measure for common-mode ground potential variations between nodes using a digital multimeter. Finally, verify that the master software query interval accommodates the module's processing cycle time under heavy traffic loads.
