Product Overview

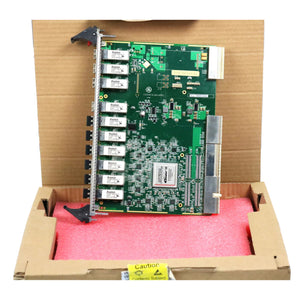

The General Electric IS200CSLAH1A is a high-speed communication interface and I/O expansion board specifically engineered for the EX2100e Excitation Control subseries of the Mark VIe platform. This Compact PCI (cPCI) module serves as a critical bridge between the UCSB controller and peripheral I/O hardware. By utilizing High-Speed Serial Link (HSSL) technology, the IS200CSLAH1A facilitates the rapid transfer of digitized field data and control commands, ensuring that the excitation system responds with the sub-millisecond precision required for modern grid stability. Its architecture is designed to handle high-bandwidth data streams, making it an essential component for complex excitation configurations that require extensive I/O point counts.

Hardware Parameters and Interface Specifications

The IS200CSLAH1A is defined by its multi-port serial connectivity and its seamless integration into the cPCI backplane of the Mark VIe control rack.

• Manufacturer General Electric (GE)

• Model Number IS200CSLAH1A

• Control Architecture Mark VIe / EX2100e Excitation

• Module Function I/O Expansion and HSSL Communication

• Interface Ports 10 High-Speed Serial Link (HSSL) Ports

• Controller Compatibility Optimized for use with UCSB Controller modules

• Form Factor Compact PCI (cPCI) Serial Link Board

• Documentation Reference GEI-100788 User Manual

• Physical Mass 0.98 kg

• Module Dimensions 23 x 25 x 3 cm

• Signal Integrity Enhanced electromagnetic shielding for high-speed data transmission

Industrial Applications and Operational Use Cases

This Serial Link Board is a fundamental element in the distributed control architecture of large-scale power generation assets.

• High-Speed I/O Distribution Expanding the capabilities of a single UCSB controller by linking it to multiple I/O racks via 10 dedicated HSSL channels.

• Excitation Control Synchronization Facilitating real-time data exchange between the main processor and the bridge interface boards to maintain precise generator terminal voltage.

• TMR Configuration Support Providing the reliable communication backbone needed for Triple Modular Redundant (TMR) systems to synchronize state data across control cores.

• Utility-Scale Generator Management Employed in thermal, gas, and hydroelectric plants where the EX2100e system must manage complex feedback loops and protective functions.

• Remote I/O Interfacing Allowing for the placement of I/O termination closer to the field devices while maintaining a high-speed digital link to the central control rack.

By implementing the IS200CSLAH1A expansion board, operators can scale their EX2100e systems to meet the demands of advanced power conversion and sophisticated turbine-generator protection logic.
