Product Overview

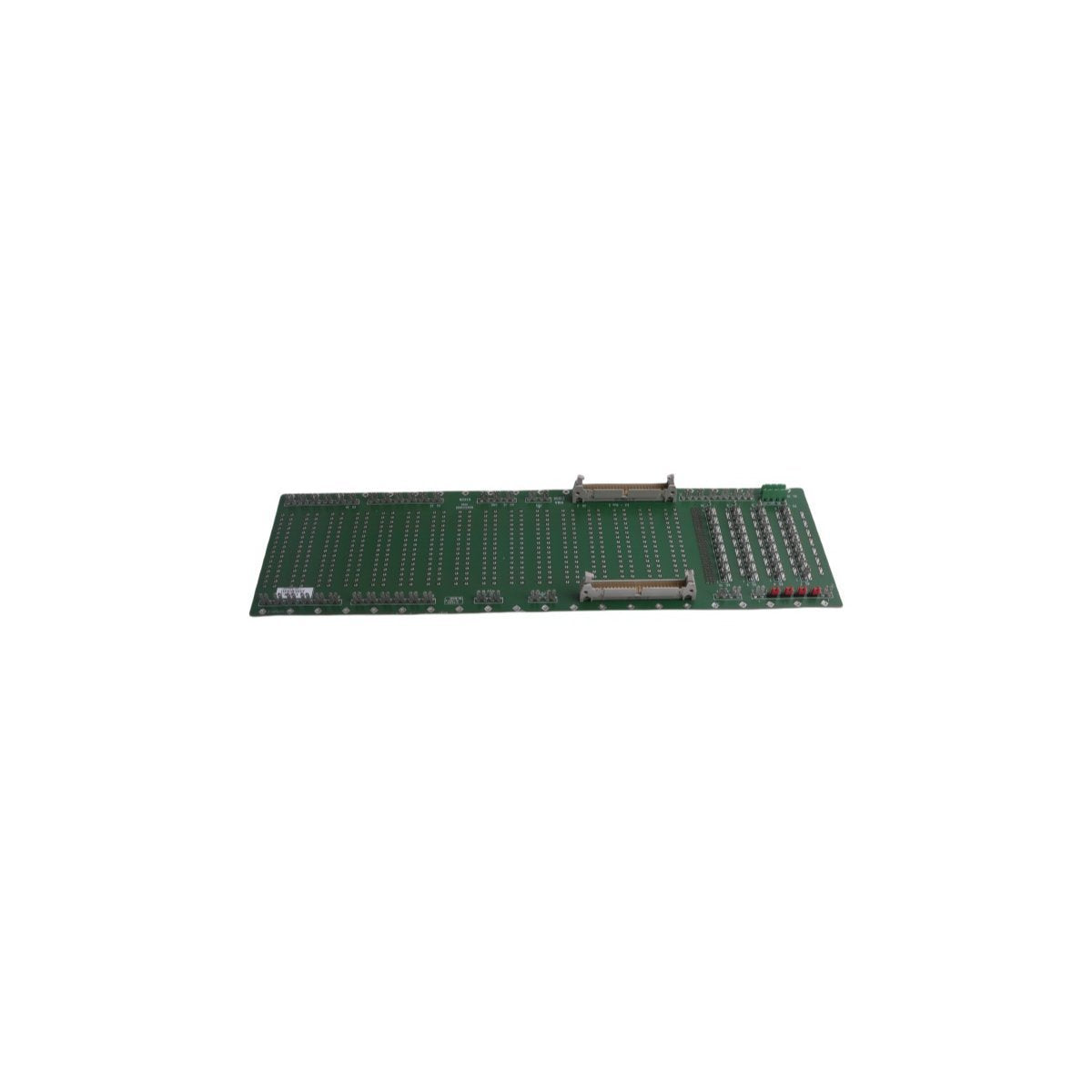

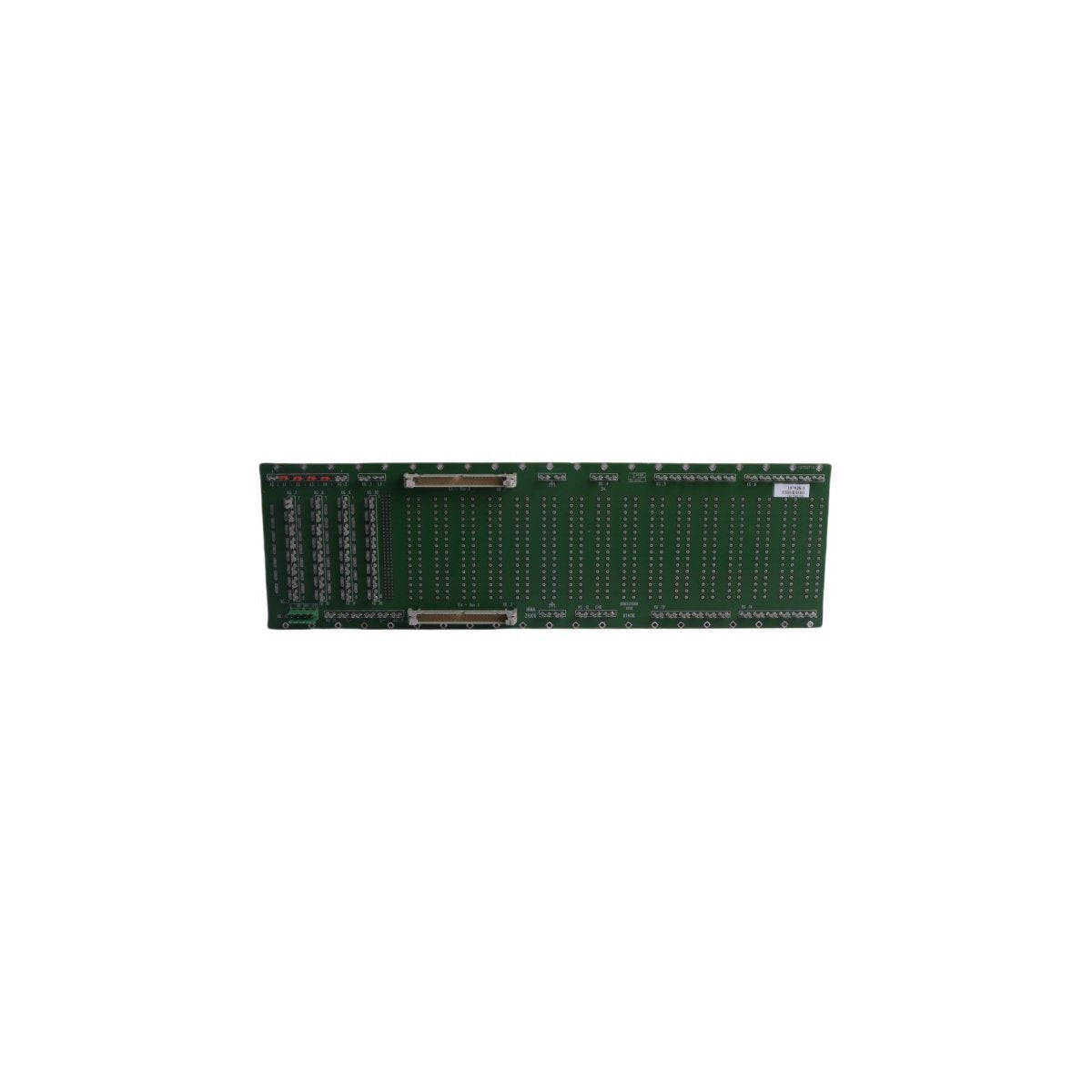

The HIMA Z1006 is a high-performance redundant cable plug and input interface module specifically developed for the HIQuad X safety system. This robust component serves as a critical connection point, ensuring that signal transmission between field devices and the safety controller remains uninterrupted. Engineered for mission-critical Safety Instrumented Systems (SIS), the Z1006 facilitates a dual-path wiring architecture. This redundancy is vital for preventing system trips caused by cable damage or connector failure, allowing for continuous process monitoring in high-stakes industrial environments.

Designed to meet the most stringent durability requirements, the Z1006 is housed in high-grade stainless steel. This material choice provides the mechanical strength and corrosion resistance necessary for long-term deployment in volatile settings such as offshore platforms, chemical refineries, and heavy manufacturing plants.

Technical Characteristics

• System Compatibility: HIMA HIQuad X Safety Platform

• Redundancy Type: Dual-channel connection path with automatic failover support

• Environmental Rating: IP67 (Dust-tight and protected against temporary immersion)

• Chassis Material: Industrial-grade stainless steel for maximum durability

• Operating Temperature: Ultra-wide range from -40°C to +85°C

• Electrical Capacity: Supports ratings up to 24 VDC and 2 A

• Compliance: Certified to CE, UL, and CSA international safety standards

• Maintenance Profile: Designed for long-term, maintenance-free operation

• Dimensions: 43 x 12.8 x 4.0 cm

• Weight: 0.7 kg

• Manufacturing Origin: Germany

Industrial Resilience and Connectivity

The Z1006 Input Module stands out due to its superior environmental sealing. With an IP67 rating, it is effectively shielded against fine dust ingress and moisture, making it suitable for outdoor installations or areas subject to heavy wash-downs. The module’s ability to function reliably at -40°C ensures that it can be deployed in arctic climates or cold-storage applications, while its +85°C upper limit handles the intense heat of industrial process zones.

From a functional standpoint, the redundant cable plug logic is transparent to the user but critical for the system’s safety integrity. If the primary signal path is compromised, the Z1006 ensures an instantaneous transition to the secondary path, preserving the safety loop's integrity without manual intervention. This hardware-based fail-safe mechanism reduces the probability of failure on demand (PFD) and supports the facility's compliance with SIL-rated safety protocols.
