Product Overview

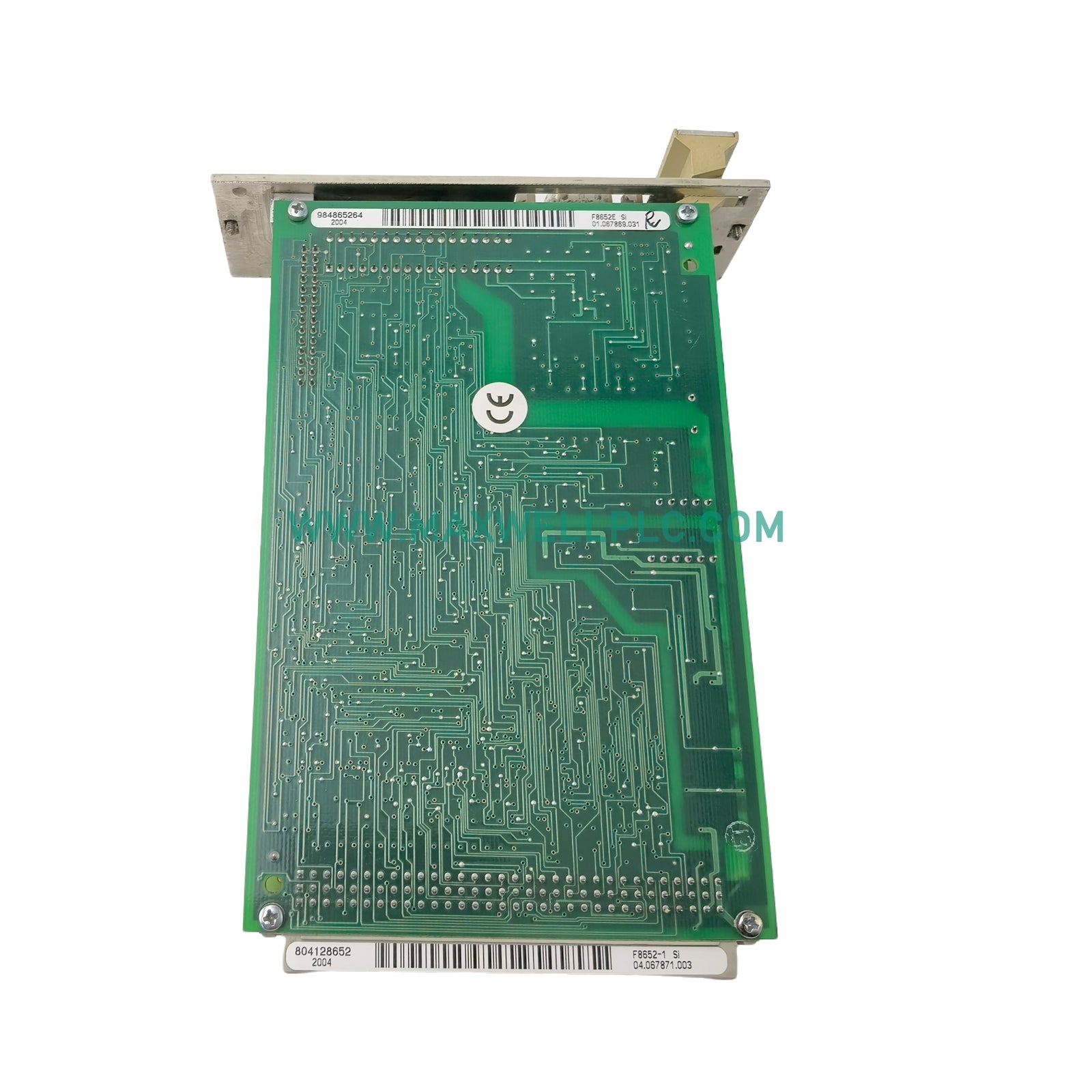

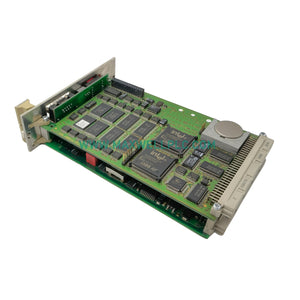

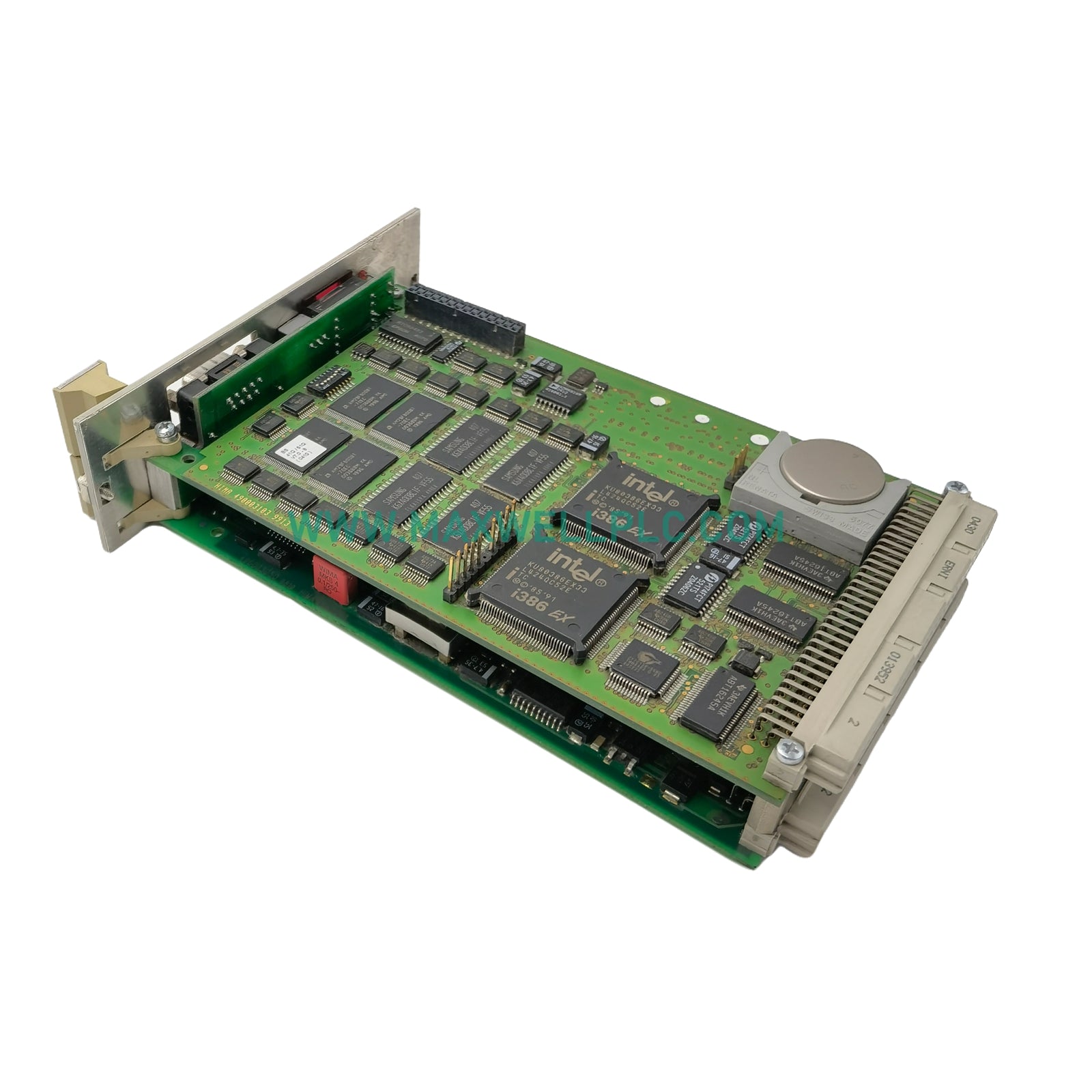

The F8652E serves as the high-speed computational core of the HIMA safety-related automation family, specifically engineered for mission-critical industrial deployments. This central module is TÜV-certified for SIL 3 applications (IEC 61508), providing the deterministic logic execution required for advanced Safety Instrumented Functions (SIF). Built on a secure Linux-based real-time operating system, the F8652E utilizes a dual-channel architecture to ensure fail-safe performance and high system availability. It is designed to process complex safety algorithms with millisecond latency, making it a vital component for large-scale Distributed Control System (DCS) environments where high-integrity protection is non-negotiable.

Key Technical Characteristics and Hardware Parameters

The HIMA F8652E is equipped with enterprise-grade processing power and extensive memory resources to handle dense I/O configurations and comprehensive event logging.

• Processor: 1.2 GHz Dual-Core high-speed safety-specific CPU

• Volatile Memory: 4 GB DDR4 RAM for rapid logic execution

• Storage: 64 GB internal SSD for non-volatile logic storage and SOE (Sequence of Events) logging

• Safety Integrity: SIL 3 certified (IEC 61508) and PL e compliant

• Architecture: Redundant dual-channel internal safety bus

• Interface Suite: Quad-connectivity featuring Ethernet, RS-232, RS-485, and USB

• I/O Capacity: Scalable management for up to 128 physical I/O points

• Operating System: Secure, hardened Linux-based safety RTOS

• Availability Features: Support for hot-swapping and redundant power supply monitoring

• Mechanical Specifications: 2.5 cm x 12.7 cm x 20.3 cm

• Mass: 0.1 kg

• Origin: Made in Germany

Industrial Applications and Operational Use Cases

The F8652E is a versatile logic solver capable of managing diverse safety requirements across the energy and processing sectors.

• Emergency Shutdown (ESD): Acting as the primary logic solver for plant-wide ESD networks in offshore oil platforms and chemical refineries.

• Burner Management Systems (BMS): Providing the safety-critical timing and sequencing required for large-scale industrial boiler and furnace control.

• High Integrity Pressure Protection Systems (HIPPS): Executing high-speed isolation logic to prevent over-pressurization of downstream pipelines, potentially replacing mechanical relief valves.

• Fire and Gas (F&G) Systems: Integrating flame, heat, and gas detection sensors into a centralized safety response network.

• Secure Gateway Communications: Utilizing its quad-interface ports to act as a secure, unidirectional or bidirectional bridge between the safety system and the supervisory DCS/SCADA layer.
