Product Overview

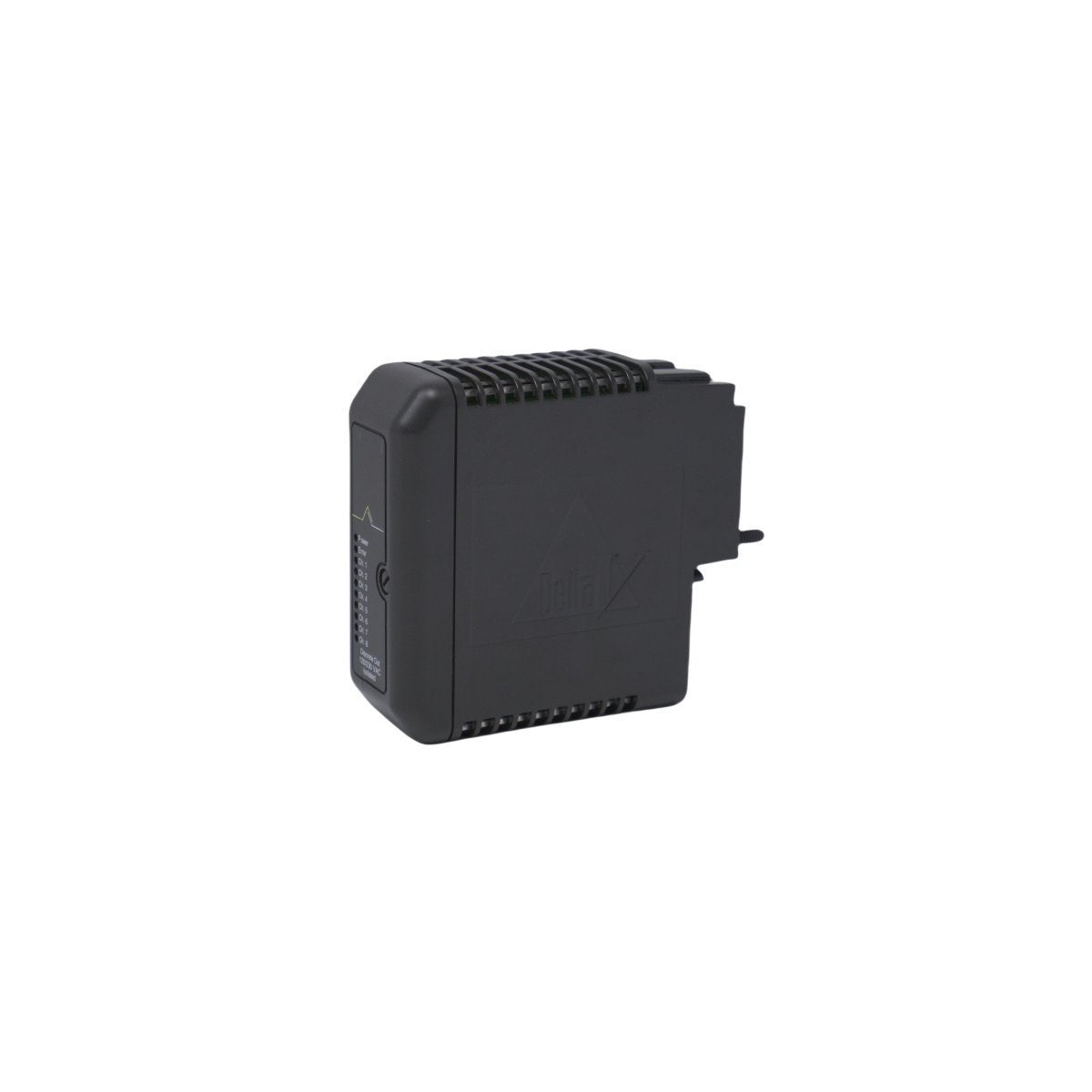

The KJ3001X1-BH1 (Part Number 12P0558X152) is a specialized Isolated Card engineered for the Emerson DeltaV SIS™ (Safety Instrumented System) process safety environment. This module serves as a critical interface layer, providing high-integrity electrical isolation between field instrumentation and the logic solver. By establishing a robust galvanic barrier, it effectively eliminates ground loops and mitigates the impact of electromagnetic interference (EMI) on signal pathways.

Designed for high-reliability industrial applications, this card ensures that transient voltage spikes and signal noise do not compromise the safety functions of the DCS (Distributed Control System). Its architecture supports stable communication and precise data acquisition from sensors and actuators, maintaining the operational continuity of safety-critical loops even in electrically "noisy" or harsh manufacturing environments.

Technical Specifications

• Manufacturer: Emerson

• Series: DeltaV SIS™ Process Safety System

• Model Identification: KJ3001X1-BH1

• Order Number: 12P0558X152

• Function: Signal Isolation and Conditioning

• System Compatibility: DeltaV DCS / SIS Architectures

• Communication Protocol: Ethernet-based integration via local bus

• Physical Dimensions: 4.1 cm x 12.5 cm x 10.4 cm

• Weight: 0.22 kg

• Origin: USA

• Customs Code (HS CODE): 8537101190

Key Operational Characteristics

• Signal Integrity Protection: Prevents cross-talk and signal degradation by isolating input and output circuits, ensuring that safety-related data remains accurate and repeatable.

• System Scalability: Engineered for seamless hot-swappable integration into DeltaV carrier backplanes, allowing for easy expansion of the safety system without interrupting existing processes.

• Industrial Durability: Built to meet the rigorous demands of safety instrumented functions (SIF), with components selected for long-term stability and resistance to thermal stress.

• Safety Compliance: Specifically developed for use within the DeltaV SIS™ framework, adhering to international safety standards for process industry protection.
