Product Overview

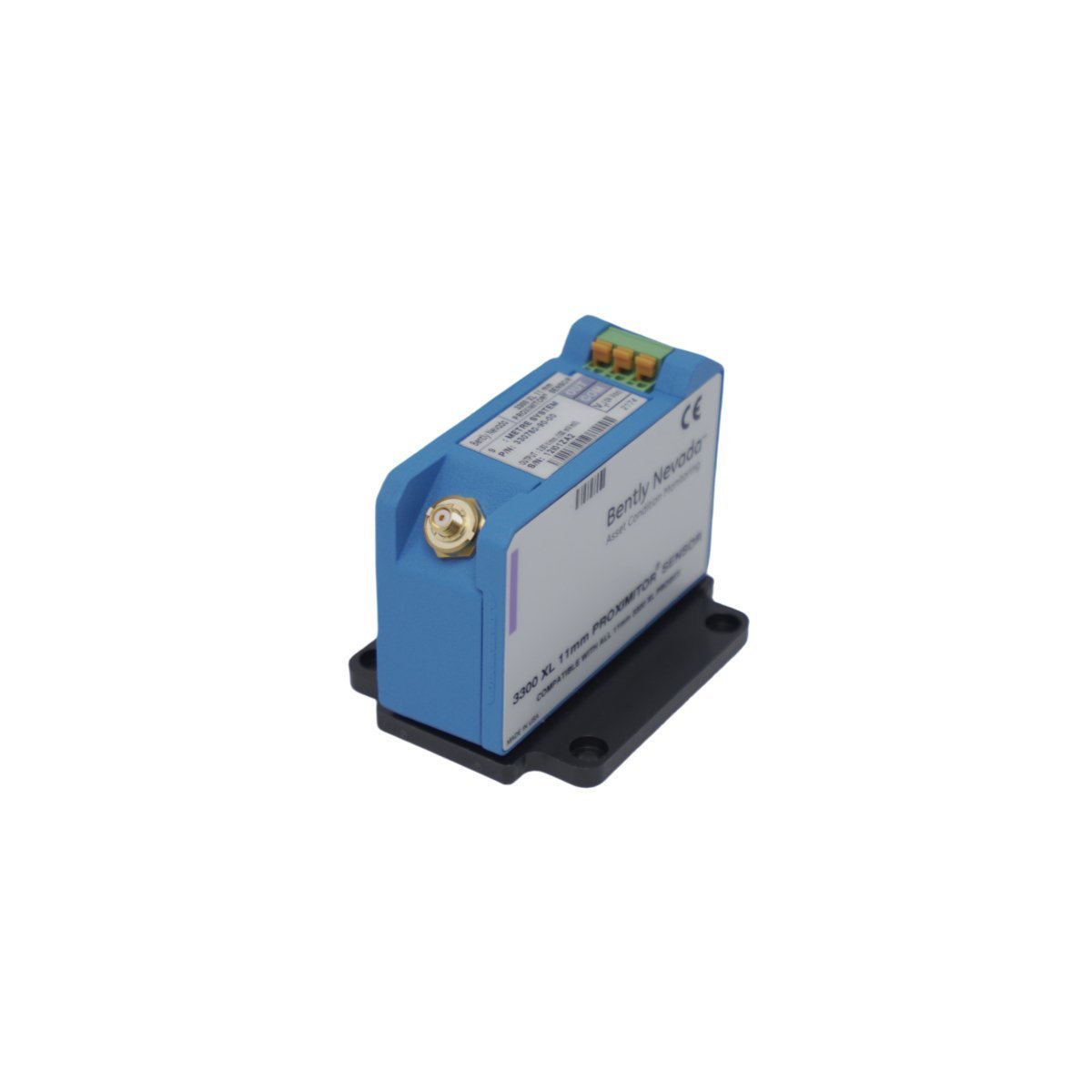

The 330780-90-00 is a high-fidelity signal conditioning module designed for the Bently Nevada 3300 XL 11 mm Proximity Transducer System. This Proximitor sensor acts as the primary interface between non-contacting displacement probes and machinery protection systems. It is specifically engineered for applications requiring a larger linear measurement range than standard 8 mm systems, such as tracking axial thrust position on large steam turbines or radial vibration on massive hydroelectric generators. Calibrated for a 9.0-meter total system length, this unit ensures accurate displacement data transmission even when the monitoring electronics are located far from the machine train.

Technical Performance and Signal Processing

The 330780-90-00 delivers precise diagnostic capabilities for Turbine Supervisory Instrumentation (TSI):

• Extended Linear Range: Provides a 4.0 mm (160 mil) linear measurement window, facilitating the monitoring of significant shaft thermal expansion and thrust movement.

• Scale Factor: Delivers an average scale factor of 3.94 V/mm (100 mV/mil) for consistent signal resolution.

• System Calibration: Factory-configured for 9.0-meter (29.5 ft) loop lengths, ensuring verified accuracy when integrated with matching 9m probes and cables.

• Electrical Stability: The output signal remains highly stable (less than 2 mV change per volt of input) despite fluctuations in the DC power supply.

• Input Power: Compatible with standard -24 Vdc power configurations (-17.5 Vdc to -26 Vdc range).

• RFI/EMI Shielding: Advanced circuitry provides superior resistance to electromagnetic interference, meeting European CE mark requirements without specialized shielded enclosures.

Mechanical Integrity and Installation Design

Engineered to survive the rigorous conditions of power plants and industrial process facilities, the sensor features:

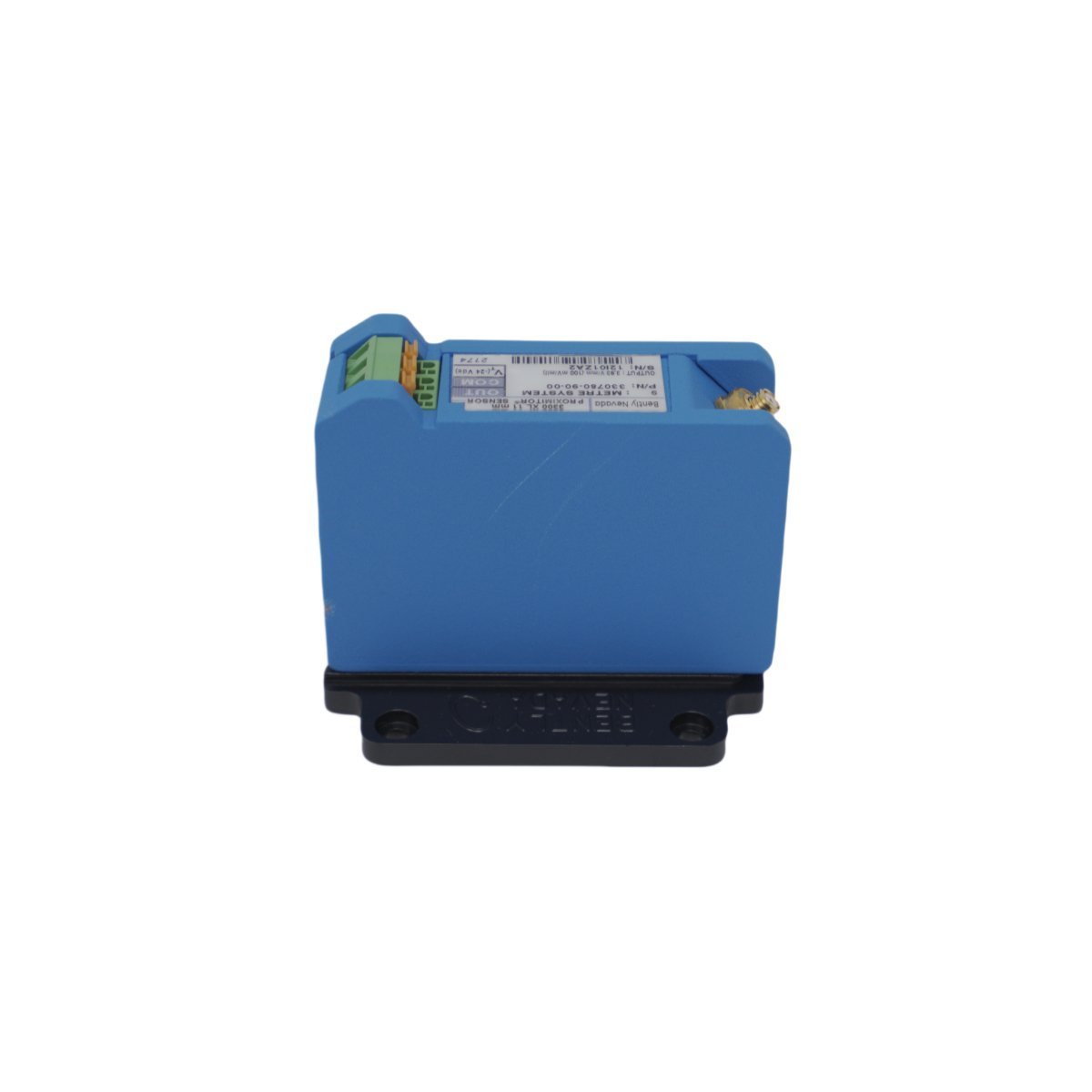

• High-Density Mounting: A compact, thin-profile housing allows for efficient 35 mm DIN-rail installation or traditional bulkhead mounting via a 4-hole footprint.

• SpringLoc Terminals: Equipped with tool-free, vibration-resistant terminal strips that ensure secure field wiring and prevent loosening caused by mechanical harmonics.

• Integrated Isolation: The mounting base is designed to provide inherent electrical isolation, removing the need for separate isolator plates and simplifying the installation process.

• Gold-Plated Connectors: Coaxial connections are gold-plated to maintain a low-impedance, corrosion-resistant path for the critical RF signal coming from the probe.

Industrial Asset Protection

The 11 mm 330780-90-00 Proximitor is a vital component for monitoring high-capital rotating equipment:

• Steam and Gas Turbines: Vital for axial displacement measurements where large rotor movement must be tracked accurately to prevent catastrophic stator contact.

• Hydroelectric Units: Ideal for monitoring shaft centerline motion and radial vibration on large-diameter vertical or horizontal units.

• Condition Monitoring Systems: Interfaces directly with Bently Nevada 3500 Series racks and System 1 software for real-time machinery health analytics.

• Legacy Modernization: Directly replaces older 7200-series 11 mm and 14 mm transducer systems with improved reliability and noise immunity.
