Product Overview

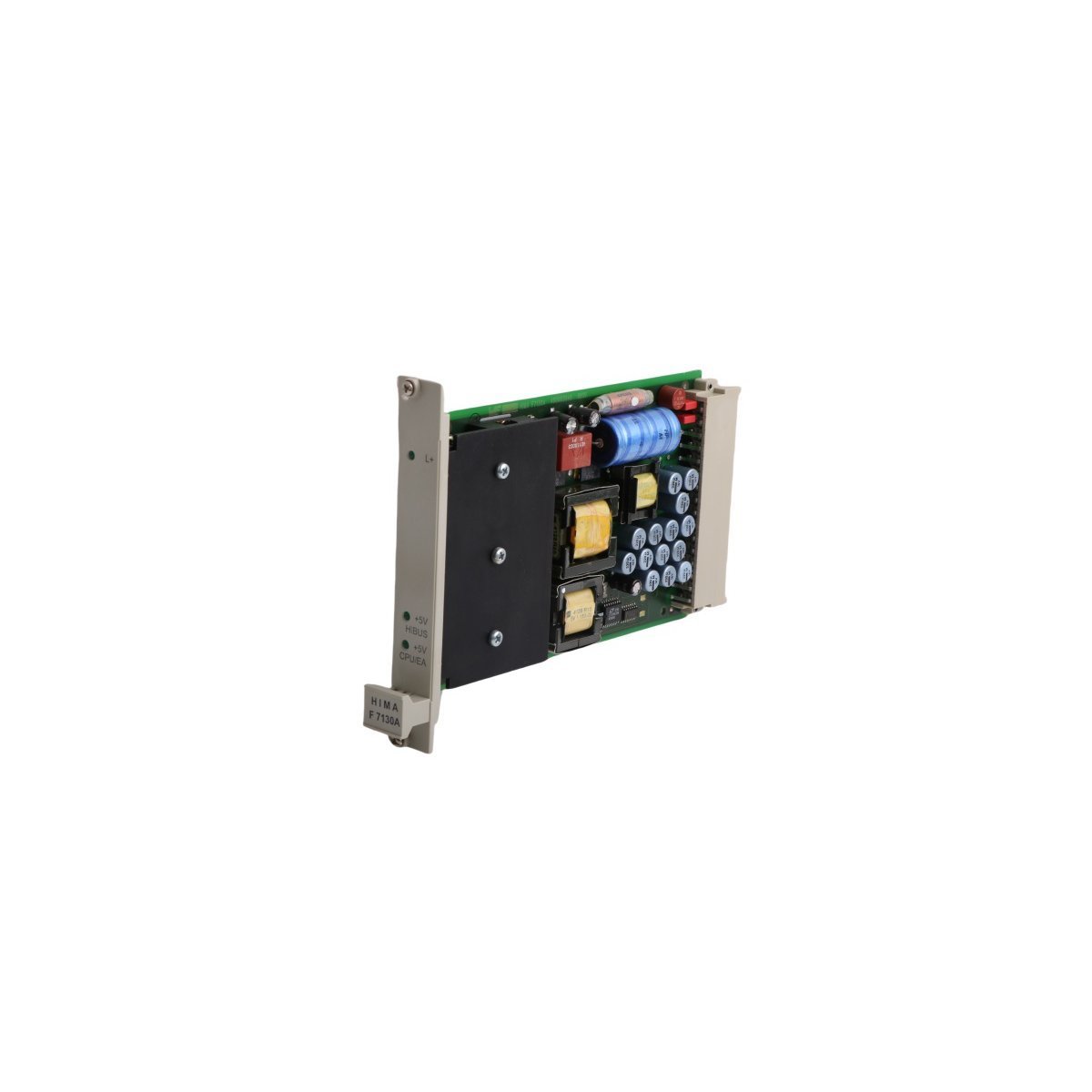

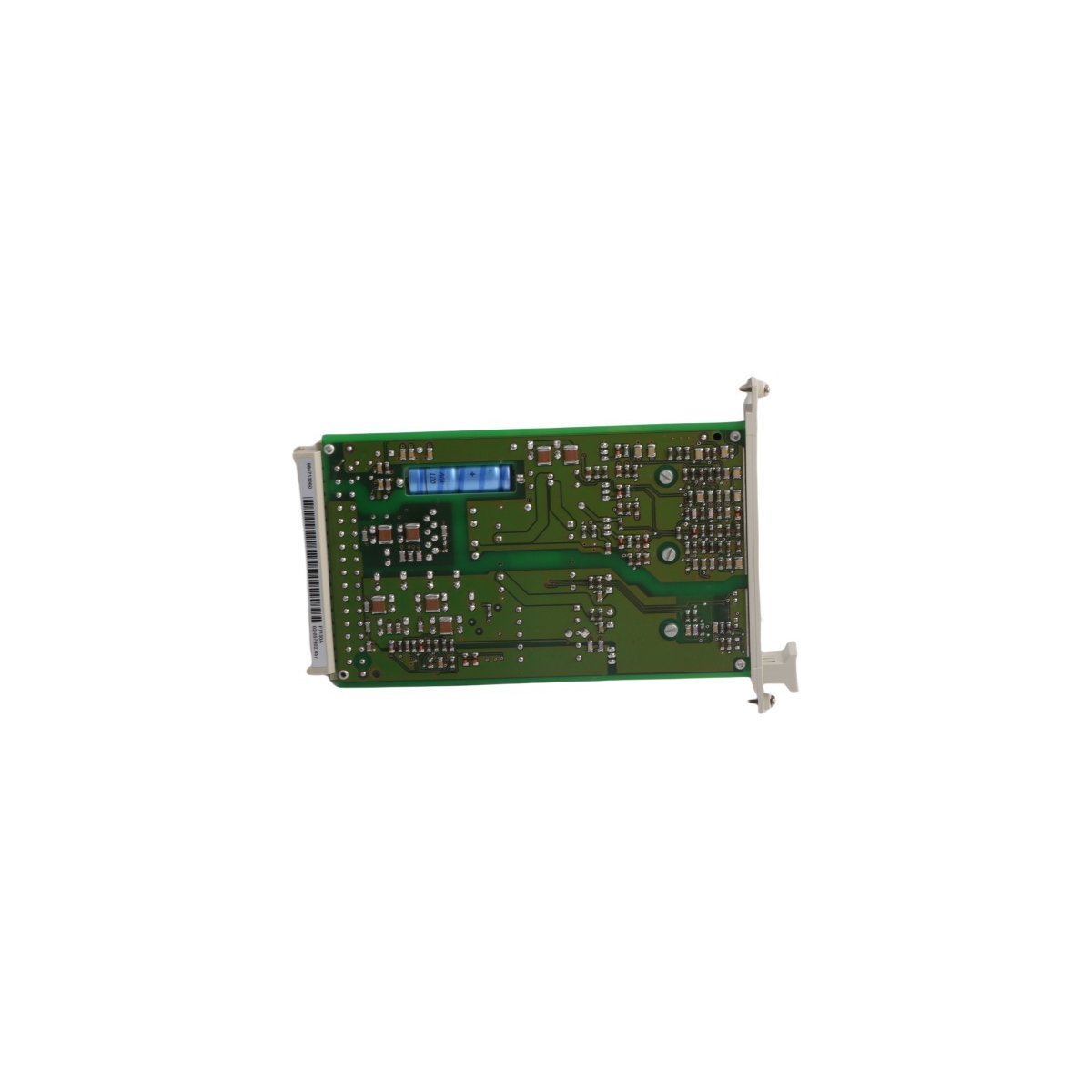

The HIMA F7130A is a high-performance power supply card engineered specifically for the H41q and H51q safety-related automation systems. This module serves as a critical power distribution component, ensuring that the central logic units and I/O subracks receive a stabilized and filtered DC voltage. Designed for use in Safety Instrumented Systems (SIS), the F7130A provides the electrical foundation necessary for mission-critical applications such as Emergency Shutdown (ESD) and Fire and Gas (F&G) detection.

Its architecture is optimized for high availability, featuring robust voltage regulation and internal monitoring capabilities. By neutralizing input fluctuations and protecting against overvoltage, the F7130A safeguards sensitive microprocessor-based safety cards from electrical transients common in heavy industrial environments.

Technical Characteristics

• System Series: HIMA H41q and H51q

• Module Function: Power Supply and Distribution

• Voltage Regulation: High-precision DC output for system backplanes

• Input Tolerance: Wide operating range for various industrial DC grids

• Protection Rating: IP20 (Ingress Protection against solid objects)

• Operating Temperature: Suitable for diverse climates (standard industrial range -20°C to +60°C)

• Construction: Compact plug-in module for standard HIMA 19-inch racks

• Weight: 0.32 kg

• Dimensions: 2.0 x 18.8 x 12.7 cm

• Origin: Germany

Industrial Resilience and Maintenance

The F7130A is designed for longevity in demanding sectors such as petrochemical refining, offshore energy, and power generation. The module's lightweight and slim 20mm profile allow for high-density rack configurations, which is essential when cabinet space is a premium. The IP20-rated enclosure provides safety against accidental contact and dust ingress, while the high-quality PCB materials offer resistance to humidity and thermal stress.

Maintenance is simplified through the module’s transparent integration into the HIMA diagnostic ecosystem. If a power anomaly occurs, the module’s status is immediately reported to the controller, allowing for rapid troubleshooting and minimizing system downtime. Its "Active" status ensures that this module remains a reliable choice for existing plant expansions and spare part replacement programs, fully compliant with international functional safety standards.
