Product Overview

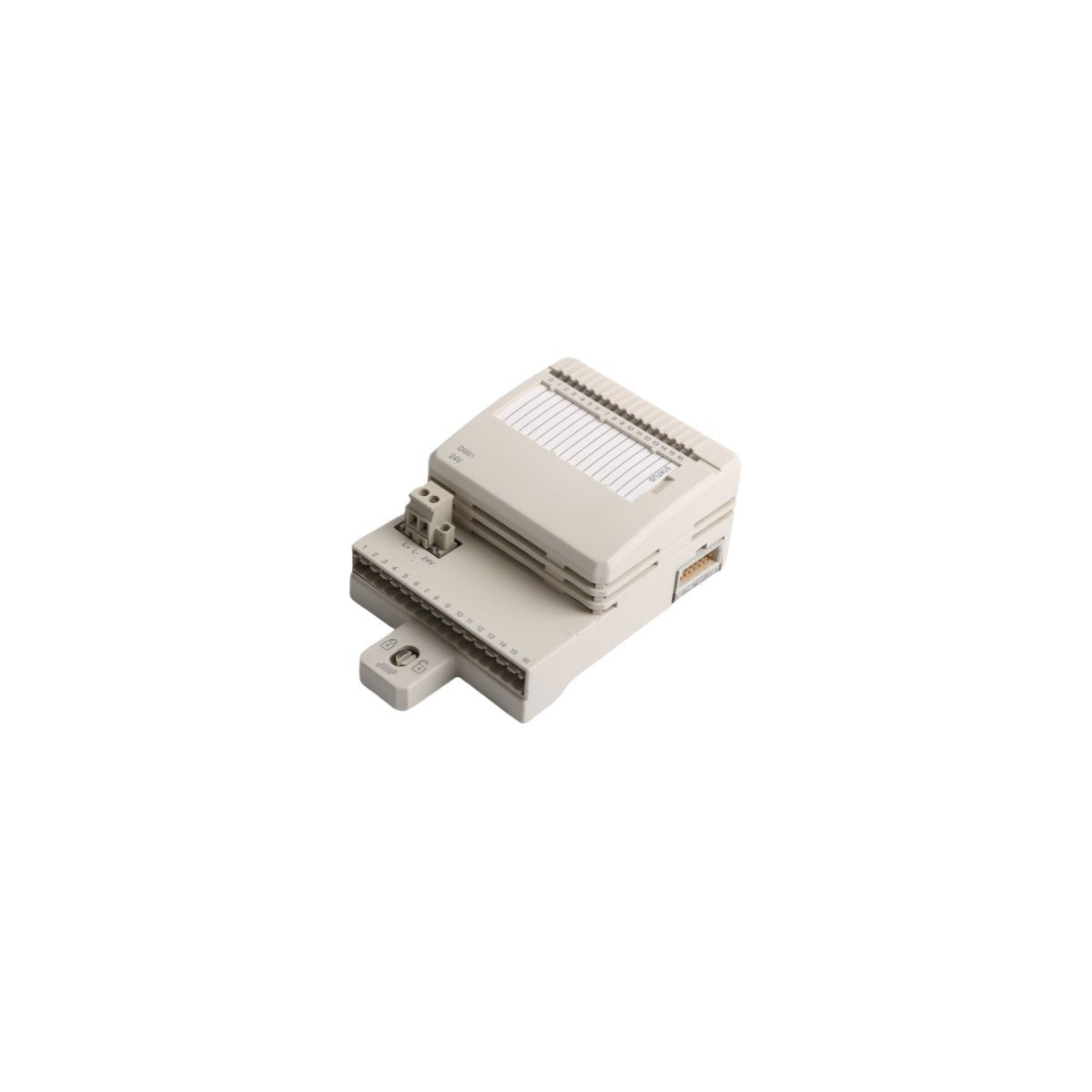

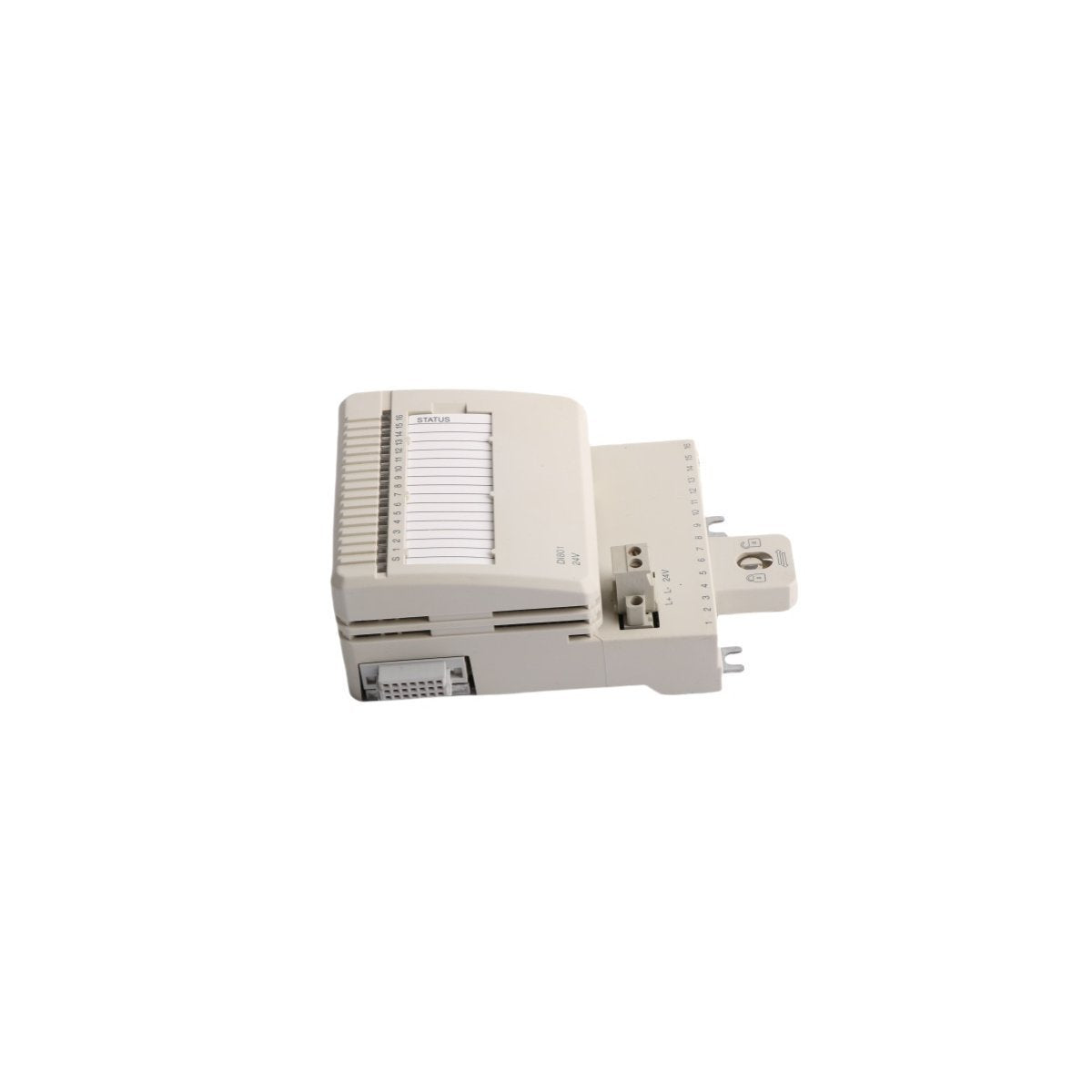

The ABB DI801, designated by order code 3BSE020508R1, is a high-density digital acquisition module designed for the S800 I/O system architecture. This 16-channel interface unit is engineered to bridge 24 V DC binary field signals with a central process controller, such as those found in the ABB Ability System 800xA. By converting mechanical contact closures or sensor states into digital logic, the DI801 provides a real-time telemetry stream for automated decision-making. The module is built with a single isolated group for all inputs, optimizing wiring density while ensuring signal clarity. Its compact Swedish engineering focuses on maximum cabinet efficiency and high-speed data throughput for mission-critical industrial loops.

Hardware Specifications and Physical Metrics

• Module Function 16-Channel Digital Signal Acquisition

• Model Identifier DI801

• Order Reference 3BSE020508R1

• Rated Input Voltage 24 V DC (Operational range 18 V to 30 V DC)

• Signal Loading 6 mA per channel at nominal voltage

• Isolation Barrier Optical galvanic isolation between field and system logic

• Protective Logic Integrated current limiting and EMC noise filtration

• Visual Diagnostics Front-panel LED status matrix for individual channels

• Net Weight 0.15 kg

• Physical Proportions 11.9 cm x 4.5 cm x 10.2 cm

• Manufacturing Origin Sweden

• Compliance Standards CE, UL, and CSA certified for industrial use

Operational Deployment and Industrial Utility

The DI801 3BSE020508R1 is a staple in high-uptime environments such as power utility substations, chemical refineries, and automated manufacturing plants. In these settings, it monitors vital discrete data points including valve limit switches, motor starter auxiliary contacts, and emergency stop circuits. The 16th channel is particularly valuable for internal diagnostics, as it can be configured to supervise the external power supply of the input group. Because the module supports "hot-swap" functionality on its corresponding terminal base, it allows for rapid hardware replacement without interrupting the power or signal flow to adjacent modules. This design philosophy significantly reduces Mean Time to Repair (MTTR) and ensures that critical safety interlocks and production sequences remain active during maintenance cycles.

FAQ

Q: Can the DI801 be used with both AC and DC signals?

A: No, the DI801 is specifically designed for 24 V DC binary signals. Using AC voltage will cause permanent damage to the internal optical isolation circuitry.

Q: What is the benefit of the group isolation feature?

A: Group isolation simplifies the common return wiring for multiple sensors, which saves space on terminal blocks and reduces the amount of field wiring required inside the cabinet.

Q: Does this module require a specific terminal base for installation?

A: Yes, the DI801 must be mounted on a compatible S800 I/O terminal base, such as the TU810 or TU814, which provides the physical connection to the field wiring and the module bus.

Q: How does the module handle signal noise from long cable runs?

A: Each channel is equipped with hardware-based EMC filtering to suppress electromagnetic interference and debouncing logic to ensure that only true state changes are reported to the controller.

Q: Is the DI801 compatible with the ABB AC 800M controller?

A: Yes, it is fully integrated into the AC 800M ecosystem via the S800 I/O bus, allowing for seamless configuration within the Control Builder M software environment.
