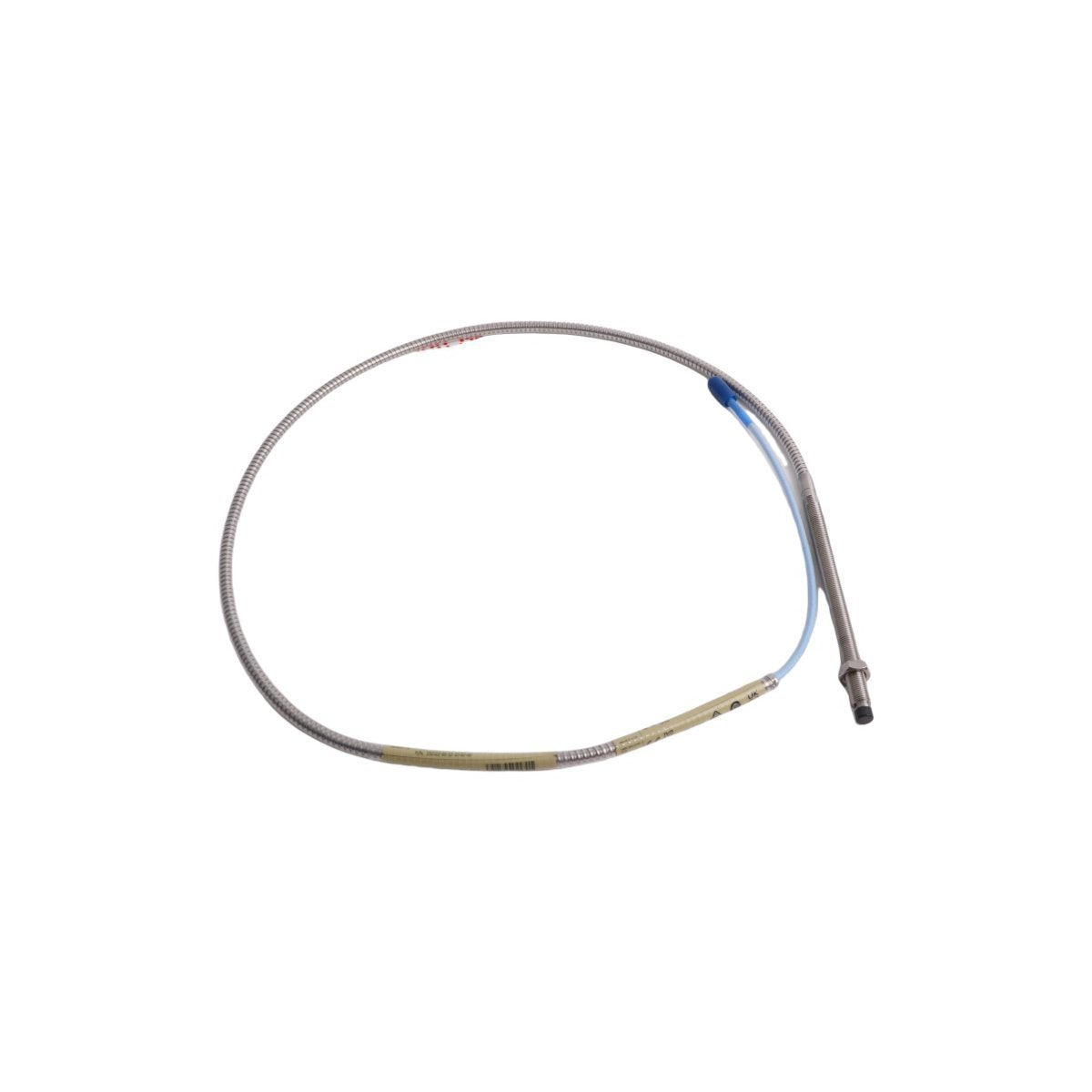

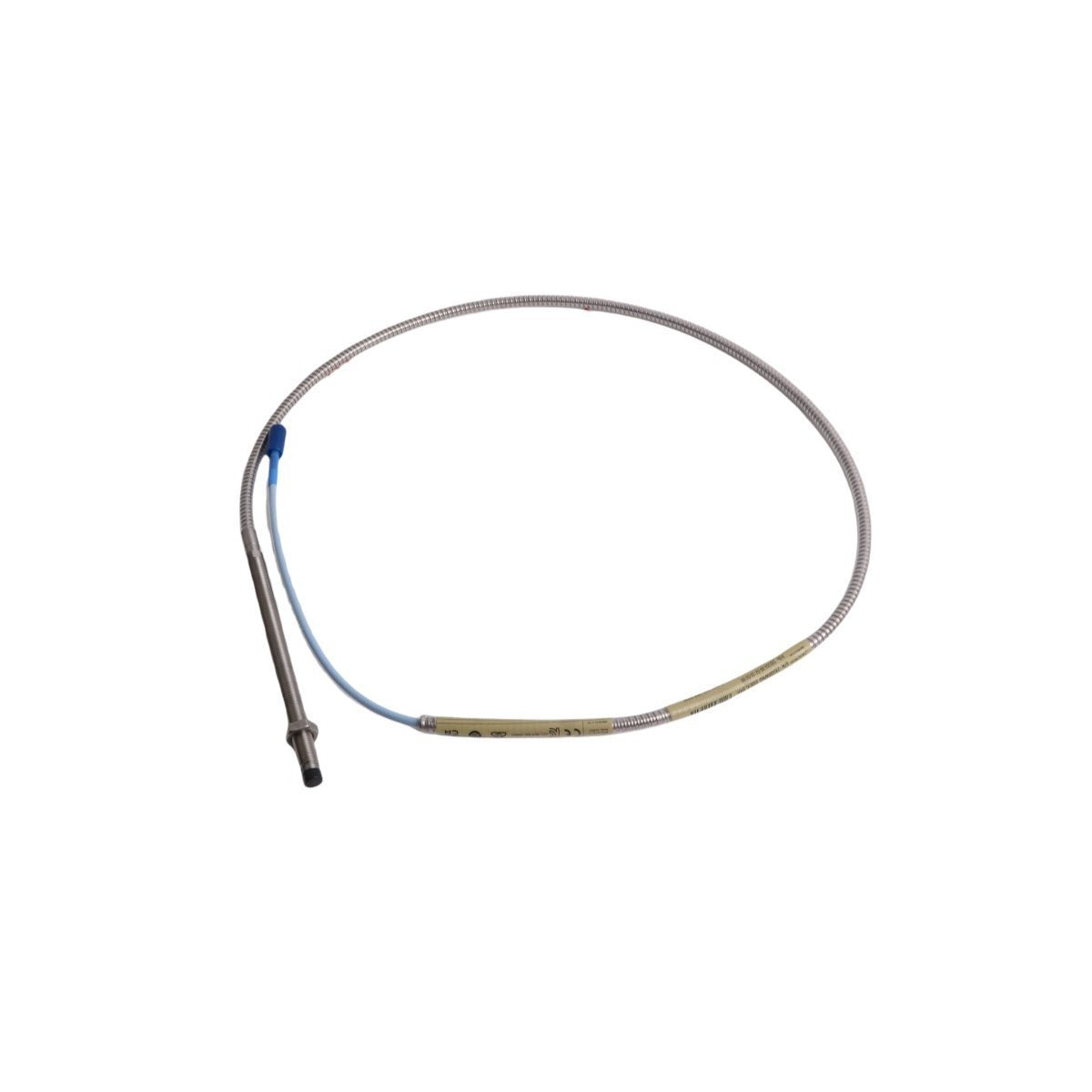

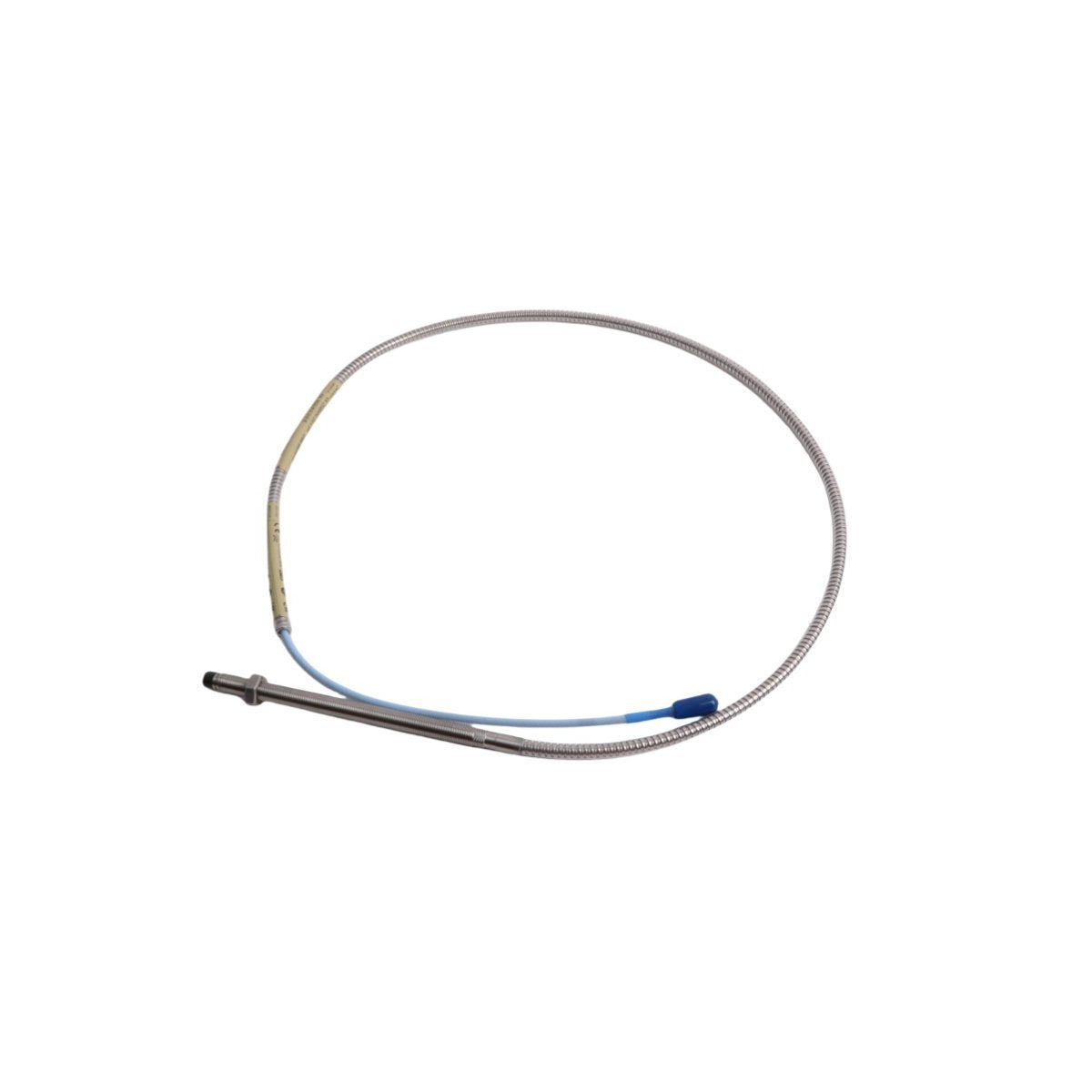

The Bently Nevada 330102-00-52-10-02-00, also cataloged as the 330102-00-52-10-02-00 Proximity Probe, operates as a dedicated hardware component for non-contacting shaft displacement and vibration measurement within 3300 XL monitoring systems.

Model Suffix Configuration

The 330102 series utilizes a modular naming convention to define specific mechanical and electrical properties. The suffix -00-52-10-02-00 represents the physical thread configuration, lead length, connector type, and material composition required for integration with the 3300 XL Proximitor sensor systems.

Hardware Physical Specifications

Transducer Electrical Integrity

Accurate eddy-current probe scaling is mandatory for maintaining the 200 mV/mil output sensitivity characteristic of the 3300 XL system. During deployment, the gap voltage validation (-10 VDC targets) must be verified at the monitor or sensor output to ensure the probe resides within the linear operating region of the calibrated curve. Effective cross-talk suppression is achieved via the shielded coaxial design; therefore, the shield must be terminated consistently at the monitor end to prevent noise induction in the rotor dynamics signal path.

Ordering Information

• 330102-00-52-10-02-00 Proximity Probe assembly

• Stainless steel jam nuts

• Protective connector cap

• Installation technical documentation

Field Installation Protocols

• Surface Integrity: Ensure the target shaft is free of surface irregularities that could cause eddy-current distortion.

• Alignment: Align the probe axis perpendicular to the target surface to maintain linearity.

• Torque Limits: Tighten lock nuts to specified torque to avoid mechanical resonance.

• Shielding: Ensure the cable path remains isolated from high-voltage lines to prevent electromagnetic interference.

• Impedance: Do not alter cable lengths, as the system is calibrated as a matched set (Probe, Cable, Proximitor).

Delivery Information

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• Anti-static industrial packaging utilized to ensure protection against electrostatic discharge and mechanical shock.

Frequently Asked Questions

• Can this probe be used in 3300 standard (non-XL) systems? No, 3300 XL probes are impedance-matched to 3300 XL Proximitors; intermixing will result in measurement errors.

• What is the impact of probe tip deformation? Tip damage alters the electromagnetic field and will result in non-linear measurement data.

• Is the cable length field-adjustable? No, cable length is fixed at the factory to maintain specific system capacitance.

• How do I check for ground loops? Measure the DC voltage offset on the signal cable while the machine is stationary.

• Can I use this in cryogenic environments? No, the dielectric materials are rated for a minimum of -35 deg C.

• Does this probe require maintenance? No, it is a passive device; periodic verification of gap voltage is the only necessary check.

• What is the sensitivity? The system provides a standard sensitivity of 200 mV/mil (7.87 V/mm).

• How is the probe grounded? The case is grounded through the mechanical housing interface to the machine chassis.
