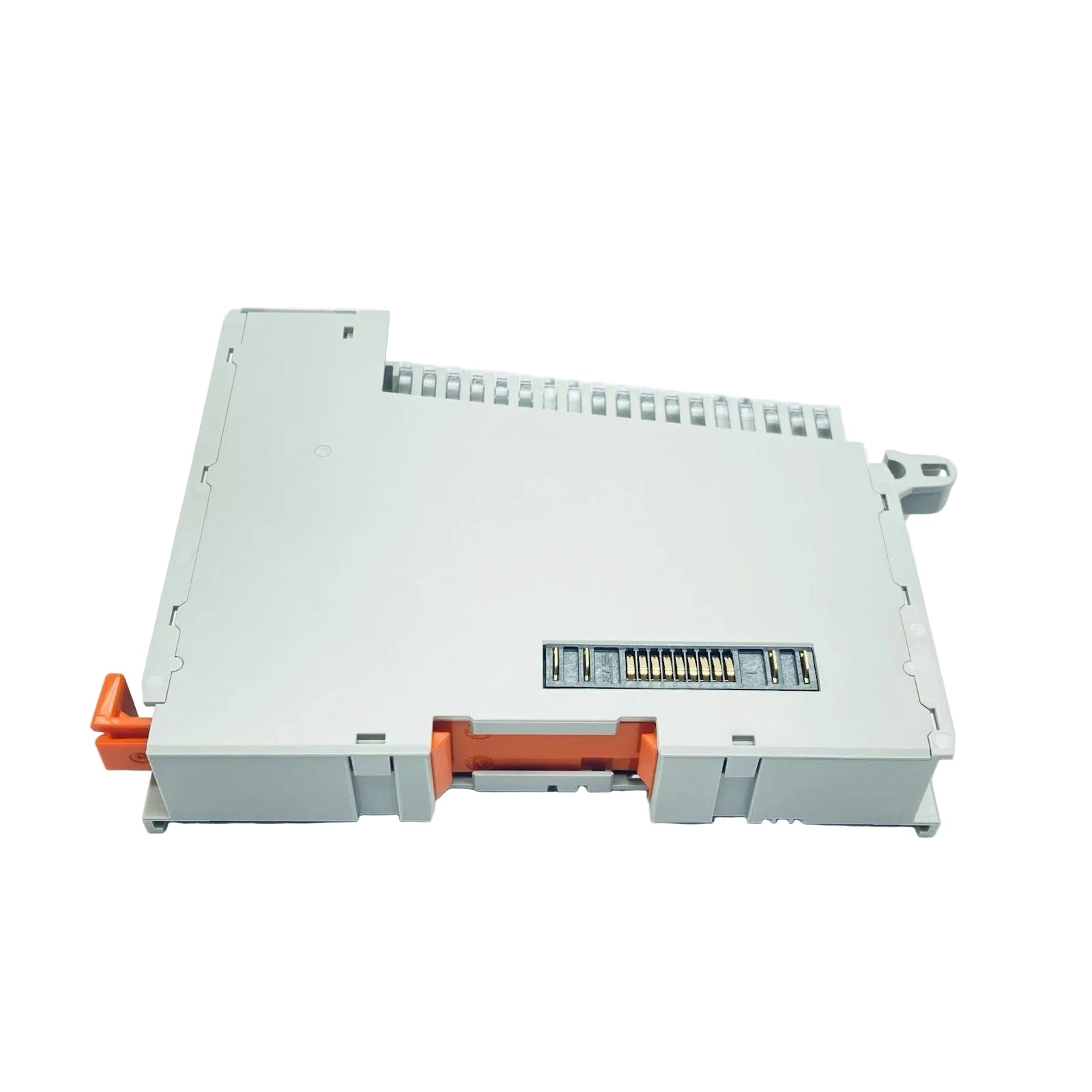

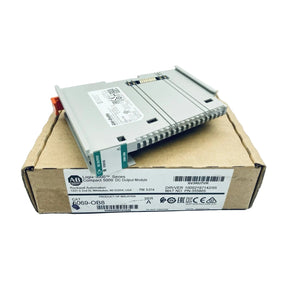

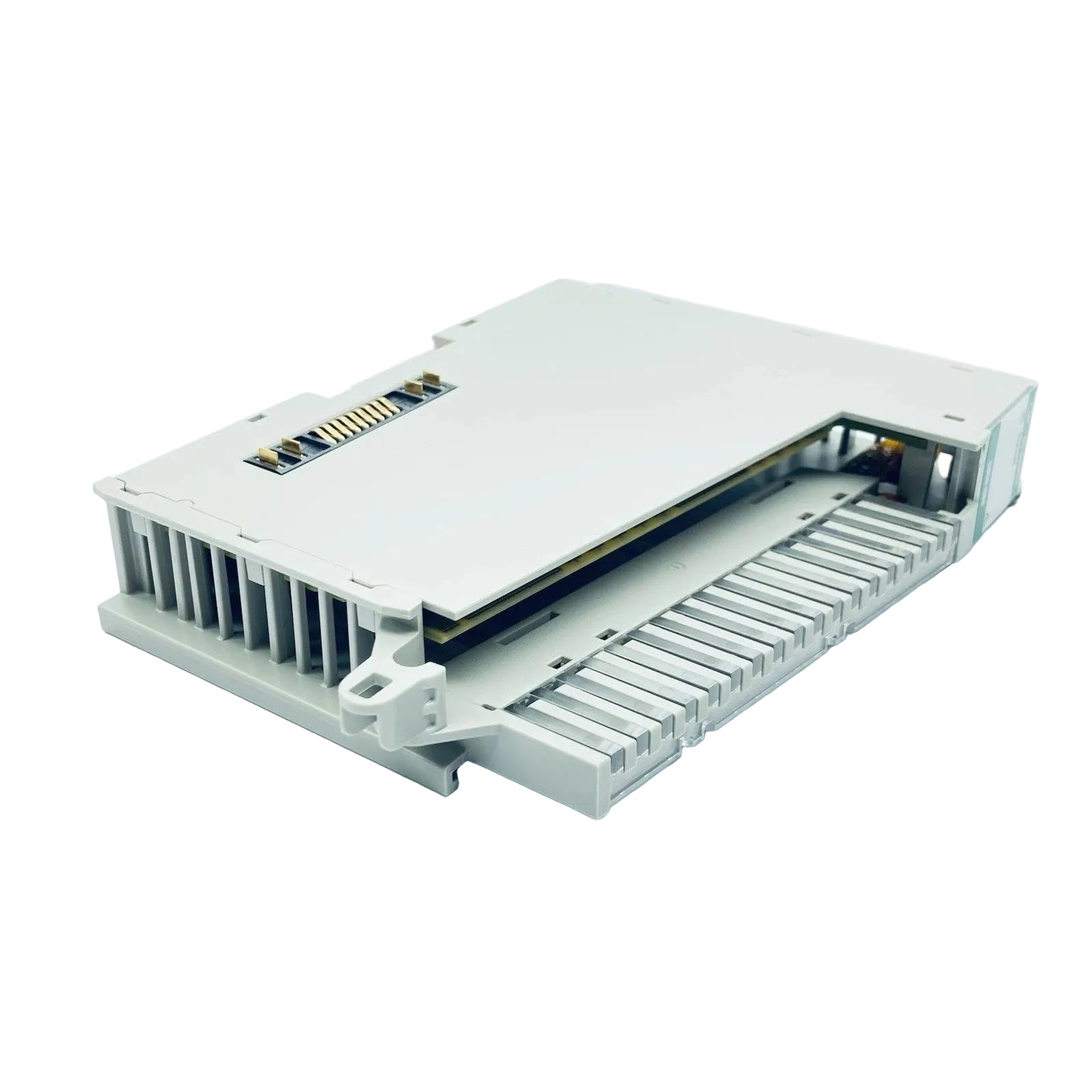

Configured for high-current discrete signal switching in EtherNet/IP networks, the Allen-Bradley 5069-OB8 (5069-OB8 Compact 5000 I/O module) provides direct electrical execution for 24 VDC output control.

Module Technical Data

Deterministic Network Integration

The 5069-OB8 utilizes the Compact 5000 I/O backplane architecture to ensure high-speed communication within EtherNet/IP deterministic networks. The module supports seamless integration with Logix 5000 controllers, enabling precise synchronization of output states with the controller task execution. Firmware flash compatibility is maintained through the ControlFLASH utility, ensuring the module can be updated to support evolving industrial communication standards and security protocols without requiring hardware replacement.

Ordering Logistics

• The shipment contains the 5069-OB8 module and associated terminal block (if applicable per standard packaging).

• No additional terminal blocks or communication cables are included unless specified in the project-specific Bill of Materials.

• The product is shipped in anti-static industrial packaging designed to prevent electrostatic discharge (ESD) and mechanical damage during transit.

Field Installation Procedures

• Mounting: Secure the module to a 35 mm DIN rail. Ensure the module is fully seated and the locking lever is in the locked position to maintain electrical connection to the backplane.

• Wiring: Utilize shielded twisted-pair cabling for field-side connections to minimize electromagnetic interference (EMI). Maintain physical separation between high-current output lines and low-voltage signal cabling.

• Grounding: Ensure the DIN rail is properly bonded to a common ground reference to maintain signal integrity and safety standards.

• Environmental: Operate within the specified temperature ranges; ensure adequate air circulation around the module heat sinks to manage the 3.2 W power dissipation effectively.

Logistics and Handling

--1 Delivery time: 2-7 days when payment finish.

--2 Shipping via DHL/FEDEX/UPS.

--3 Each unit is secured in anti-static industrial packaging to provide shock resistance and protection against environmental contaminants.

Technical FAQ

Q: Does the 5069-OB8 support hot-swapping?

A: Yes, the module supports removal and insertion under power (RIUP) within the Compact 5000 I/O system, allowing for module replacement without shutting down the entire backplane.

Q: How are the output channels grouped on this module?

A: The eight output channels are divided into two independent groups of four channels each, allowing for segmentation of power distribution if required by the application.

Q: What is the maximum current handling capability for the outputs?

A: The module is designed as a high-current discrete output; refer to the derating curve documentation based on the specific ambient temperature and terminal wiring constraints to ensure the load does not exceed the thermal limits of the module.
