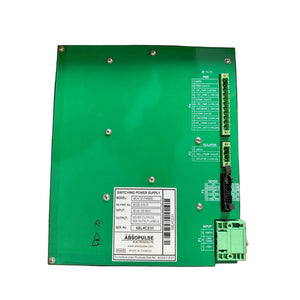

The Allen-Bradley MOX720-P4668E 80026-518-01, also cataloged as the MOX720-P4668E 80026-518-01, serves as a DC switching power supply unit utilized for regulated multi-output power distribution within PowerFlex drive control assemblies. The module processes 380-480 V AC three-phase input and converts it into stabilized DC supply rails for downstream electronic subsystems including control logic and auxiliary circuits.

Suffix Interpretation Scope

No validated factory-defined suffix decoding data is provided for MOX720-P4668E. The full catalog number shall be treated as a single identification string for maintenance and replacement traceability.

Hardware Specifications

Allen-Bradley Drive Power Distribution Characteristics

Within Allen-Bradley drive power architectures, the MOX720-P4668E implements controlled DC bus regulation and multi-rail distribution feeding logic-level circuits and I/O subsystems. Firmware-level coordination between power sequencing and drive controller initialization ensures deterministic startup behavior over EtherNet/IP based control networks. Backplane power stability directly influences module synchronization timing and control signal integrity during drive boot cycles.

Frequently Asked Questions

Q: Does the module support hot-swapping during operation?
A: Hot-swapping is not supported. Power isolation is required prior to removal or insertion.

Q: What is the backplane load behavior under full output condition?
A: The unit delivers up to 30 A continuous output across regulated rails; load distribution is internally managed by switching regulation stages.

Q: Can the module operate with single-phase input?
A: No. The unit requires 380-480 V AC three-phase input for nominal operation.

Q: What happens during peak load conditions?
A: The module supports short-term peak current of 35 A for up to 5 seconds before returning to continuous rating.

Q: Is firmware required for operation?
A: No standalone firmware is executed within the power supply; coordination is managed by the drive controller system.

Field Installation Guidelines

• Ensure complete isolation of three-phase input before installation or removal.
• Verify grounding continuity at chassis earth terminal before energization.
• Maintain separation between power cabling and low-voltage control wiring.
• Confirm correct phase sequence during input wiring connection.
• Inspect connector seating alignment before applying mechanical fastening torque.
• Avoid routing signal cables parallel to high-current DC output conductors.
• Ensure ventilation clearance is maintained for thermal dissipation.
• Perform insulation resistance check prior to system startup.

Ordering Info

• MOX720-P4668E 80026-518-01 DC Switching Power Supply unit
• Factory sealed packaging with anti-static shielding
• Product identification label and traceability markings
• Installation handling protection materials

No additional accessories are included unless specified in purchase order.

Delivery Information

Delivery time: 2-7 days when payment finish, shipped via DHL / FEDEX / UPS. Anti-static industrial packaging applied with reinforced shock protection layers for international transport handling stability.
