Mastering Power Supply Commons in Multi-System Industrial Control Architectures
When integrating multiple I/O systems and peripheral devices—such as electric actuators and programmable controllers—the critical decision of how to manage power supply commons often arises. While a single-supply architecture remains straightforward, industrial applications frequently require multiple power sources due to voltage variations or long-distance cabling demands. Achieving a reliable signal between isolated systems is not merely a design preference; it is a fundamental requirement. If two isolated systems must exchange digital signals, their DC negative (–) terminals must be tied together to establish a consistent reference point, ensuring signal integrity and preventing erratic operation.

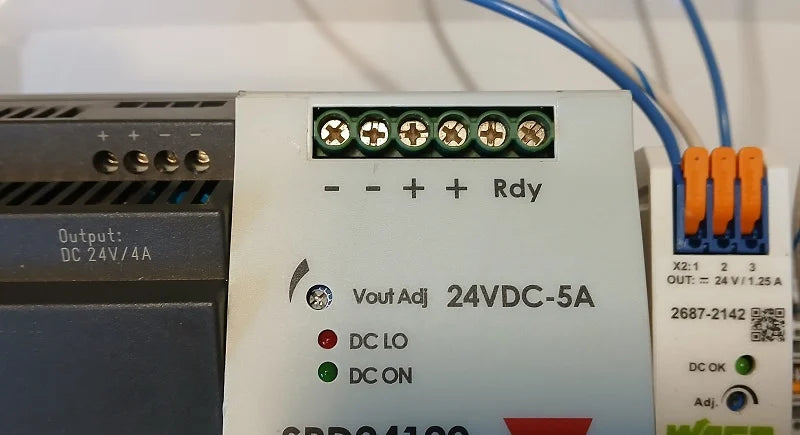

In scenarios where multiple power supplies are necessary, the most effective approach is to link the common grounds directly at the terminal block. Modern power supplies often feature secondary or tertiary negative terminals specifically designed to facilitate this parallel connection. When cabinet space is restricted and adding new terminal blocks is not feasible, industry-standard M12 splitters—available in Y, T, or pigtail configurations—offer a clean, reliable, and labeled alternative. These allow for a secure common connection at the coupling point without the risks associated with cutting cables or unauthorized field splicing, maintaining the mechanical and electrical integrity of the control system.
The complexity often deepens with networked I/O architectures, such as IO-Link or Modbus systems, which frequently distinguish between processor power and field device power. In these configurations, it is crucial to recognize that only the field power supply involved in the digital signal path needs to share a common connection. The supply powering the CPU or the network logic remains isolated from the I/O terminals and does not require a common tie. Properly isolating these power domains prevents unnecessary ground loops while ensuring that the digital inputs and outputs maintain a common reference voltage across the remote drive and the controller.
For engineers and system integrators, the rule is clear: when digital signals cross between distinct power domains, the common DC return must be established. Following best practices—such as using labeled components and documented, secure connections—ensures that the final installation is both maintainable and compliant with industrial safety standards. By treating the common connection as a mandatory design step rather than an optional configuration, technicians can effectively mitigate signal loss, reduce troubleshooting time, and build more robust, future-proof automation systems.
