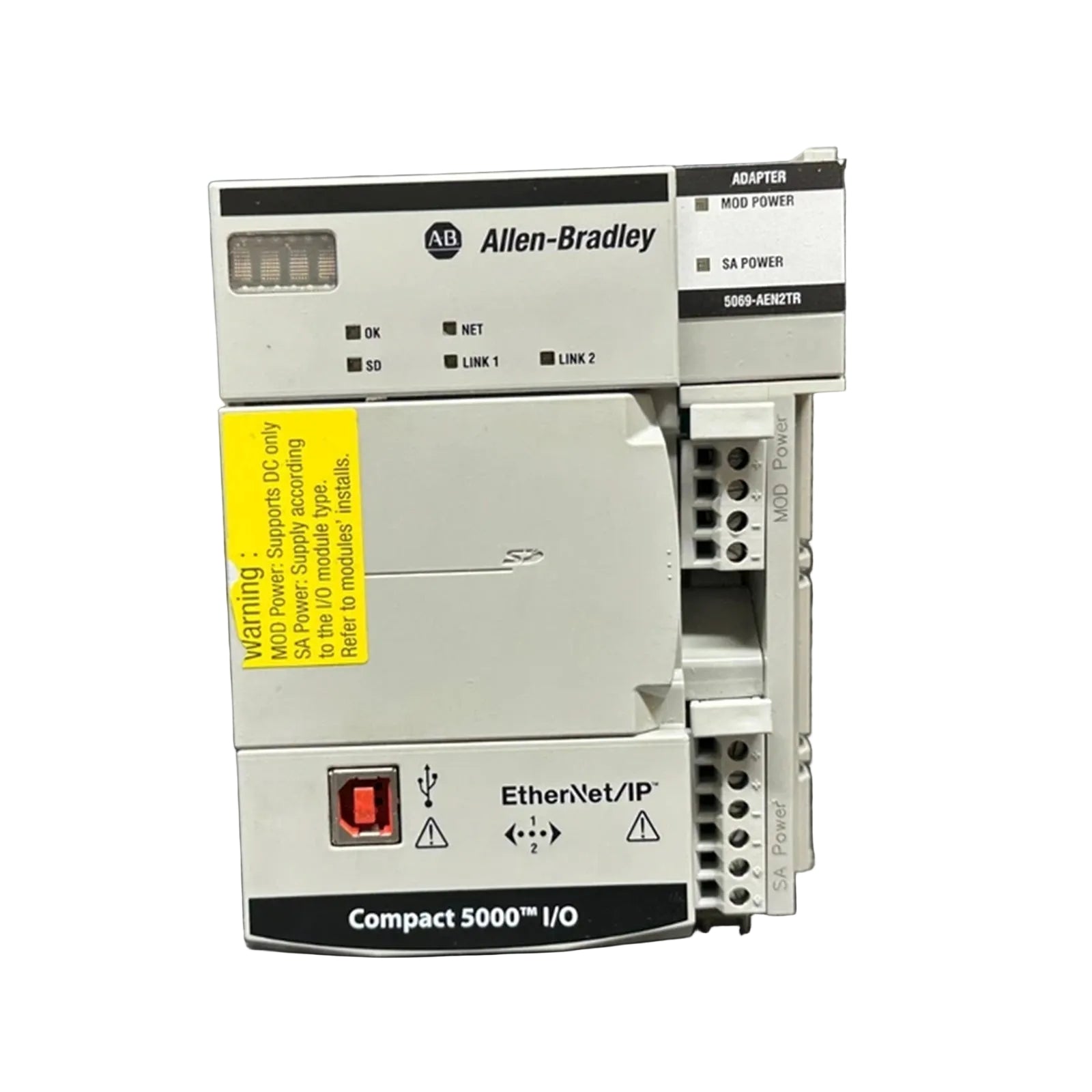

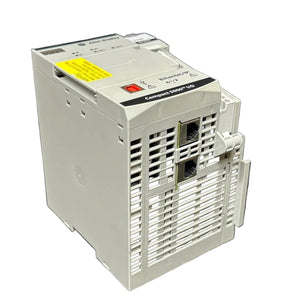

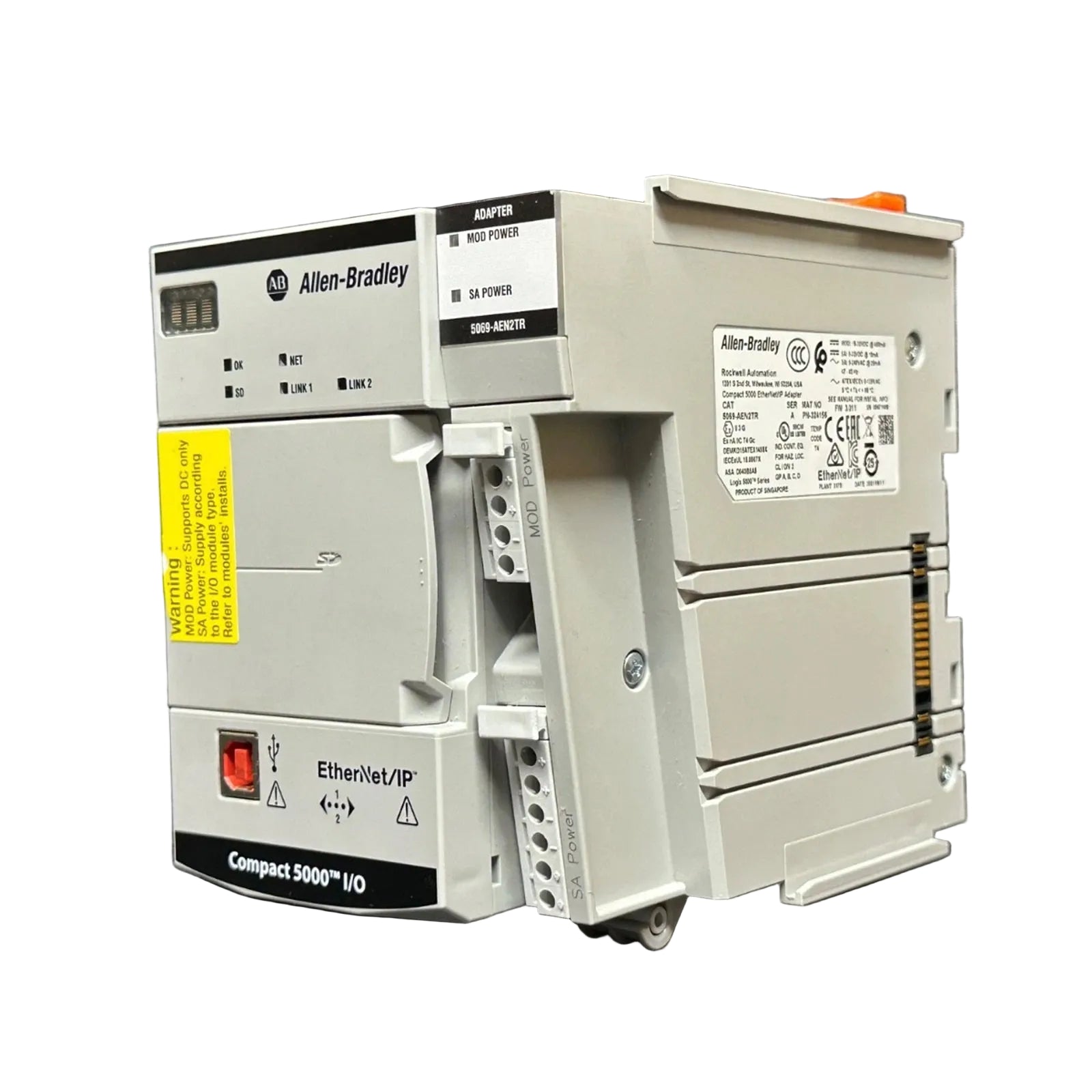

Configured for high-speed data transmission in EtherNet/IP networks, the Allen-Bradley 5069-AEN2TR (5069-AEN2TR Compact 5000 Ethernet I/P Adapter) provides direct connectivity for local I/O modules across linear and ring topologies.

Model Identification and Characteristics

EtherNet/IP Deterministic Network Performance

The 5069-AEN2TR utilizes EtherNet/IP deterministic networks to manage implicit messaging communication between the adapter and the controller. The module features firmware flash compatibility, allowing for updates to accommodate changing network security requirements and system-wide synchronization. Its I/O density scaling capabilities allow for modular expansion within the Compact 5000 ecosystem while maintaining predictable bus communication velocity.

Ordering and Scope of Delivery

• 5069-AEN2TR Communication Adapter.

• Removable terminal block (factory-included).

• Documentation package (technical reference manual).

• Compatible with 1784-SD1 (1 GB) and 1784-SD2 (2 GB) SD cards for configuration storage.

Field Installation Procedures

• Mounting: Snap the adapter onto a 35 mm DIN rail. Ensure the module is properly grounded through the rail mounting clip to satisfy EMI immunity requirements.

• Network Wiring: Connect standard RJ45 Ethernet cabling. For ring topologies, ensure the Device Level Ring (DLR) configuration is correctly identified in the network manager software.

• Powering: Connect 18 - 32 VDC to the module power input terminals. The MOD Power Passthrough is rated for 9.78 A; monitor total downstream current consumption to prevent exceeding this limit.

• Grounding: Establish a clean chassis ground connection to minimize potential difference between the module and the backplane power supply.

Logistics and Handling

--1 Delivery time: 2-7 days when payment finish.

--2 Shipping via DHL/FEDEX/UPS.

--3 Each unit is secured in anti-static industrial packaging to prevent electrostatic damage and mechanical impact during transport.

Frequently Asked Questions

Q: Can this adapter perform firmware updates while the network is operational?

A: Firmware flash compatibility is supported; however, updating the firmware requires the adapter to be in a non-operational state to ensure data integrity during the write cycle.

Q: Does this module support hot-swapping?

A: Yes, the 5069-AEN2TR supports Removal and Insertion Under Power (RIUP) within the Compact 5000 I/O system, allowing for replacement without de-energizing the backplane.

Q: What happens if the MOD power inrush exceeds 1750 mA?

A: The inrush current of 1750 mA for 70 ms is a normal transient state during power-up. Power supplies must be sized to handle this peak current without voltage sagging, which could cause a brownout of the module logic.
