Product Overview

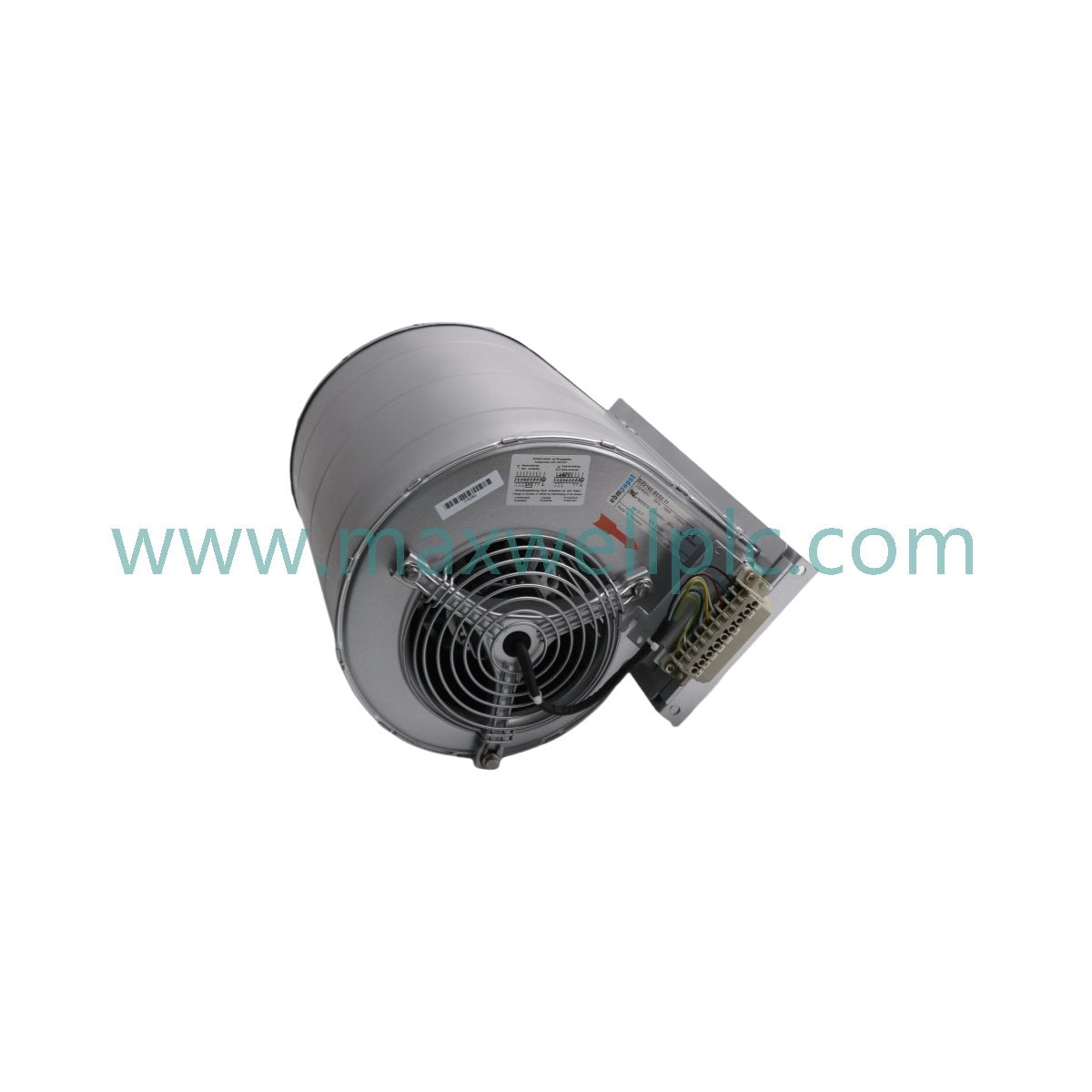

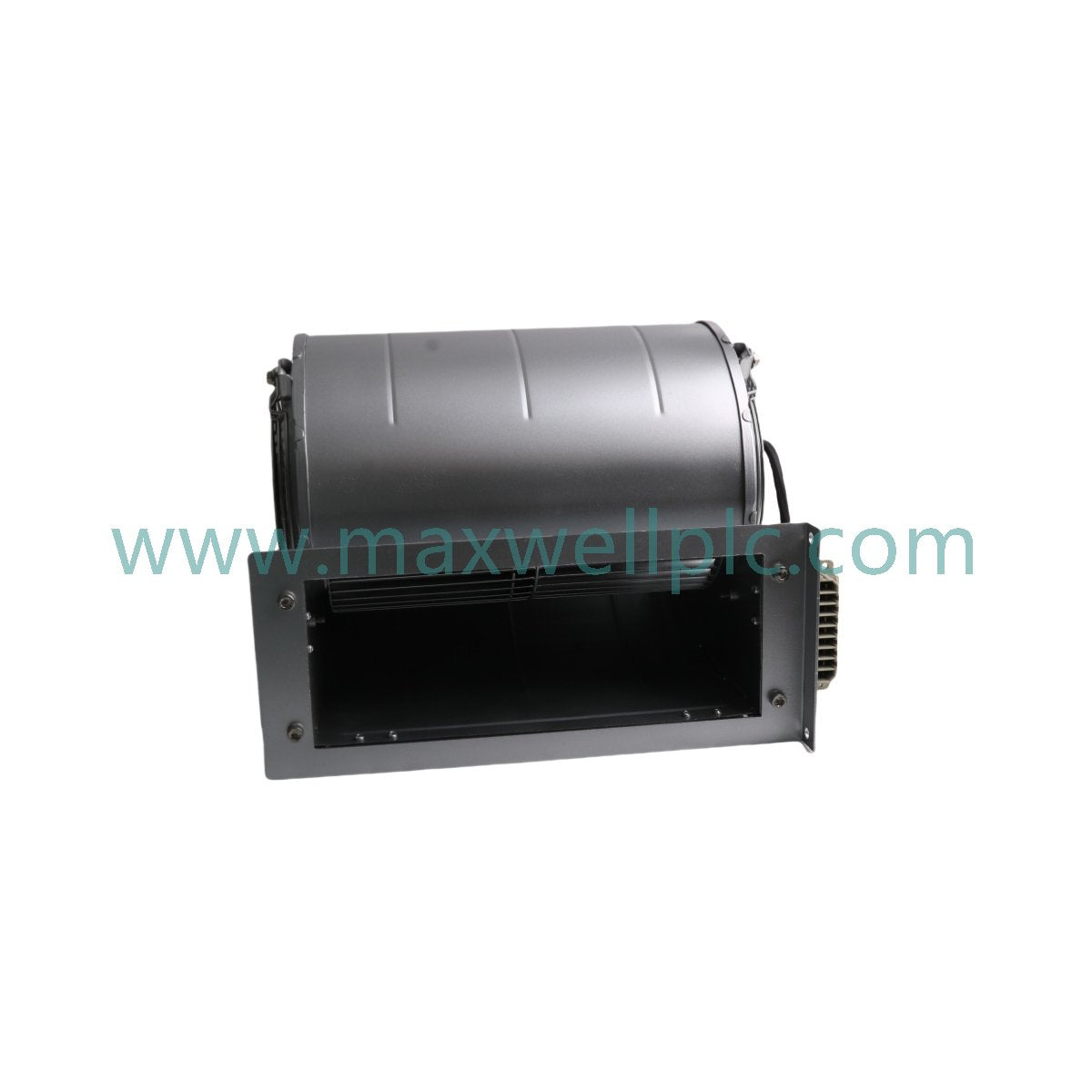

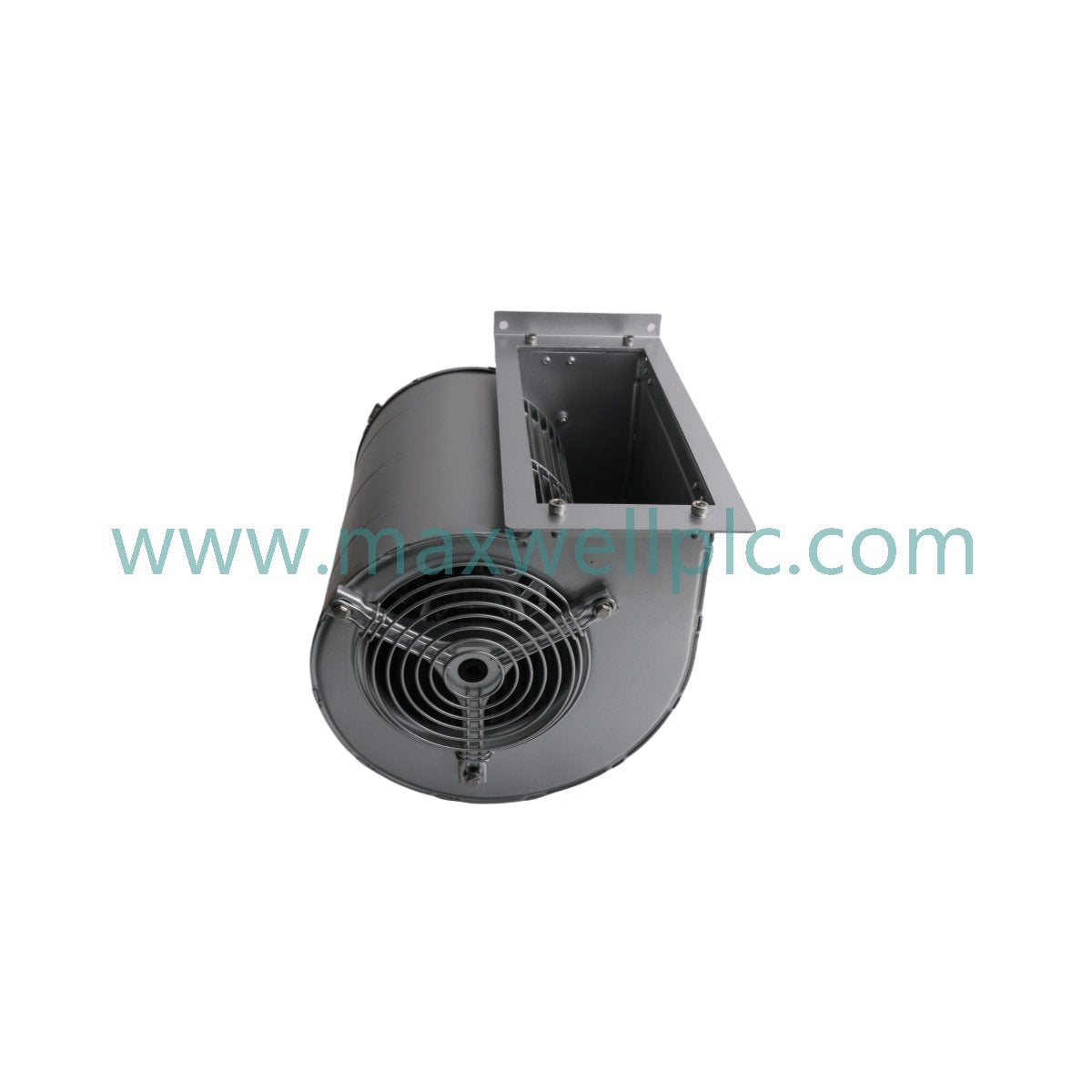

The ABB D2D160-BE02-11 is a centrifugal cooling fan assembly specifically engineered for the thermal management of ACS800 series inverter modules. In high-power industrial drive applications, the accumulation of heat within inverter cabinets is a primary factor leading to component degradation and unexpected system failure. This fan assembly functions as the forced-convection engine that circulates air through the heat sinks of power modules, ensuring that semiconductor junction temperatures remain within the design limits required for long-term operational stability.

Engineered with the precision associated with ABB’s Swedish manufacturing standards, this cooling unit utilizes a high-efficiency centrifugal impeller design. Unlike standard axial fans, this centrifugal configuration provides the high static pressure required to force air through the densely packed fins of the ACS800 inverter’s cooling blocks. This ensures uniform thermal dissipation even when the cabinet environment is restricted by tightly spaced components or accumulated industrial debris. For maintenance engineers, the D2D160-BE02-11 represents a critical component in the preventive maintenance cycle of high-availability drive systems, providing a reliable, maintenance-free solution that supports the mission-critical uptime demanded by modern industrial processes.

Technical Specifications

Model Configuration Explanation

The D2D160-BE02-11 is an integrated centrifugal assembly. The "D2D" designation refers to the specific impeller geometry designed for high-pressure industrial airflow, while the "160" identifies the nominal diameter of the impeller in millimeters. This model is engineered to be a direct-fit replacement for existing ACS800 cooling assemblies. The electrical interface is optimized for a wide-ranging DC voltage input (24-220V), allowing it to integrate into various control cabinet power architectures without the need for external voltage regulation. By standardizing this unit across the ACS800 range, ABB ensures that site inventory can be simplified, as a single fan model serves multiple inverter frame sizes within the series.

Typical Applications

This cooling assembly is fundamental to the thermal health of power electronic systems across a diverse array of industries:

• Railway Traction Power: Used within the cooling circuits of traction inverters where vibration resistance and high reliability are mandated by standards like EN 50155.

• Renewable Energy Inverters: Essential for wind and solar power conditioning systems, where inverters must operate continuously to optimize power output.

• Industrial DC Drives: Providing forced airflow for large DC motor controllers in steel mills, paper processing plants, and heavy manufacturing facilities.

• Marine Power Systems: Keeping drive control hardware cool in restricted, high-ambient temperature engine room environments.

• General Automation: Any process requiring the ACS800 drive platform to maintain peak performance while under heavy load, preventing thermal derating of the motor control logic.

System Compatibility

The D2D160-BE02-11 is the factory-specified cooling solution for the ABB ACS800 inverter line. Its mechanical mounting points are identical to the original cooling components installed at the factory, ensuring that no drilling, custom bracketry, or mechanical modifications are required during the replacement process. Its wide operating voltage range makes it compatible with diverse cabinet DC bus architectures, ensuring it will trigger and spin at the required speeds regardless of the slight variations in secondary DC power distribution common in industrial control panels.

Installation Guidelines

• Pre-Installation Safety: Always isolate the drive from the primary AC line and ensure that the DC bus is fully discharged before attempting to access the fan module.

• Mechanical Seating: Align the fan housing with the dedicated slot on the ACS800 heatsink. Ensure the centrifugal outlet is oriented correctly toward the cooling fins to maximize heat exchange efficiency.

• Fastening: Secure the assembly using the original captive screws or clips. Tighten only to the point of snug contact to avoid stressing the fan housing.

• Electrical Connection: Verify the polarity if using a lower DC voltage input. Ensure the wiring is routed away from the high-temperature surfaces of the inverter heat sinks to prevent cable insulation degradation.

• Initial Test: Once installed, perform a short "spin-up" test using the drive’s maintenance diagnostics menu to verify that the fan rotates freely without obstruction or abnormal mechanical noise.

Product Advantages

• High Static Pressure: The centrifugal design is superior to standard fan types for cooling heat sinks, ensuring air penetrates even deeply recessed fin structures.

• Vibration and Shock Resilience: Built to withstand the mechanical rigors of industrial environments, meeting strict requirements for use in mobile and traction applications.

• Wide Voltage Tolerance: The ability to handle 24V up to 220V DC simplifies procurement, as one fan model covers nearly all auxiliary power scenarios in the ACS800 ecosystem.

• Maintenance-Free Life: Engineered with high-quality bearings and materials to provide a long service life, significantly reducing the frequency of mechanical intervention.

Ordering Information

The D2D160-BE02-11 is currently available as a stock item. Given the critical nature of cooling fans in preventing drive downtime, it is recommended to maintain at least one spare unit for every ten drives in operation. Please ensure that the part number matches your drive's maintenance documentation. Shipping is conducted in specialized, shock-resistant industrial packaging to ensure the impeller housing remains perfectly aligned during transit.

Frequently Asked Questions

• Does this fan operate on AC voltage?

  No, the D2D160-BE02-11 is strictly a DC-powered unit, designed for operation within 24–220V DC supply ranges commonly found in industrial control cabinets.

• Is the fan noisy during operation?

  It is designed for industrial environments where motor noise is prevalent. While not silent, it operates within the standard acoustic parameters established for ACS800 drive cabinets.

• Can I lubricate the fan bearings?

  The unit is designed for maintenance-free operation. Attempting to open or lubricate the bearings may compromise the housing seal and void the product integrity.

• Does this unit include the mounting hardware?

  The unit is designed to utilize the existing captive hardware already present in the ACS800 drive assembly for seamless replacement.

• What should I do if the fan stops while the drive is under load?

  You should immediately monitor the drive’s internal temperature via the HMI. If an over-temperature fault occurs, shut down the drive load to prevent permanent damage to the power modules.

• How does it handle high humidity?

  With an IP20 rating, the fan is protected against solid debris but is not waterproof. Ensure the cabinet environment is controlled to prevent excessive condensation.

• Can it be used as a replacement for other ABB fan models?

  It is specifically engineered for the ACS800. Do not substitute this fan in other inverter series without consulting the official ABB compatibility documentation.

• Does it require a specific controller signal to activate?

  The fan is designed to operate whenever DC power is provided, effectively serving as an "always-on" or "system-controlled" cooling component depending on the drive’s configuration.

• What is the lifespan of the fan in continuous use?

  In environments operating within the specified temperature range (-25 to 70 deg C), the fan is rated for continuous, multi-year service cycles.

• Where can I confirm the part number matches my drive?

  The part number is typically listed on the rating plate of the existing fan inside your ACS800 module. Ensure the "D2D160-BE02-11" matches exactly.
