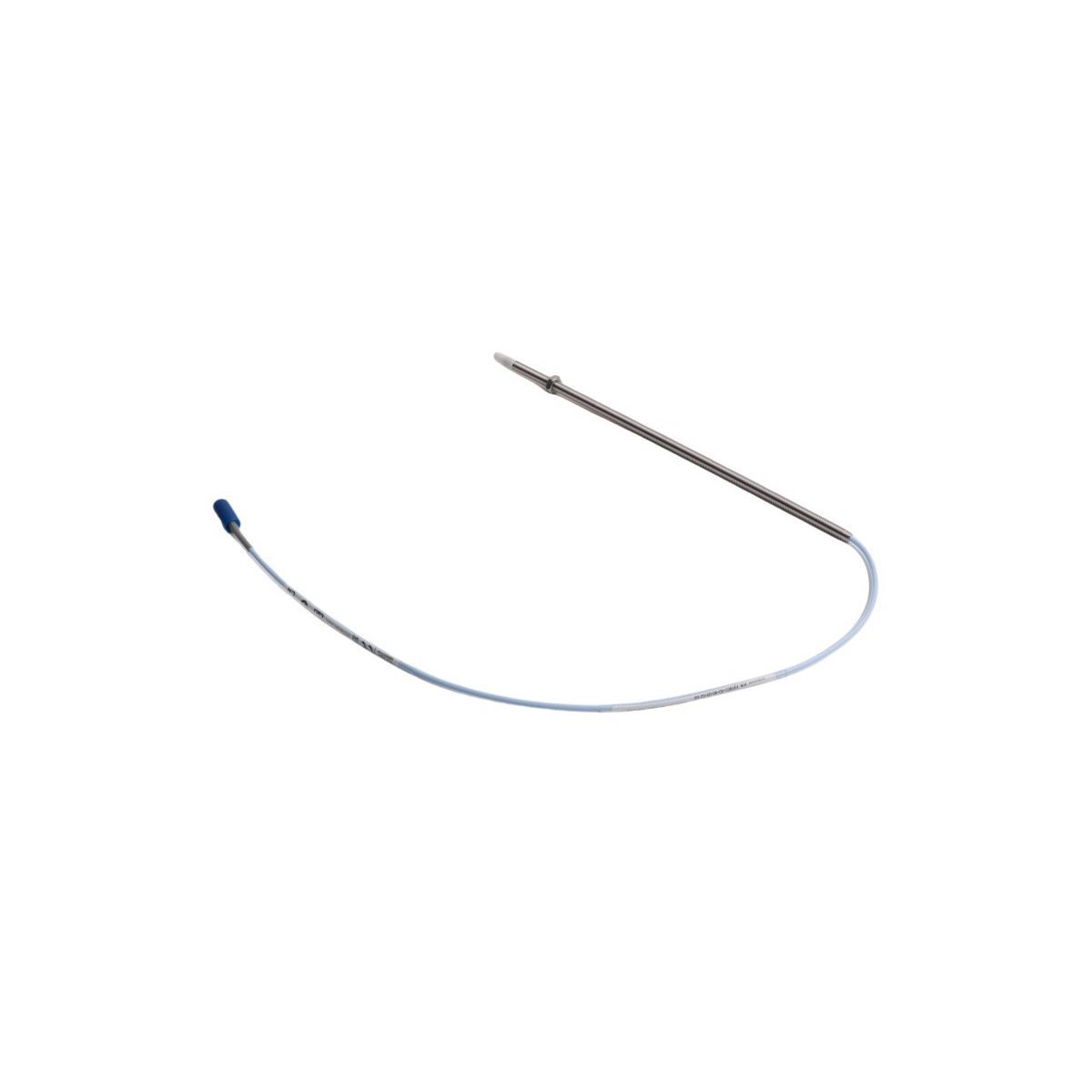

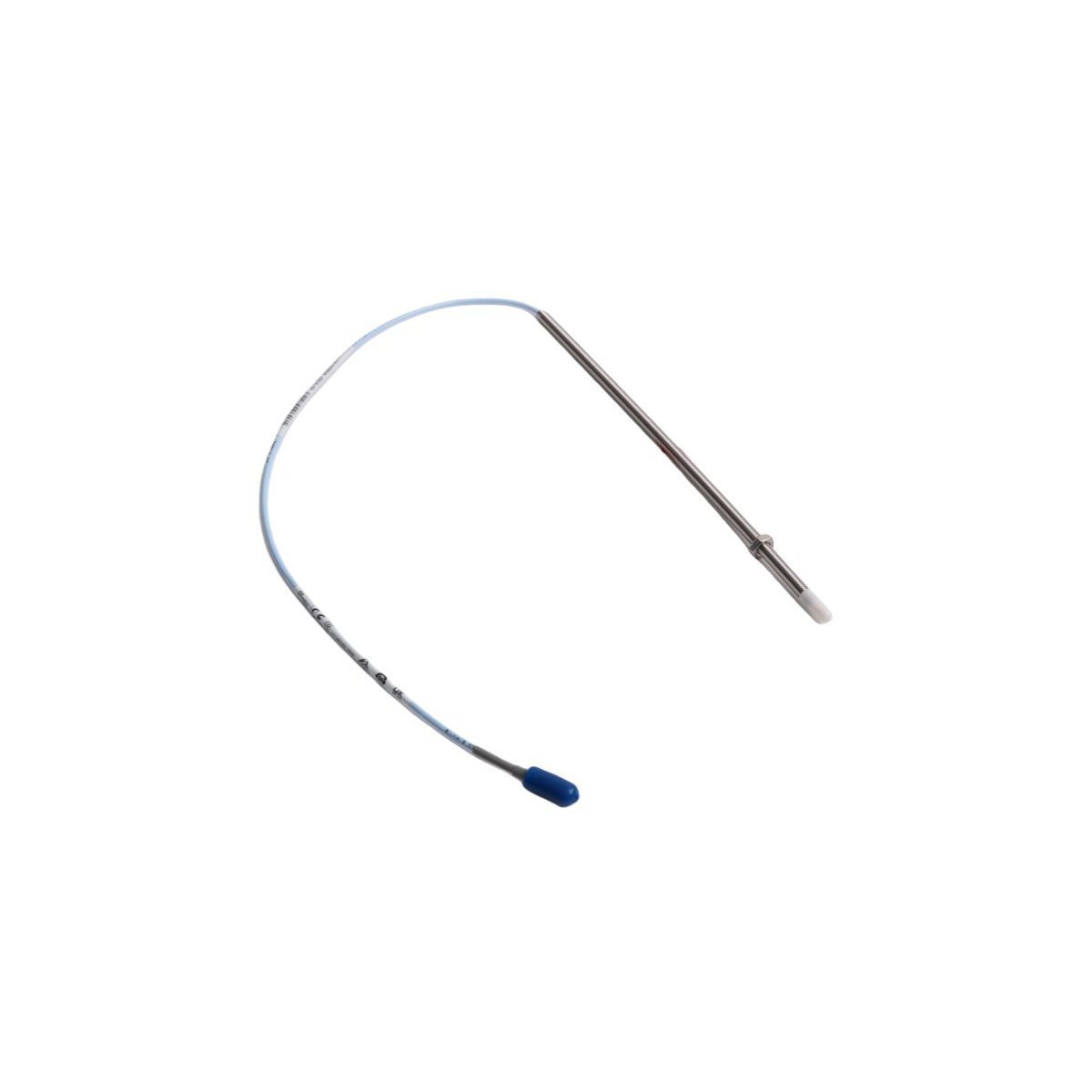

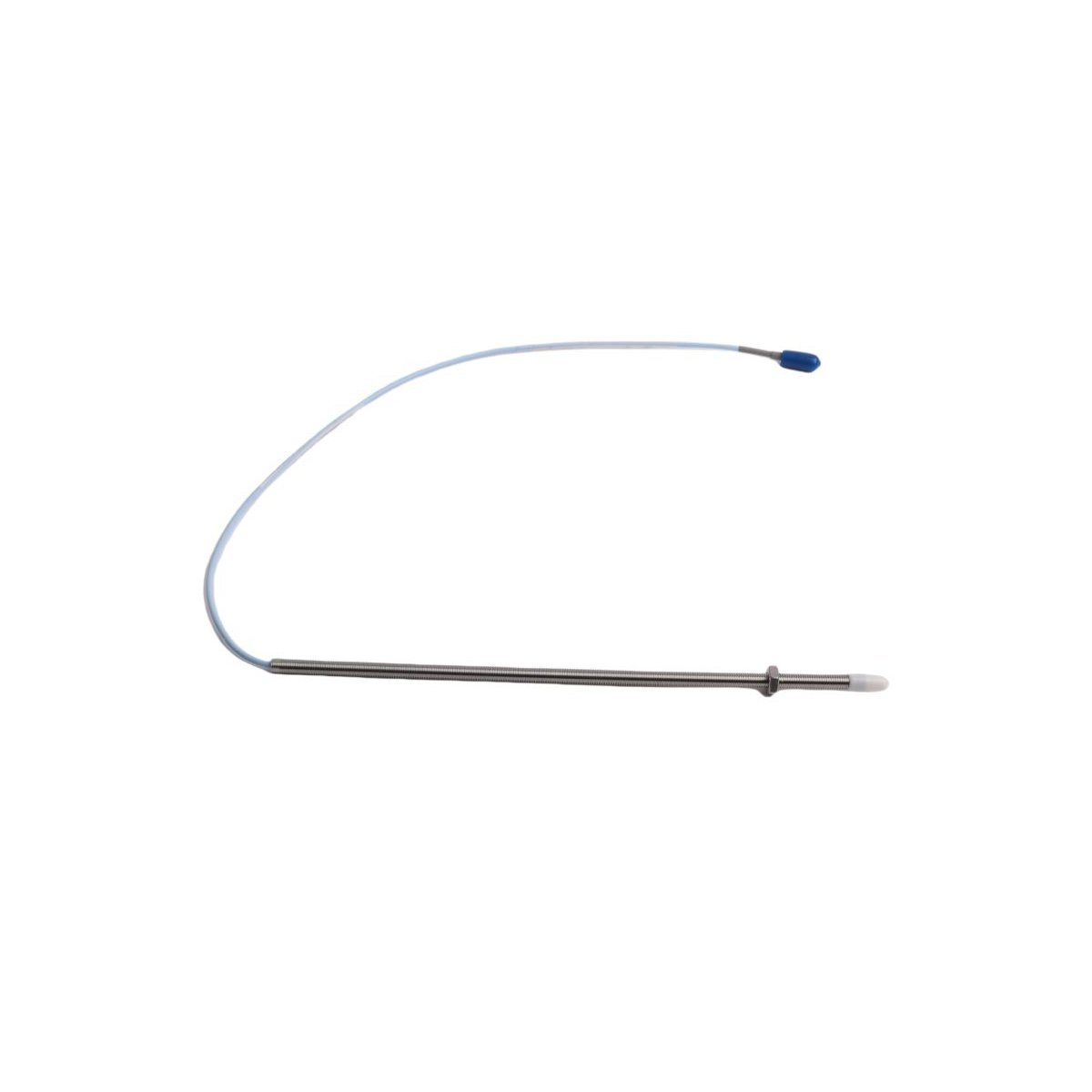

The Bently Nevada 330901-00-70-10-02-05, also cataloged as the 330901 Proximity Probe, operates as a dedicated hardware component for non-contacting displacement and vibration measurements within 3300 NSv Machinery Protection Systems. It transforms mechanical distance deviations into equivalent electrical voltage variables directly processed by local continuous monitoring instrumentation.

Option Code Configuration

• 330901: 3300 NSv 3/8-24 UNF thread proximity probe

• -00: Unthreaded length option (0.0 in)

• -70: Overall case length option (7.0 in)

• -10: Total length option (1.0 m / 3.3 ft)

• -02: Miniature coaxial clickloc connector with connector protector

• -05: Agency approval option (Multiple approvals, ATEX / IECEx intrinsic safety and non-incendive)

Parameter Matrix

Rotor Dynamics and Cross-Talk Suppression

The probe functions via eddy-current probe scaling tuned precisely to a 7.87 V/mm scale factor. Operational field setups require precise gap voltage validation with -10 VDC targets representing the middle of the linear calibrated window. For high-density rotor dynamics monitoring, the physical layout demands strict adherence to minimum side-clearance spacing boundaries to ensure signal cross-talk suppression. Incorrect spacing distorts the magnetic flux lines generated by the 5 mm tip, leading to false voltage variations.

Kit Packaging Inventory

• 1 x Bently Nevada 330901-00-70-10-02-05 eddy-current transducer probe

• 1 x Factory-installed miniature coaxial clickloc male connector

• 1 x Removable external silicone connector protector sleeve

• 1 x Material certificate and multi-language compliance manual sheet

Field Installation Guidelines

• Thread Engagement: Ensure free hand-rotation during thread insertion into the mounting bracket; mechanical binding indicates thread misalignment.

• Gap Voltage Calibrations: Monitor the active DC voltage at the Proximitor sensor output during adjustment until reaching the target value of -10 VDC.

• Cable Routing Dispositions: Secure the flexible coaxial lead through rigid conduit or internal cable trays to avoid continuous mechanical friction or flexing.

• Shield Grounding Isolation: Terminate the outer coaxial shield layer solely at the Proximitor sensor chassis block to counteract structural ground loops.

Logistics and Dispatch Data

• Transit Frame: 2-7 days when payment finish

• Distribution Channels: Dispatched internationally through premium express carriers DHL, FEDEX, or UPS.

• Physical Protection: Packaged in anti-static industrial packaging featuring shock-absorbent multi-layer containment enclosures.

Technical Queries & Answers

• What is the standard target gap voltage required during probe positioning?

  The target setup requires adjusting the gap until the Proximitor sensor output reads -10 VDC. This places the static probe tip position exactly in the center of the calibrated linear displacement spectrum for AISI 4140 steel.

• Can this specific probe model be hot-swapped while the machinery monitor is energized?

  Yes, the passive transducer can be disconnected and reconnected at the Proximitor link without powering down the main 3500 rack system. However, sudden signal drops will trigger local alarm loops if bypass interlocks are not engaged.

• How does changing the targeted shaft material change the probe output scaling?

  The eddy-current calibration is engineered for AISI 4140 steel. Target materials with alternative magnetic permeability alter the nominal scale factor, demanding recalibration or correction scaling inside the processing monitor.

• What is the purpose of the -02 option connector protector component?

  The option provides an outer silicone sleeve that seals the connection point between the probe lead and extension cable, isolating the terminal from fluid contaminants, moisture, and corrosive industrial atmospheres.

• Is an external power supply source required for this hardware module?

  No, the probe is completely passive. It relies entirely on the high-frequency RF signal supplied via the interconnecting extension cable from the matching 3300 NSv Proximitor Sensor.

• What minimum side clearance is demanded to maintain cross-talk suppression?

  To prevent flux field interaction, maintain a minimum clear radius of three probe tip diameters from any adjacent structural metals not representing the verified dynamic target surface.

• What happens to system performance if the total length limits are exceeded?

  The 3300 NSv system demands a fixed total electrical length of either 5.0 or 7.0 meters. Using an unmatched extension cable shifts the system impedance, distorting the scale factor and ruining calibration linearities.

• What is the operational temperature threshold for the probe tip assembly?

  The tip and integral cable assembly are structurally rated to sustain continuous exposure within an environmental temperature window ranging from -35 deg C up to a maximum limit of +177 deg C.
