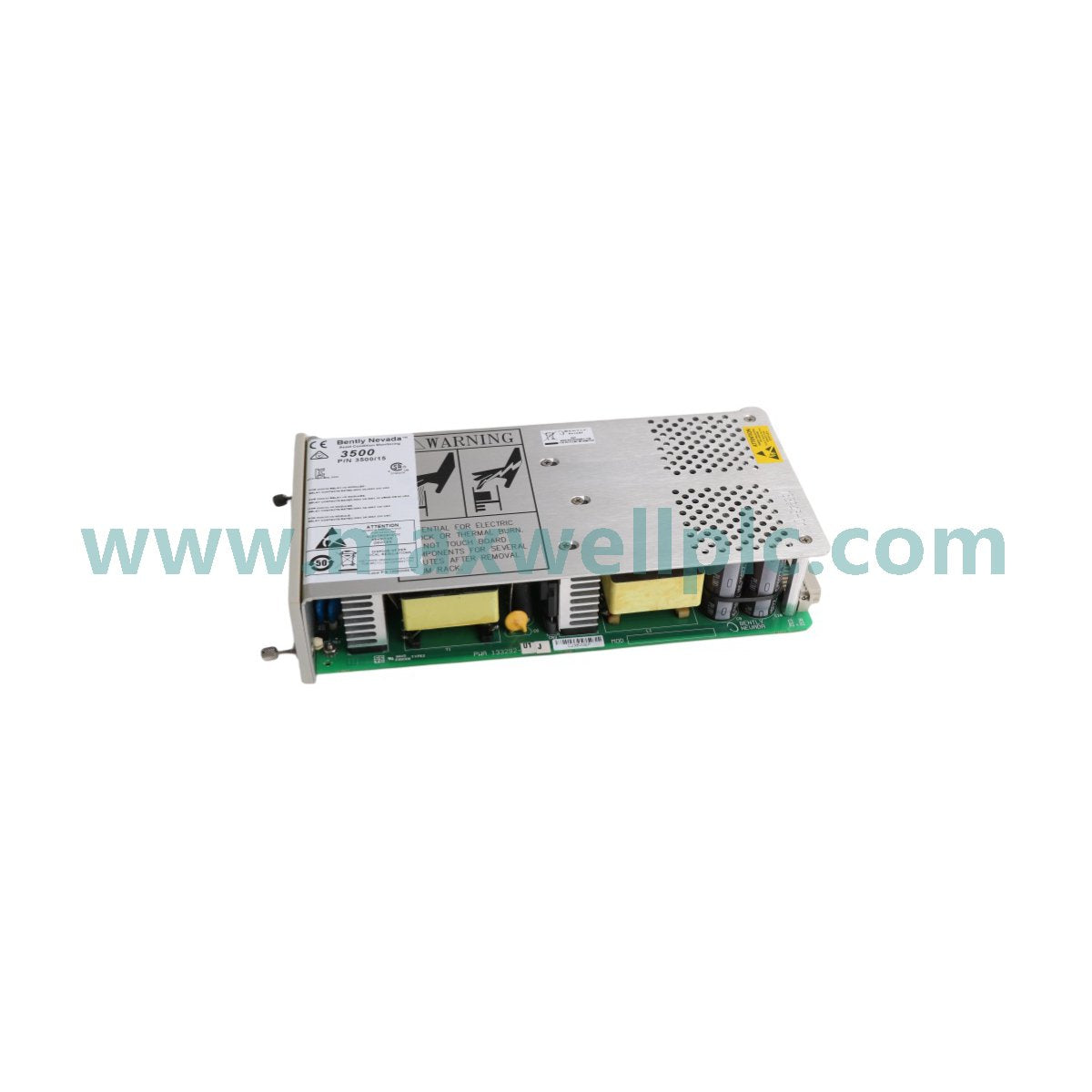

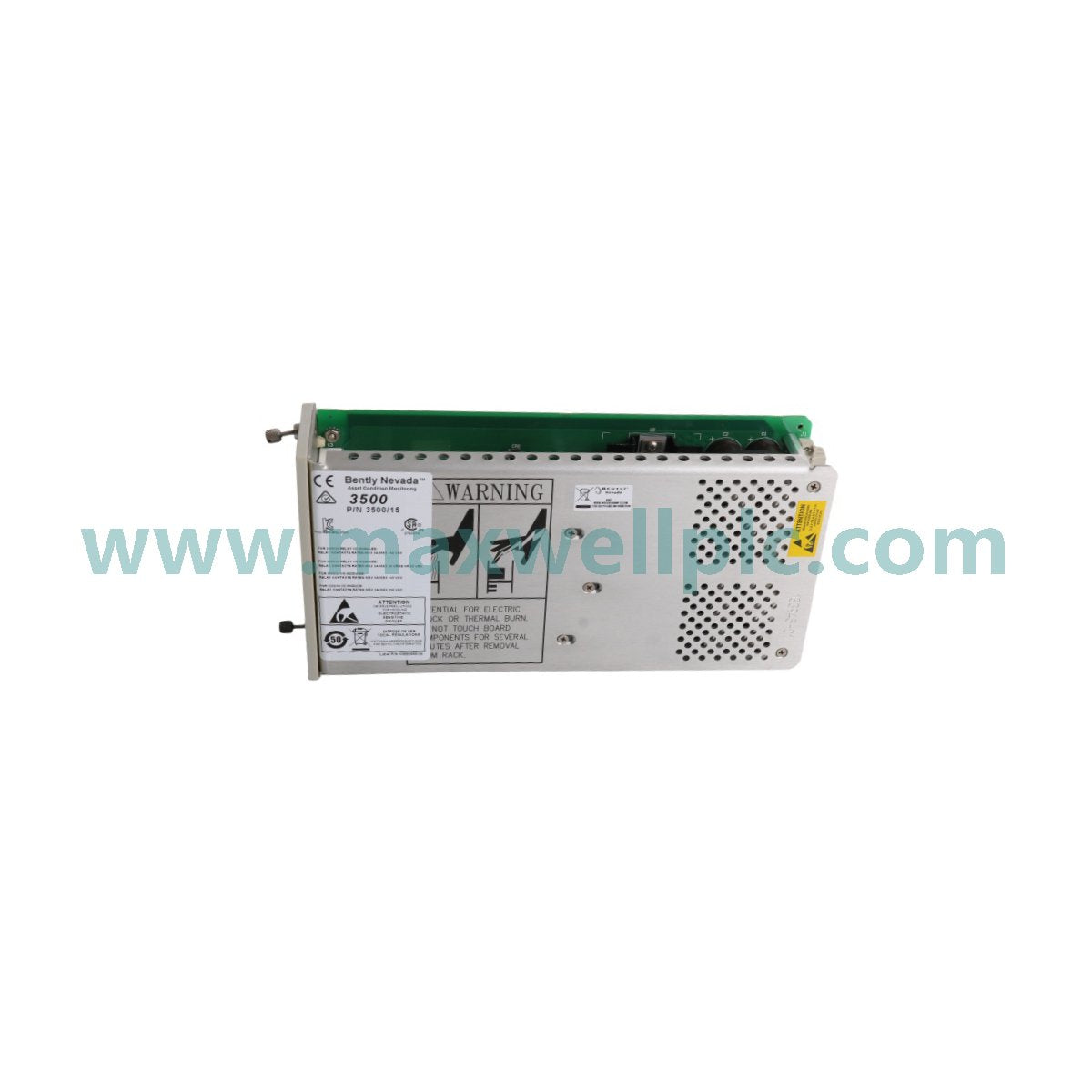

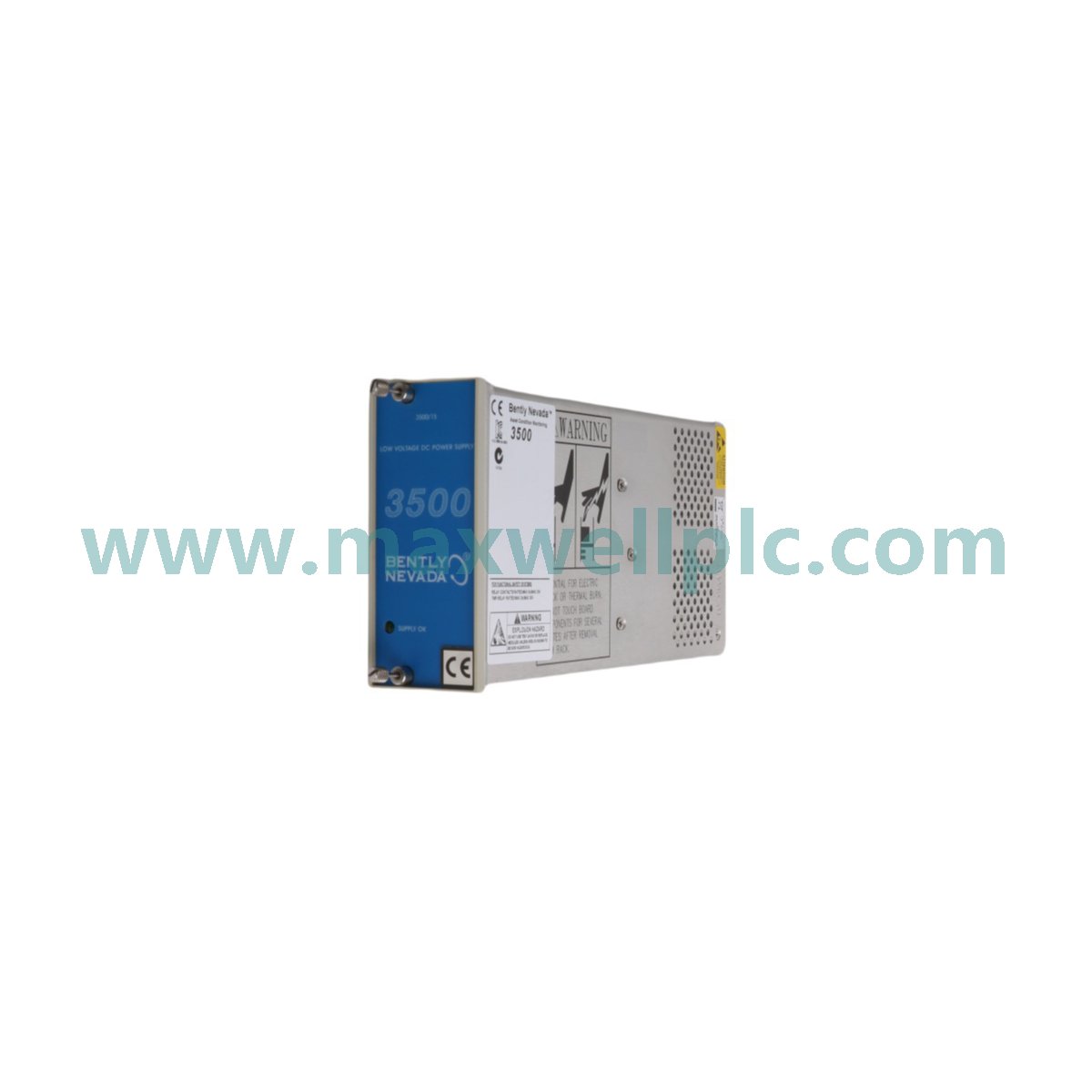

The Bently Nevada 3500/15 133292-01, also cataloged as the 3500/15 Power Supply Module, operates as a dedicated hardware component for converting line power to rack-level DC voltages within 3500 monitoring system platforms.

Model Identification

• Model: 3500/15

• Part Number: 133292-01

• Product Type: Power Supply Module

• System Family: 3500 System

Hardware Specifications

Mechanical Monitoring & TSI Integration

The 3500/15 power supply module serves as the primary source for backplane bus distribution, ensuring stable voltage levels for all modules within the 3500 rack. During the calibration of rotor dynamics monitoring loops, this module maintains the electrical stability necessary for precise eddy-current probe scaling. To ensure measurement integrity across the TSI platform, the power supply is designed for cross-talk suppression, preventing ripple noise from interfering with sensitive vibration signals. Proper installation requires validation of the output bus voltage to ensure targets like -10 VDC at the probe driver interface remain within nominal limits.

Ordering Info

• One (1) 3500/15 Power Supply Module.

• Installation and safety manual.

• Standard rack mounting accessories.

Field Installation Guidelines

• Rack Mounting: Insert the module into the designated power supply slot in the 3500 rack; ensure the backplane connection is secure.

• Wiring: Connect primary AC/DC input power to the module input terminals; verify input voltage ranges match module specifications.

• Grounding: Connect the chassis ground terminal to a low-impedance facility earth to provide surge protection and electromagnetic compatibility.

• Redundancy: If dual power supplies are utilized, confirm proper load sharing between modules to ensure continuous operation during a single module failure.

Frequently Asked Questions

• Is the module hot-swappable? Yes, the 3500/15 can be removed and inserted into a powered rack, provided the system configuration allows for redundant power supply operation.

• How are faults communicated? The module features front-panel LEDs to indicate power status; fault states are communicated to the system via the Rack Interface Module (RIM).

• Does it require external cooling? The module relies on passive heat dissipation; ensure the rack has adequate airflow according to the 3500 installation manual.

• Can it be used in redundant configurations? Yes, the 3500 system supports dual power supplies for load sharing and high availability.

• What is the effect of input voltage fluctuation? The internal regulator circuitry maintains stable output voltages within defined limits; ensure the source remains within nominal operating specs.

• Is the output voltage configurable? No, the module provides fixed output voltages compatible with 3500 system module requirements.

• What maintenance is required? Routine inspection of terminal connections and ensuring the module remains free of accumulated dust is recommended.

• How is the IP rating defined? The IP67 rating applies to the module's enclosure design; ensure the rack mounting environment meets these standards if required by the site application.
