Product Overview

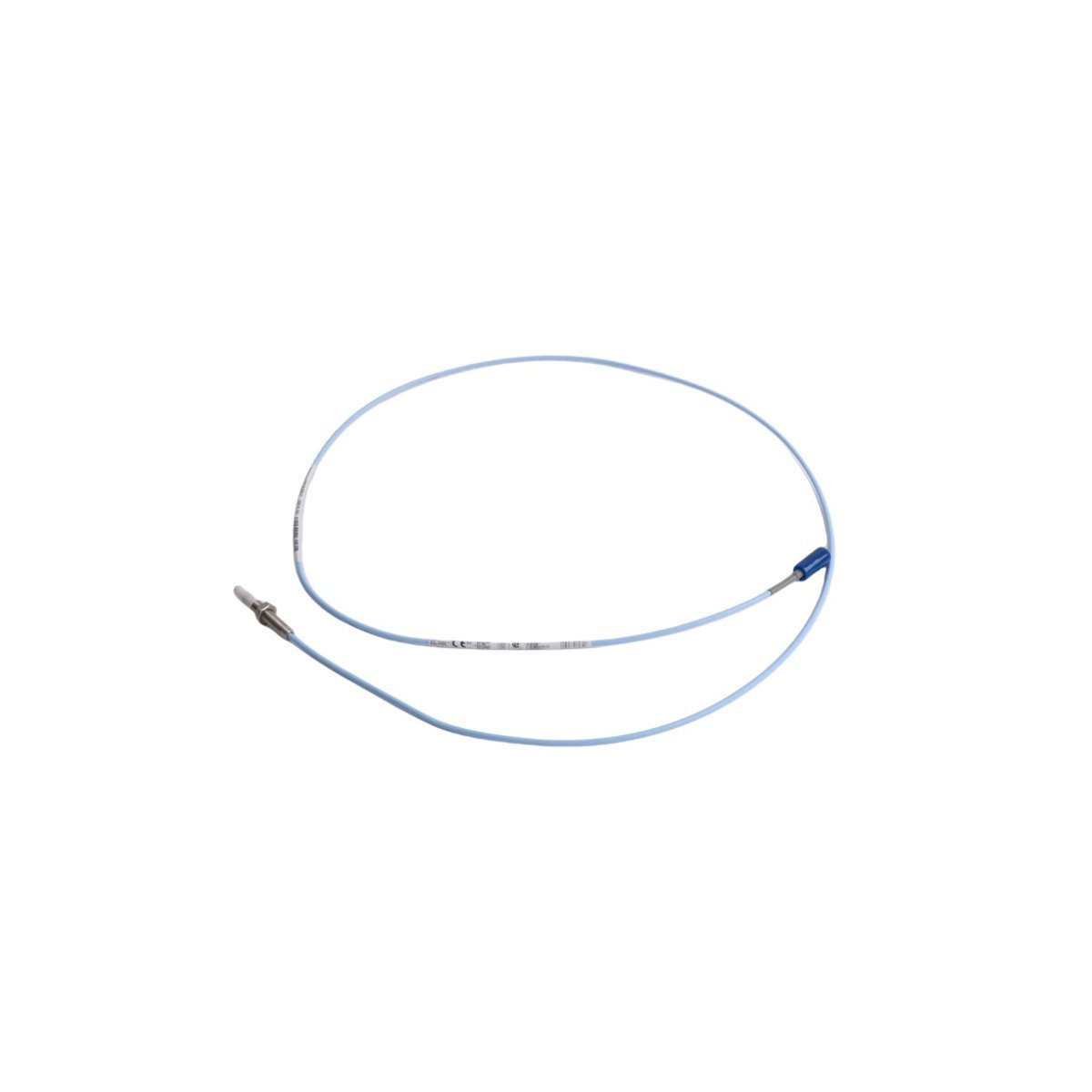

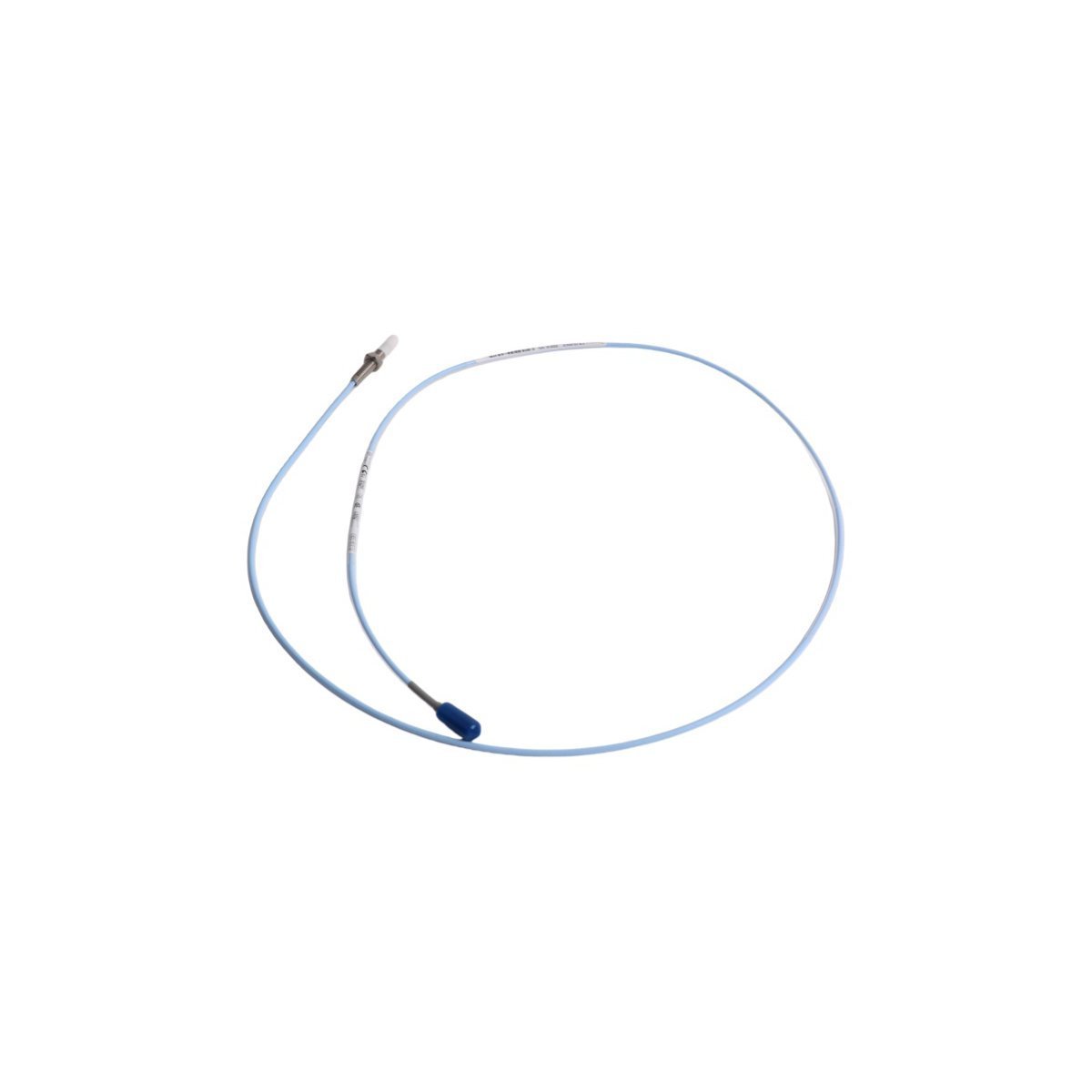

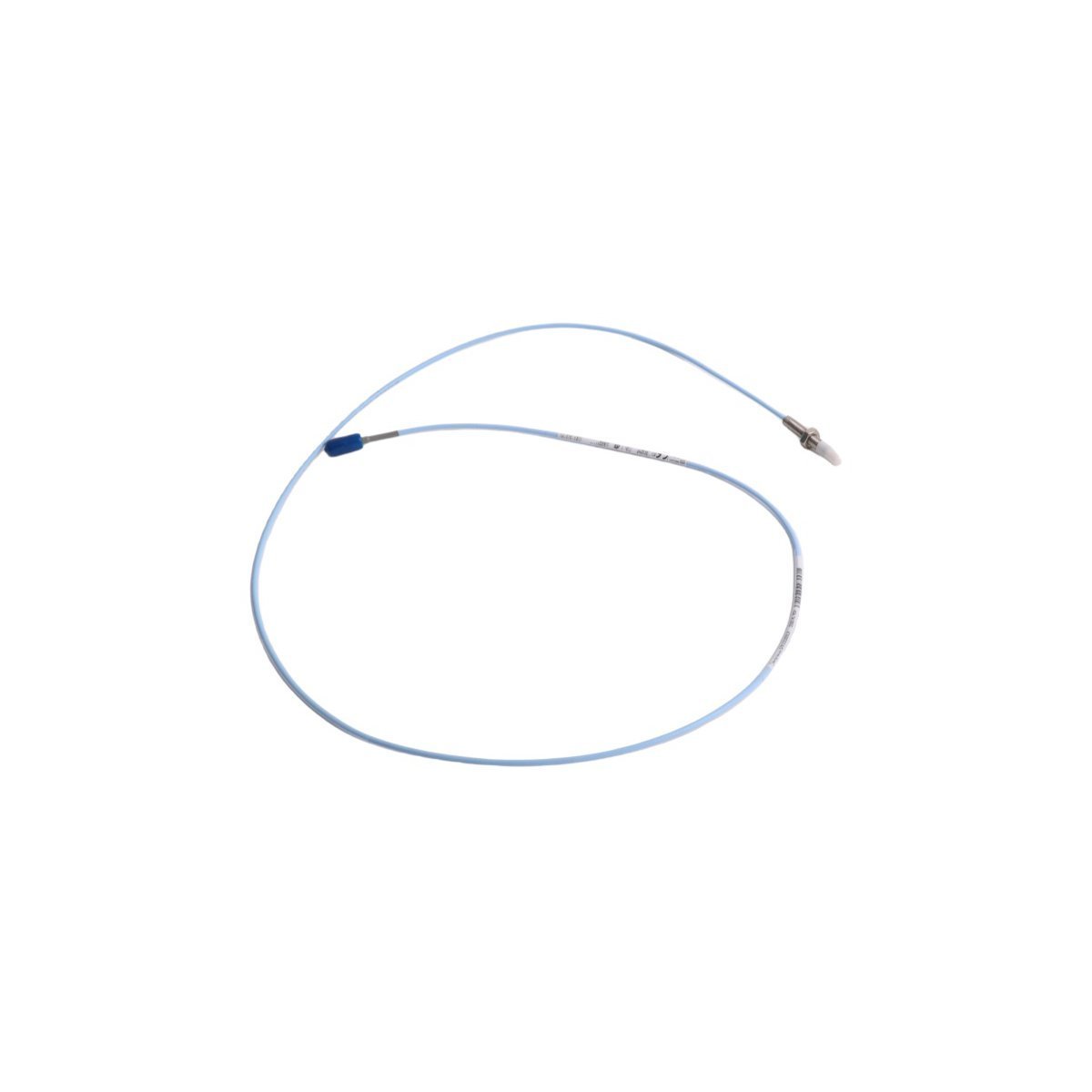

The Bently Nevada 330901-00-10-10-02-00 is a highly specialized 5 mm proximity probe engineered specifically for the 3300 NSv (Near-field) Transducer System. Unlike standard 8 mm probes, the NSv series is designed for small-shaft rotating machinery where physical space is at a premium and high-frequency resolution is required to capture accurate vibration and axial position data. By utilizing sophisticated eddy-current induction, this probe monitors the air gap between its tip and the shaft surface, providing reliable, non-contact feedback in applications where traditional transducers would be too bulky or lack the necessary sensitivity for small-clearance rotors. Its compact design ensures that engineers can implement robust machinery protection even on high-speed spindles, small industrial gearboxes, and micro-turbines.

Technical Specifications

Model Configuration Explanation

The 330901-00-10-10-02-00 part number follows the standard Bently Nevada configuration hierarchy:

• 00: Unthreaded length (0 mm).

• 10: Overall case length (100 mm) – Defining the physical housing dimensions.

• 10: Total length (1.0 meter) – Specifies the factory-integrated cable length.

• 02: Connector type (Miniature coaxial) – Standard interface for NSv systems.

• 00: Agency approval (Standard) – Indicates compliance for non-hazardous industrial environments.

Typical Applications

The 3300 NSv system is the industry choice for challenging, small-scale monitoring scenarios:

• High-Speed Spindles: Monitoring runout and vibration in precision machining centers.

• Small Gas/Steam Turbines: Ideal for auxiliary equipment where bearing housings have limited probe access.

• Micro-Turbines and Blowers: Providing stable data on smaller shaft diameters that would otherwise be difficult to instrument.

• Experimental Research: Used in test stands to evaluate small-rotor dynamics where sensitivity and precision are paramount.

• Gearbox Monitoring: Detecting shaft displacement in close-clearance gear arrangements where space for 8 mm probes is physically unavailable.

System Compatibility

The 330901 probe is an integral part of the Bently Nevada 3300 NSv Transducer System. It is essential to pair this probe with a matching 3300 NSv Proximitor sensor. Because the NSv system is specifically tuned for different inductance and frequency response characteristics compared to the 3300 XL (8 mm) system, components are not cross-compatible. Using this probe with an incorrect Proximitor will cause significant measurement errors and potentially lead to false machine trips.

Installation Guidelines

• Pre-Mounting Inspection: Verify that the mounting hole is properly bored and threaded to accept the probe without side-loading the tip.

• Precision Gapping: Use a feeler gauge to establish the gap. Aim for the nominal -10 VDC operating point at the Proximitor output to ensure the transducer stays within its optimal linear range.

• Torque Management: Tighten the locknut using a torque wrench. Avoid excessive force, as the 5 mm housing is more sensitive to deformation than larger 8 mm probes.

• Cabling Best Practices: Route the coaxial cable through grounded metallic conduit to prevent EMI. Ensure all connectors are kept clean and dry during installation.

• Grounding: Secure the probe case to a clean machine ground to eliminate potential loop-induced noise and signal instability.

Product Advantages

• High-Frequency Resolution: Specifically optimized for detecting subtle dynamics in small-shaft machinery.

• Compact Form Factor: The 5 mm tip allows for placement in tight spaces where standard sensors cannot fit.

• Exceptional Durability: Built with high-temperature PPS and stainless steel, ensuring longevity even in harsh industrial environments.

• Seamless Integration: Easily integrates with Bently Nevada monitoring racks, allowing for a unified plant-wide condition monitoring strategy.

Ordering Information

• 330901-00-10-10-02-00: 5 mm NSv Proximity Probe.

• Includes: Probe unit, locknut, and protective thread covers.

• Note: Confirm the total loop length (probe + extension cable) matches your existing 3300 NSv system requirements before finalizing your order.

Frequently Asked Questions

• Q: Can I use this probe with a standard 3300 XL (8 mm) Proximitor?

• A: No, you must use a dedicated 3300 NSv Proximitor. The sensing electronics are tuned for the 5 mm probe's specific inductive properties.




• Q: Why is the linear range only 1.5 mm?

• A: This range is perfectly matched for small-shaft applications. Using a larger range would reduce the sensitivity needed for detecting subtle vibrations on small rotors.




• Q: Is the 1.0-meter cable field-replaceable?

• A: No. The cable is factory-integral to the probe. Shortening or lengthening it will disrupt the system's impedance and invalidate the calibration.




• Q: What is the primary cause of signal failure?

• A: Signal failure is typically caused by physical damage to the coaxial cable, moisture ingress at the connector, or a loose mounting bracket.




• Q: Can this probe measure on non-metallic shafts?

• A: No. The system relies on eddy-current technology, which requires a conductive metallic target to function.




• Q: How do I ensure the probe is correctly gapped?

• A: Monitor the Proximitor's output voltage while adjusting the gap. A target of -10 VDC ensures the probe is centered in its linear measurement window.




• Q: Is the miniature connector waterproof?

• A: No. The connector should always be housed within a dry, NEMA-rated junction box to prevent signal interference from oil or moisture.




• Q: How long is the probe rated to last?

• A: When installed correctly and kept free from mechanical damage, the probe is designed for years of continuous, high-performance monitoring.
