Product Overview

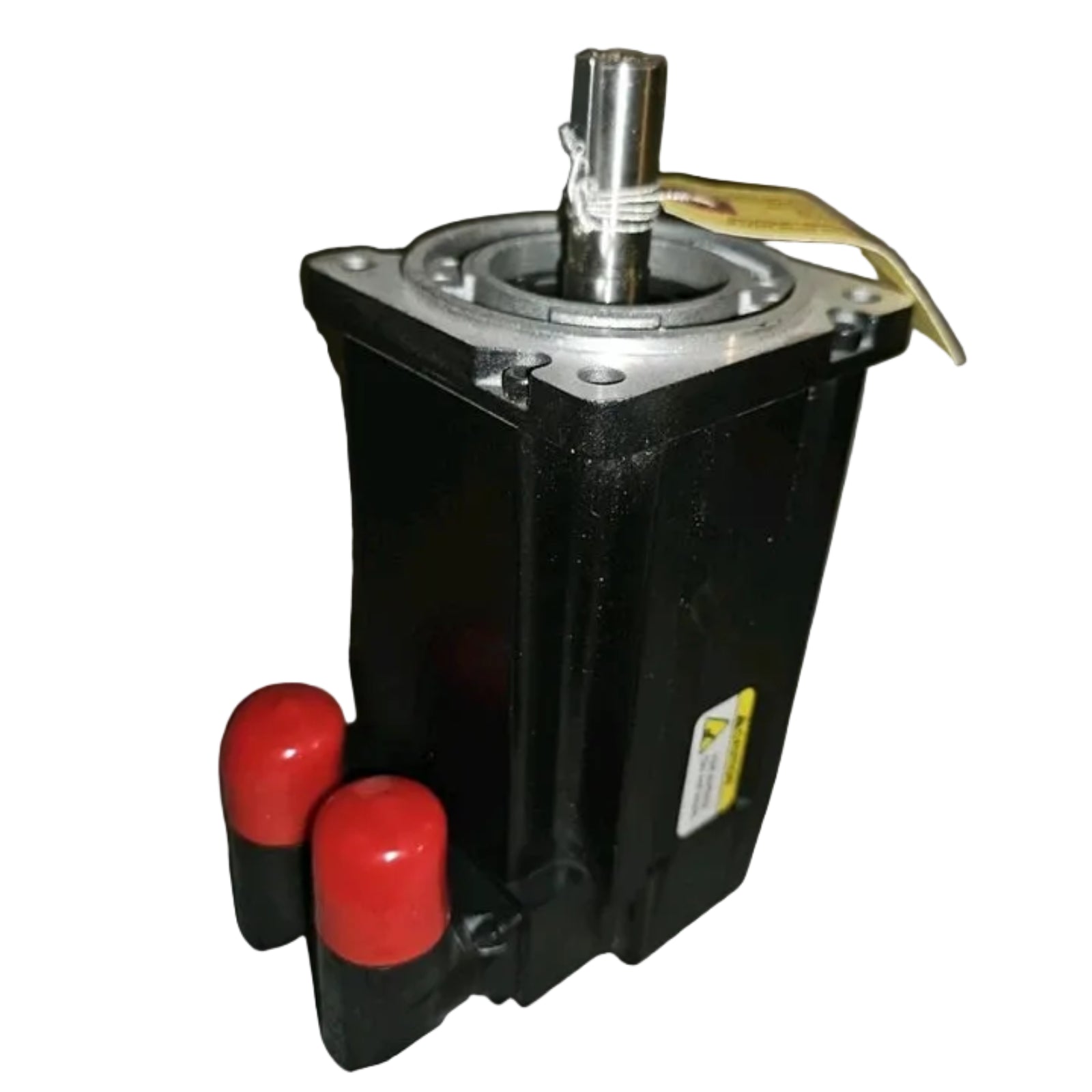

The Allen-Bradley MPL-B310P-MJ74AA is a high-performance rotary servo motor belonging to the Kinetix MPL series. Designed for demanding industrial motion control applications, this unit features a low-inertia rotor configuration that allows for rapid acceleration and deceleration cycles. Operating at a nominal 460 VAC, this motor is engineered for precision, utilizing a high-resolution multi-turn absolute encoder to ensure consistent feedback during dynamic positioning tasks. The inclusion of a 24 VDC holding brake and a keyed shaft ensures mechanical reliability and safety in vertical or gravity-dependent load applications.

Technical Specifications

Model Configuration Explanation

The catalog number MPL-B310P-MJ74AA follows the standard Rockwell Automation nomenclature:

• MPL: Indicates the Kinetix Premium Permanent Magnet Rotary Servo Motor series.

• B: Denotes the 460 VAC voltage class.

• 310: Represents the frame size (100 mm) and magnet stack length.

• P: Specifies the standard 5000 RPM rating.

• M: Indicates the absolute multi-turn encoder feedback type.

• J: Defines the keyed shaft option.

• 7: Specifies the 24 VDC holding brake.

• 4AA: Identifies the connector configuration and standard factory-set environmental protection.

Typical Applications

The Kinetix MPL-B310P-MJ74AA is utilized in sectors requiring high throughput and precise synchronization. Key applications include:

• Packaging and material handling machinery.

• Automated assembly lines requiring rapid cycle times.

• Converting and printing equipment where tension control is critical.

• Multi-axis robotics and pick-and-place systems.

• CNC machine tools requiring fast positioning transitions.

System Compatibility

This motor is fully optimized for integration with the Allen-Bradley Kinetix 5500, Kinetix 5700, and Kinetix 6000 drive families. Proper operation requires the Kinetix motion control software suite to configure the electronic nameplate data, which allows the drive to automatically detect the motor parameters, ensuring accurate loop tuning and protection settings.

Installation Guidelines

• Mechanical Mounting: Ensure the motor mounting surface is flat and rigid to prevent shaft misalignment and excessive bearing wear.

• Thermal Management: Do not obstruct the frame; allow adequate airflow as the motor housing acts as a primary heat sink.

• Electrical Termination: Use only factory-rated shielded cables. Ensure the cable shield is grounded at the drive end to minimize electromagnetic interference (EMI).

• Brake Operation: Ensure the 24 VDC power supply for the holding brake is strictly regulated; voltage drops can cause the brake to engage or drag during operation.

• Shaft Alignment: If using a coupling, ensure it is rated for the torque and RPM of the motor. Avoid heavy side-loading on the keyed shaft.

Product Advantages

The MPL-B310P-MJ74AA offers a significant advantage in low-inertia design, which minimizes energy loss during frequent start-stop cycles. The absolute multi-turn encoder eliminates the need for a homing sequence after a power cycle, reducing machine downtime. Furthermore, the robust construction provides long-term operational integrity in harsh industrial environments, while the seamless integration with Kinetix drives simplifies the commissioning process for automation engineers.

Ordering Information

When procuring this unit, ensure the order includes:

• One (1) MPL-B310P-MJ74AA Servo Motor unit.

• Standard documentation and safety compliance sheets.

• Note: Mating power and feedback cables are typically sold separately based on required cable length and drag chain requirements. Verify all cable part numbers against the specific Kinetix drive model being used.

Frequently Asked Questions

• Does this motor require an external cooling fan?

  No, this motor is designed for natural convection cooling provided the ambient temperature is within the specified 40 deg C limit and the motor is mounted to a metallic surface.

• Can the multi-turn encoder be replaced if it fails?

  The encoder is factory-calibrated and integrated into the motor assembly. It is not intended for field replacement; the entire motor unit should be serviced by an authorized facility.

• Is the holding brake intended for dynamic stopping?

  No, the 24 VDC brake is a holding brake designed to maintain position when the motor is de-energized. Using it for dynamic stops will result in premature wear.

• What is the significance of the "Low Inertia" classification?

  Low inertia allows the motor to reach its rated 5000 RPM much faster than medium or high inertia models, ideal for applications requiring high-speed point-to-point positioning.

• Can this motor be used with third-party drives?

  The MPL-B310P-MJ74AA is designed for proprietary Allen-Bradley Kinetix drives. Using it with non-Rockwell drives may result in loss of feedback communication.

• Is a shaft seal included for IP66 compliance?

  While the motor housing is designed for IP66, the shaft seal is often an add-on or a specific maintenance part; check your specific delivery to ensure seal integrity.

• How long can the multi-turn encoder maintain position during power loss?

  The encoder uses a battery-backed system within the Kinetix drive architecture. Ensure the drive battery is functional to retain position data.

• Is the keyed shaft removable?

  No, the key is permanently machined as part of the shaft configuration. The keyway is designed for securing drive components such as pulleys or couplings.

• What is the recommended cleaning method?

  Use a dry, lint-free cloth. Avoid spraying pressurized solvents directly at the shaft seals, as this can force contaminants into the bearing assembly.

• What is the expected service life?

  Under normal load conditions and proper environmental management, the MPL series is rated for high-cycle reliability over many years of continuous operation.
