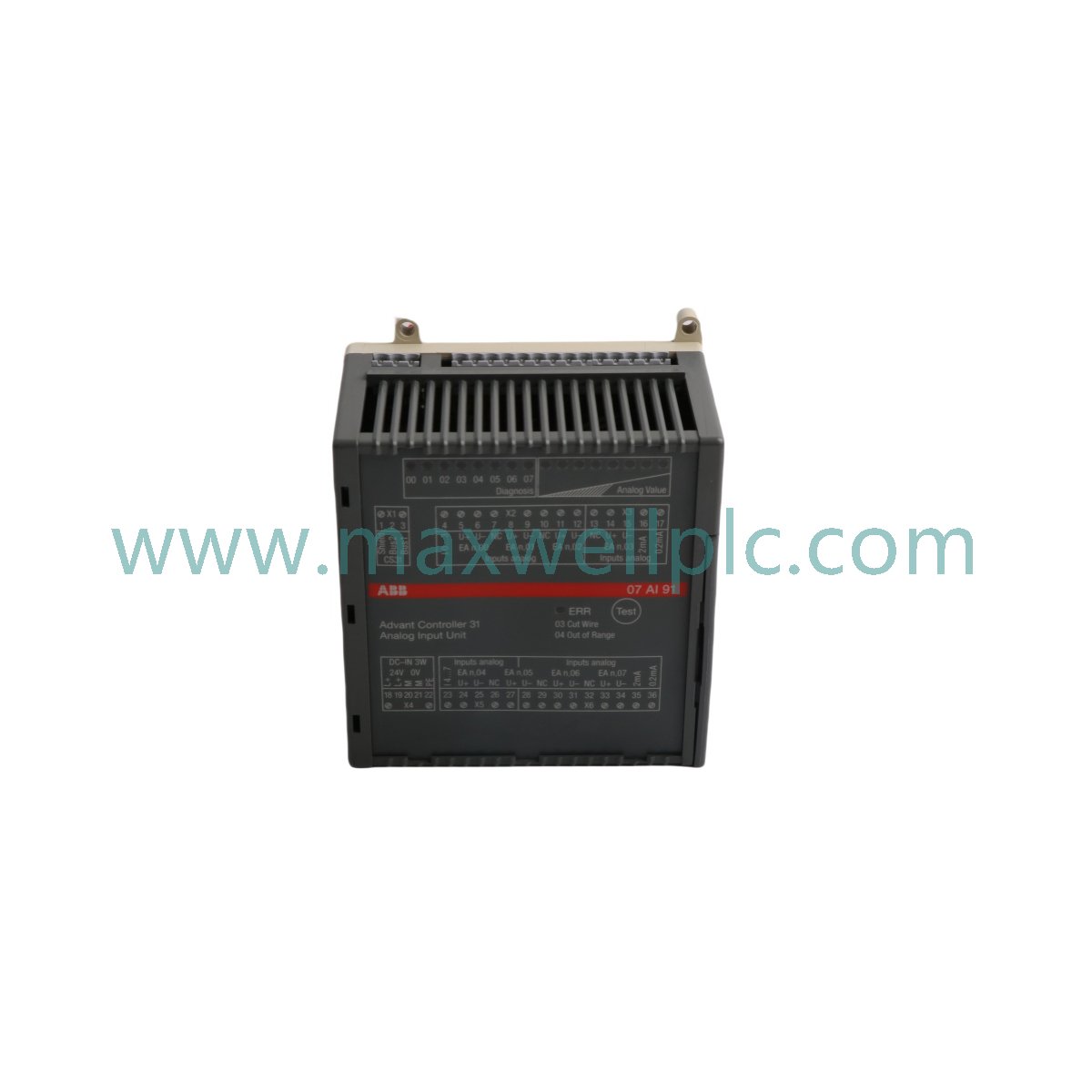

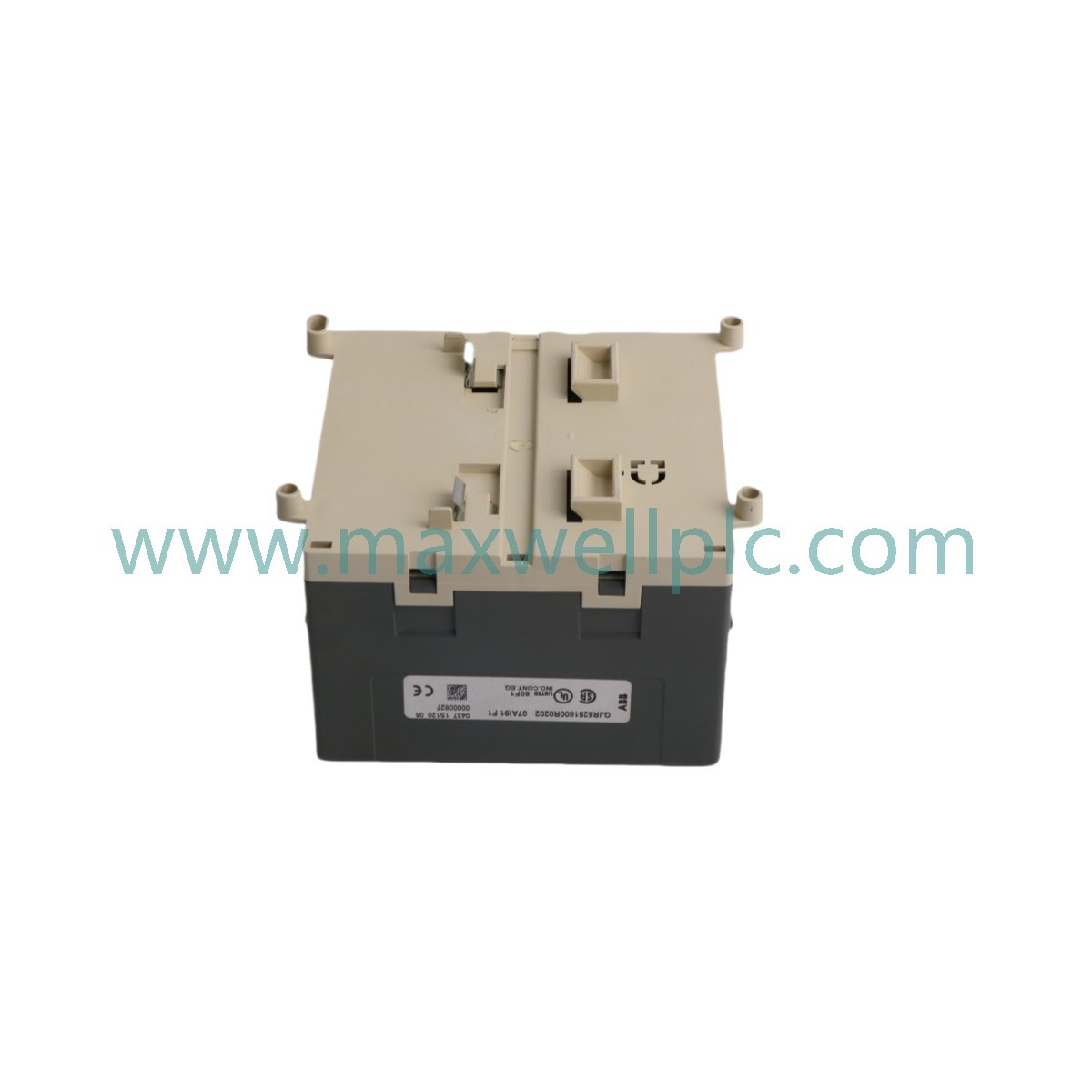

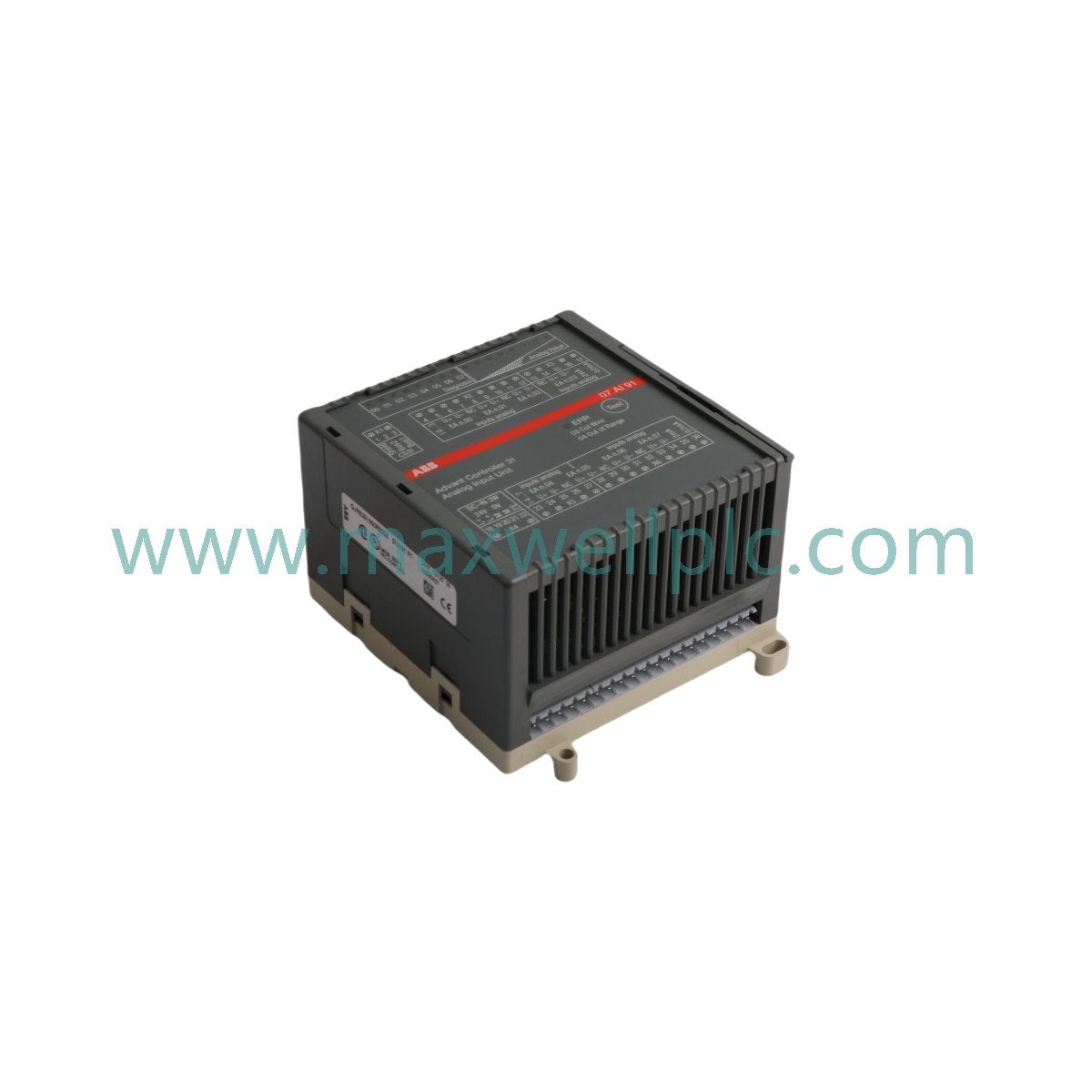

Configured for high-precision signal acquisition in Advant OCS 800xA and CS31 systems, the ABB 07AI91 (GJR5251600R0202 Analog I/O Module) provides direct physical electrical execution. The module serves as a bridge for voltage, current, and RTD signal inputs, processing them through a 16-bit resolution architecture to maintain data integrity across industrial process control loops.

Model Identification

• Full Model: 07AI91 GJR5251600R0202

• Base Model: 07AI91

• Classification: Analog Input Module

Technical Data

Industrial Control Bus Performance

The 07AI91 maintains deterministic communication velocity when interfaced with the ABB Advant backplane bus. The module utilizes high-speed sampling intervals to minimize latency during signal conversion, ensuring that process variables are updated synchronously with the CPU scan cycle. Its integration within the Advant OCS 800xA framework leverages optimized firmware flash compatibility, allowing for efficient integration into existing CS31 distributed control architectures without requiring significant re-configuration of the I/O mapping tables.

Order Fulfillment

• The package includes the primary 07AI91 analog input module.

• Standard documentation includes a technical installation sheet.

• Terminal blocks are typically pre-installed or included as part of the standard modular housing.

• Conformal coating applied to circuit boards for enhanced protection against contaminants.

Installation Guidelines

• Mounting: Ensure the module is securely seated on the system DIN-rail or rack mount to prevent vibration-induced signal noise.

• Shielding: Use twisted-pair shielded cables for all analog input runs to mitigate electromagnetic interference. Ground cable shields at the control cabinet end only to prevent ground loops.

• Thermal Clearance: Maintain a minimum of 5 cm clearance above and below the module to facilitate convection cooling within the cabinet.

• Powering: Confirm that the 24 VDC power supply output is stable and within the defined tolerance before energizing the module.

Technical FAQ

• What is the primary function of the 07AI91?

  It is a high-resolution analog input module designed to convert voltage, current, and RTD signals into digital format for ABB control systems.

• How many input channels are available?

  The module provides 8 differential channels or 16 single-ended channels.

• What is the signal resolution of the converter?

  The conversion engine supports 16-bit resolution including the sign bit.

• Does the module require external isolation?

  No, the module includes internal 1500 VAC isolation between the field inputs and the system backplane.

• Can this module handle RTD inputs?

  Yes, the module is engineered to accept various RTD signal types common in industrial temperature monitoring.

• What happens if the 24 VDC supply exceeds the 10% tolerance?

  Operating outside the specified voltage range may result in measurement inaccuracies or internal hardware protection triggers.

• How should the module be calibrated?

  The module is factory-calibrated; periodic checks should only involve verifying loop signal integrity using a precision process calibrator.

• Is hot-swapping supported?

  Refer to specific Advant system documentation regarding power-up sequences; generally, standard industrial practice mandates de-energizing the I/O rack before physical removal.
