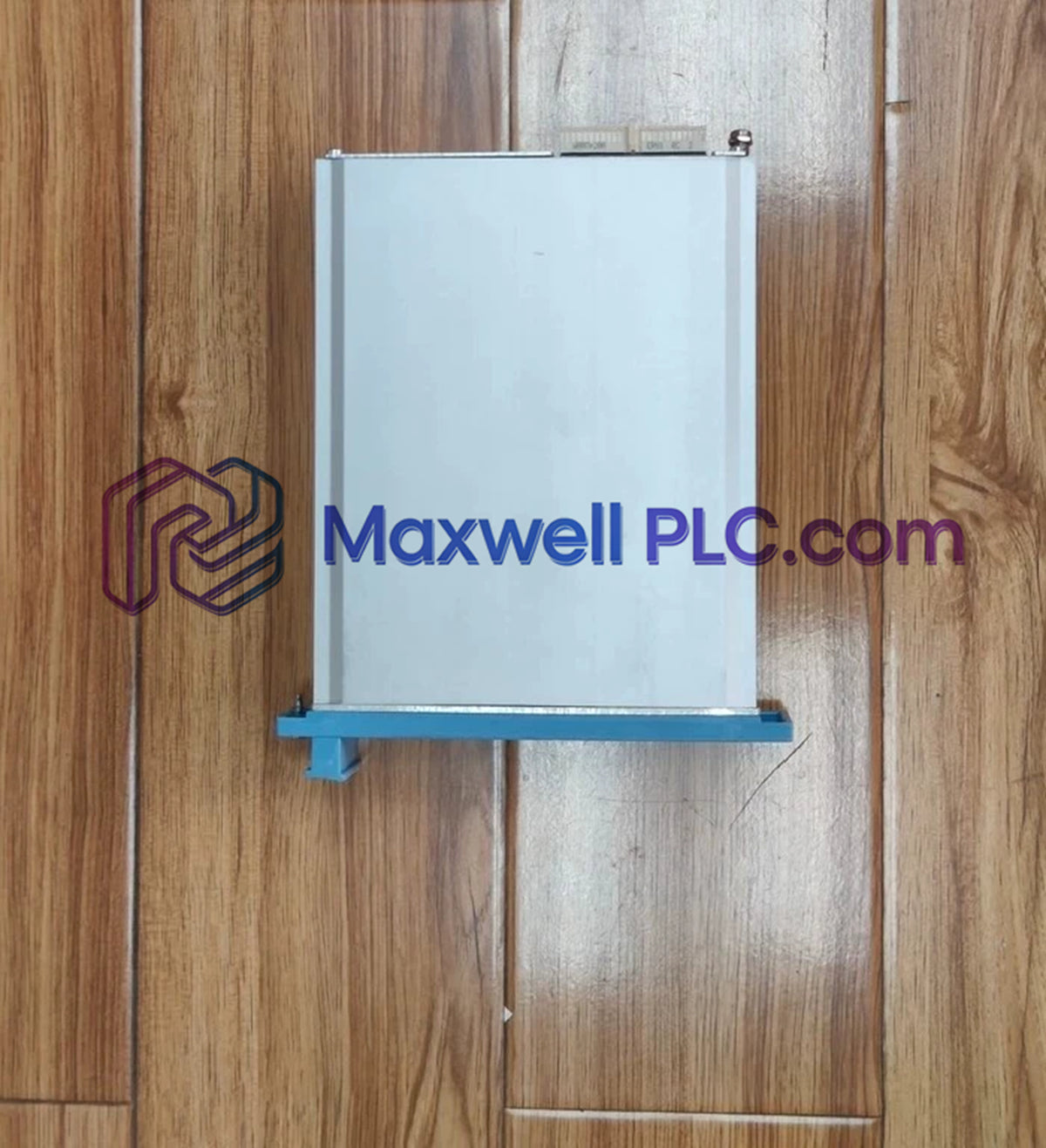

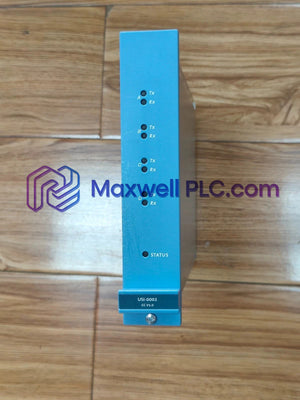

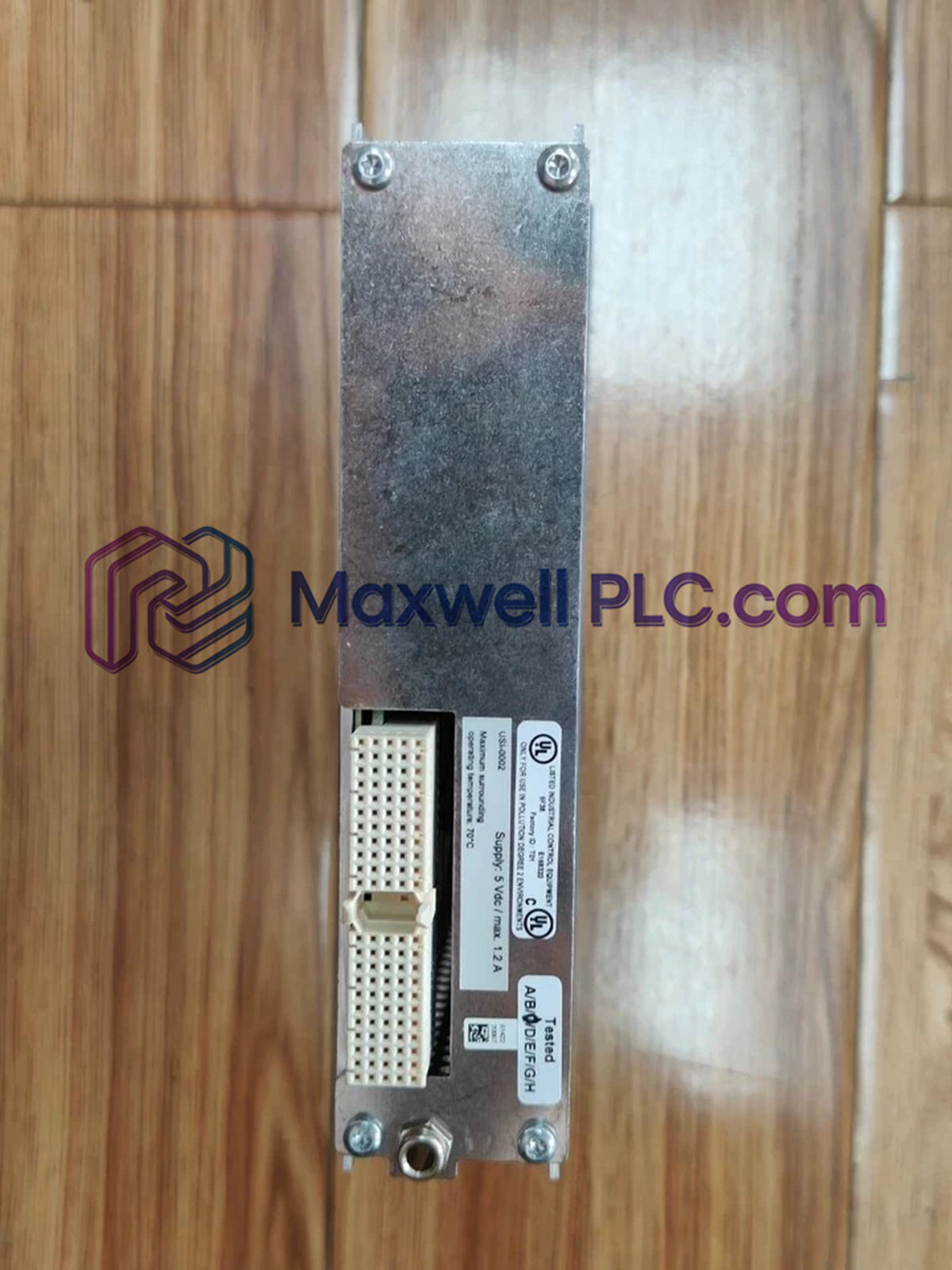

The Honeywell FC-USI-0002, also cataloged as the FC-USI-0002 Universal Safety Interface Module, operates as a dedicated hardware component for network interface layer isolation and data processing within Safety Manager platforms.

Architecture Breakdown

The Honeywell FC-USI-0002 functions strictly as a hardware firewall and protocol converter between the core safety control processor and external control networks. It does not execute safety logic loops.

• Base Module: FC-USI-0002 (Universal Safety Interface).
• Compatible Replacement: FX-USI-0002 (Pin-to-pin functional match requiring Safety Manager software revision R140.1 or higher).

Technical Specifications

Fieldbus Protocols & Channel Isolation

The module manages high-speed communications across upstream process control networks (including Experion PKS and Safety Builder) while maintaining strict channel-to-channel isolation and galvanic protection across internal logic buses. Embedded Error Detecting and Correcting (EDC) logic continuously verifies the 8 Mbyte SRAM memory space to block corrupted data frames from reaching the primary safety execution units. Data exchange between the communication engine and the central controller relies on a dedicated 256 Kbyte Shared RAM zone, ensuring determinism across 4-20 mA HART loop protocol translation pathways and DCS system gateways.

Scope of Delivery

• 1 x Honeywell FC-USI-0002 Universal Safety Interface Module
• Factory test certificate and hardware documentation
• Sealed anti-static moisture-barrier packaging with high-density ESD protective foam inserts

Physical Cabinet Installation

• Chassis Mounting: Insert the module into the designated slot within the main Safety Manager controller chassis until the backplane locking mechanism fully engages.
• Power Boundaries: Verify that the main chassis power supply delivers stable 5 VDC power to the backplane prior to card insertion.
• Ethernet & Serial Cabling: Route dual Fast Ethernet cables away from high-voltage AC lines to minimize electromagnetic noise. Standard serial channel cabling must observe proper shielding practices.
• Grounding Requirements: Ensure cabinet structural ground bonding meets IEEE standards, with shield drain wires clamped directly to the chassis ground bar.

Dispatch Details

• Delivery time: 2-7 days when payment finish.
• Shipment via DHL, FEDEX, or UPS with full tracking visibility.
• Standard packaging features anti-static industrial packaging engineered for vibration resistance and drop protection during international transport.

Technical Questions & Answers

Q: Does the FC-USI-0002 execute safety shutdown logic directly?

A: No. The module functions solely as a communication processor and network interface firewall. All safety logic execution occurs inside the dedicated Safety Manager Control Processor.

Q: Can the FX-USI-0002 directly replace the FC-USI-0002 in an existing cabinet?

A: Yes, the FX-USI-0002 is pin-to-pin and functionally compatible, but the Safety Manager system must run software revision R140.1 or later to support the newer module variant.

Q: How does the internal memory handle transient data corruption?

A: The 8 Mbyte local SRAM utilizes integrated Error Detecting and Correcting (EDC) logic to identify and fix single-bit memory errors in real time during data exchange operations.

Q: What power rail does the module draw from inside the controller chassis?

A: The FC-USI-0002 draws its operating power directly from the backplane 5 VDC bus, with a rated current consumption of 1.2 A.
