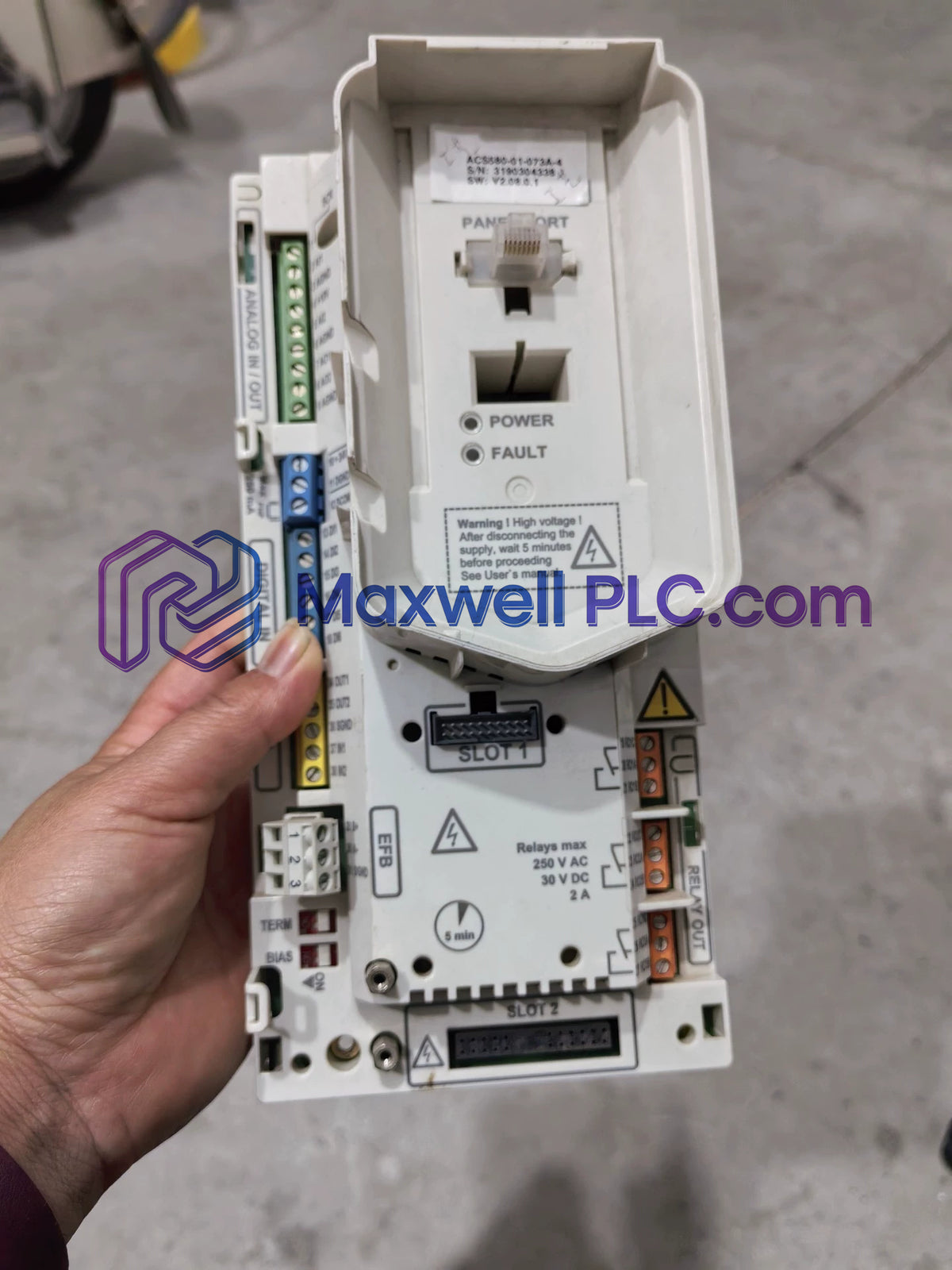

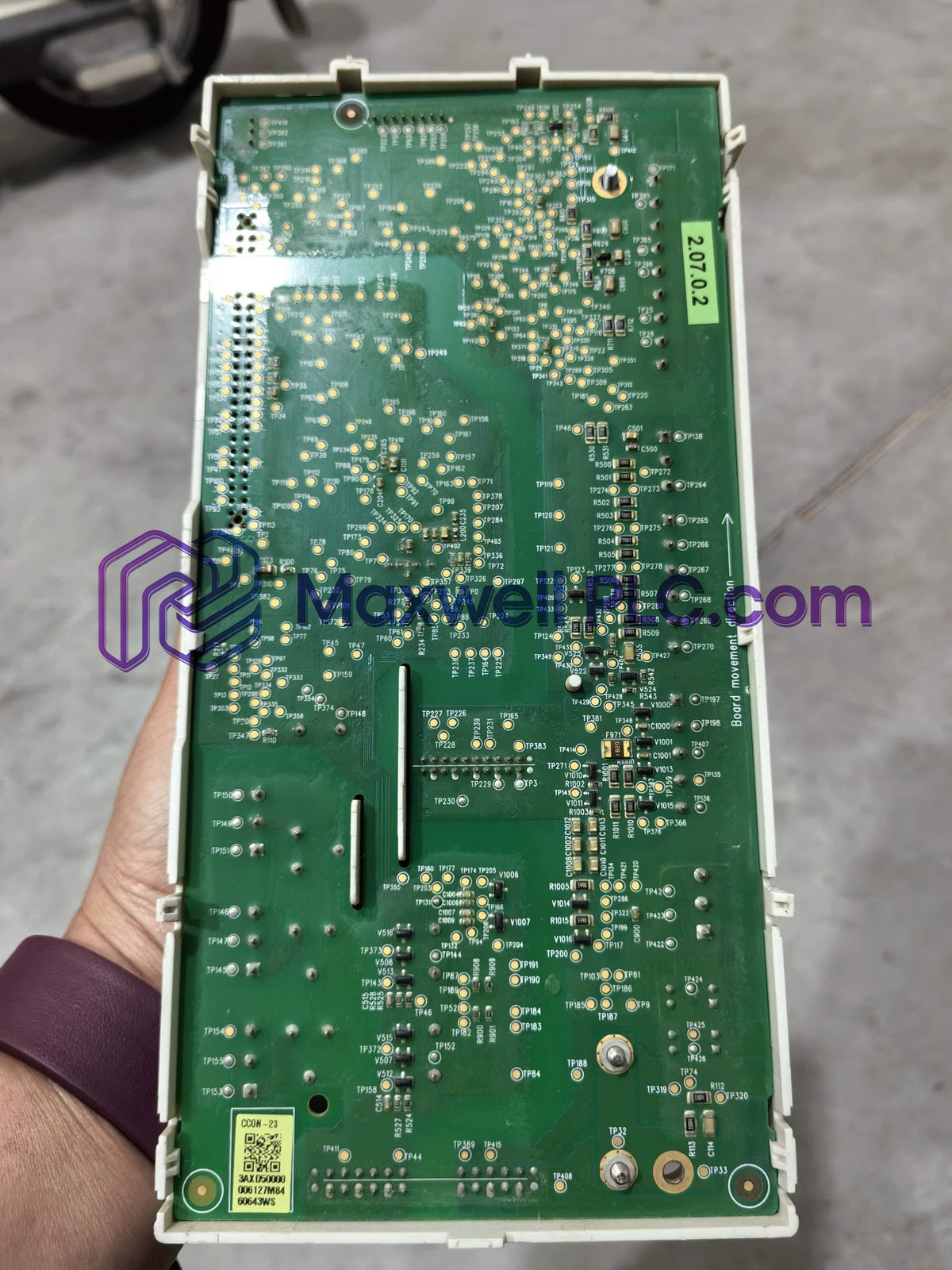

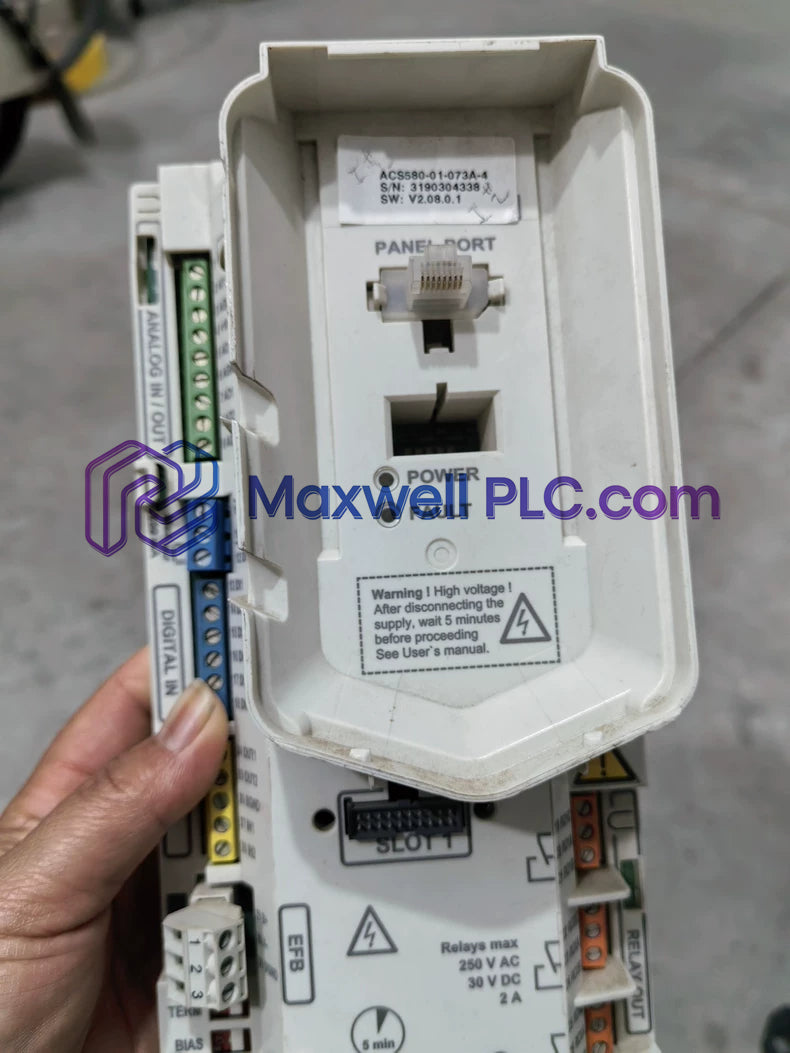

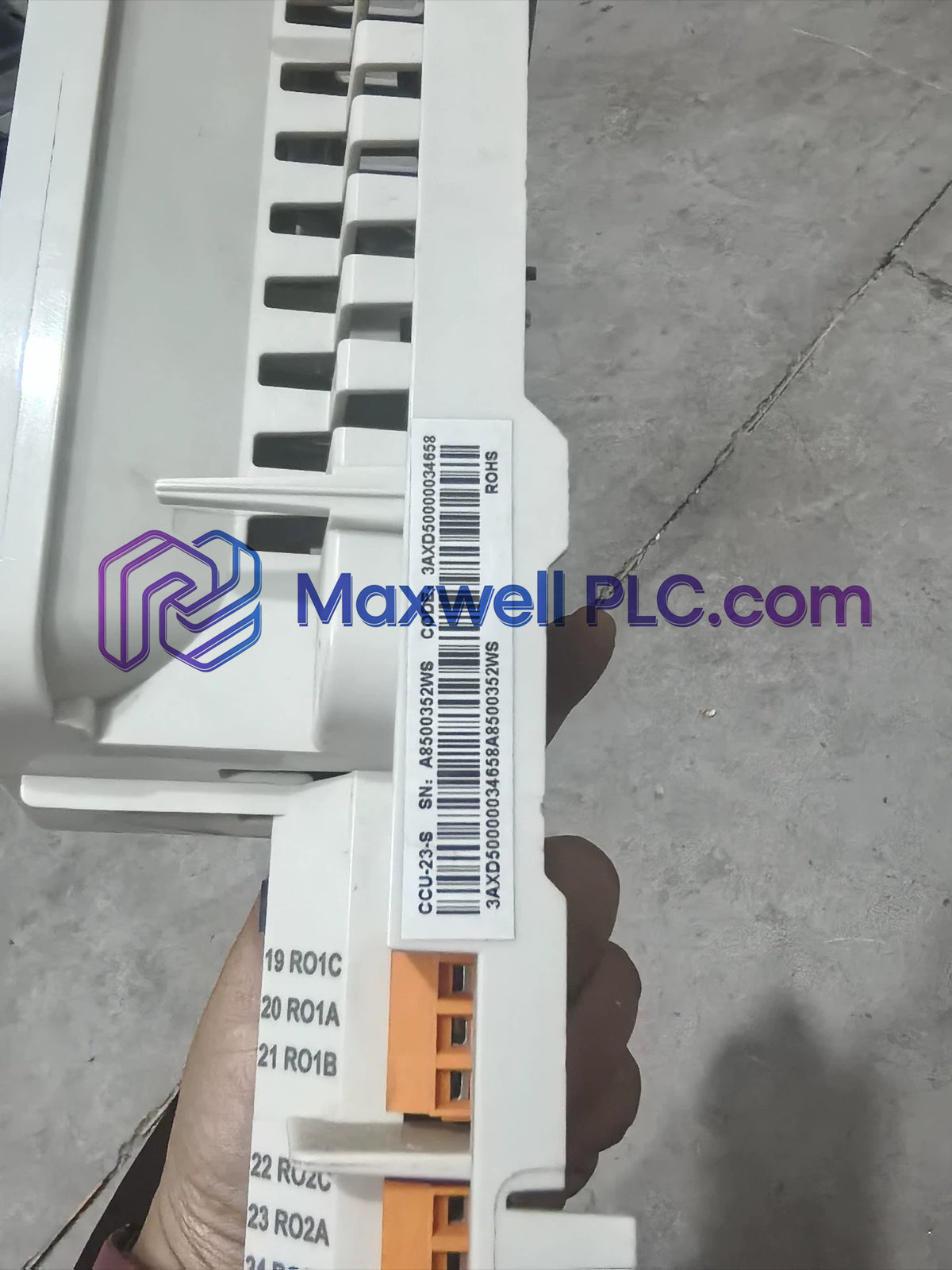

The ABB 3AXD50000716975, also cataloged as the ACS580-CCU-23-S+N2000-ASCK2 inverter motherboard, operates as a dedicated hardware component for power distribution, switch-mode regulation, and gate control signal isolation within ACS580 drive platforms.

Hardware Identification & Designations

• Production Part Code: 3AXD50000716975
• Replacement Designation: ACS580-CCU-23-S+N2000-ASCK2
• Target Application: Main inverter motherboard assembly for ACS580 variable frequency drives
• Auxiliary Power Conversion: Integrated switch-mode power supply (SMPS) for control logic

Board Electrical & Physical Parameters

Deterministic Communication & Firmware Synchronization

The circuit board features firmware flash compatibility to maintain uninterrupted execution during high-speed gate driver modulation. Signal paths routed to option slots maintain deterministic performance over Profinet / EtherNet/IP networks via optimized backplane bus communication velocity licences, preventing bus arbitration delays during critical inverter pulse-width modulation sequences.

Standard Shipping Package

• 1 x ABB 3AXD50000716975 inverter motherboard
• 1 x Mounting hardware set with grounding fasteners
• 1 x ESD-safe protective enclosure packaging

Enclosure Mounting & Installation Directives

• Electrostatic Discharge Safety: Wear a calibrated ESD grounding wrist strap when handling the unshielded circuit board to prevent gate trace damage.
• DC Bus Discharge Verification: Measure main DC bus terminals to ensure voltage drops below 50 VDC before performing physical board extraction.
• Fastener Torque Standards: Tighten all structural ground screws to specified chassis limits to maintain 1500 VAC reinforced galvanic isolation boundaries.
• Cable Shield Anchorage: Clamp control wiring shields directly to chassis grounding points to mitigate high-frequency EMI radiation.

Technical Engineering FAQ

• What power supply architecture is integrated directly onto this inverter motherboard?

  An internal switch-mode power supply (SMPS) step-down regulator converts internal voltage paths to supply low-voltage 24 VDC logic and gate circuits.

• Can this inverter motherboard be replaced without removing mains voltage from the drive frame?

  Hot-swap operation is strictly forbidden; main 380 to 500 VAC power and auxiliary 24 VDC control power must be completely disconnected first.

• What degree of electrical isolation is provided for communication channels?

  The motherboard incorporates 1500 VAC reinforced galvanic isolation between control communication circuits and high-voltage power components.

• What operating temperature envelope must be maintained inside the VFD enclosure?

  The motherboard functions across an operating temperature range of -15 to +45 deg C without thermal derating.

• How does the board interface with the intermediate DC link?

  Dedicated high-voltage sensing circuits directly connect to the DC bus link to deliver real-time overvoltage and short-circuit fault signals.

• What steps prevent electrical interference on control signal paths?

  Proper grounding of motherboard metal mounting points and using twisted-shielded cabling ensures high-frequency noise immunity.

• Is flash memory firmware updating supported directly on this board?

  Yes, firmware flash compatibility allows local flashing and synchronization with overall drive control software structures.

• What voltage range is accepted by the power stage connected through this board?

  The board interfaces directly with 3-phase AC power networks supplying 380 to 500 VAC line input.
