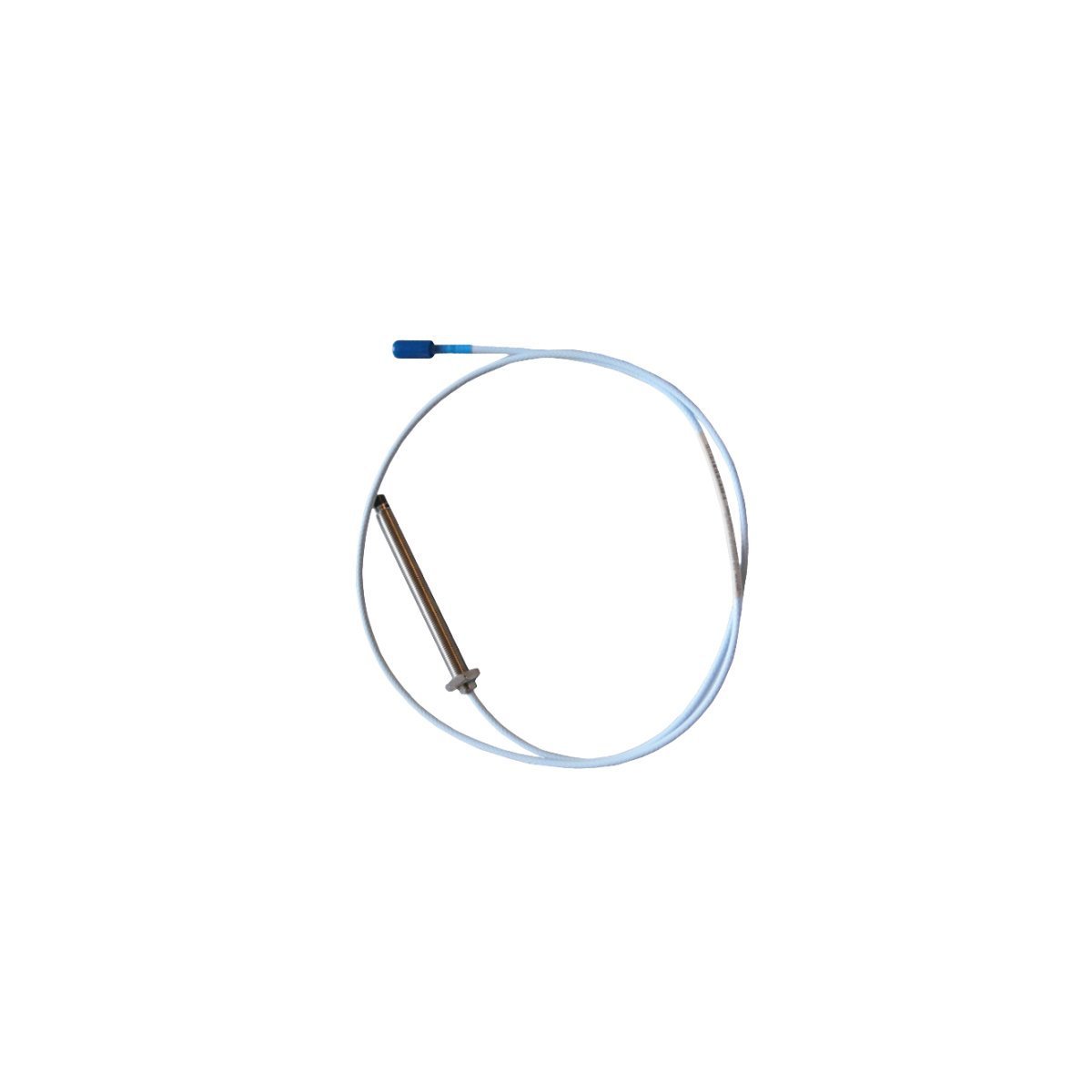

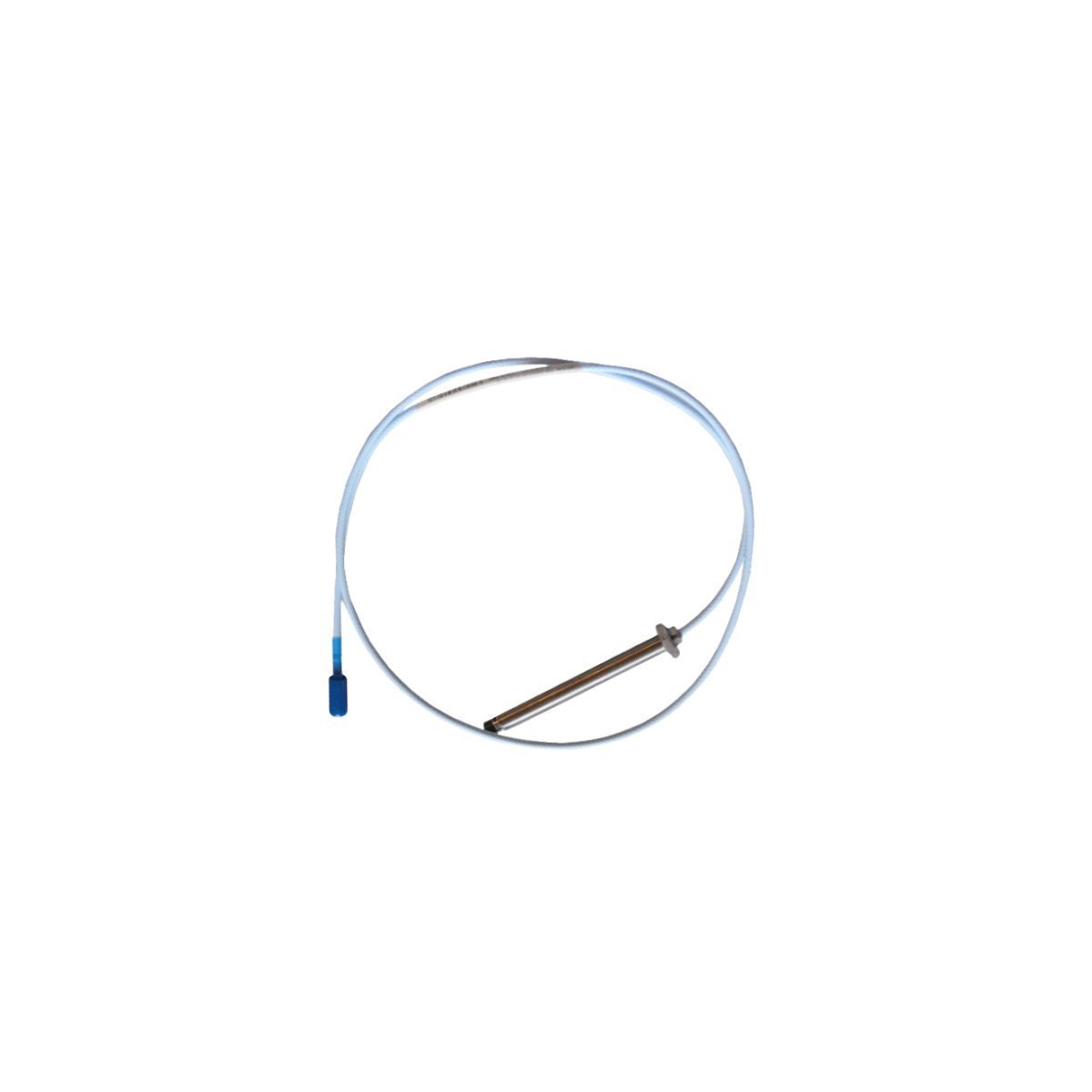

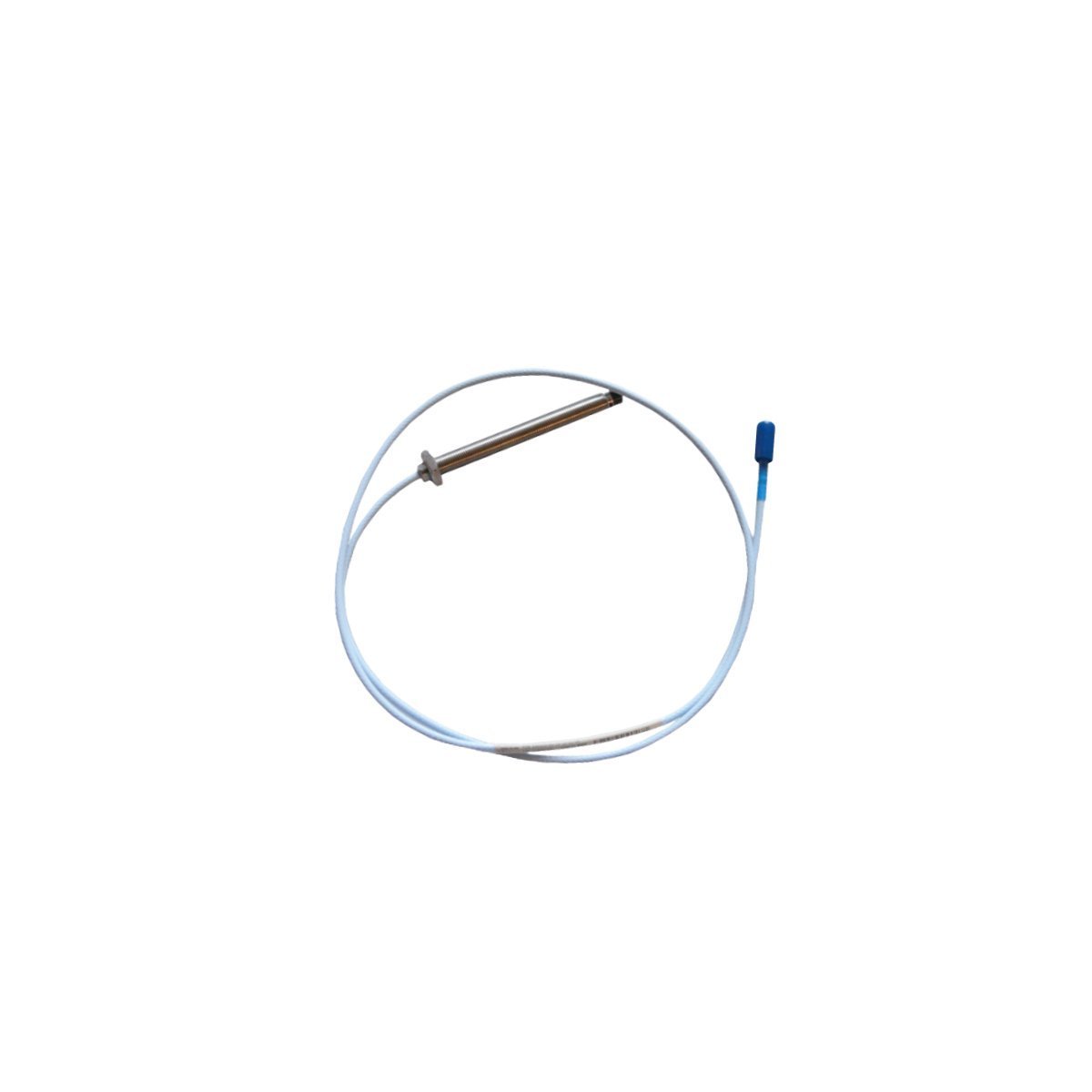

The Bently Nevada 330103-00-04-10-02-00, also cataloged as the 330103 Extension Cable, operates as a dedicated hardware component for signal transmission between 8 mm proximity probes and Proximitor sensors within rotating machinery monitoring systems.

Suffix Breakdown & Model Matrix

• 330103: 3300 XL standard extension cable.

• 00: Connector/Cable Option (Standard connector).

• 04: Cable Length Option (4.0 meters).

• 10: Total Length Option (1.0 meter added to probe length).

• 02: Agency Approval Option (Multiple approvals: CSA, ATEX, IECEx).

• 00: Internal Mounting/Connector Option (Standard).

Hardware Specifications

Mechanical Monitoring and Signal Integrity

The 3300 XL system requires precise eddy-current probe scaling to convert target displacement into a proportional voltage signal. Operators must ensure gap voltage validation, targeting a -10 VDC setpoint within the linear range of the transducer. Rotor dynamics analysis, specifically orbital vibration and shaft centerline monitoring, depends on the phase-coherent signal transmission through the extension cable to the Proximitor sensor. Cross-talk suppression is achieved by observing minimum spacing requirements between adjacent probes, preventing interference on the high-frequency carrier wave.

Ordering Information

• 1 x 330103-00-04-10-02-00 Extension Cable

• 1 x Connector protector

• 1 x Cable connector assembly

Field Installation Guidelines

• Routing: Install in rigid or flexible electrical conduit. Avoid routing alongside high-power AC lines to prevent inductive noise injection into the coaxial signal path.

• Bend Radius: Maintain a minimum bend radius of 25 mm. Exceeding this limit will deform the internal dielectric and degrade high-frequency transmission.

• Connector Torque: Tighten connectors to the recommended torque using appropriate tools. Ensure connections are fully seated to maintain environmental seal.

• Shielding: Ensure the cable shield is continuous through the connector. Do not create multiple ground points, which can introduce ground loops and signal noise.

Frequently Asked Questions

• Can this cable be shortened?

  No. The system is factory-calibrated for specific total lengths. Cutting the cable shifts the impedance and phase characteristics, causing measurement errors.

• What is the function of the connector protector?

  It prevents ingress of oil, moisture, and contaminants into the coaxial connector, ensuring the signal remains stable in harsh environments.

• Is this cable compatible with 3300 series components?

  It is designed for the 3300 XL system; using it with older 3300 series Proximitor sensors may lead to non-linear output and accuracy loss.

• How do I identify a damaged cable?

  Use an ohmmeter to check for continuity. Short or open circuits between the center conductor and the shield indicate internal failure.

• Does the cable require specific grounding?

  The cable shield should be grounded at the monitor rack; avoid grounding the cable at the probe end to prevent potential ground loops.

• How should I secure the cable in the field?

  Use non-metallic cable ties to secure the cable at regular intervals to prevent mechanical vibration, which can cause spurious signals.

• Can the cable withstand high-temperature environments?

  Yes, it is rated for continuous operation up to 177 deg C, assuming the cable assembly is installed in a properly ventilated or shielded location.

• Why is the cable impedance 75 ohm?

  The 75 ohm impedance matches the 3300 XL system architecture to prevent signal reflections and maintain the fidelity of the high-frequency carrier signal.
