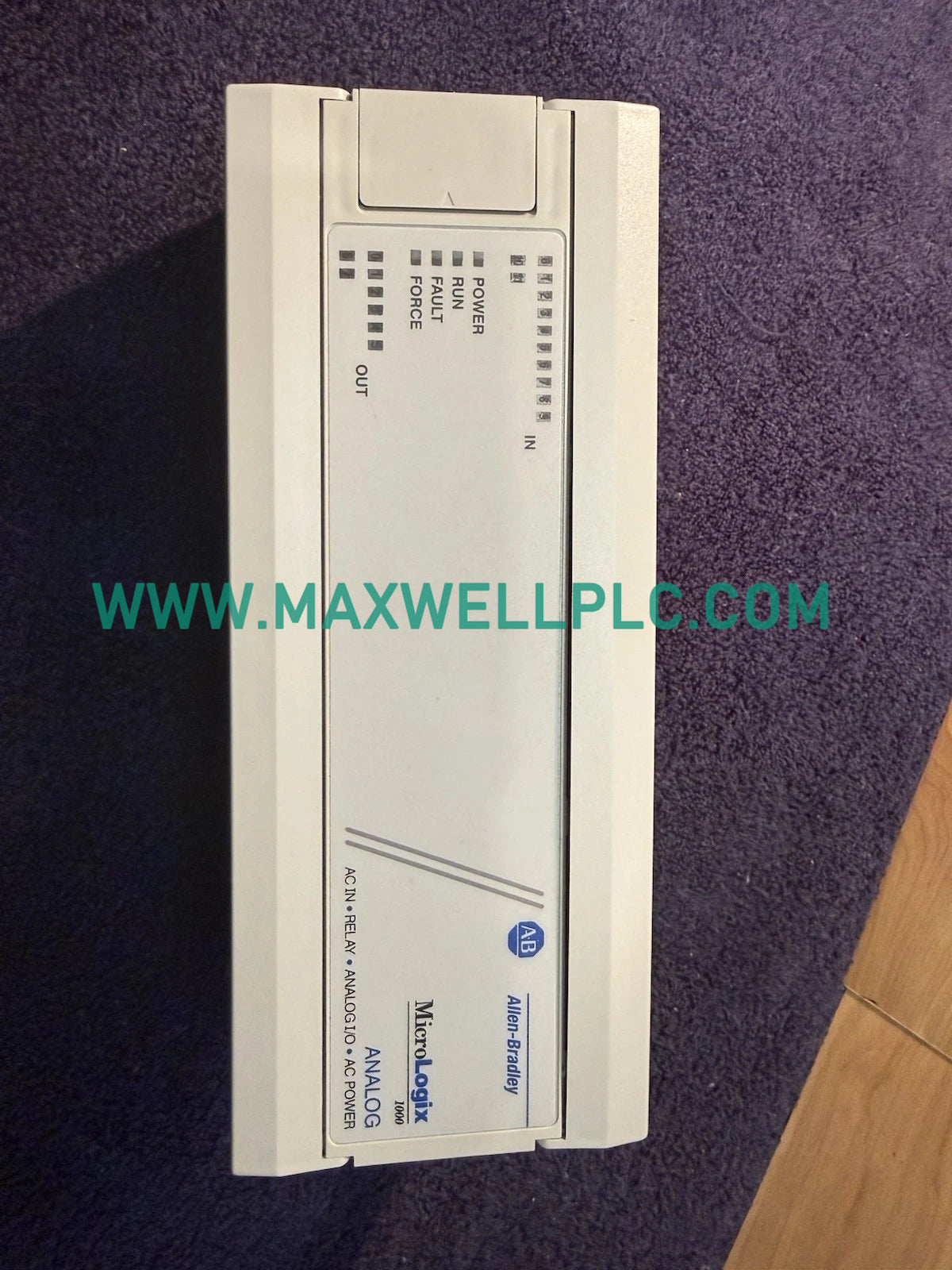

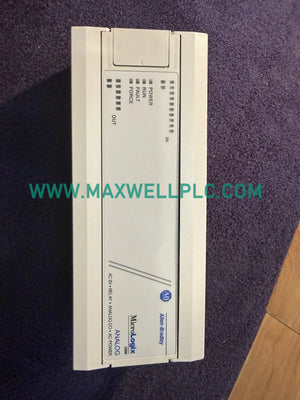

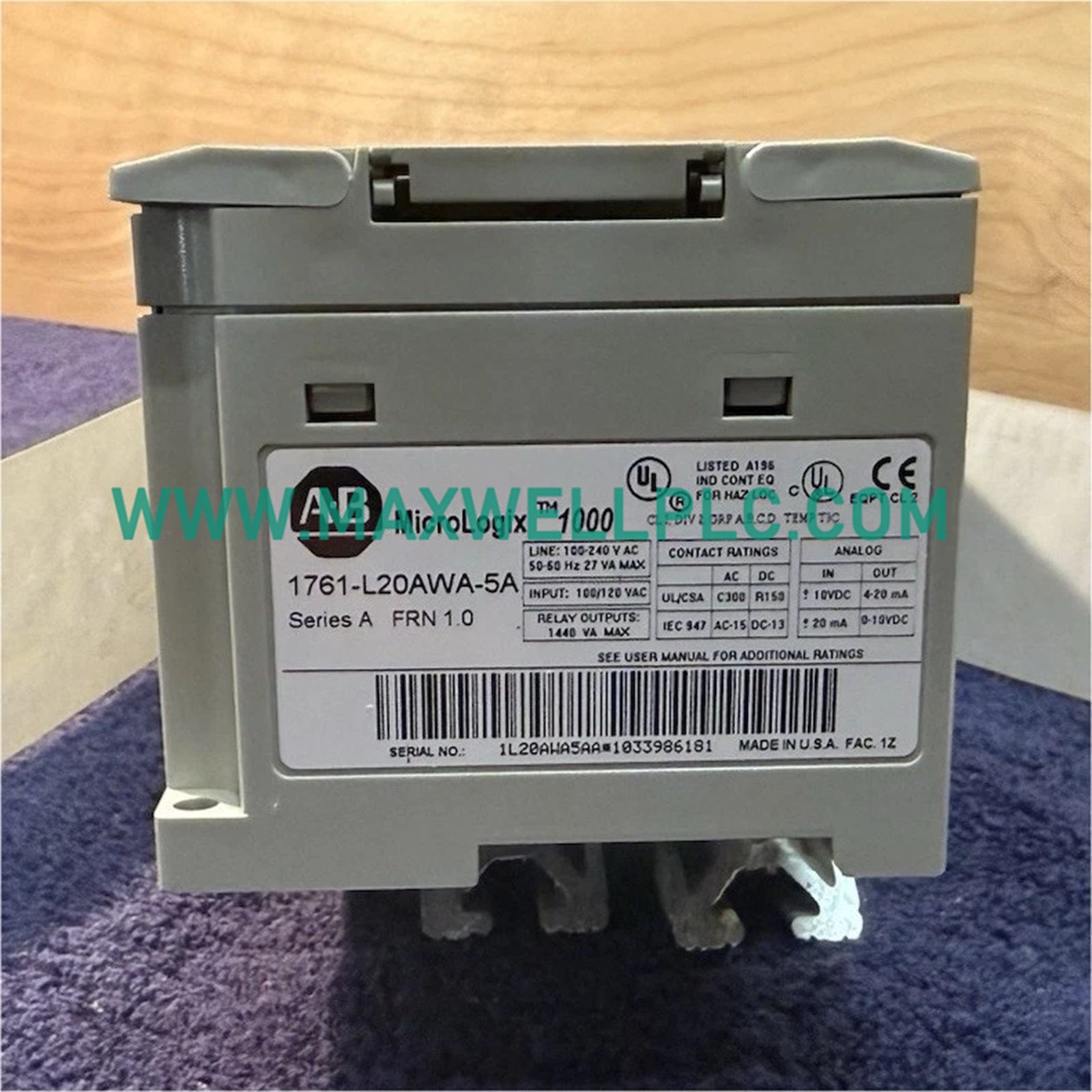

Configured for mixed signal acquisition and switching in localized control loops, the Allen-Bradley 1761-L20AWA-5A, also cataloged as the 1761-L20AWA-5A Programmable Logic Controllers, executes deterministic ladder logic and peripheral management.

Part Number Breakdown & Model Matrix

• Catalog Number: 1761-L20AWA-5A
• System Architecture: MicroLogix 1000 Fixed Controller Series
• Capacity Rating: 20 total physical I/O points
• Embedded Protocol: DF1 point-to-point and multi-drop communication protocol

Hardware Specifications

Network Communication & Architecture Scaling

The controller manages data exchanges via high-speed serial links, supporting deterministic network topologies and backplane bus communication velocity frameworks. Firmware flash compatibility allows seamless software updates, while I/O density scaling optimizes panel space utilization across standalone machine automation projects.

Order Deliverables & Package Contents

• 1 x Allen-Bradley 1761-L20AWA-5A controller unit
• 1 x Removable screw-clamp terminal block set
• 1 x Technical safety and hardware reference sheet

Mechanical Installation & Wiring Instructions

• Cabinet Mounting: Secure the controller directly to a grounded backpanel using standard M4 mounting screws or snap it securely onto an industrial DIN-rail.
• AC Line Separation: Route high-voltage 120 VAC incoming power lines and relay switching conductors through separate wire troughs away from low-level analog channels.
• Torque Regulation: Tighten terminal block screws to manufacturer-specified torque limits to prevent intermittent electrical contact under high-vibration conditions.

Frequently Asked Questions

• How does the Master Control Relay (MCR) feature behave during an emergency stop condition?

  When the MCR circuit is opened externally, it drops power to all unlatched relay outputs simultaneously, halting field actuators instantly.

• Can the embedded analog channels be reconfigured for thermocouple inputs directly?

  No, the built-in analog circuits are designed strictly for standard voltage or current loops and require external transmitters for thermocouples.

• What precautions must be taken when driving inductive loads with the relay outputs?

  An external RC snubber network or flyback diode must be installed across inductive loads to suppress arcing and extend relay contact lifespan.

• Is it possible to hot-swap this fixed I/O controller while the AC power is active?

  No, hot-swapping is prohibited; power must be completely disconnected from the unit before plugging or unplugging field wiring blocks.

• What communication software is required to program this specific model?

  Programming and configuration require RSLogix 500 software communicating through a serial port converter via the DF1 protocol.

• How are firmware updates applied to this hardware version?

  Firmware updates are executed via a PC-to-controller serial connection using specialized flash utility software provided by Rockwell Automation.

• What happens if the input voltage drops below the 79 VAC threshold?

  The internal circuitry will register an input drop-out state, causing the corresponding logic points in the user program to transition to a zero state.

• Why is the unit weight heavier compared to modular micro-controllers?

  The 1.5 kg weight reflects the inclusion of an integrated heavy-duty internal power supply transformer and robust relay isolation barriers.
