Product Overview

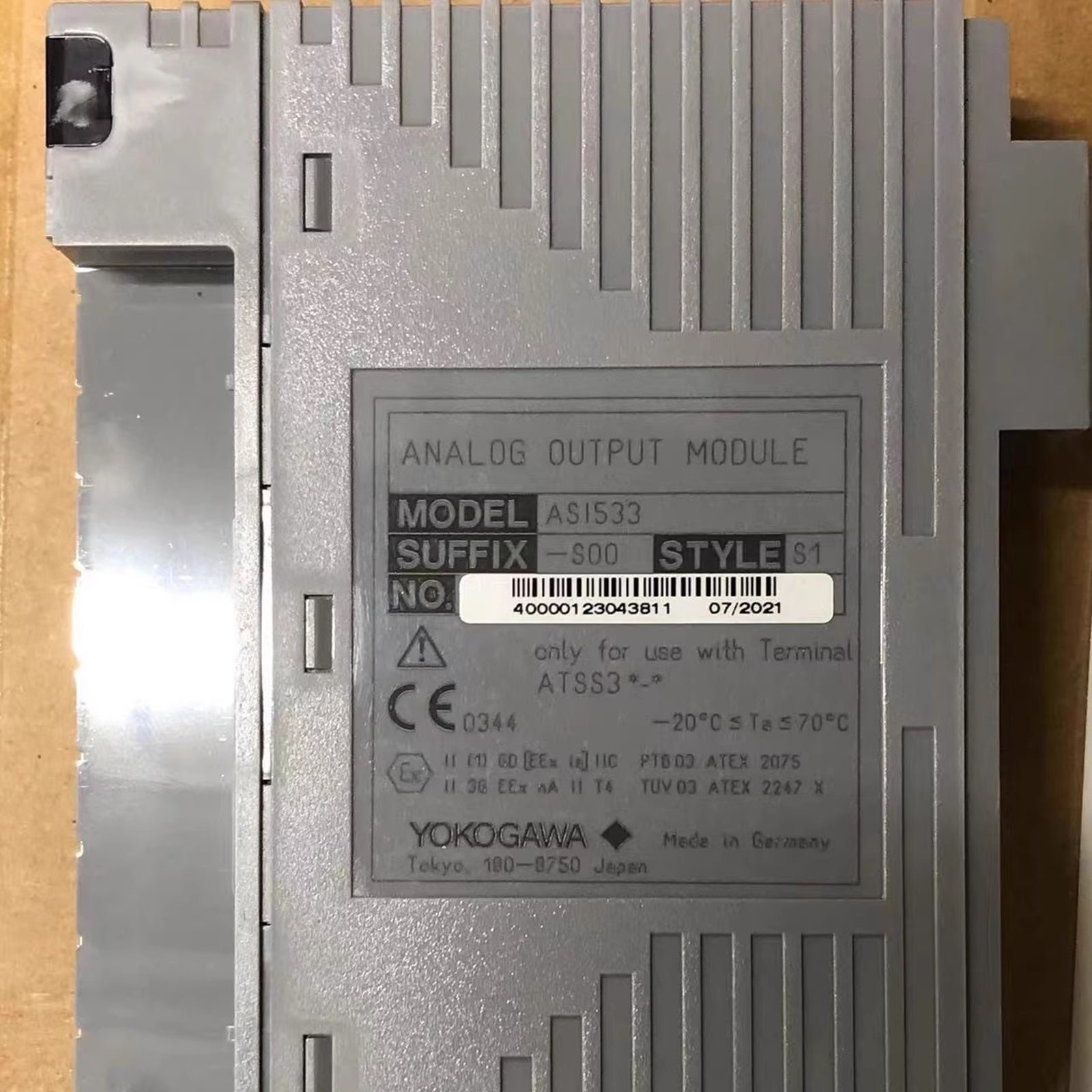

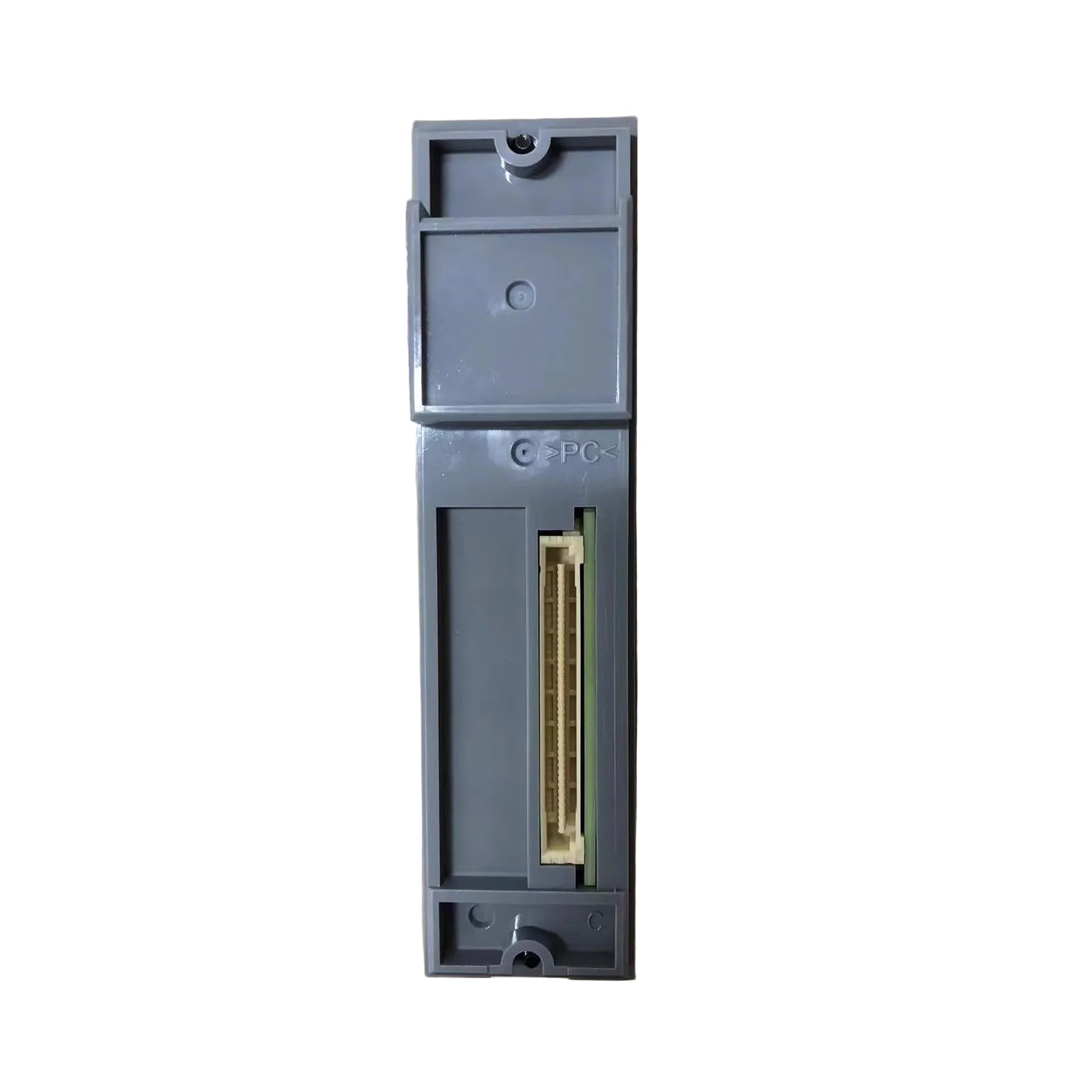

The Yokogawa ASI533-S00 acts as a precision executive interface within the CENTUM VP and CENTUM CS 3000 Distributed Control Systems. This 8-channel analog output module converts digital processor commands into highly accurate 4 to 20 mA DC signals. These signals drive critical field assets, including turbine governor valves, variable speed drives, and complex pneumatic positioners. In high-stakes industrial environments—from steam turbine speed regulation to large-scale centrifugal compressor surge control—the ASI533-S00 provides the isolated, low-drift current loops essential for maintaining operational stability.

This module thrives in mission-critical applications where signal fidelity determines the safety of rotating machinery. By utilizing high-resolution D/A conversion technology, it ensures that automated control strategies translate into smooth, repeatable physical movements. Whether managing high-pressure boiler feedwater or regulating chemical reactor temperatures, the ASI533-S00 guarantees that your final control elements respond with the speed and reliability required to optimize plant efficiency and protect multi-million dollar capital equipment.

Technical Configuration

The ASI533-S00 utilizes Yokogawa’s modular suffix system to define its electrical behavior and environmental protection levels.

ASI533: Base Model Identifier

This designates the hardware as an 8-channel analog output module specifically engineered for the Yokogawa FIO (Field network I/O) bus system.

S: Standard Type

The "S" suffix identifies this as a Standard type module. This architecture optimizes the circuitry for high-precision PID loop execution, delivering a consistent 10ms data update cycle suitable for steady-state process control.

0: Protection Criteria

The first "0" confirms the module features No Explosion Protection. Engineers must install this unit in non-hazardous "safe" zones or within certified purged and pressurized (Ex p) enclosures to comply with hazardous area regulations.

0: Functional Configuration

The final "0" designates the Basic Type configuration. This version offers native, "plug-and-play" compatibility with standard Yokogawa node units such as the ANB10 or ANT10, requiring zero custom firmware modifications for system integration.

Technical Specifications

Installation & Maintenance Guide

Terminal Block Connection

Always utilize the dedicated Yokogawa pressure clamp or screw-type terminal blocks. Ensure all signal wiring ends are fitted with high-quality insulated ferrules and torqued precisely to the manufacturer's specification. Loose terminations in an analog output loop often trigger "DCS Output Fail" alarms or cause erratic actuator behavior.

Impedance Matching

The ASI533-S00 drives loads up to 750 Ω. Before startup, maintenance teams should measure the total loop resistance—including field cabling and the actuator’s input impedance. If total resistance exceeds the 750 Ω threshold, the module will fail to drive the full 20 mA signal, resulting in restricted valve travel or failure to reach full speed on drives.

Signal Integrity and Spacing

The module provides internal galvanic isolation; however, external interference can still impact the 4-20mA signal. Maintain a minimum clearance of 300mm between these signal cables and high-voltage power lines. Always use twisted-pair shielded cables to prevent electromagnetic noise from causing "jitter" in sensitive turbine governor positioners.

Engineering Advantages

Isolated Channel Protection

The ASI533-S00 features 1500 V AC withstand voltage, creating a robust electrical barrier between field actuators and the system bus. This isolation prevents field-side surges—caused by lightning or ground faults—from migrating into the central controller, ensuring that a single-point failure remains localized.

High-Speed Loop Response

With its 10ms update cycle, the module provides the near-instantaneous response times required for turbine control. Smooth output transitions prevent mechanical stress on control valves and dampers, extending the lifespan of mechanical components while maintaining tight process tolerances.

Seamless System Diagnostics

The ASI533-S00 communicates its internal health status directly to the Field Control Station (FCS). It monitors the integrity of the D/A converter and loop conditions in real-time. This allows the DCS to automatically shift loops to a "safe" manual state or activate redundant modules if a fault occurs, providing an essential layer of asset protection.

Technical FAQs

Q1: How does the ASI533-S00 handle an "Open Loop" condition?

A1: The module identifies a broken loop (such as a snapped field wire) via internal current monitoring. The DCS registers an I/O error, allowing the control logic to trigger a pre-defined fail-safe position for the actuator, preventing uncontrolled process excursions.

Q2: Can I hot-swap this module during plant operation?

A2: If the module is part of a redundant pair in the CENTUM station, you can hot-swap it without interrupting the process. For non-redundant setups, removing the module will immediately drop the 4-20mA signals for all 8 channels. Always check the redundancy status on the HIS station before physical removal.

Q3: Does this module require an external loop power supply?

A3: No. The ASI533-S00 is an "active" output module that draws power from the FIO bus and drives the current internally. You do not need to wire an external 24V DC power supply into the loop to generate the 4-20mA signal.

Q4: Is the ASI533-S00 compatible with older Yokogawa RIO systems?

A4: No. The ASI533 belongs to the FIO (Field network I/O) series. It is designed for newer CENTUM VP and CS 3000 systems using ANB/ANT node units. Older RIO-based systems require the AO11 or similar legacy analog output series.
