Product Overview

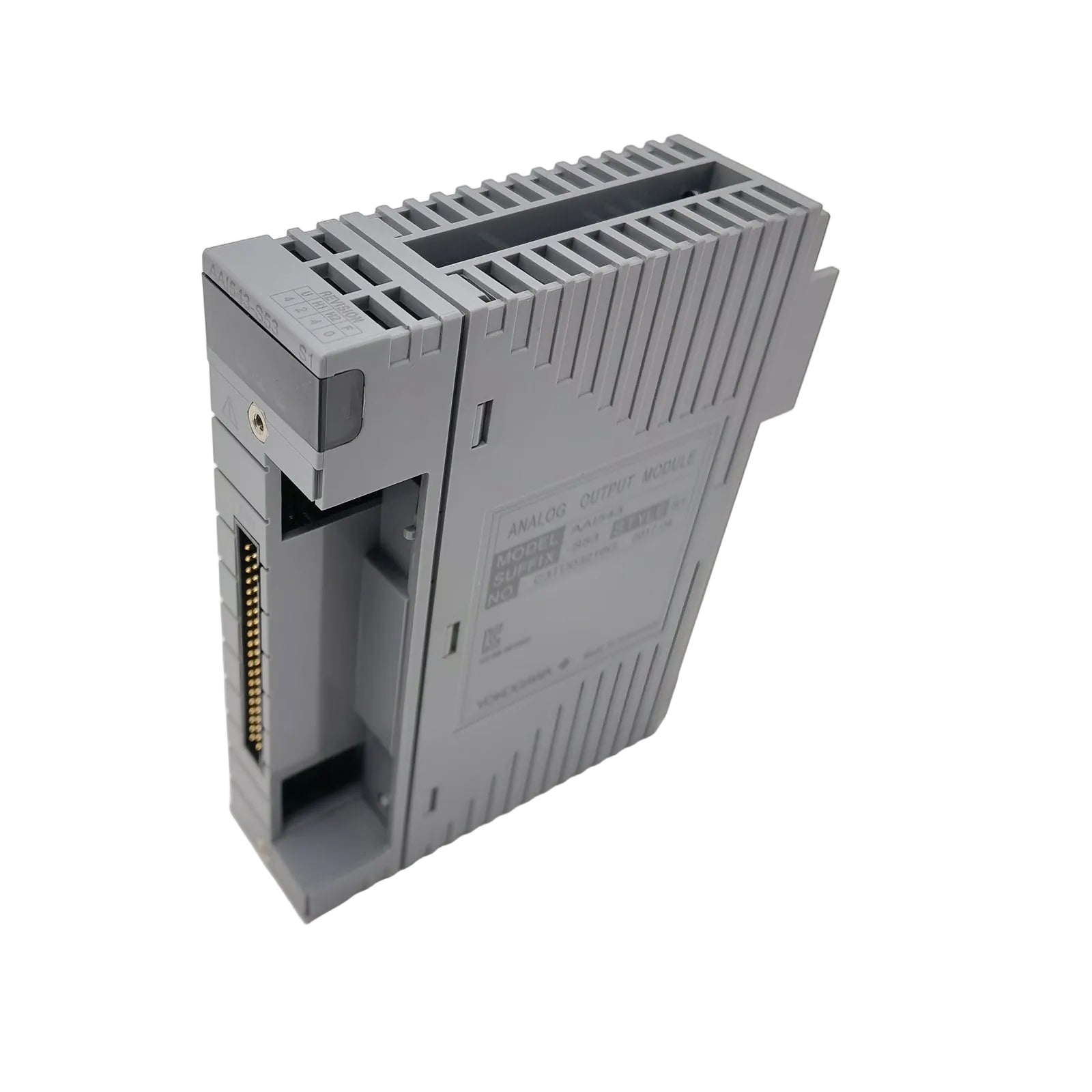

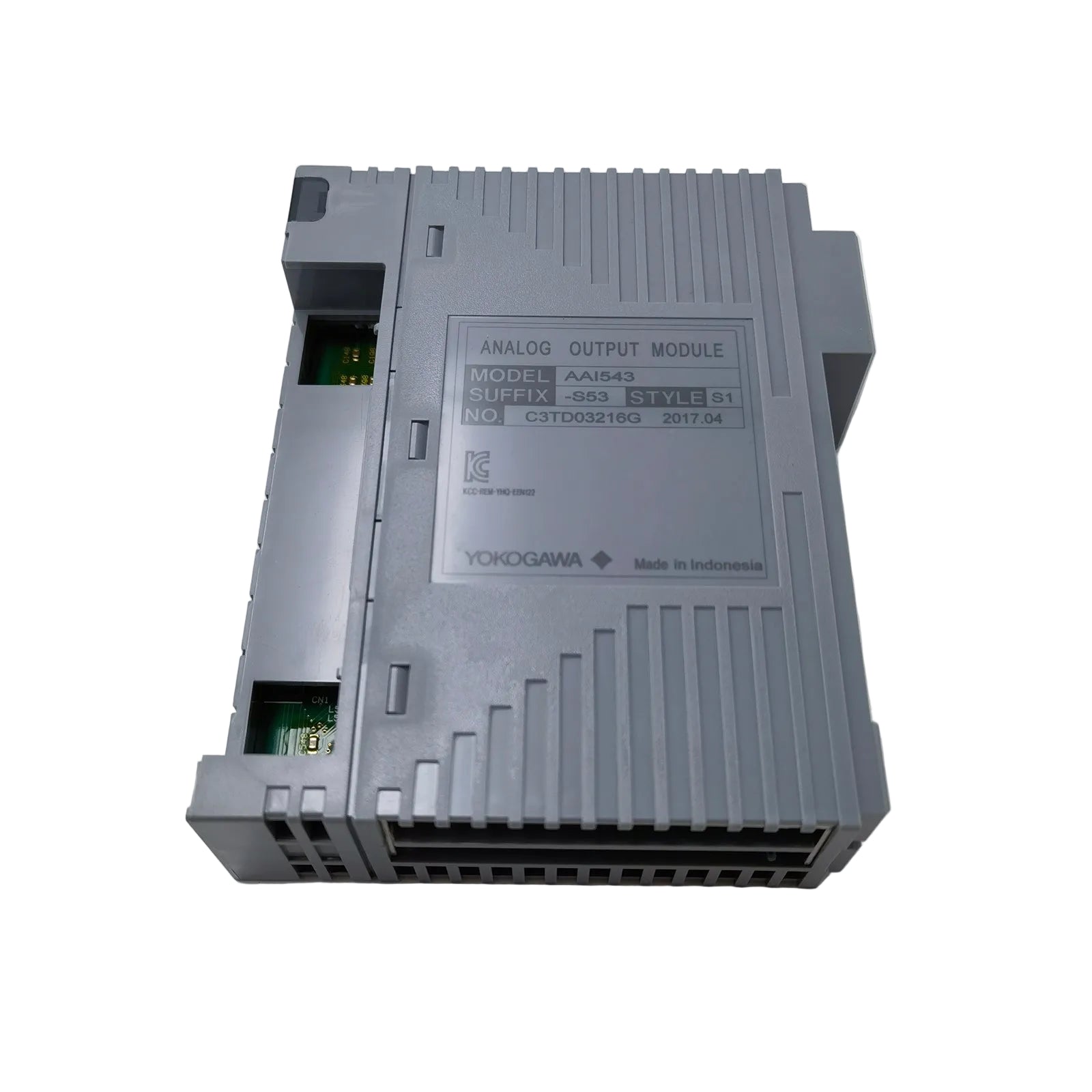

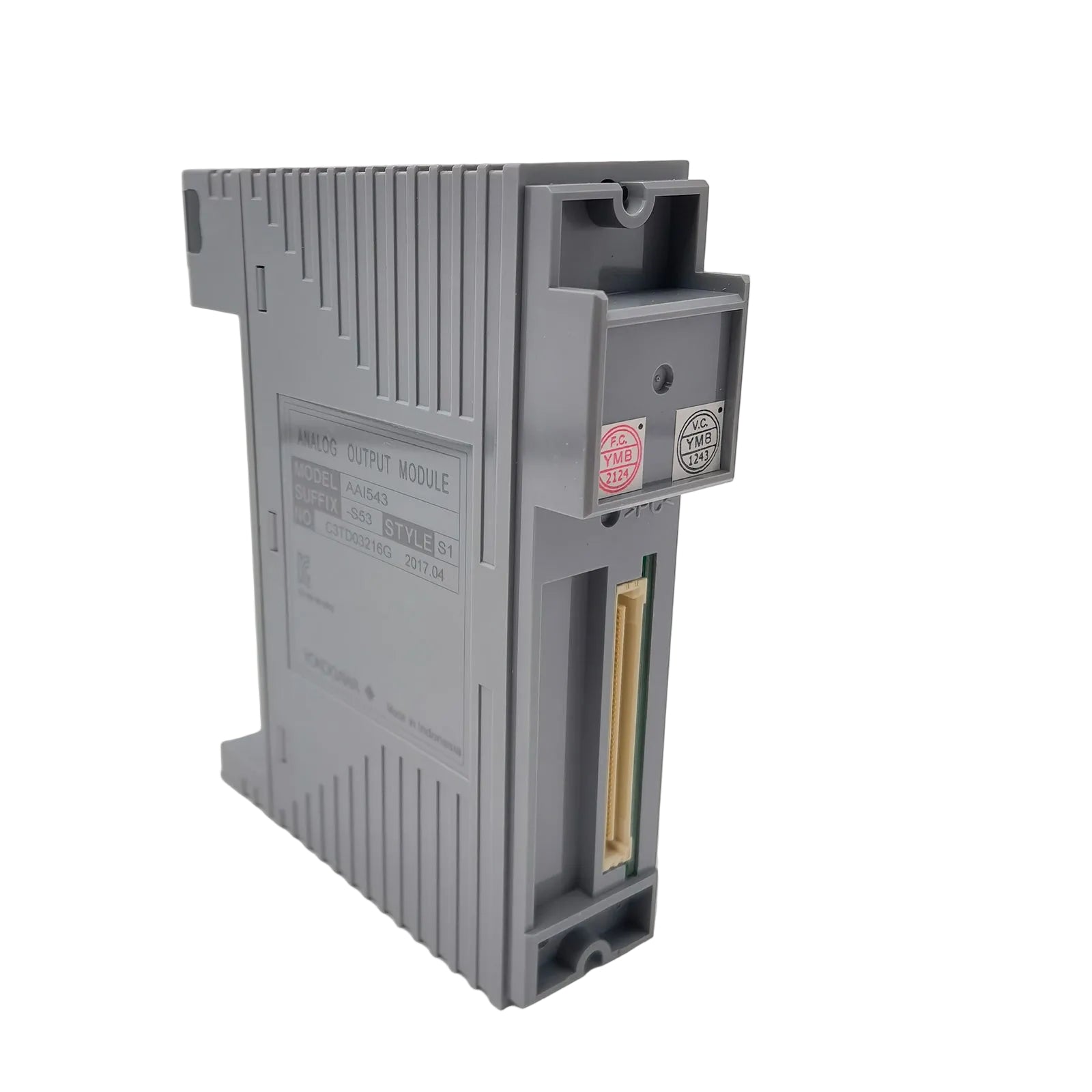

The Yokogawa AAI543-S53 stands as a high-precision 16-channel analog output module, specifically engineered for the Centum VP and Centum CS 3000 Distributed Control Systems (DCS). This module serves as the critical link between the digital control logic and field-side actuators, providing stable 4 to 20 mA signals to modulate control valves, variable speed drives, and power controllers.

In high-stakes industrial environments such as turbine speed control or pressure regulation in chemical reactors, the AAI543-S53 guarantees exceptional signal integrity. It features advanced circuit-open detection, which triggers an alert the moment loop current drops below 0.65 mA, preventing silent failures in safety-critical loops. By delivering a lightning-fast data update period of 10 ms and maintaining high accuracy of ±48 µA, this module empowers operators to maintain tighter process setpoints and improve overall plant efficiency.

Technical Configuration

The AAI543-S53 utilizes a specific suffix coding system that defines its physical interface, environmental resilience, and functional capabilities.

Suffix Breakdown: AAI543 [ -S ] [ 5 ] [ 3 ]

-S | Standard Performance

The "-S" designation identifies this as a standard-speed output module optimized for continuous process control. It balances processing power with low thermal dissipation, ensuring the module operates reliably within high-density I/O nests.

5 | Connection and Terminal Interface

The "5" indicates that the module supports versatile field wiring options. It is compatible with Pressure Clamp Terminals, MIL Connector Cables, and dedicated KS1 signal cables. This flexibility allows for rapid integration into both new builds and legacy cabinet migrations.

3 | G3 Corrosive Gas Resistance & Temperature

The "3" suffix confirms the internal PCB features a high-grade conformal coating compliant with ISA Standard G3. This protects the delicate circuitry from corrosive atmospheric agents like $H_2S$ and $Cl_2$. Furthermore, it supports an extended operating temperature range, making it suitable for field-mounted enclosures in tropical or desert climates.

Technical Specifications

Installation Guide

Successful deployment of the AAI543-S53 requires careful attention to loop impedance and wiring integrity to maintain SIL-grade performance.

Loop Impedance Management

Ensure the total loop resistance (including field wiring and the actuator load) stays within the module's driving capability, typically 750 Ω at 24 VDC. Exceeding this limit will cause the output to saturate, leading to inaccurate control signals and potential "Open Circuit" false alarms.

Wiring for G3 Protection

When utilizing the module in G3 environments, use sealed cable entries for the cabinet. While the module itself is coated, the MIL connectors or Pressure Clamp contact points remain vulnerable to long-term oxidation if exposed to high concentrations of corrosive gases without a properly pressurized or sealed enclosure.

Grounding Strategy

Connect the shield of the analog output cables to the designated DCS instrument ground (S-ground) at the cabinet end only. This prevents ground loops which can introduce noise into the 4-20 mA signal, potentially causing jitter in sensitive control valves.

Engineering Advantages

The AAI543-S53 offers a significant reliability advantage through its hardware-based diagnostic suite. Unlike generic analog cards, this Yokogawa module provides real-time feedback on the health of the entire output loop. The low temperature drift (±16 µA per 10 °C) ensures that the process remains stable even as the control room temperature fluctuates during HVAC cycles.

Furthermore, its 10 ms refresh rate is essential for fast-acting loops such as anti-surge control in centrifugal compressors. By minimizing the dead time between the controller's logic execution and the physical movement of the actuator, the AAI543-S53 reduces mechanical wear on valves and prevents process oscillations that can lead to costly plant trips.

Technical FAQs

Q1: Does the AAI543-S53 support HART communication?

A1: The standard AAI543-S53 focuses on 4-20mA analog signals. If your application requires HART pass-through for instrument asset management (PRM), please verify if your specific system revision requires the AAI543-H variant.

Q2: How does the "Open Circuit Detection" assist in maintenance?

A2: The module continuously monitors the loop current. If a wire breaks or a terminal comes loose, the current drops below 0.65 mA. The module immediately flags a system alarm, allowing maintenance teams to pinpoint the exact channel failure without manual troubleshooting.

Q3: Can this module be used with MIL connector cables from other manufacturers?

A3: We strongly recommend using Yokogawa's dedicated KS1 or AKB cables. These are designed with specific shielding and impedance characteristics to match the AAI543’s drive circuitry and ensure the ±48 µA accuracy spec.

Q4: Is the -S53 version a direct replacement for the -S50 version?

A4: Yes, the -S53 includes all the capabilities of the -S50 but adds G3-level corrosive protection and a wider temperature range. It is an ideal "upgrade" replacement for existing installations.
