Product Overview

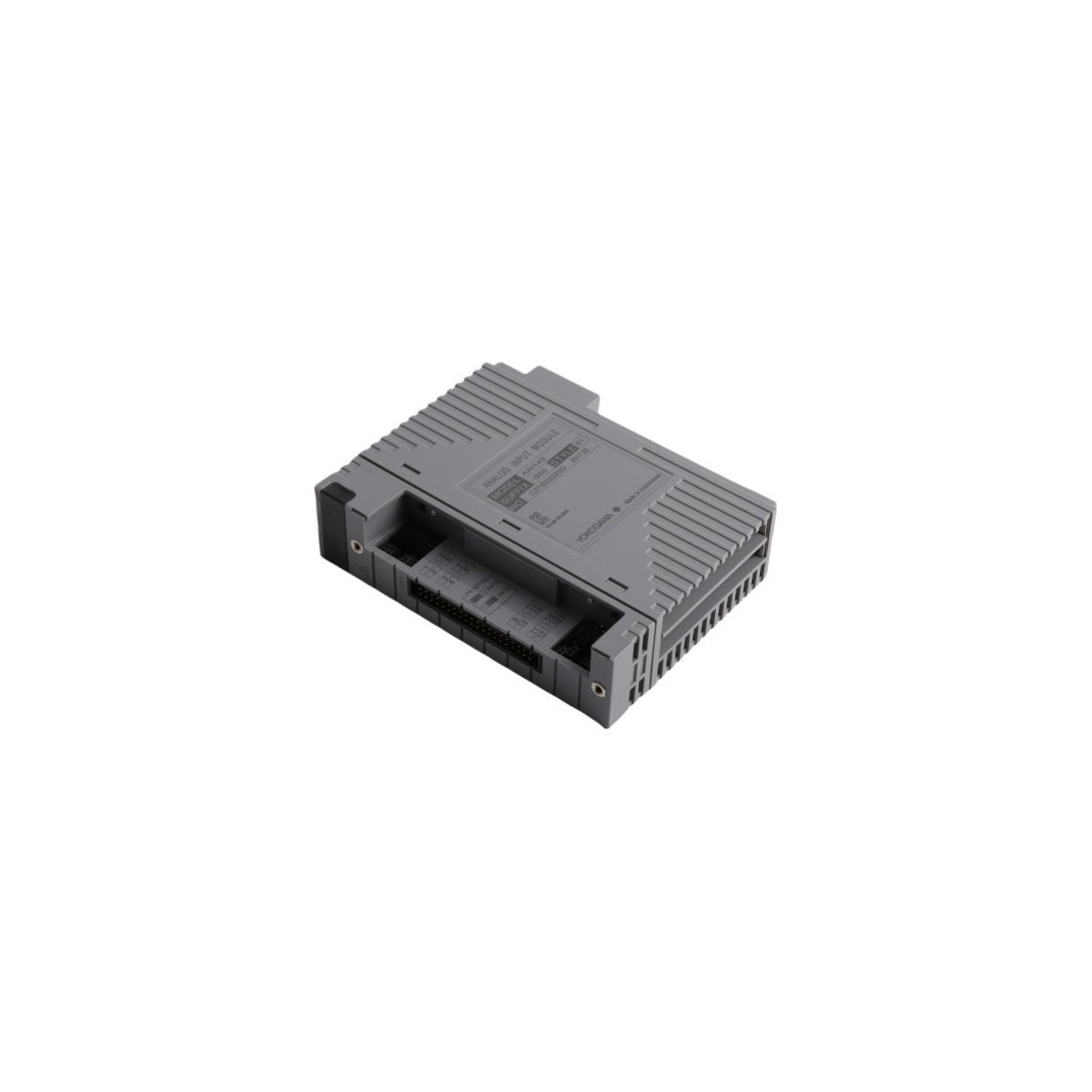

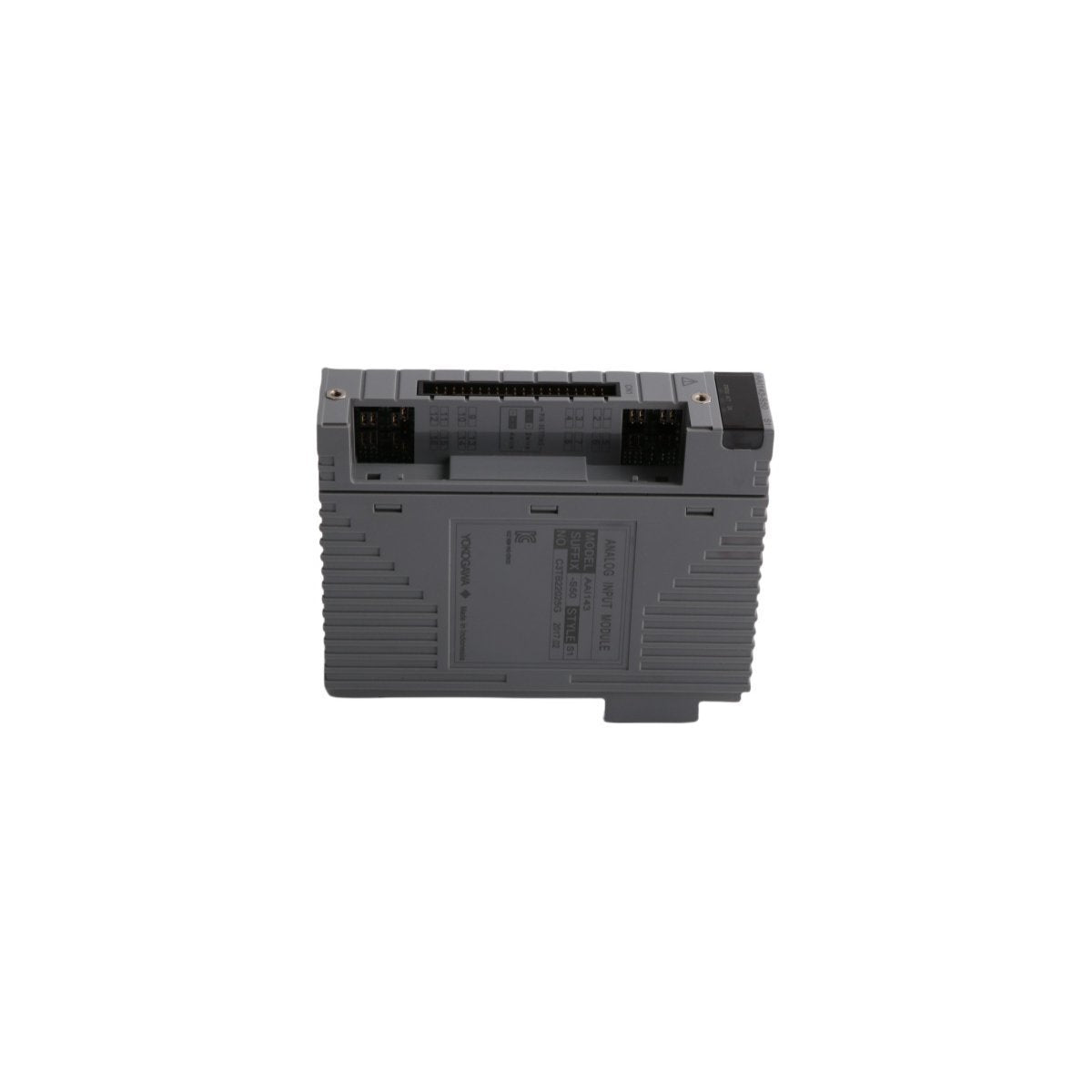

The Yokogawa AAI143-S50 S1 is a high-performance 16-channel analog input module engineered for the CENTUM VP Distributed Control System (DCS). Functioning within the FIO (Field Interface Orbus) system architecture, this module is specifically designed to receive 4 to 20 mA current signals from field transmitters. It provides the essential interface for monitoring process variables such as pressure, flow, level, and temperature with extreme precision and stability.

Constructed for high-availability industrial applications, the AAI143-S50 S1 utilizes advanced galvanic isolation to shield internal system logic from field-side electrical interference. Its high-density 16-channel design allows for maximum I/O capacity within a compact footprint, making it a critical component for large-scale automation in the oil and gas, chemical, and power generation sectors.

Technical Specifications

• Manufacturer: Yokogawa

• Model Number: AAI143-S50 S1

• Module Type: Analog Input Module

• Input Signal: 4 to 20 mA DC

• Number of Channels: 16, isolated

• Input Impedance: 250 Ω

• A/D Conversion Resolution: 16-bit

• Measurement Accuracy: ±0.1% of span

• Data Refresh Cycle: 10 ms

• Withstand Voltage: 1500 V AC between field and system logic

• Operating Temperature: -20°C to +60°C

• Dimensions: 32.8 mm x 106.3 mm x 130 mm

• Weight: 0.24 kg

• Origin: Japan

Key Technical Characteristics

• High-Resolution Data Acquisition: Features 16-bit A/D conversion logic, providing the granular sensitivity required for precise process variable tracking and regulatory control loops.

• Redundant Operation Support: Fully compatible with dual-redundant configurations. In a paired setup, the module supports bumpless failover to ensure continuous data availability for the Field Control Station (FCS).

• Robust Signal Isolation: Employs 1500 V AC isolation to eliminate ground loops and protect the sensitive DCS backbone from electromagnetic interference (EMI) and field-side surges.

• Optimized Thermal Stability: Engineered to maintain high accuracy within an operating range of -20°C to +60°C, ensuring reliable performance in unconditioned control rooms or harsh industrial environments.

• Compact High-Density Interface: Manages 16 independent analog loops in a single FIO slot, effectively reducing the required cabinet space and overall system hardware costs.

• Ease of Maintenance: The module supports hot-swapping (in redundant configurations), allowing technicians to replace hardware without interrupting the active production process or causing system downtime.
