Product Overview

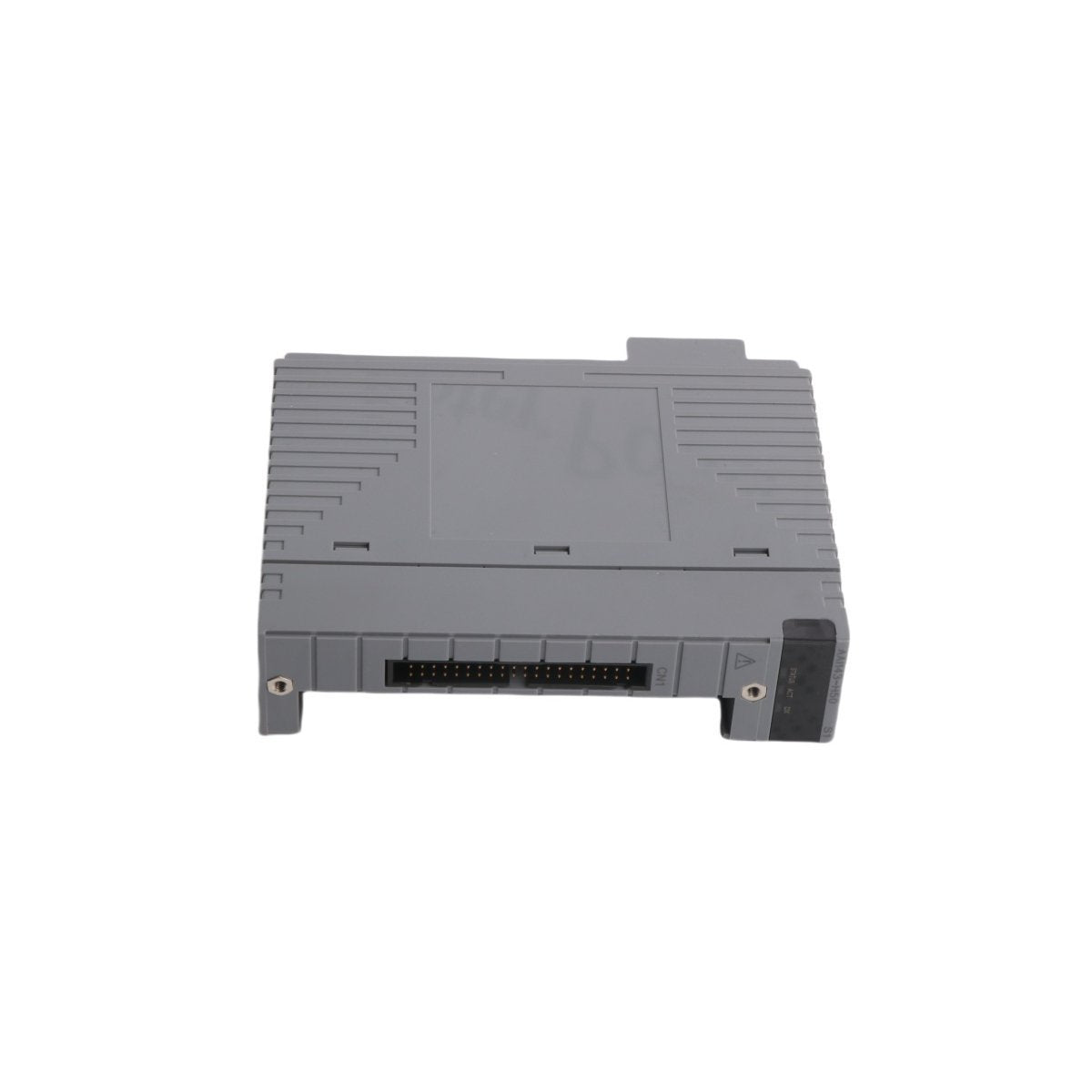

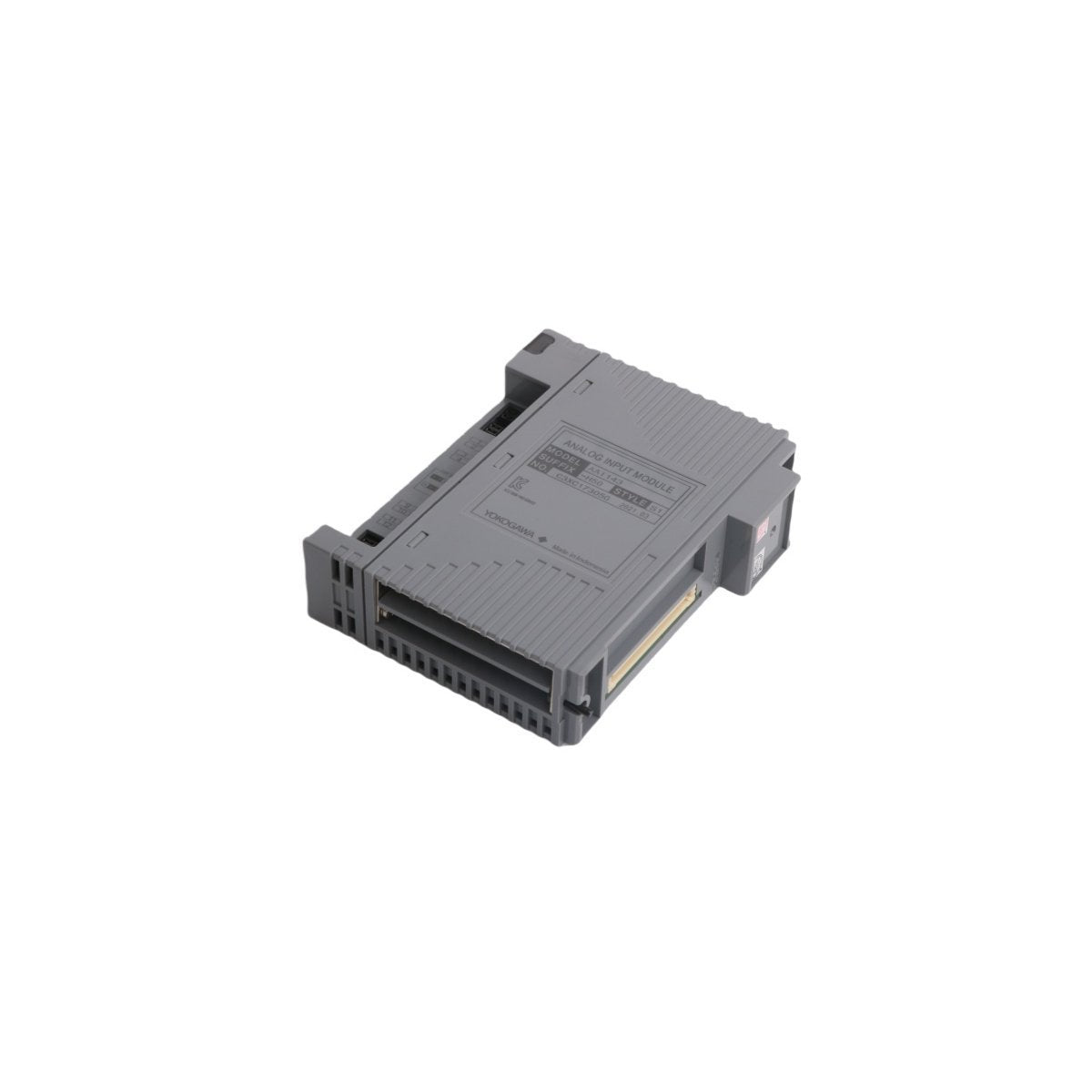

The AAI143-H50 is a precision-engineered 16-channel analog input module designed for high-density signal acquisition within Yokogawa’s Distributed Control Systems (DCS). This specific hardware version, often paired with the ATK4-00 terminal block, is tailored to process standard 4 to 20 mA current signals while providing full support for HART (Highway Addressable Remote Transducer) digital communication. By allowing digital process variables and diagnostic data to ride on the analog loop, this module empowers operators with deep insights into field instrument health without requiring additional wiring. Its architecture is optimized for the CENTUM VP and CS 3000 series, ensuring deterministic data refresh rates and high-fidelity signal conversion for critical process loops.

Fundamental Hardware Architecture and Technical Specs

• Input Points: 16 Isolated Channels

• Signal Range: 4 to 20 mA DC

• Digital Protocol: HART Communication (Pass-through and Multi-variable support)

• Conversion Accuracy: ±0.1% of full scale

• Signal Isolation: System-to-field galvanic isolation

• Current Consumption: 230 mA (at 5 V DC) / 540 mA (at 24 V DC)

• Physical Weight: 0.35 kg

• Chassis Dimensions: 32.8 mm x 130 mm x 128 mm (Standard I/O Form Factor)

• Terminal Interface: Compatible with ATK4-00 or pressure-clamp terminals

• Refresh Rate: 10 ms to 100 ms (Configurable via system software)

Primary Engineering Deployment and Usage

The integration of HART capabilities makes this module a cornerstone for facilities moving toward predictive maintenance and advanced asset management. Common applications include:

• Real-time monitoring of multivariable pressure transmitters in chemical refineries.

• Integrating intelligent flowmeter data into central DCS asset management software.

• Managing safety-critical analog feedback loops in power generation facilities.

• Remote diagnostics and calibration of field instrumentation in large-scale water treatment plants.

FAQ

Q: Does the AAI143-H50 support multivariable data from HART devices?

A: Yes, this module can retrieve primary, secondary, and tertiary variables from smart field instruments, allowing the control system to monitor multiple parameters through a single analog channel.

Q: Is the ATK4-00 terminal block required for this specific module?

A: While the AAI143-H50 is frequently paired with the ATK4-00 for easy wiring, it is compatible with various Yokogawa terminal arrangements depending on the specific node unit and cabinet design.

Q: What is the benefit of the -H50 suffix in the model number?

A: The "H" signifies HART communication capability, distinguishng it from the standard analog-only modules. This allows for digital device management and simplified field troubleshooting.

Q: Can this module be hot-swapped while the system is running?

A: Yes, when used within a redundant I/O configuration in a CENTUM VP environment, the module supports hot-swapping to ensure zero downtime during maintenance or replacement.

Q: How does the module handle signal noise in high-interference environments?

A: The AAI143-H50 utilizes advanced galvanic isolation and filtering technology to maintain a high signal-to-noise ratio, ensuring accurate 4-20mA readings even near high-voltage industrial equipment.
