Product Overview

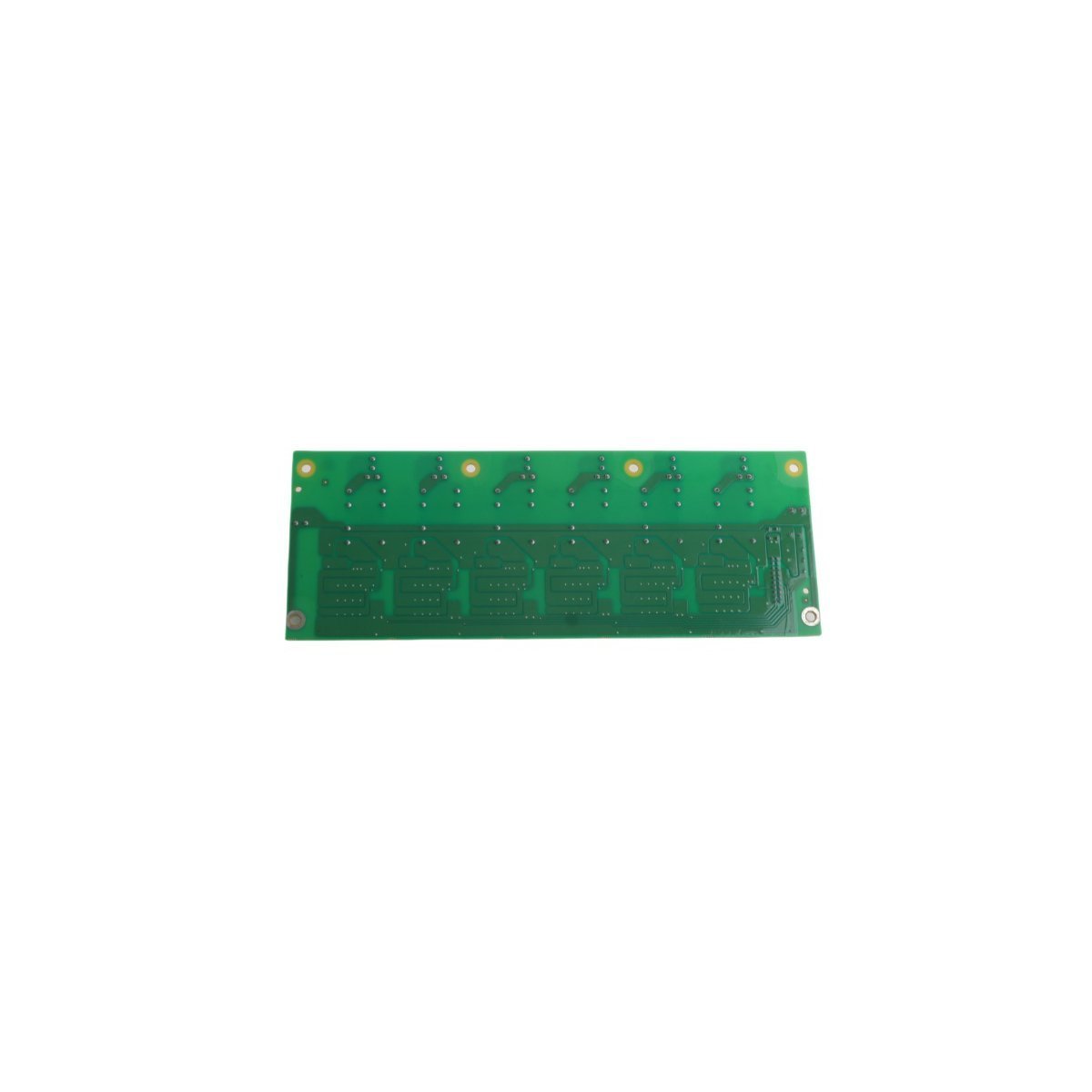

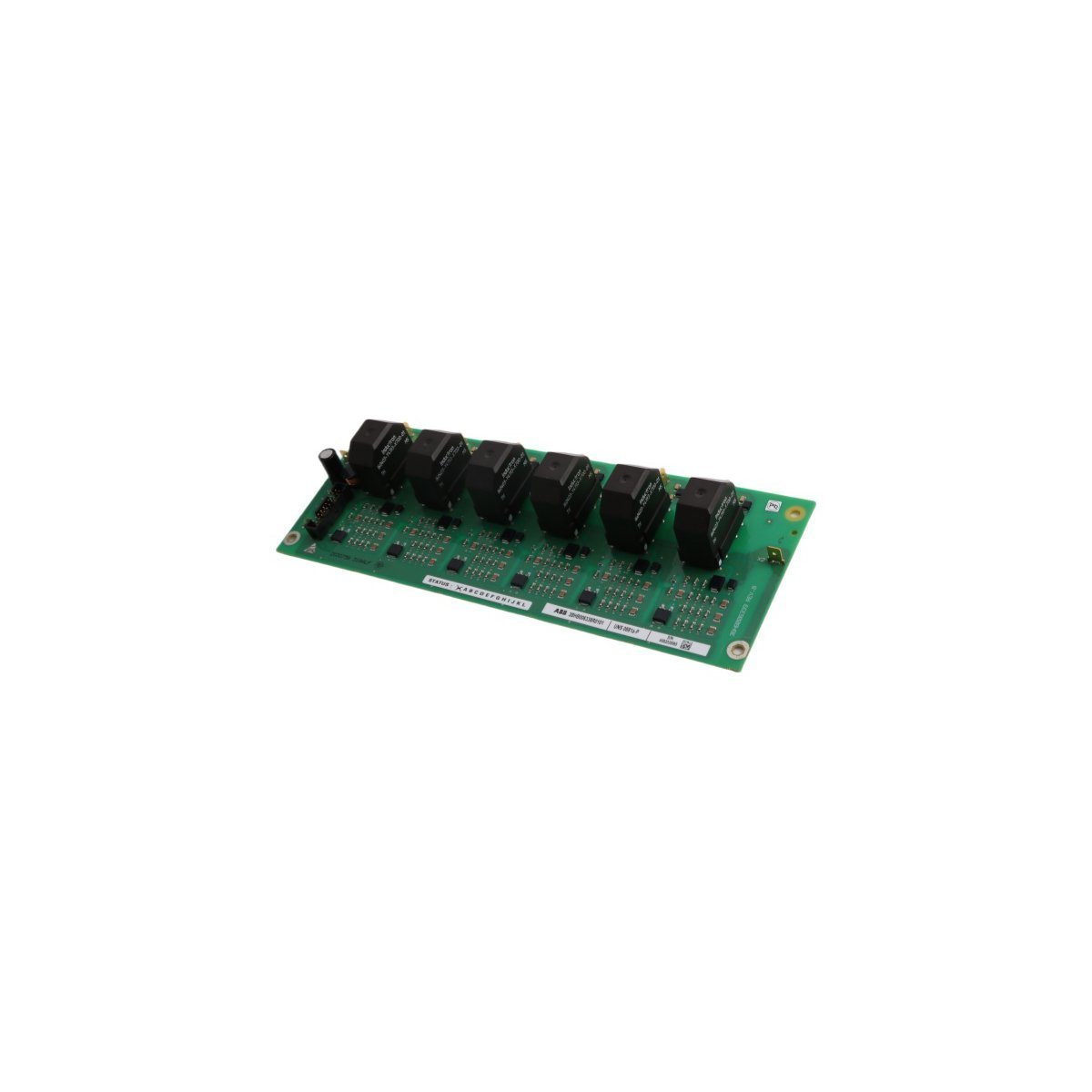

The ABB UNS0881, categorized under the order reference 3BHB006338R0101, is a high-precision circuit board specifically engineered for the UNITROL Excitation Systems. This module functions as a critical control and signal distribution interface, often serving as a gate driver or I/O processing unit within Distributed Control Systems (DCS). Designed to bridge the gap between low-level control logic and high-power excitation hardware, the UNS0881 ensures deterministic signal transmission and robust isolation. Its specialized architecture allows for the seamless management of multiple I/O channels, facilitating real-time monitoring and regulation of generator excitation levels in heavy-duty utility and industrial power applications.

Technical Hardware Parameters

• Model IdentificationUNS0881

• Engineering Order Number3BHB006338R0101

• Net Hardware Weight0.3 kg

• Chassis Dimensions27 x 10 x 3.8 cm

• Substrate MaterialHigh-grade FR4 Epoxy Glass Fiber

• Signal Capacity16-Channel I/O Configuration

• Operational Temperature Range-20°C to +60°C

• Long-term Storage Temperature-40°C to +85°C

• Compliance and CertificationCE, UL, and CSA Standardized

• Manufacturing OriginSweden

• Tariff Code (HS)8537101190

The UNS0881 is built on a high-density FR4 substrate, providing superior thermal stability and electrical insulation. This choice of material prevents circuit warping and leakage currents in high-humidity environments. Its compact 0.3 kg frame allows for versatile integration into existing control racks, while the 16-channel architecture provides the necessary bandwidth for complex feedback loops between the generator and the DCS.

Specialized Industrial Applications

The 3BHB006338R0101 UNS0881 is an essential component for power generation and heavy industry sectors. Primary deployment scenarios include:

• Generator Excitation Control: Acting as a gate driver board to manage the firing pulses of thyristor bridges within UNITROL excitation systems.

• Signal Conditioning: Converting raw field data from sensors into processed digital/analog signals for supervisory controllers.

• Power Plant Automation: Serving as a reliable I/O interface for DCS networks in hydroelectric, thermal, and nuclear power facilities.

• High-Power Rectifier Systems: Facilitating control over industrial rectifiers used in aluminum smelting or chemical electrolysis where precise current regulation is mandatory.

FAQ

Q: What is the primary role of the UNS0881 in a UNITROL system?

A: The UNS0881 functions as a specialized circuit board that manages signal distribution and I/O processing, frequently used as a gate driver interface to control power semiconductors in excitation systems.

Q: Is the 3BHB006338R0101 compatible with third-party DCS networks?

A: While designed for the UNITROL and ABB DCS ecosystem, its standardized communication protocols and Ethernet router compatibility allow it to be integrated into various industrial automation architectures.

Q: How does the FR4 material construction improve reliability?

A: The FR4 epoxy glass fiber provides high dielectric strength and thermal resistance, ensuring the circuit board maintains electrical integrity even under the high temperatures and vibration levels found in turbine halls.

Q: What safety certifications does this circuit board carry?

A: The UNS0881 is fully certified under CE, UL, and CSA standards, ensuring that it meets international requirements for industrial safety, quality management, and electromagnetic compatibility.

Q: Does this module require specialized cooling during operation?

A: The board is designed for natural convection cooling within a standard control cabinet. As long as the ambient temperature remains within the -20°C to +60°C range, no additional active cooling is typically required.
