Product Overview

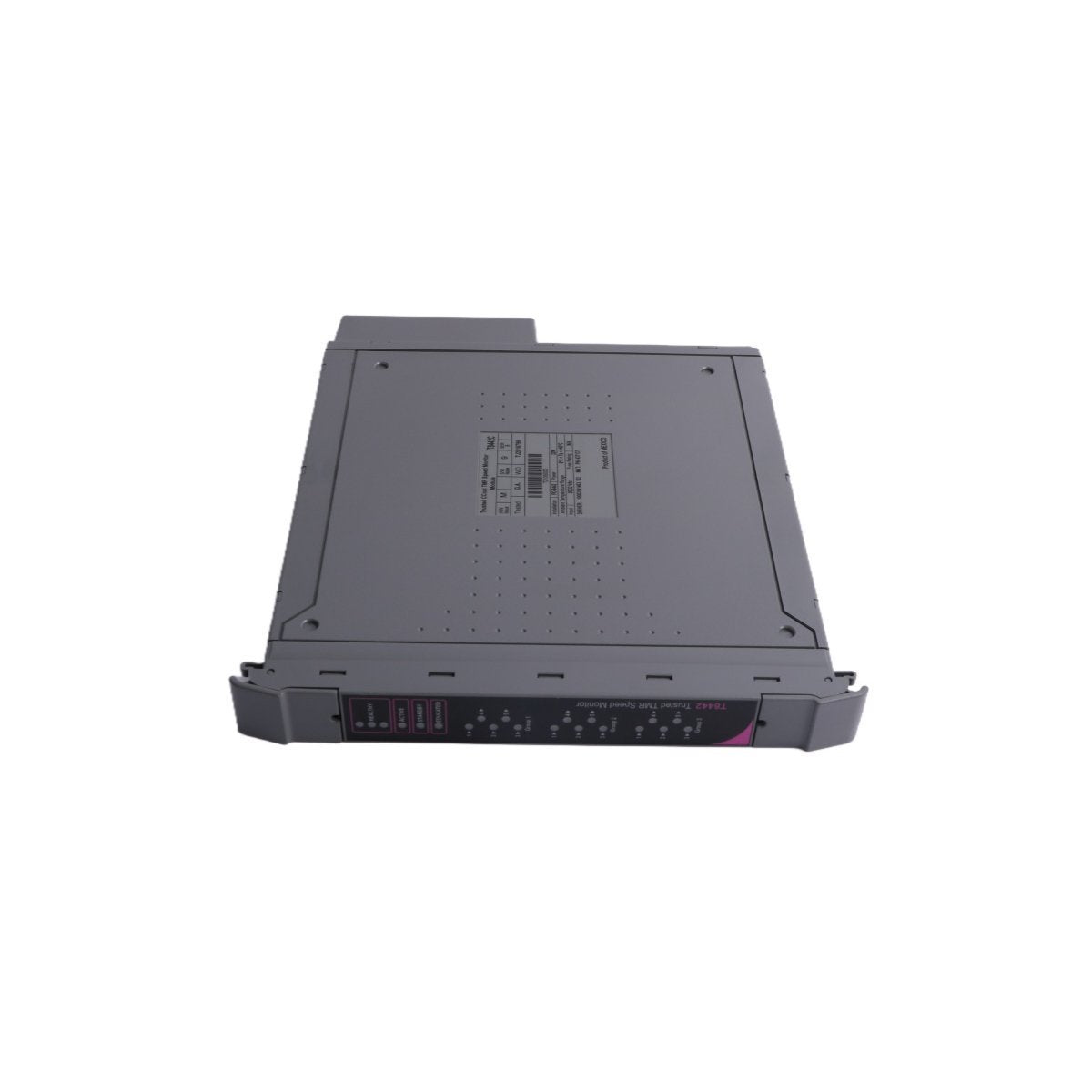

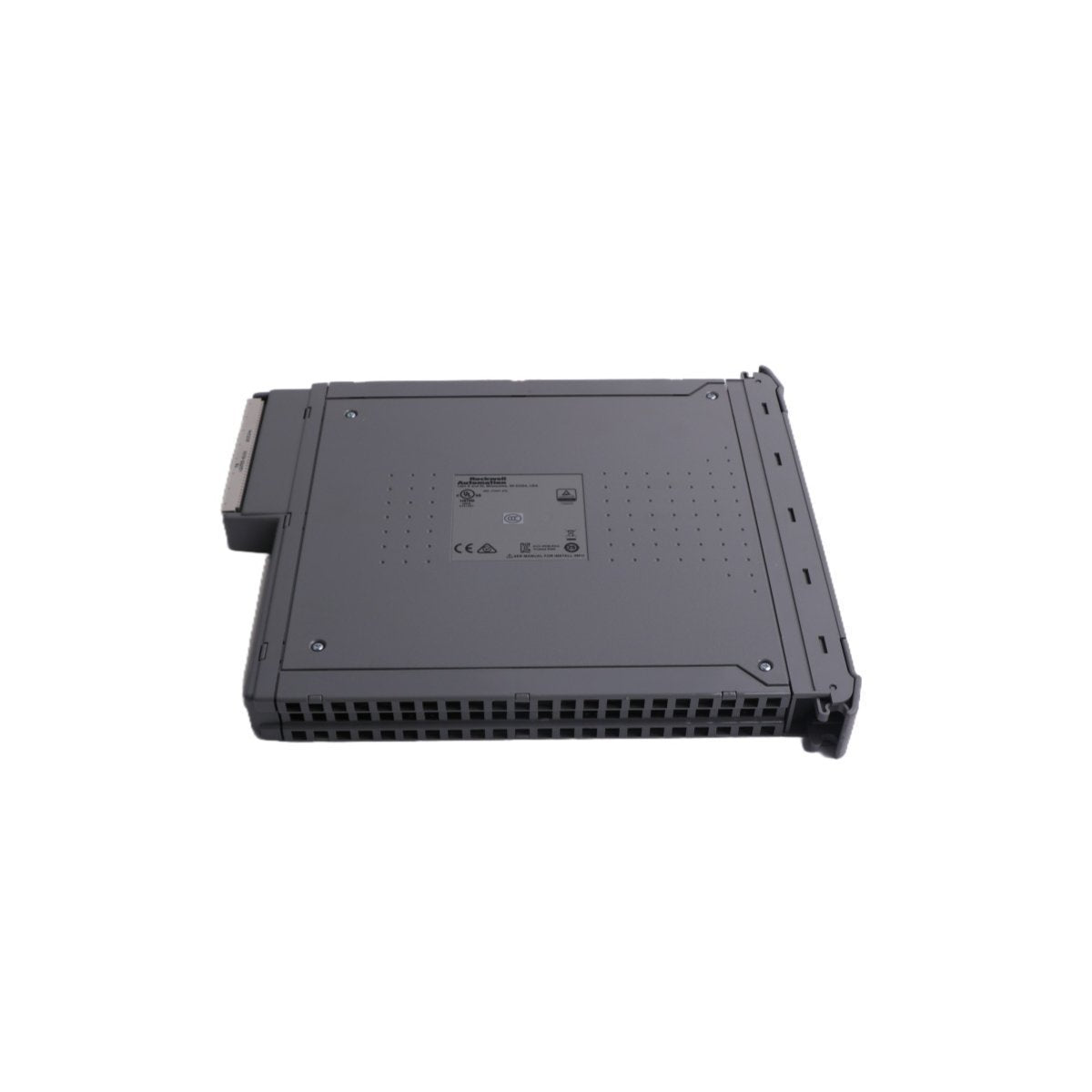

The ICS Triplex T8442C is a high-integrity, triplicated speed monitor module engineered for the Trusted™ Triple Modular Redundant (TMR) System. This module is specifically designed for mission-critical overspeed protection and rotational speed monitoring of high-speed machinery, such as turbines, compressors, and large motors. By utilizing a 2-out-of-3 (2oo3) hardware voting architecture, the T8442C provides a fault-tolerant solution that eliminates single points of failure, ensuring that an overspeed condition is detected and acted upon even if a hardware fault occurs within the module itself.

In safety-instrumented systems (SIS), the T8442C serves as a vital safeguard. It continuously processes pulse inputs from speed sensors (such as passive magnetic pickups or active proximity probes), calculating precise rotational velocities and comparing them against user-defined safety trip limits. Its hardware-based logic implementation ensures near-instantaneous fault detection and response times, which are essential for protecting high-energy rotating equipment from catastrophic mechanical failure.

Key Technical Characteristics

The T8442C is distinguished by its ability to maintain safety availability while performing non-intrusive background diagnostics.

• Triple Modular Redundancy (TMR): Features three independent processing paths that cross-verify rotational data to ensure the highest possible safety integrity level (SIL).

• Comprehensive Self-Diagnostics: Includes coordinated internal tests designed to identify both "overt" (detectable) and "covert" (hidden) failures without interrupting the active monitoring function.

• Line Monitoring Infrastructure: Equipped with sophisticated line-monitoring facilities that supervise field wiring for open or short circuits, a critical requirement for "energize-to-trip" safety configurations.

• SOE Event Capture: Supports high-resolution Sequence of Events (SOE) recording, providing millisecond-level timestamps for speed-related trips or system anomalies.

• Dynamic Fault Tolerance: Designed to withstand multiple concurrent faults while maintaining fail-safe operation, supporting online repair and hot-swapping through SmartSlot technology.

• Advanced Signal Verification: Implements discrepancy and deviation monitoring between the three internal slices to detect drifting sensors or internal component degradation before a trip is required.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)

• Model Number: T8442C

• Product Series: Trusted TMR System

• Module Type: Speed Monitoring / Overspeed Protection

• Weight: 1.26 kg (Packaged)

• Dimensions: 3 x 30.2 x 26.5 cm

• System Integration: Trusted Controller Chassis (T8100/T8110)

• Input Compatibility: Magnetic Pickups (MPU), Proximity Probes, and TTL Pulse Sensors

• HS Code: 8537101190

• Country of Origin: USA

Industrial Reliability and Application

The T8442C Speed Monitor is a cornerstone of rotating machinery protection in the oil and gas, power generation, and chemical processing sectors. Because it resides within the Trusted platform, it integrates seamlessly with Ethernet-based communication routers, allowing for real-time speed visualization and diagnostic reporting at the HMI level.

Whether deployed in an active-standby configuration or as a standalone safety barrier, the T8442C offers unmatched resilience. Its ability to perform online repairs means that maintenance teams can replace a faulty module while the turbine or compressor remains in operation, significantly reducing the Total Cost of Ownership (TCO) by preventing unnecessary production outages.
