Product Overview

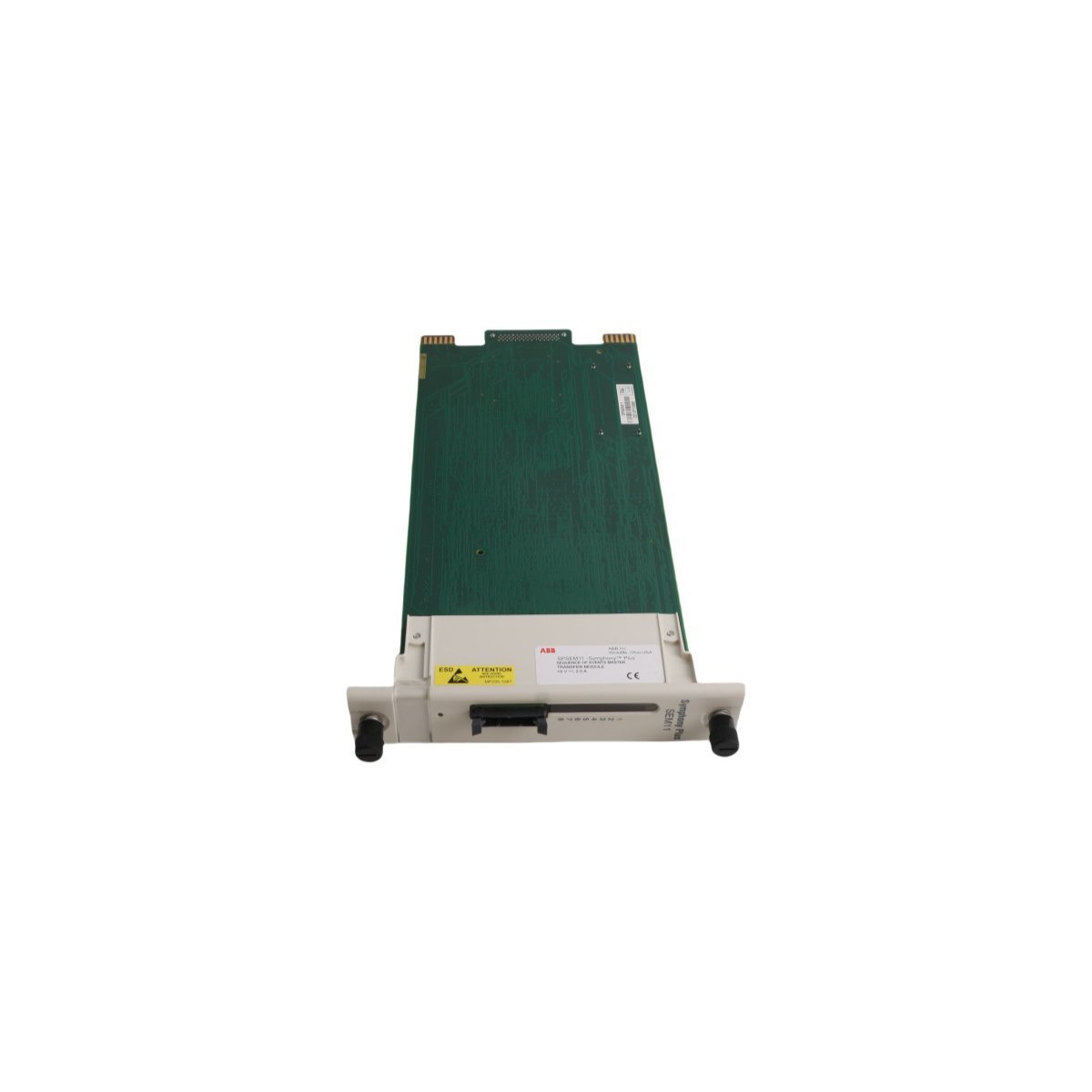

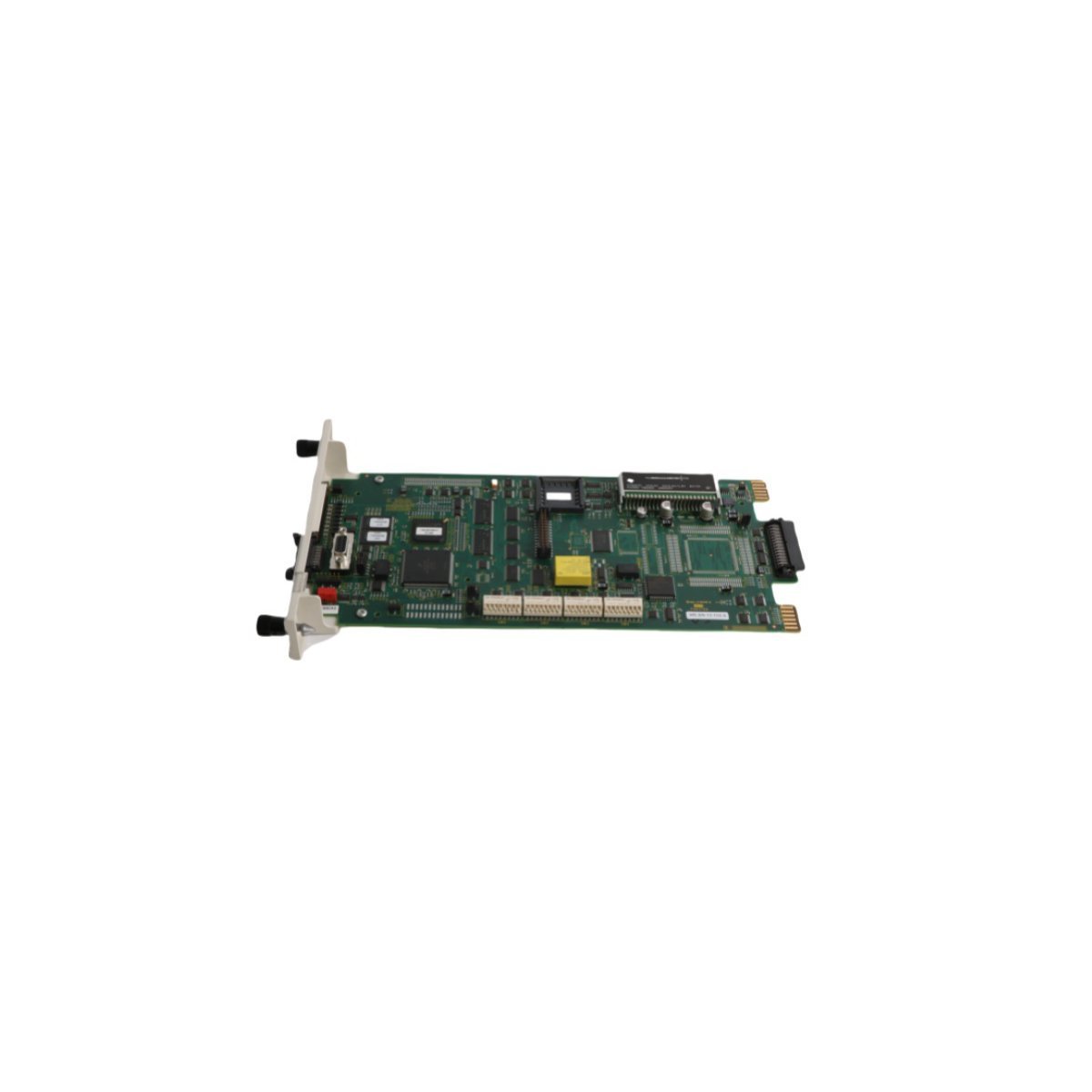

The SPSEM11 is a high-precision Sequence of Events (SOE) master processor designed specifically for the ABB Bailey Distributed Control System (DCS). This module serves as the primary intelligence hub for time-critical monitoring, capturing discrete state changes across the industrial network with millisecond-level resolution. By acting as the central management node for event logging, the SPSEM11 allows operators to reconstruct precise chronologies of system upsets, which is essential for fault diagnostics, root-cause analysis, and safety verification. Its integration into the Bailey architecture ensures that high-volume data streams are processed without latency, maintaining the integrity of the plant's diagnostic records.

Technical Profile and Architectural Attributes

The SPSEM11 is engineered to maintain extreme temporal accuracy while operating within the rigorous electrical environments of industrial control rooms.

• Primary Function: Sequence of Events (SOE) Central Processing and Monitoring.

• Networking Protocols: Native support for high-level data exchange, including Profinet and Ethernet/IP interfaces.

• Processing Power: Enhanced CPU capabilities for simultaneous management of multiple event buffers.

• Memory Configuration: High-capacity non-volatile storage for reliable event retention during power or network transitions.

• Mechanical Footprint: 3.5cm x 32cm x 17.6cm.

• Net Weight: 0.26 kg.

• System Integrity: Built-in hardware watchdog and comprehensive diagnostic reporting to prevent data loss.

• Thermal Tolerance: Optimized for continuous duty in Swedish-engineered industrial enclosures.

Specialized Industrial Implementations

This master control module is a fundamental requirement for sectors where "first-out" alarm determination is vital for operational safety. In large-scale power generation facilities, the SPSEM11 monitors circuit breaker interlocks and turbine trip headers, enabling engineers to pinpoint the exact millisecond an incident occurs. Within the petrochemical and refining industries, it provides the deterministic logging necessary for Emergency Shutdown (ESD) systems to validate that safety sequences executed in the correct order. Furthermore, its ability to interface with modern Ethernet routers while supporting legacy Bailey DCS environments makes it an ideal solution for facility life-extension projects that require upgraded diagnostic visibility without a total system overhaul.
