Product Overview

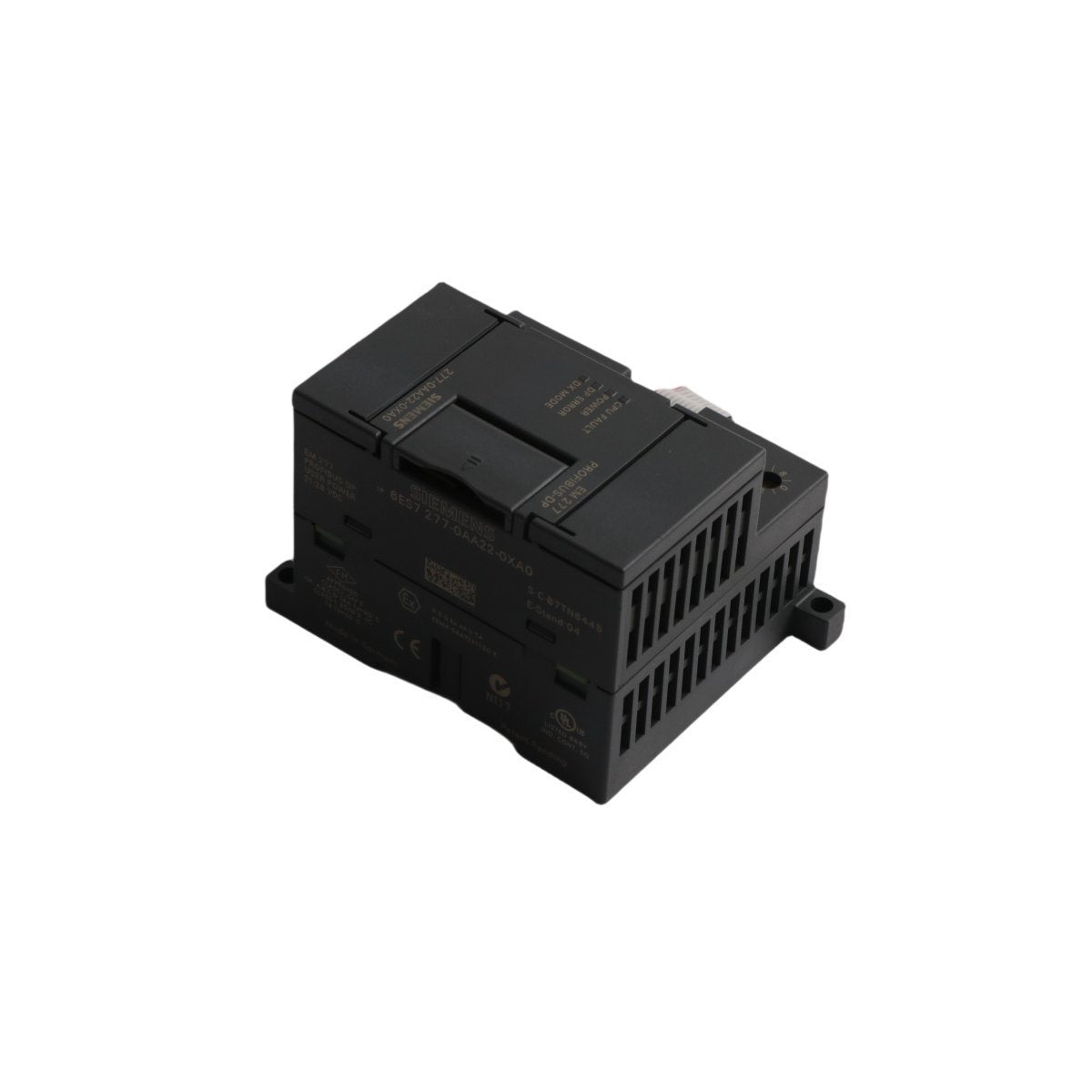

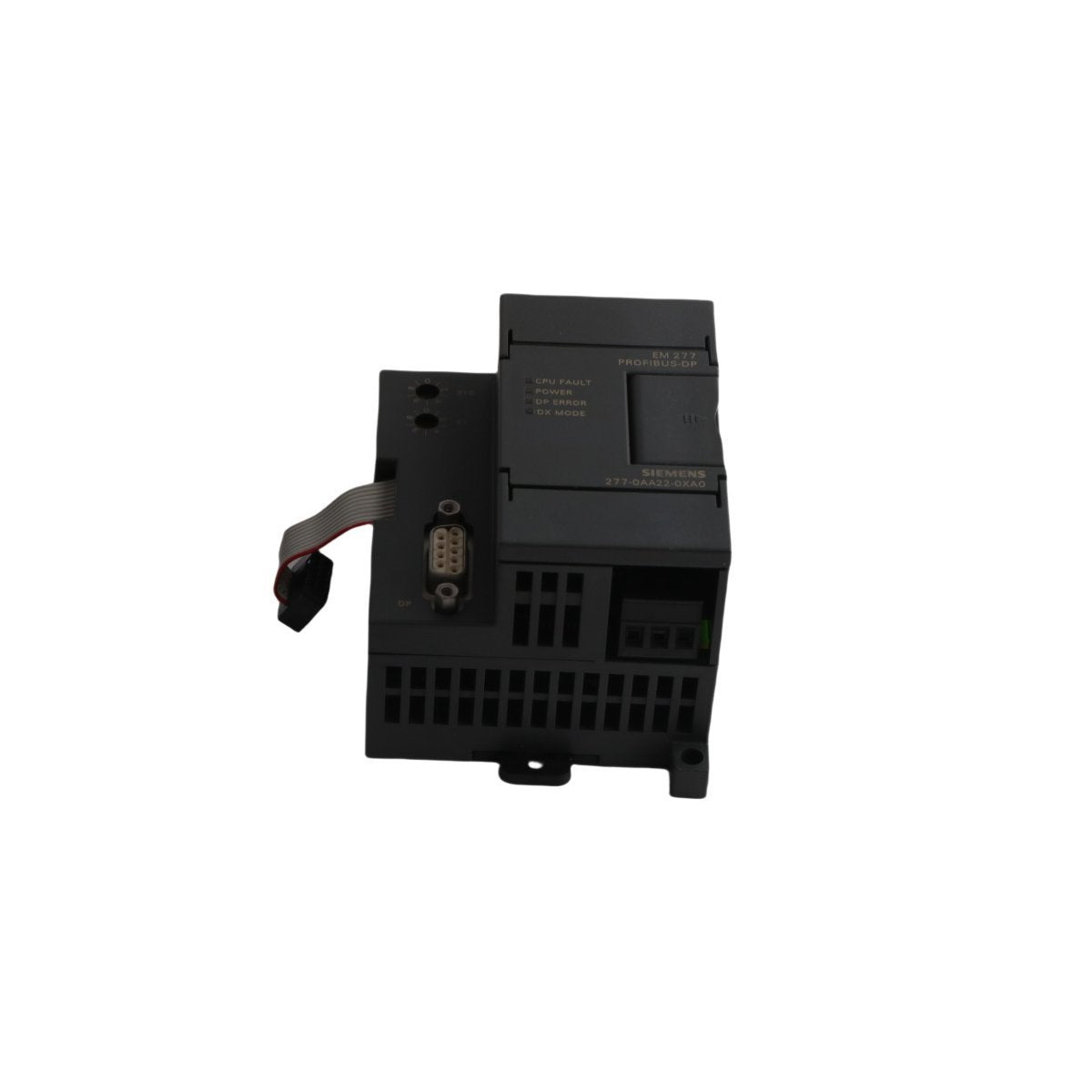

The Siemens 6ES7277-0AA22-0XA0 is a specialized communication expansion module, commonly referred to as the EM 277, designed to function as a PROFIBUS DP slave for the SIMATIC S7-200 PLC series. This unit is the primary interface used to connect decentralized S7-200 controllers to a higher-level PROFIBUS network, allowing them to act as intelligent distributed I/O. By facilitating high-speed data exchange between the local CPU and a PROFIBUS master (such as an S7-300 or S7-400), the 6ES7277-0AA22-0XA0 ensures that smaller, localized automation cells are fully integrated into a plant-wide control architecture. Despite its compact footprint, it provides robust networking capabilities, supporting both DP and MPI communication protocols.

Hardware Parameters and Interface Specs

• Interface Type Single 9-pin Sub-D socket supporting PROFIBUS-DP and MPI

• Transmission Rates Automatic detection from 9.6 Kbps up to 12 Mbps

• Input Voltage 24V DC (allowable range 20.4V to 28.8V)

• Current Consumption 70 mA to 120 mA (maximum output)

• Circuit Protection Built-in current limiting (0.7 A to 2.4 A)

• Network Nodes Supports up to 99 stations via rotary address switches

• Physical Mass 0.1 kg

• Module Dimensions 7.6 cm x 7.6 cm x 10.2 cm

• Manufacturing Origin Germany

• HS Classification 8537101190

This module features integrated LED indicators for bus fault (BF) and power status, allowing for rapid on-site diagnostics of the communication link and hardware health.
