Product Overview

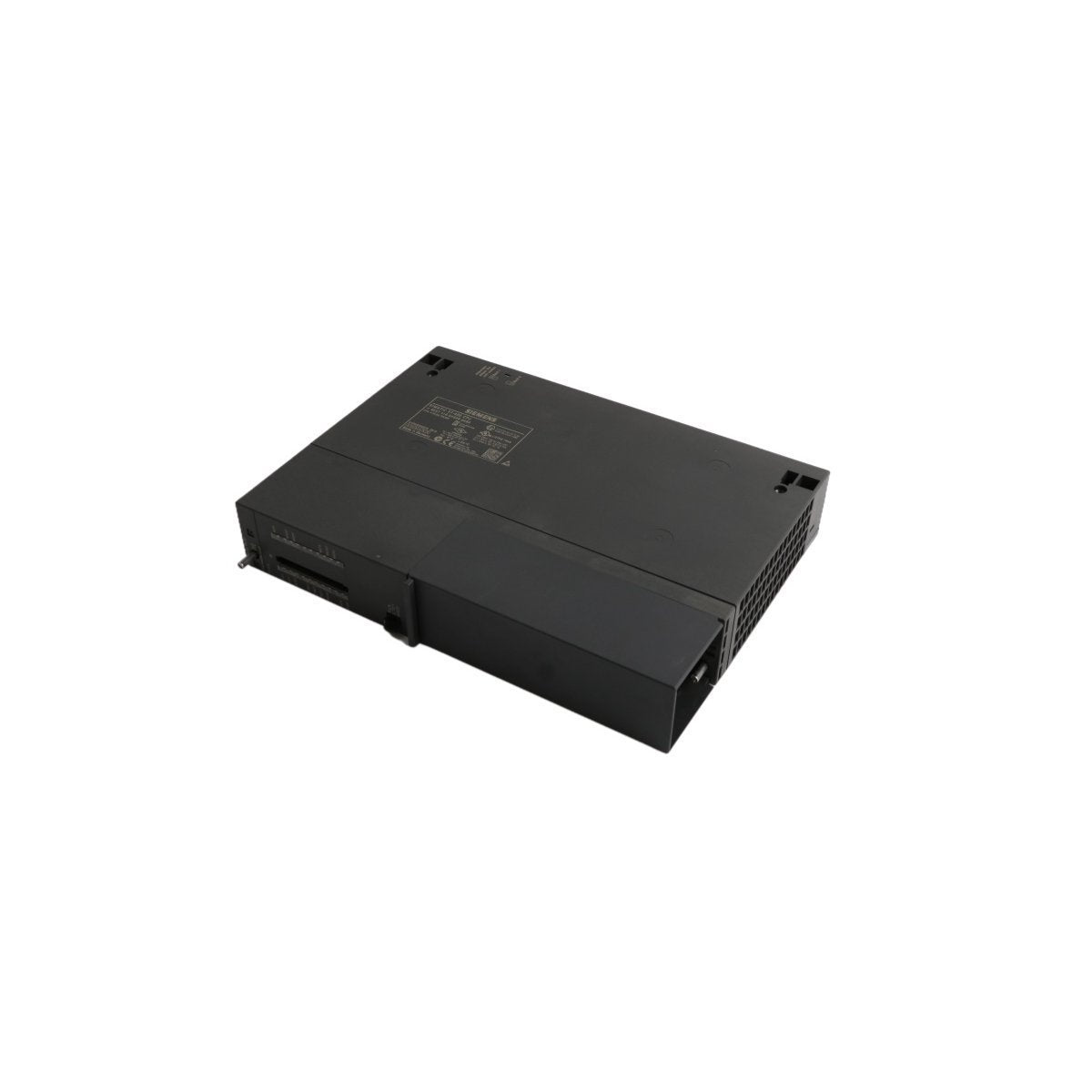

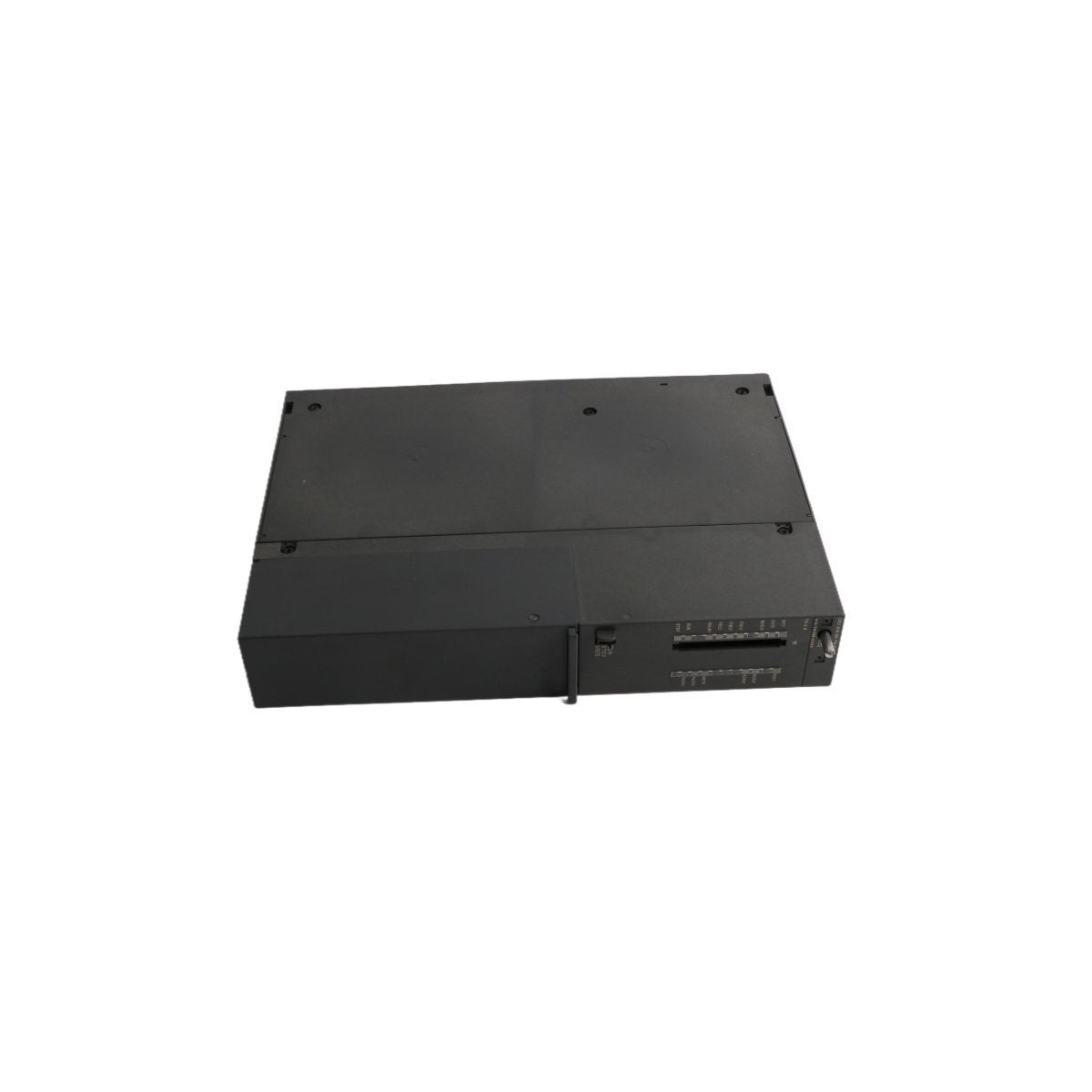

The 6ES7416-5HS06-0AB0 is a flagship central processing unit within the Siemens SIMATIC S7-400H controller family, specifically engineered for high-availability and fault-tolerant automation. Designed to serve as the intelligence behind mission-critical systems, this CPU 416-5H PN/DP allows for redundant hardware configurations where synchronized processors eliminate single points of failure. If one controller experiences an anomaly, the secondary unit assumes command instantaneously without interrupting the process. This module is essential for industries where even seconds of downtime result in significant financial loss or safety hazards, providing the processing power and memory capacity required for massive, complex logic operations.

Processing Architecture and Hardware Specifications

This processor module is defined by its extensive work memory and diverse communication onboard interfaces, housed in a rugged chassis built for heavy-duty industrial racks.

• Manufacturer Siemens

• Model Number 6ES7416-5HS06-0AB0 (CPU 416-5H)

• Total Work Memory 16 MB (8 MB for programs; 8 MB for data)

• Onboard Interfaces 1x PROFINET (2-port switch), 1x MPI/PROFIBUS DP, 1x PROFIBUS DP

• Synchronization Ports 2 slots for fiber-optic sync modules

• Unit Weight 0.95 kg (Net) / approx. 1.32 kg (Shipping)

• Physical Dimensions 5.0 x 29.0 x 21.9 cm (Note: S7-400 standard sizing)

• Processing Speeds 0.0125 µs for bit operations

• HS Tariff Code 8537101190

• Country of Origin Germany

• System Integrity Supports Fail-safe (F) and High-Availability (H) modes

Strategic Industrial Applications

The Siemens CPU 416-5H is the standard for infrastructure and process automation requiring absolute resilience. Its primary deployments include:

• Oil and Gas Refining Managing emergency shutdown systems (ESD) and continuous process control where redundant logic prevents catastrophic environmental events.

• Power Generation and Distribution Controlling turbine operations and substation synchronization where 24/7 uptime is a regulatory and functional requirement.

• Water and Wastewater Treatment Overseeing large-scale filtration and pumping stations spread across vast geographical areas via PROFINET/PROFIBUS.

• Tunnel and Transportation Infrastructure Controlling ventilation, lighting, and signaling systems that require fail-safe operation to ensure public safety.

• Large-Scale Chemical Synthesis Handling complex batch processing that involves thousands of I/O points and requires real-time data logging and synchronization.
