Product Overview

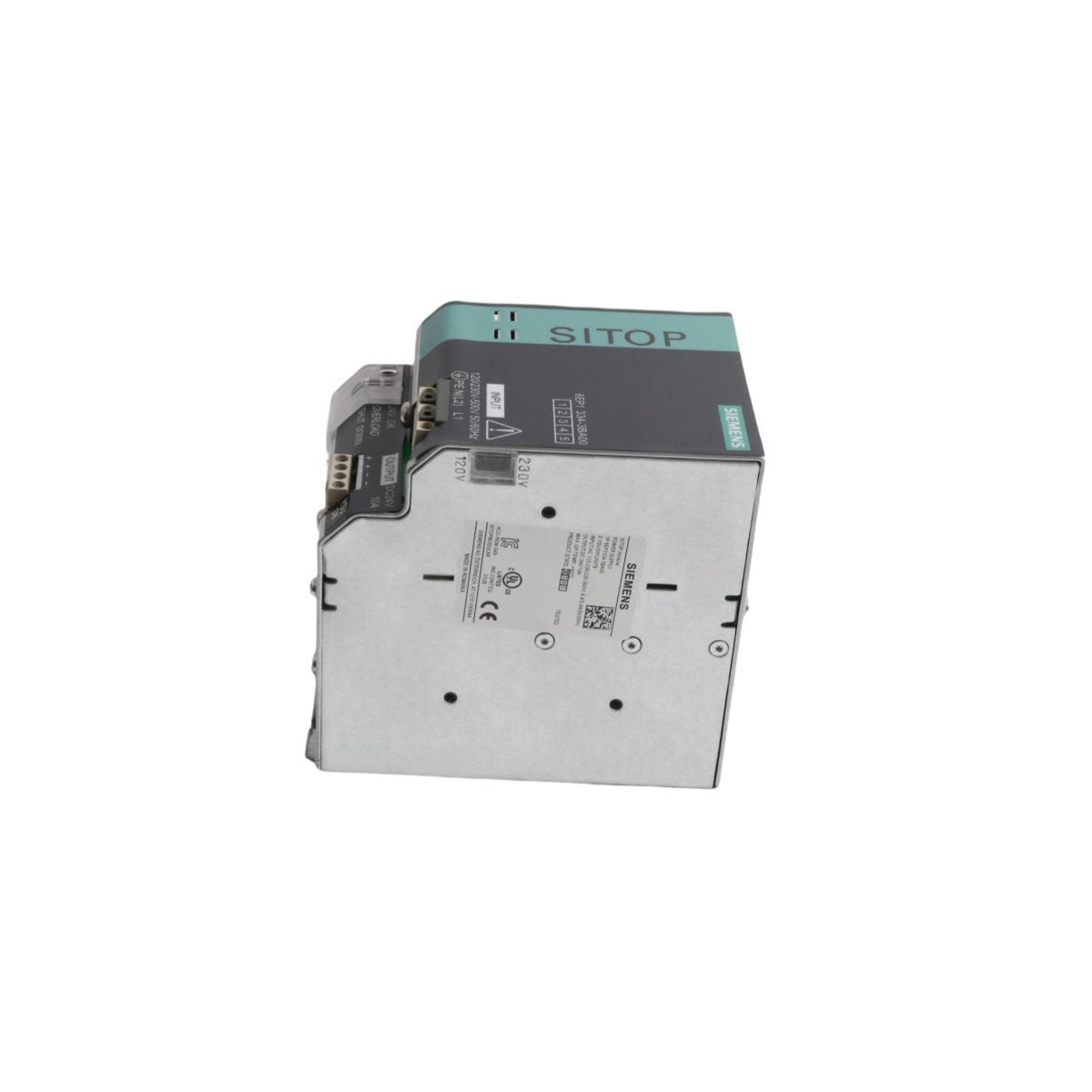

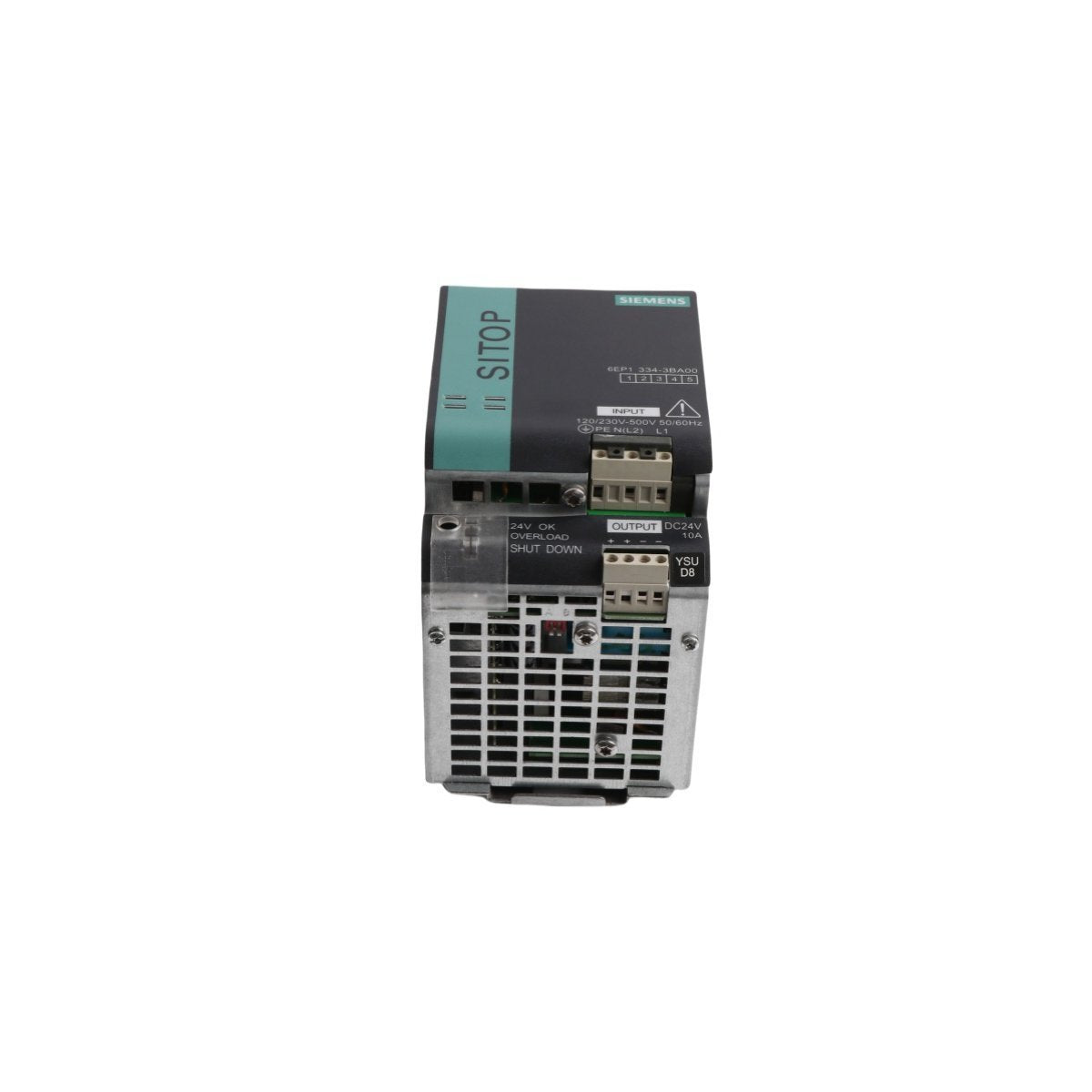

The Siemens 6EP1334-3BA00 is a sophisticated, stabilized power supply belonging to the SITOP PSU200M modular family. Designed to bridge the gap between single-phase and two-phase operation, this unit provides a highly regulated 24V DC output at 10A, making it a critical power source for advanced industrial automation environments. Its standout feature is an ultra-wide input range that allows it to operate on virtually any industrial network globally. The PSU200M is specifically engineered to maintain a steady current flow to sensitive PLC components and industrial sensors, ensuring that voltage drops or line fluctuations do not result in costly system downtime or data loss.

Advanced Technical Architecture

The 6EP1334-3BA00 is characterized by its superior efficiency and high overload capacity, often referred to as "Power Boost," which allows the unit to handle temporary high-current demands during startup.

• Input Voltage Range: 120/230V to 500V AC (Wide-range input for 1-phase or 2-phase connection)

• Operating Input Limits: 85–264V AC or 176–550V AC

• Direct Current Output: 24V DC (Adjustable from 24V to 28.8V)

• Rated Output Current: 10 Amps

• Efficiency Rating: Approximately 91%

• Short-Circuit Behavior: Constant current or latching shutdown selectable

• Radio Interference Class: Class B (EN 55022)

• Dimensions: 70 mm (W) x 125 mm (H) x 121 mm (D)

• Device Net Weight: 0.8 kg

• Gross Packaged Weight: 1.46 kg

Strategic Industry Deployment

Automated Machine Building and RoboticsThe PSU200M is a preferred choice for machine tool manufacturers where space in the control cabinet is at a premium. Its high efficiency results in lower heat dissipation, allowing for dense mounting next to other sensitive electronic components without overheating.

Water and Waste Management SystemsIn remote pumping stations where the quality of the power grid can be unstable, the wide-range input of the 6EP1334-3BA00 ensures that the control logic remains powered even during significant brownouts or voltage spikes.

Automotive Production LinesDuring the startup of heavy actuators or large DC motors, the "Power Boost" functionality provides three times the rated current for short intervals. This prevents the power supply from tripping during the high-current inrush typical of automotive assembly equipment.

Renewable Energy and Wind PowerThe ability to connect the unit to two phases of a three-phase network (up to 500V) makes it exceptionally useful in wind turbine nacelles or solar farm junction boxes where standard single-phase 230V might not be readily available.
