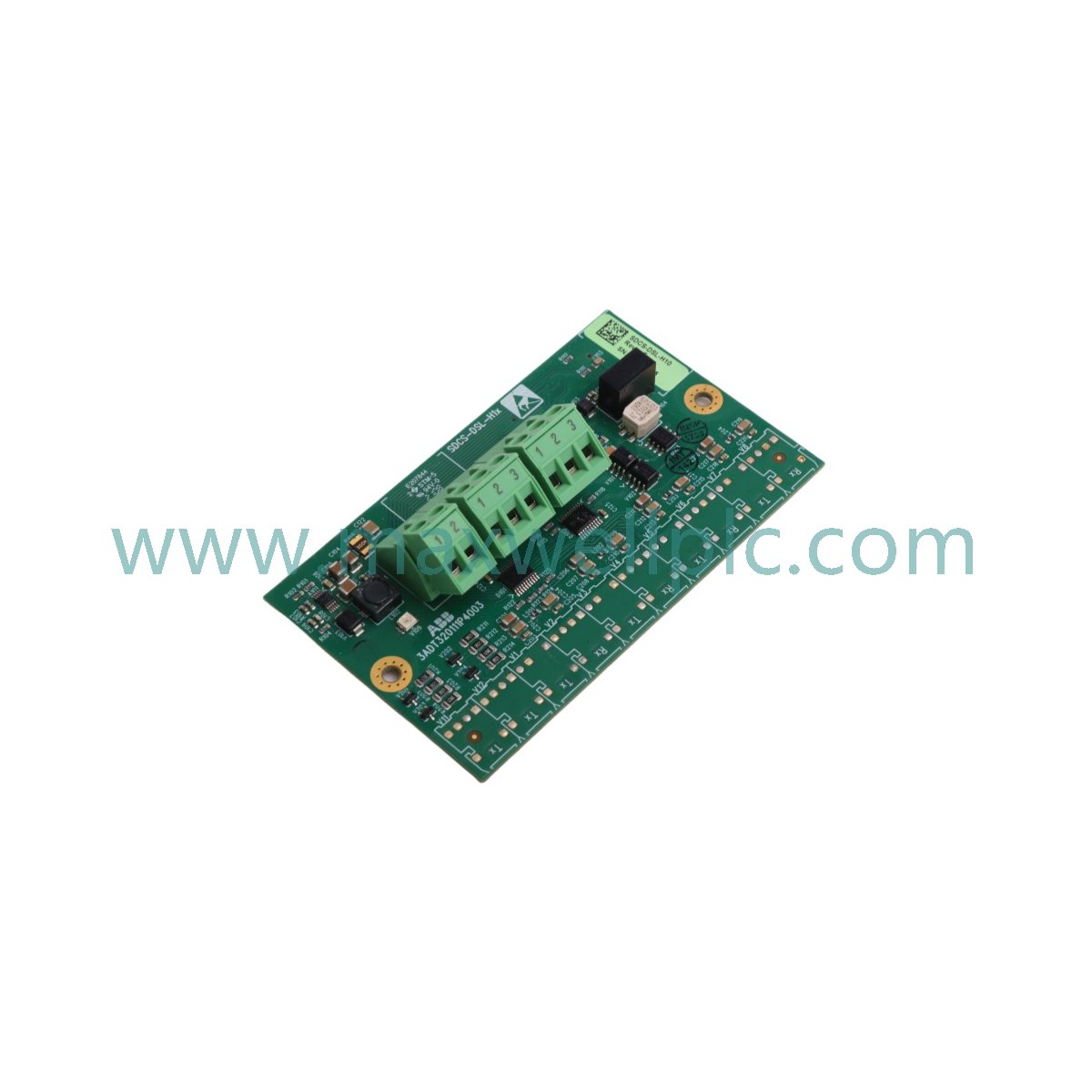

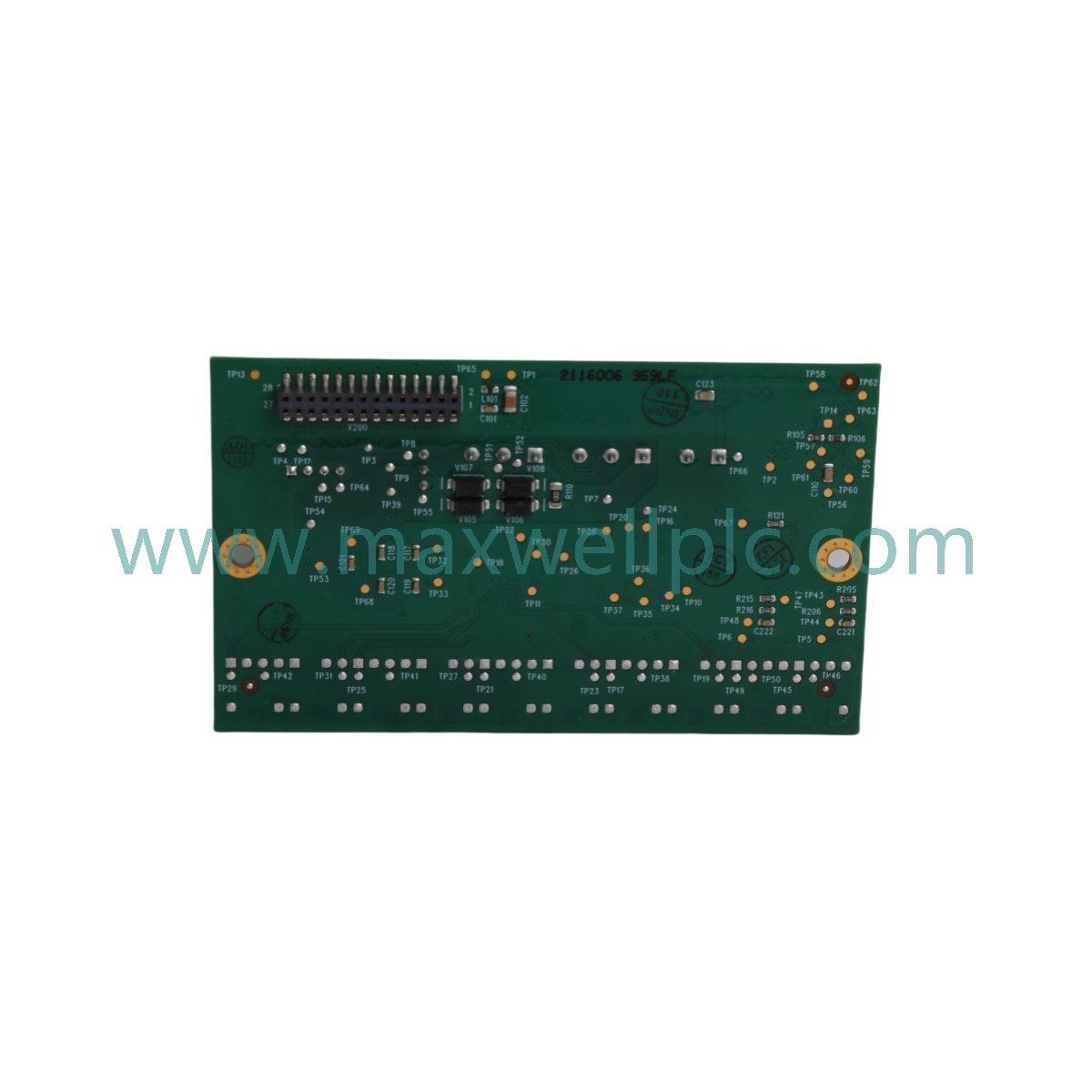

Configured for high-speed synchronization in DCS880 drive systems, the ABB SDCS-DSL-H10 (SDCS-DSL-H10 DCSLink Communication Adapter) provides direct physical signal execution for multi-unit networking. This hardware component functions as a primary data bridge, enabling deterministic communication across copper and fiber optic media for complex multi-drive configurations.

Model Matrix & Connectivity

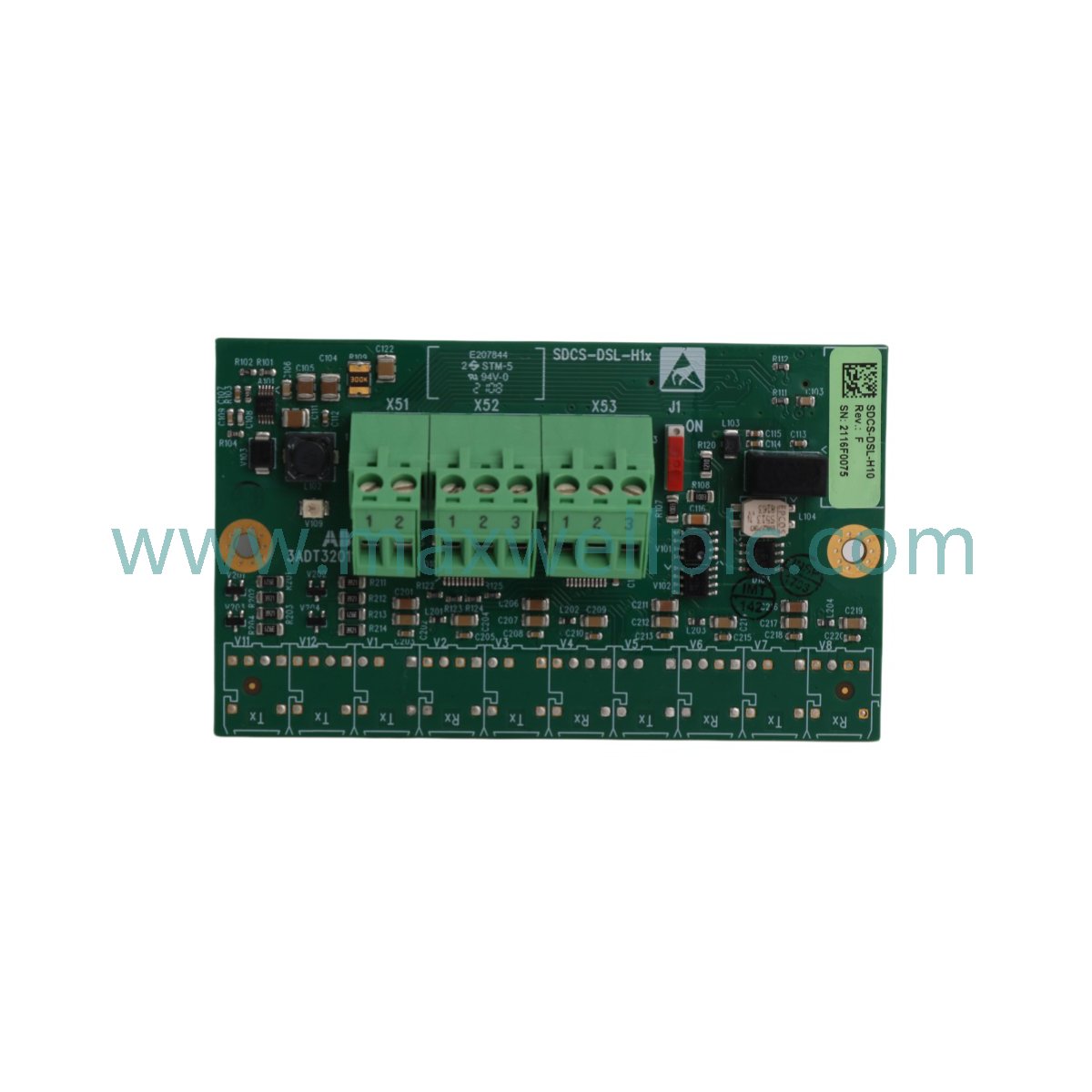

The SDCS-DSL-H10 provides a multi-interface architecture designed for specific synchronization tasks within the DCS880 product family. The module includes dual X52/X53 copper ports and four dedicated fiber optic channels, managed by an on-board J1 jumper system for configurable bus termination to prevent signal reflection.

Hardware Specifications

ABB Industrial Control & Drive Communication

The SDCS-DSL-H10 supports deterministic backplane bus communication protocols essential for high-performance DC drive coordination. The module facilitates high-speed data transfer between power units and master controllers, ensuring synchronization accuracy across the network. System firmware flash compatibility is maintained through the primary drive processor, allowing for seamless integration of the adapter within existing drive control loops without requiring specialized I/O density re-scaling.

Ordering info

• SDCS-DSL-H10 communication interface board.

• Technical documentation for bus termination and cabling.

• Note: Fiber optic cables and copper connectors are provided separately based on installation distance requirements.

Field Installation Guidelines

Mounting

• Secure the module into the designated drive slot, ensuring the connectors seat fully to establish electrical contact with the backplane.

• Utilize the integrated mounting hardware to maintain module stability under high-vibration conditions.

Wiring

• Connect 24 VDC auxiliary power to the X51 connector.

• Terminate fiber optic channels according to the transmitter/receiver mapping in the drive documentation.

• Configure the J1 jumper according to the network position (terminate at end-of-line nodes).

Frequently Asked Questions

• Q: Does the module support hot-swapping?

  A: No, power must be disconnected from the drive unit before installing or removing the communication adapter to prevent internal circuit damage.

• Q: How is the bus terminated for copper links?

  A: Termination is handled by the on-board J1 jumper; it must be set correctly based on the module's physical location within the DCSLink topology.

• Q: Can I mix fiber optic and copper connections on one module?

  A: Yes, the module supports simultaneous operation of fiber optic and copper channels, provided the network architecture is properly configured.

• Q: What is the maximum cable distance for the copper link?

  A: The copper DCSLink is rated for distances up to 100 meters at 500 kBd, depending on cable shielding and ambient noise levels.

• Q: How does the drive detect communication errors?

  A: The drive firmware monitors the DCSLink heartbeat; packet loss or framing errors trigger specific drive diagnostic alarms.

• Q: Is firmware update required after installation?

  A: The module is typically pre-loaded; however, verify the drive's firmware version is compatible with the installed SDCS-DSL-H10 revision.

• Q: What is the primary purpose of the fiber optic ports?

  A: Fiber optic ports provide complete galvanic isolation and immunity to electrical noise in high-current industrial drive environments.

• Q: How is the module grounded?

  A: The module is grounded through the mechanical chassis mounting; ensure all fasteners are tightened to maintain a low-impedance connection.
