Product Overview

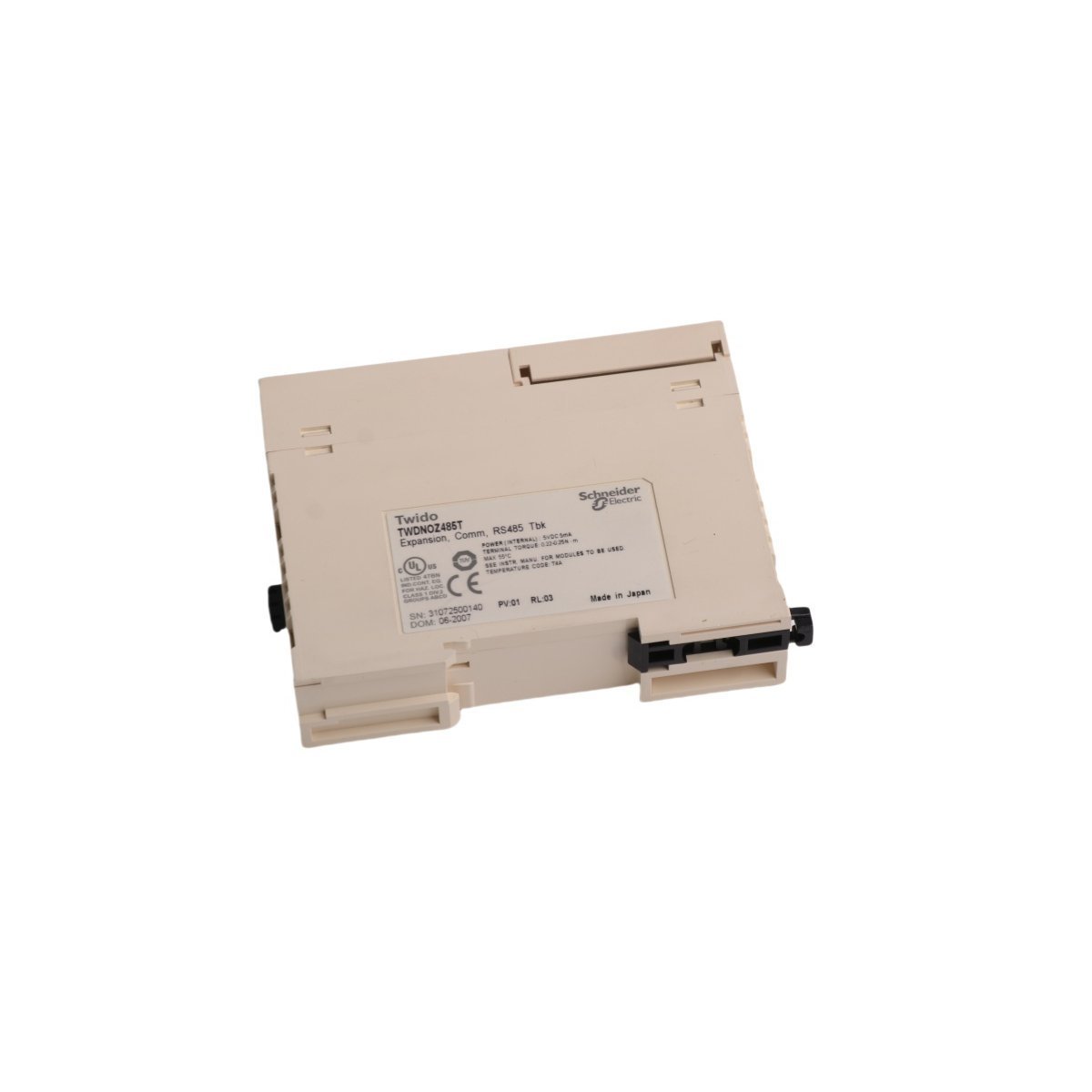

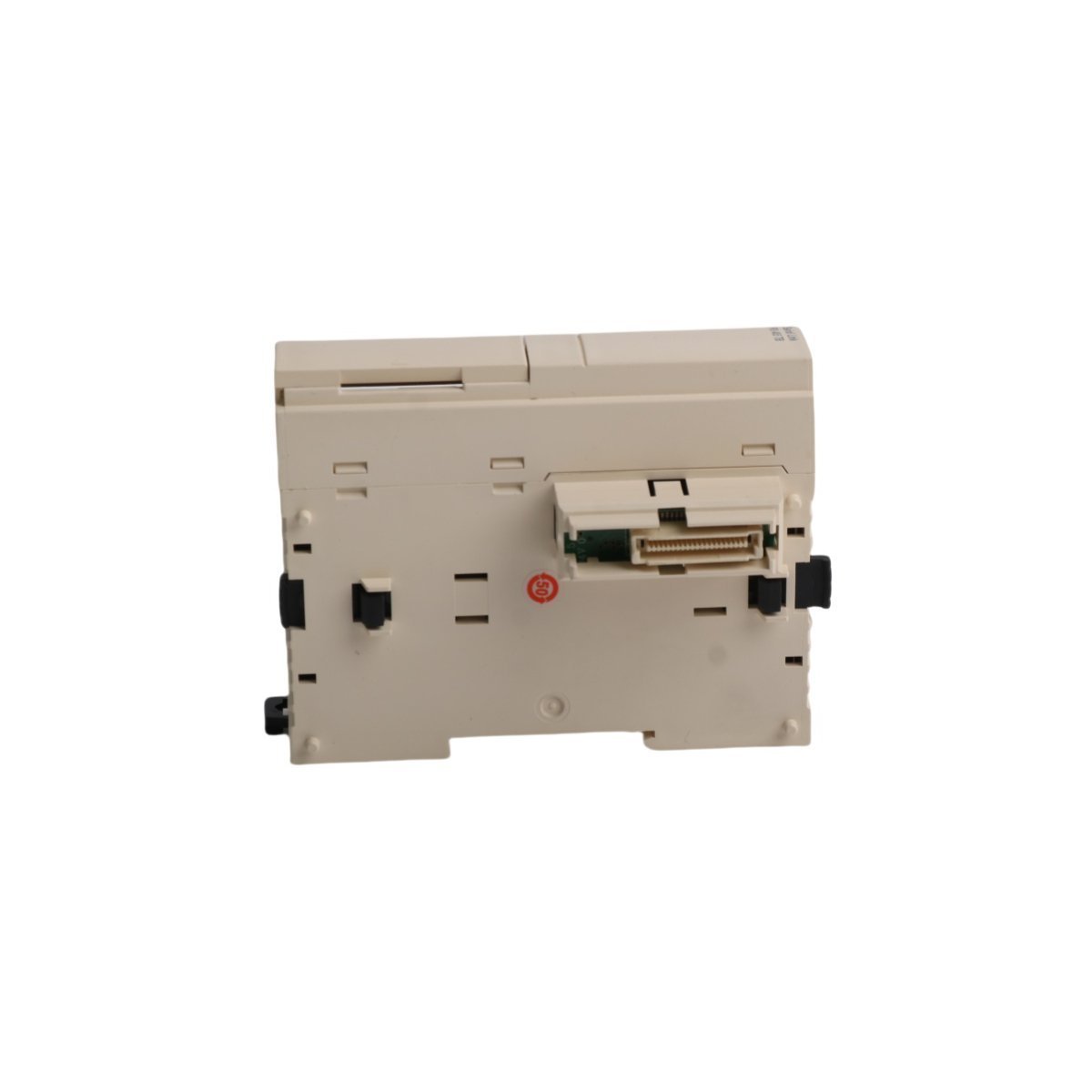

The TWDNOZ485T is a specialized communication interface expansion module engineered for the Schneider Electric Twido Programmable Logic Controller (PLC) range. This adaptor serves as a critical bridge for systems requiring RS485 serial connectivity, allowing Twido controllers to interact with a broader fieldbus architecture. By utilizing a secure screw terminal block for physical connection, the module provides a stable and interference-resistant medium for data exchange. It is designed to extend the native communication capabilities of the PLC, facilitating the integration of peripheral devices such as variable speed drives, power meters, and remote I/O into a unified industrial control network.

Electromechanical Properties and Hardware Configuration

The TWDNOZ485T is characterized by its ultra-compact form factor, designed for zero-footprint expansion within industrial control cabinets.

• Communication Port: 1 RS485 Serial Link

• Physical Interface: Screw terminal block for secure wiring

• System Compatibility: Exclusively for Schneider Twido PLC series

• Isolation: Built-in electrical isolation to protect the CPU from line surges

• Transmission Protocol: Supports Modbus RTU and ASCII standards

• Module Weight: 0.1 kg

• Device Dimensions: 2.5 x 10.2 x 7.6 cm

• Mounting Type: Direct plug-in to the PLC base unit

• Power Supply: Powered internally via the PLC bus

• Country of Origin: France

Operational Deployment and Networking Scenarios

This serial link adaptor is an essential component for maintaining or expanding legacy Twido automation environments, particularly in the following industrial contexts:

• Modbus Networking: Connecting multiple Twido PLCs or third-party devices in a Master/Slave configuration over long-distance RS485 runs.

• HMI Integration: Providing the necessary physical layer for local operator panels and touchscreens to communicate with the machine controller.

• Field Device Control: Direct interfacing with Modbus-compatible instruments, such as temperature controllers or specialized sensors, for real-time data acquisition.

• Energy Monitoring: Linking the PLC to power quality analyzers and sub-meters to track facility energy consumption through serial daisy-chaining.

• Legacy System Maintenance: Ensuring the continued operation of existing production lines where RS485 remains the primary communication standard for localized machine control.
