Product Overview

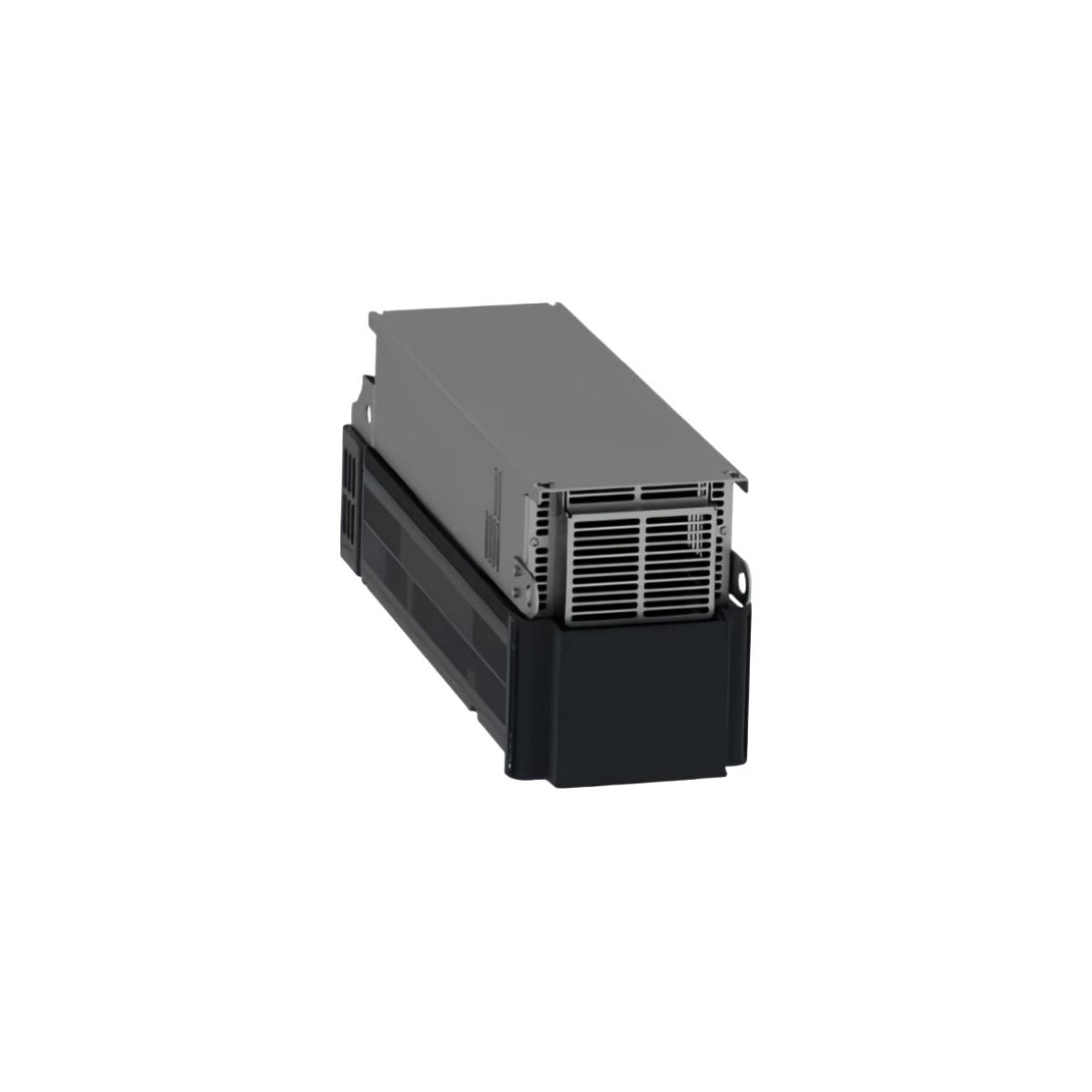

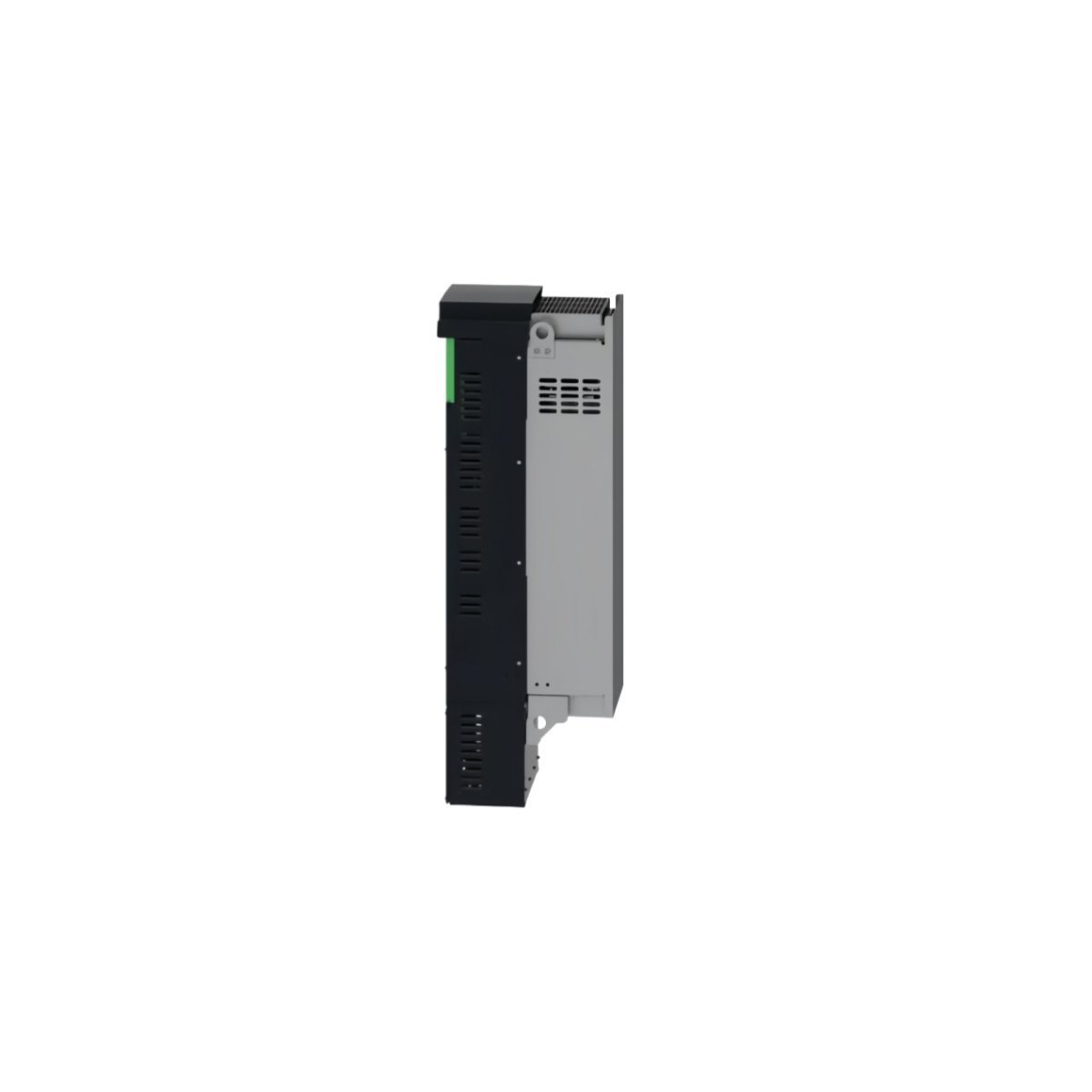

The ATV630C11N4 is a specialized 110kW (150hp) frequency inverter from the Schneider Electric Altivar Process ATV600 family. Unlike standard drives, this unit is an "Industrial Process Drive" specifically engineered to optimize fluid management and process efficiency. It provides precise control for both asynchronous and synchronous motors across a 380V to 480V three-phase range. Featuring integrated "Stop and Go" technology, the module reduces energy consumption during idle periods by up to 30%. This drive is designed to serve as a smart device within your automation architecture, providing real-time data on energy usage and pump performance to lower the total cost of ownership.

Engineering Specifications and System Architecture

The ATV630C11N4 is a heavy-duty industrial component. Please note that the physical dimensions and weight reflect its high-power capacity compared to smaller control modules.

• Power Rating: 110 kW (Normal Duty) / 90 kW (Heavy Duty)

• Horsepower: 150 hp (Normal Duty) / 125 hp (Heavy Duty)

• Supply Voltage: 380 to 480 V AC (50/60 Hz)

• Output Current: 211 A (Normal Duty) / 173 A (Heavy Duty)

• Overload Capability: 120% for 60s (Normal) or 150% for 60s (Heavy)

• Integrated Communication: Dual Ethernet ports, Modbus TCP, and Modbus Serial

• Safety Functions: STO (Safe Torque Off) SIL3

• Physical Dimensions: 320 x 852 x 390 mm

• Net Weight: 82 kg (Note: Shipping weight approximately 105 kg)

• Cooling Requirement: Forced convection via integrated fan

• Installation: Wall-mounted (Vertical ± 10°)

• Protection Class: IP21 (UL Type 1)

Process Optimization and Industrial Scenarios

The Altivar Process series is built for rugged, data-intensive environments where fluid control is mission-critical. Its application scope includes:

• Water and Wastewater Management: Optimizing centrifugal pumps and boosters with integrated pump monitoring and cavitation protection.

• Mining and Minerals: Handling slurry pumps and ventilation fans where high torque and dusty environments require robust thermal management.

• Oil and Gas Operations: Managing midstream pumping stations and cooling fans with advanced diagnostic capabilities.

• Food and Beverage Processing: Controlling large-scale mixers and industrial compressors while maintaining strict energy efficiency standards.

• Heavy Infrastructure: Regulating high-capacity HVAC fans in tunnels and commercial complexes to ensure air quality and fire safety compliance.
