Product Overview

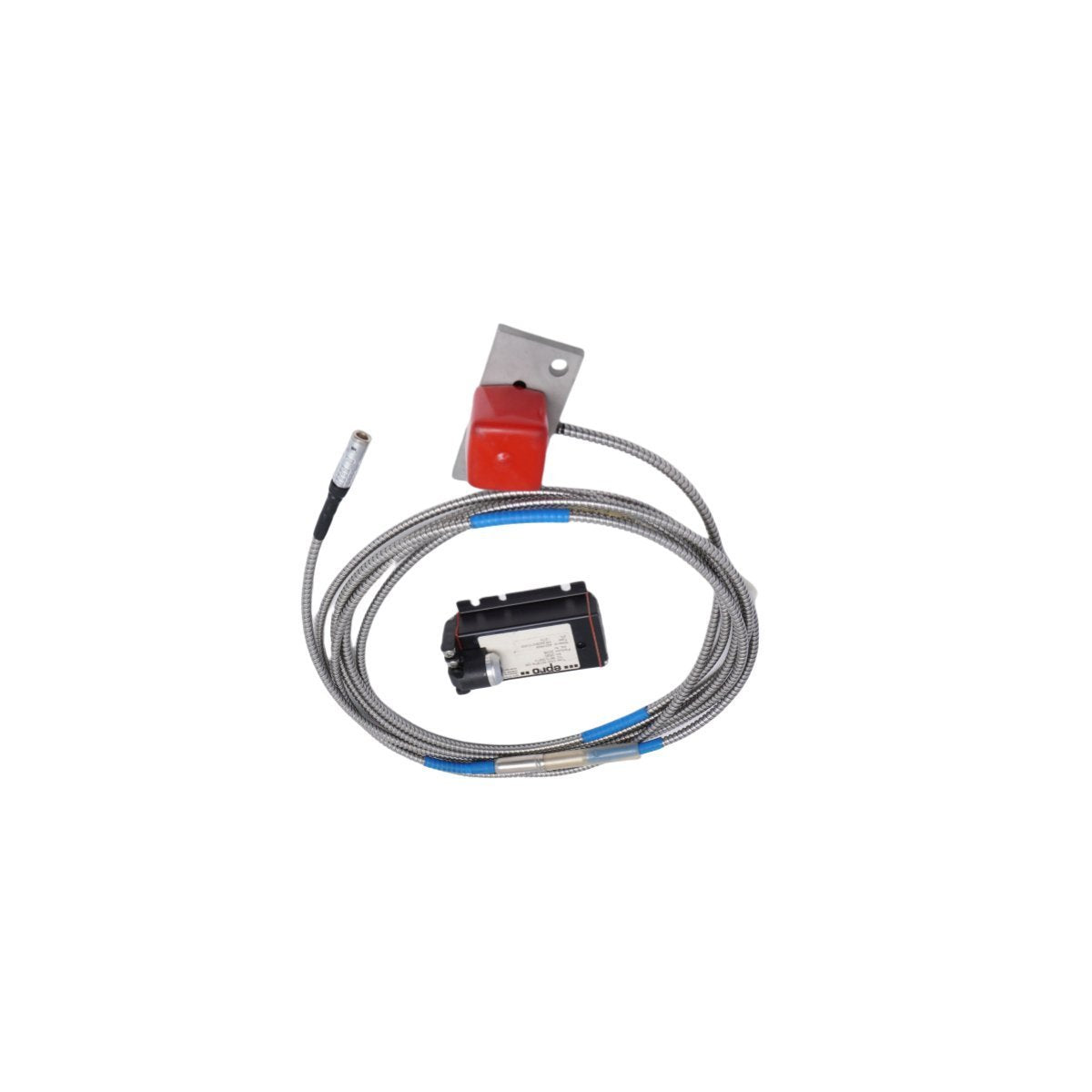

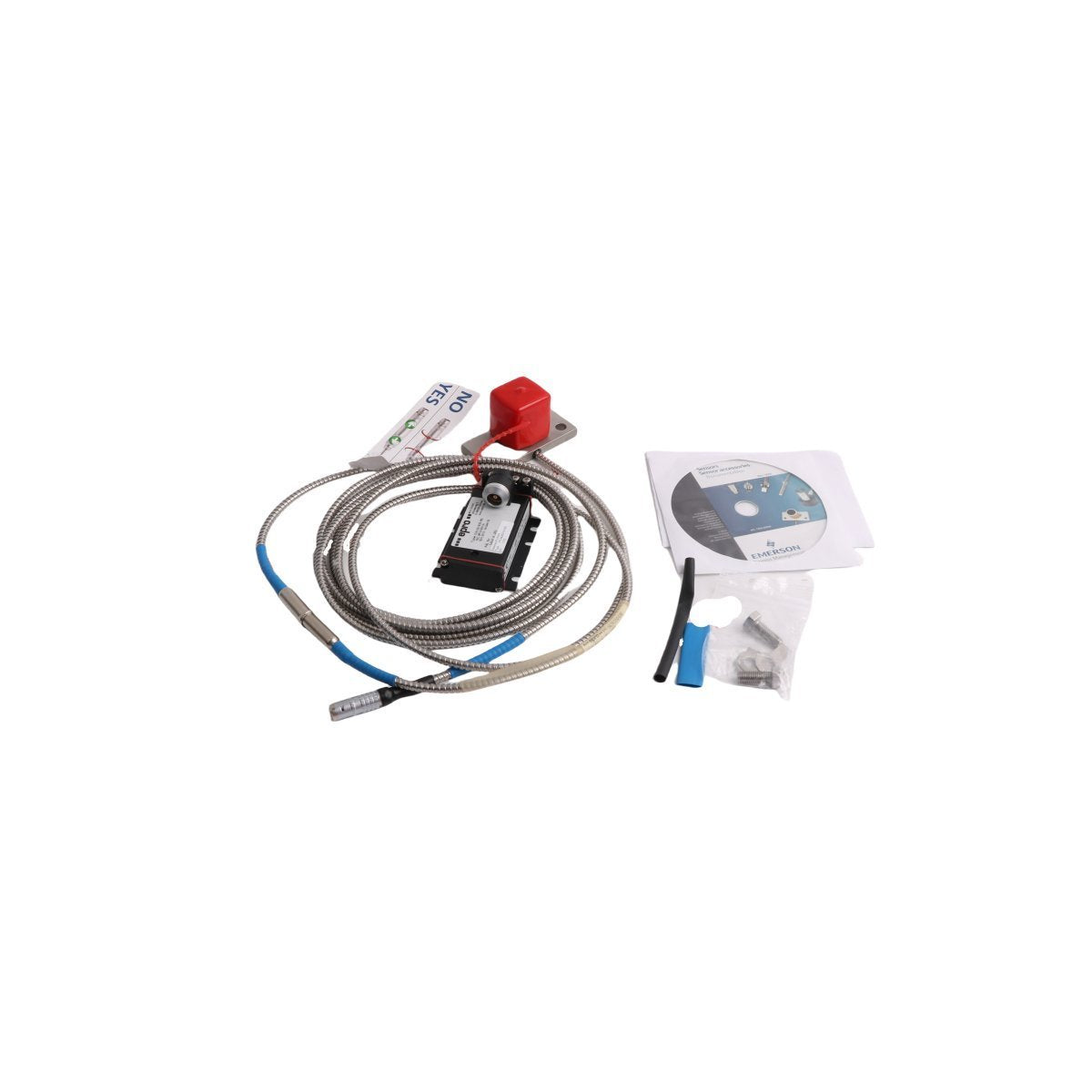

The Emerson PR6426/010-000, integrated with the CON021/916-160 connector assembly, is a high-sensitivity eddy current sensor designed for the non-contacting measurement of critical machine shaft parameters. As a flagship component of the EPRO series, this sensor captures sub-millimeter variations in displacement and vibration, providing high-fidelity data to machinery protection systems. By monitoring the electromagnetic air gap between the probe tip and the rotating conductive surface, the PR6426/010-000 enables the early identification of mechanical instabilities, ensuring that high-value industrial assets operate within safe design tolerances.

Technical Architecture and Hardware Capabilities

This sensor system is engineered to provide linear, noise-free signal transmission even when subjected to the extreme electromagnetic interference and fluid exposure found in modern turbine housings.

• Sensing Mechanism: Non-contacting inductive eddy current technology

• Probe Diameter: High-resolution 8mm tip architecture

• Interface Configuration: Integrated high-frequency cable with a CON021/916-160 industrial termination

• Material Compatibility: Calibrated for use with ferromagnetic targets and alloy steel shafts

• Environmental Resilience: Hermetically sealed stainless steel body designed for IP67/IP68 ingress protection

• Signal Processing: Optimized for high-frequency response to detect rapid dynamic vibration shifts

• Thermal Mitigation: Built-in temperature compensation logic to neutralize thermal drift in high-heat zones

• Measuring Range: High-linearity output for precise gap-to-voltage conversion

Industrial Deployment and Machinery Analytics

The PR6426/010-000 CON021/916-160 is a fundamental tool for predictive maintenance programs in the power generation, oil and gas, and heavy manufacturing sectors. It is specifically designed for the oversight of turbomachinery where unmonitored mechanical wear can lead to catastrophic system failure.

In utility environments, these sensors are mounted on steam and gas turbines to track axial thrust and radial shaft deflection. In the petrochemical sector, the transducer is applied to high-speed centrifugal compressors and massive industrial pumps to identify bearing degradation or shaft eccentricity. Because the sensing method is non-contacting, it eliminates mechanical wear and friction, allowing for permanent installation in high-velocity environments. When linked to an Emerson Ovation, DeltaV, or CSI 6500 rack, the PR6426/010-000 provides the essential real-time feedback required for automated emergency shutdown (ESD) logic, effectively safeguarding infrastructure and personnel.
