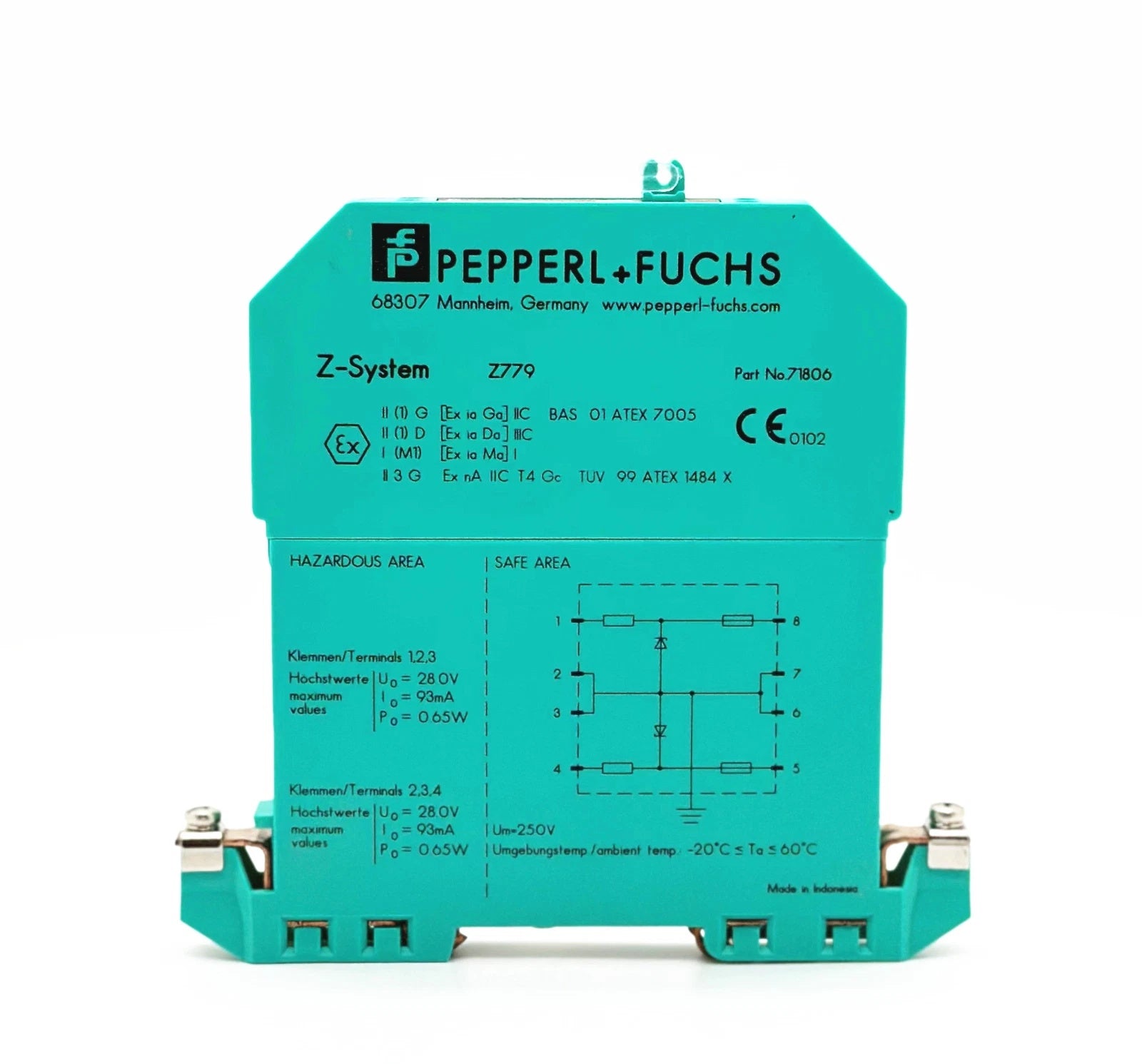

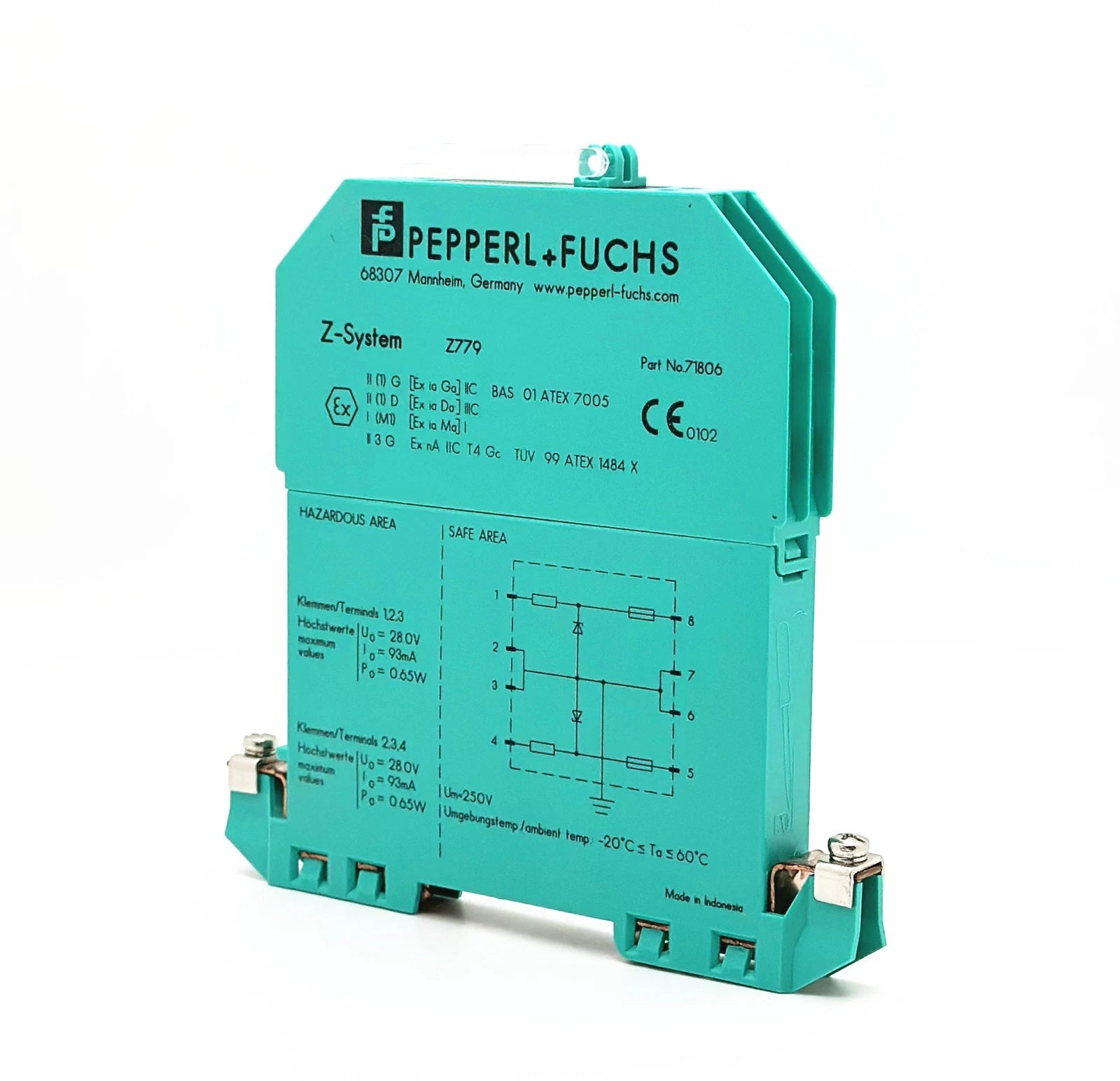

Product Overview

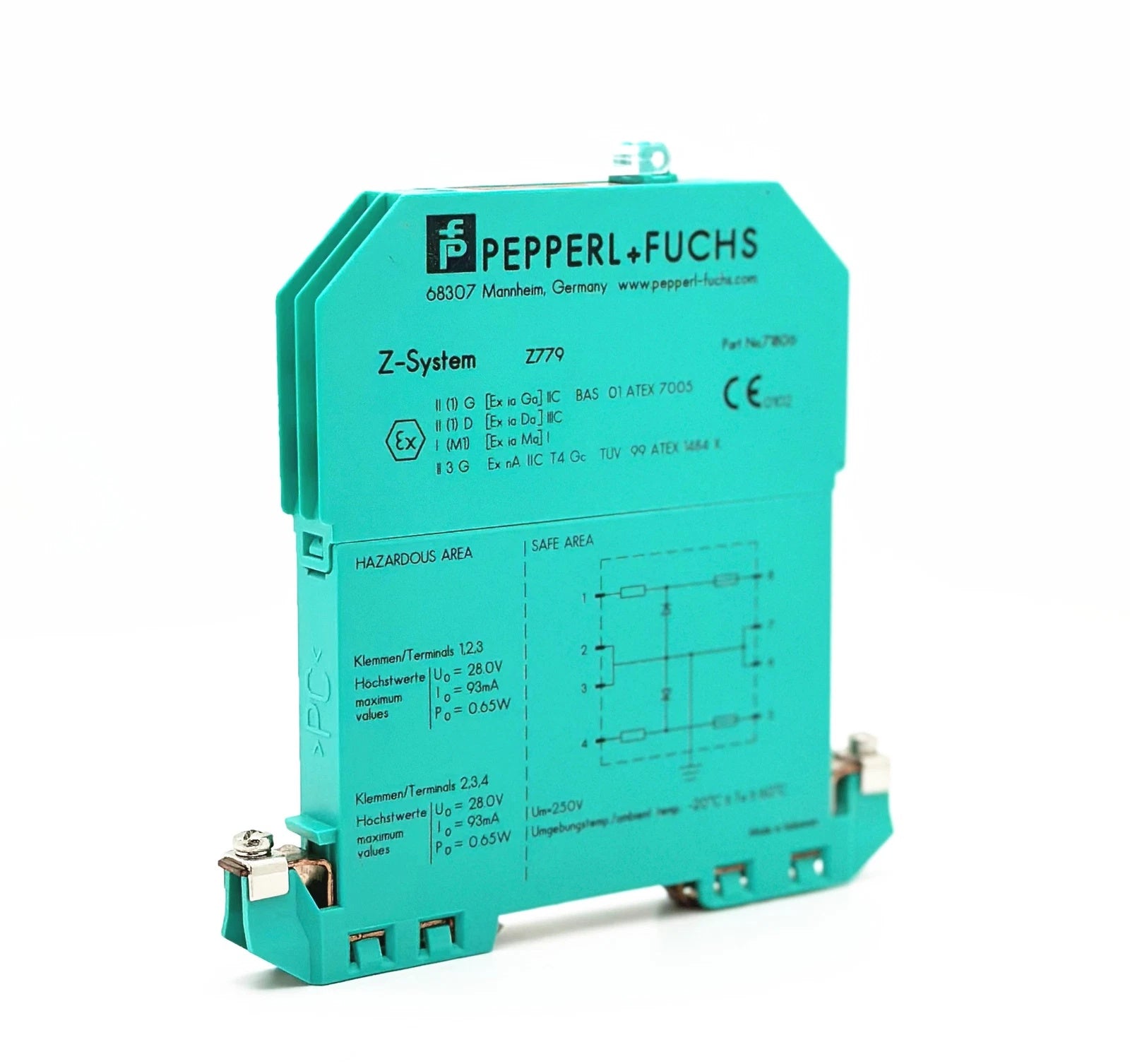

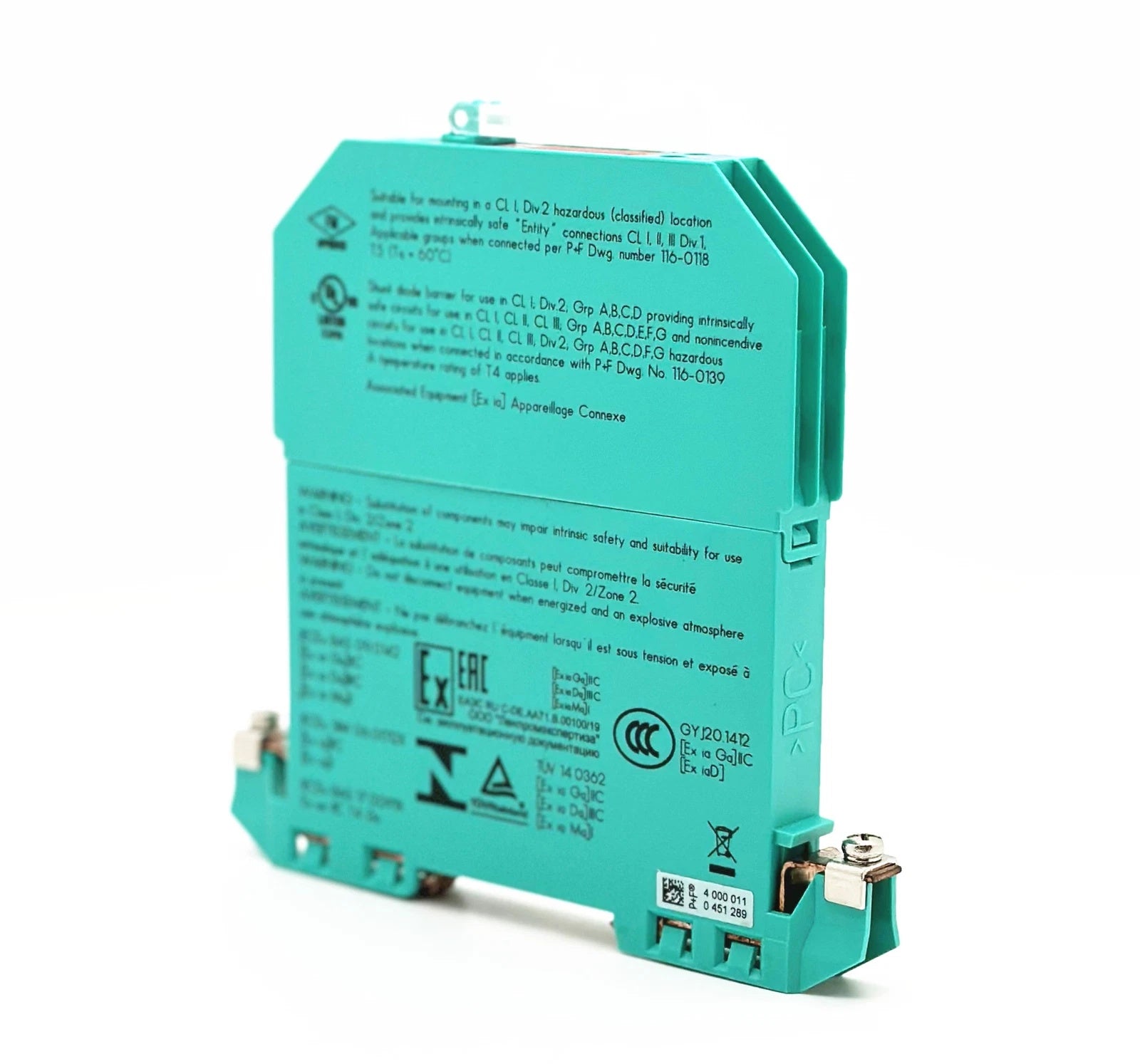

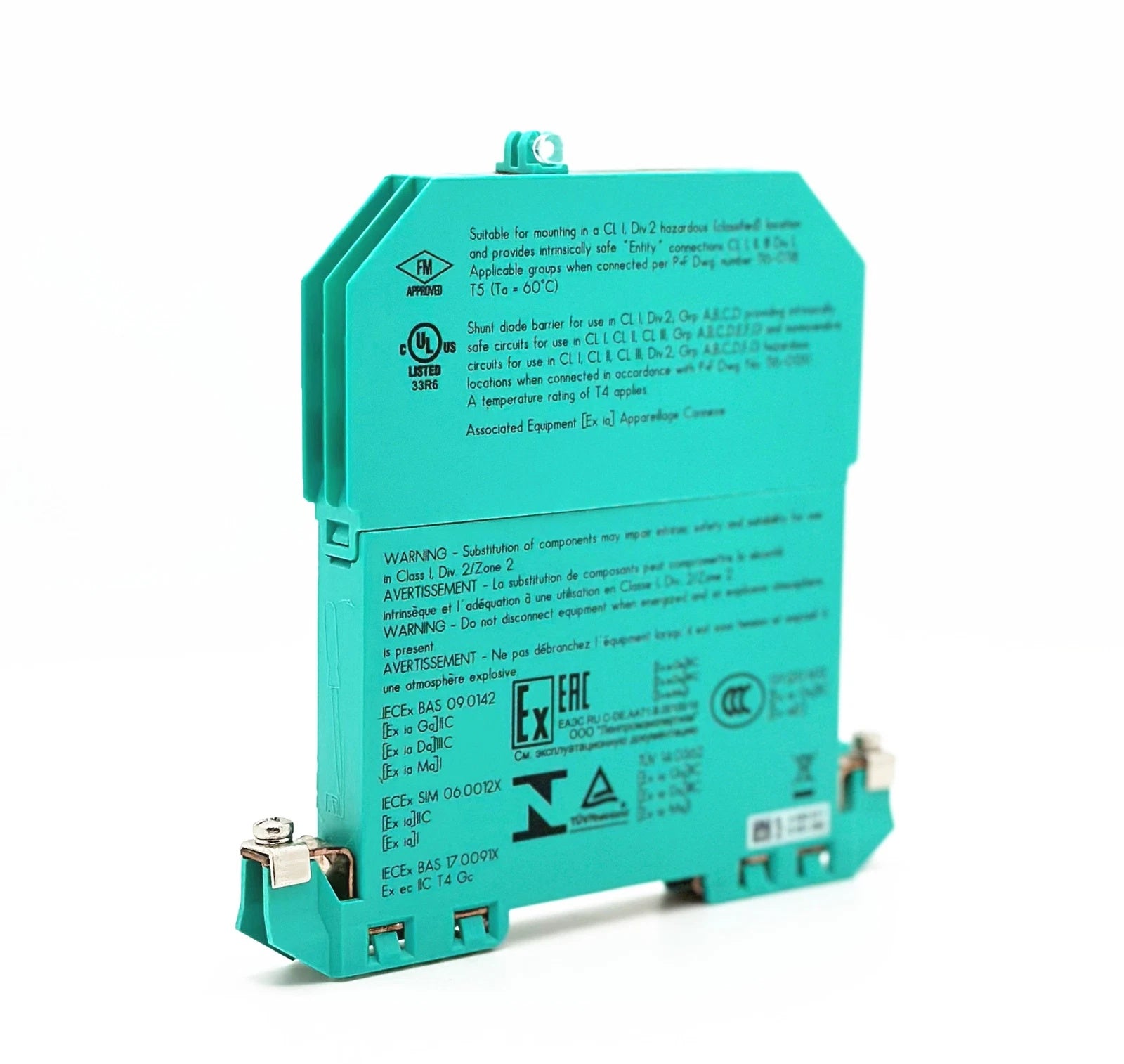

The Pepperl+Fuchs Z779 functions as a critical intrinsic safety interface within the global Z-System, preventing dangerous electrical energy from reaching hazardous environments. This dual-channel Zener barrier limits voltage and current to safe levels, ensuring that instrumentation in Zone 0, 1, or 2 remains incapable of igniting explosive atmospheres. While optimized for 24V DC control loops, the Z779 provides indispensable protection for transmitters, solenoid valves, and proximity switches in high-risk sectors such as petrochemical refining and gas processing. By shunting excess energy directly to earth ground, this barrier maintains a secure boundary between the safe control room and the volatile field area. Its high-density 12.5mm profile allows for significant space savings in crowded Marshalling cabinets without compromising safety integrity.

Core Technical Advantages

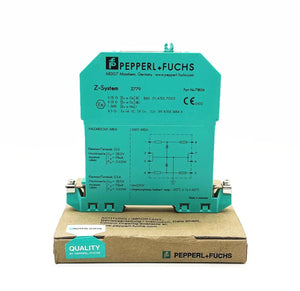

This Zener barrier features a specialized DC-version hardware architecture with positive polarity, specifically engineered for signal loops where the safe-area voltage remains consistently positive relative to the ground. The Z779 incorporates high-precision shunt zener diodes and a calibrated 300 Ohm (nominal) series resistor that works in tandem to clamp overvoltage transients and limit short-circuit current. The dual-channel design facilitates the protection of two separate 4-20mA loops or a single 3-wire sensor configuration using just one module. Because it operates as a passive device, the Z779 requires no external power source, which eliminates additional heat generation in the cabinet and simplifies the overall electrical distribution. The internal 50 mA fuse provides a sacrificial failure point that disconnects the circuit during prolonged overvoltage events, shielding the hazardous area from sustained electrical faults.

Technical Specifications

Installation Guide

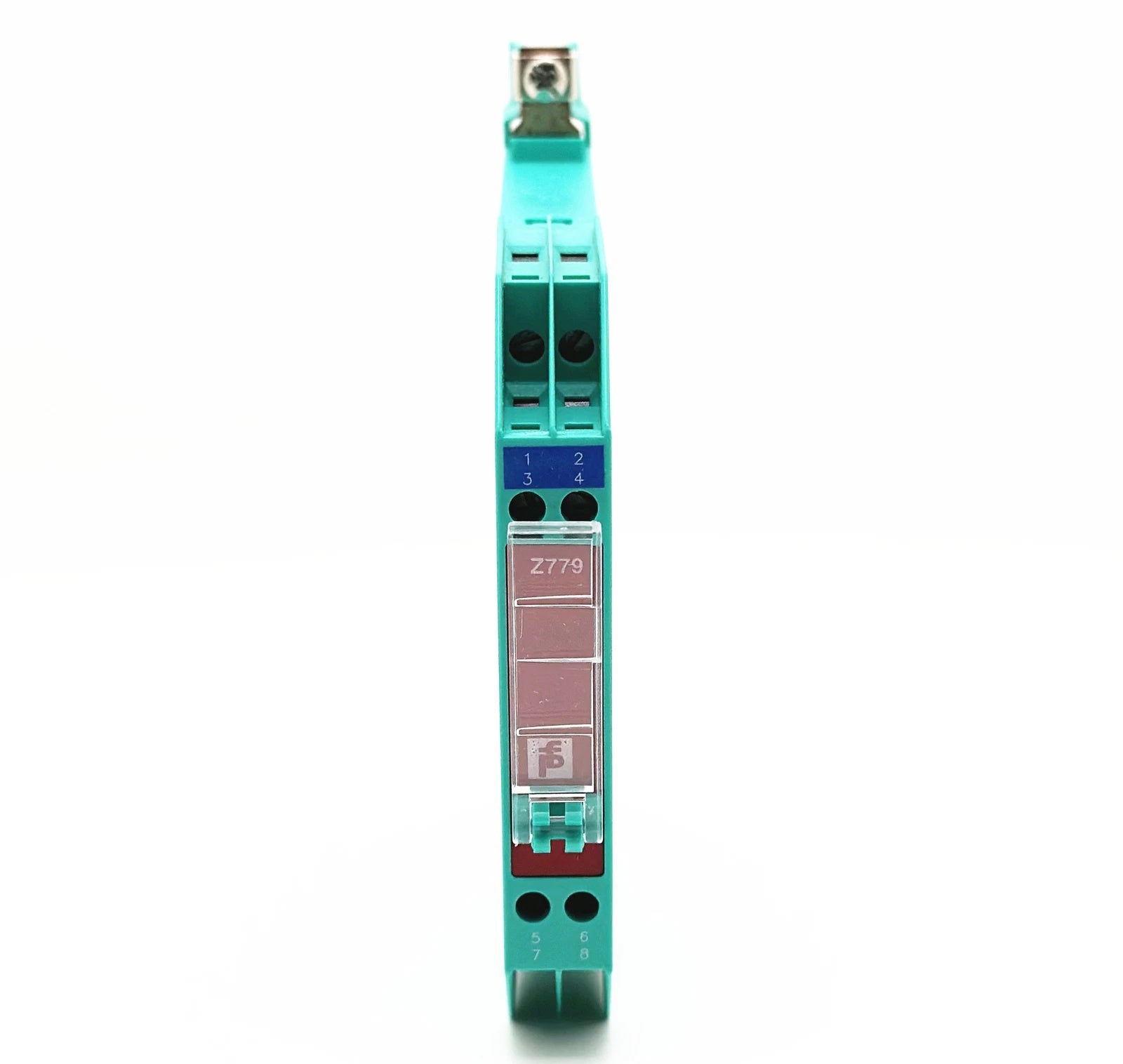

Technical personnel must ensure that the Z779 mounts onto a 35mm DIN rail that connects directly to a high-integrity intrinsic safety (IS) earth ground. A reliable ground path is mandatory; the resistance between the barrier's ground terminal and the plant's main potential equalization bus must not exceed 1 Ohm. When routing cables, maintain a minimum physical separation of 50mm between hazardous-area (blue) and safe-area (non-blue) wiring to prevent electromagnetic cross-talk. To avoid nuisance fuse blowing, verify that the safe-area supply voltage remains below the 26.5V working voltage limit during normal operations. For maintenance, use a high-impedance multimeter to check the continuity across the fuse terminals—any open circuit indicates the barrier has successfully shunted a fault and now requires full replacement.

Engineering Advantages

The Z779 excels in simplified safety architectures where grounding infrastructure is well-established and cost-efficiency is paramount. Its passive components offer an extremely long service life, resisting the thermal aging often found in active isolated barriers. The Z779 integrates seamlessly with standard 24V DC PLC outputs and 4-20mA analog inputs, providing universal compatibility for most digital and analog field instrumentation. By eliminating the need for a dedicated power supply for the barrier itself, this module reduces the total power budget of the control cabinet. Its robust construction handles industrial vibrations and electromagnetic noise, ensuring that your critical safety loops remain operational under the most demanding plant floor conditions.

Delivery & Logistics

Delivery Time: 3-5 days once payment is finalized.

Shipping Carriers: Shipped globally via DHL, FEDEX, or UPS. We dispatch all units in anti-static packaging and original factory-sealed boxes to guarantee integrity upon arrival.

Technical FAQs

Q1: What distinguishes the Z779 from the Z728 model?

A1: The Z779 has a slightly different working voltage characteristic (26.5V at 10 µA) compared to the Z728, though both serve 28V safety applications. Always verify the specific Uw (working voltage) of your loop to ensure the barrier does not leak current during normal operation.

Q2: Can I reuse the Z779 after a fault has blown the internal fuse?

A2: No. The internal fuse and zener diodes are encapsulated to maintain the intrinsic safety certification. Once the fuse blows, the unit has fulfilled its protective role and must be replaced to ensure the safety parameters remain valid.

Q3: Why is a dedicated "IS Ground" necessary for this barrier?

A3: Since the Z779 is a Zener barrier, it "shunts" fault energy to the ground. Without a low-resistance connection to the earth, the fault voltage could rise to ignitable levels in the hazardous area, defeating the purpose of the barrier.

Q4: Is the Z779 compatible with HART communication signals?

A4: Yes, the Z779 is transparent to HART signals. The digital frequency shift keying (FSK) signal used by HART passes through the series resistance without significant attenuation, allowing for remote calibration of field instruments.
