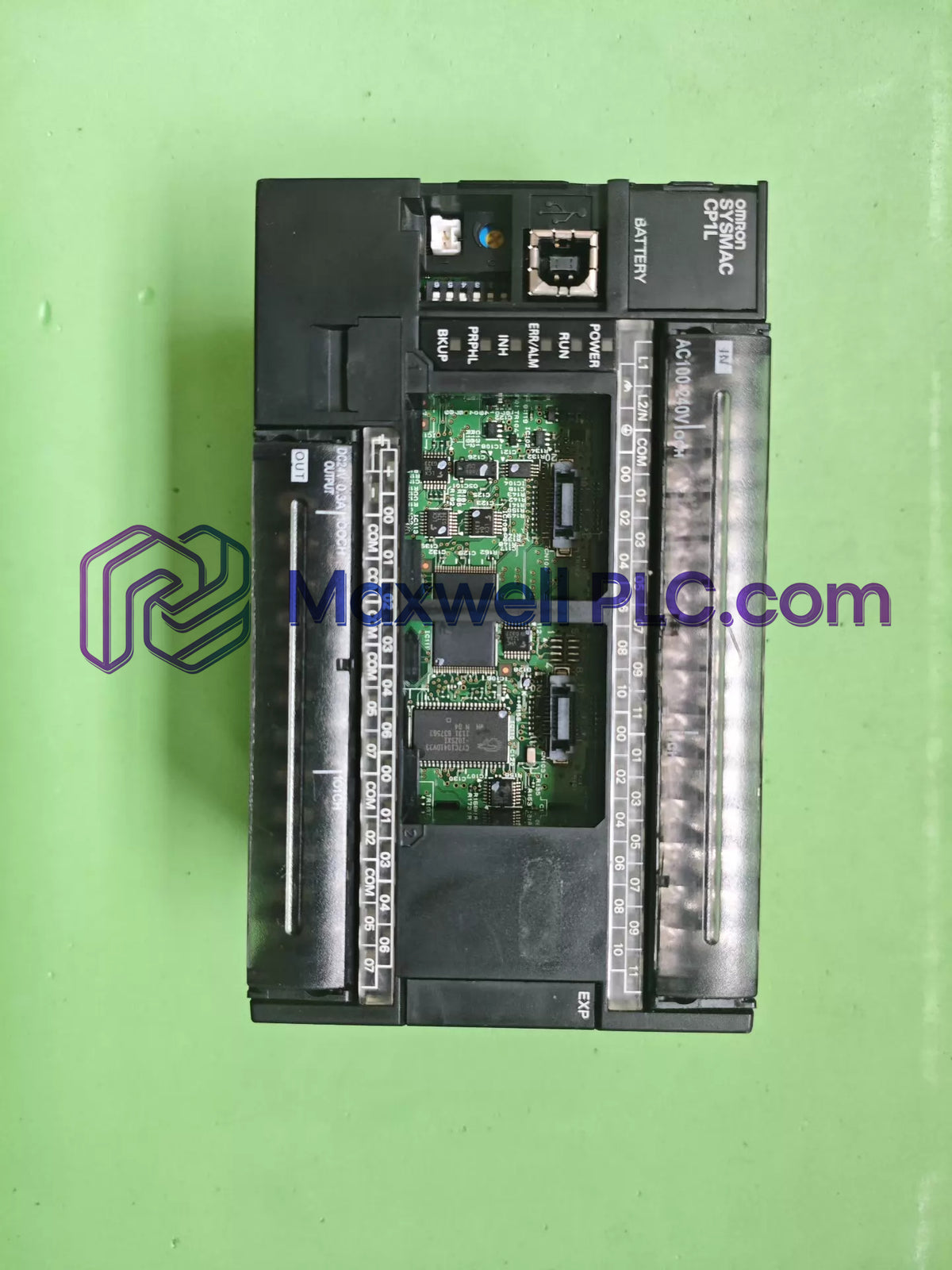

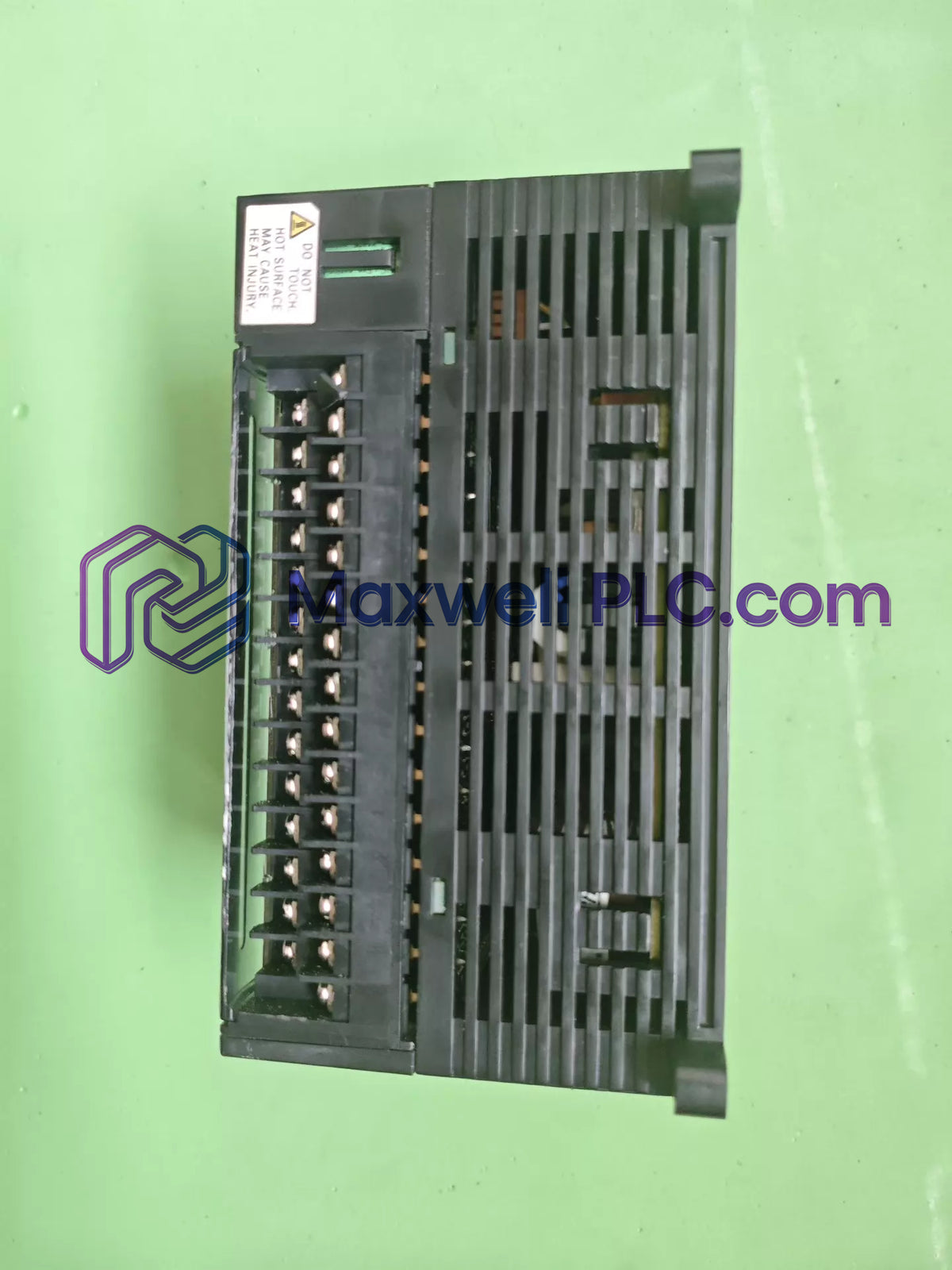

The Omron CP1L-M40DT-A, also cataloged as the CP1L-M40DT-A Programmable Controller, operates as a dedicated hardware component for high-speed sequential execution, high-speed pulse motion control, and discrete logic execution within Omron CP1L automation architectures.

Technical Identifier Matrix

• Series Prefix (CP1L): Compact programmable controller platform with ladder and structured text execution
• CPU Architecture (M): Standard CPU unit with 40 built-in I/O points and expansion bus interface
• I/O Capacity (40): 40 total built-in I/O points (24 discrete inputs, 16 discrete outputs)
• Output Type (DT): Transistor sinking outputs supporting high-speed pulse train generation
• Power Supply (A): 100 to 240 VAC power supply input

Hardware Specifications

PLC Determinism and Backplane Bus Velocity

The Omron CP1L-M40DT-A utilizes an integrated processing engine configured for cyclic scan execution with immediate I/O refreshing routines. Basic instruction execution speeds of 0.55 us min. maintain tight ladder cycle times across 10K step memory configurations. Interrupt processing for up to 256 tasks enables immediate execution routines independent of cyclic scan overhead.

System expansion allows direct attachment of up to 3 CP-series expansion units across the internal parallel expansion bus. The backplane bus architecture maintains high signal velocity during cyclic I/O refresh cycles, ensuring fast memory transfer between expansion registers, CIO I/O mapping blocks (CIO 0 to CIO 199), and internal function blocks without degrading deterministic logic execution.

Package Contents & Ordering Information

• 1x Omron CP1L-M40DT-A Programmable Controller Unit
• 1x Removable Screw Terminal Block Assembly
• 1x Hardware Installation Sheet

Field Installation Guidelines

• DIN-Rail Mounting: Clip the controller onto a standard 35 mm DIN rail (PFP-50N/PFP-100N). Ensure a minimum clearance of 50 mm above and below the chassis for proper thermal convection.
• AC Power Connections: Wire 100 to 240 VAC power input lines to terminals L1 and L2/N using stranded copper conductors. Fasten terminal screws to a torque rating of 0.5 N-m.
• Transistor Output Wiring: Wire external load circuits using a sinking configuration. Connect the external DC voltage source positive rail to the load and the negative side to the controller terminal.
• Grounding Setup: Wire the protective earth (PE) terminal directly to an earth ground point with a dedicated conductor having an impedance under 100 ohms.
• Shielding Procedures: Terminate high-speed input and pulse output signal cable shields at a single ground point using 360-deg braid grounding clamps.

Frequently Asked Questions

• What output device type is incorporated on the CP1L-M40DT-A chassis?

  The CP1L-M40DT-A features 16 transistor sinking outputs rated for high-speed switching and pulse train generation.

• What input and output point counts are provided on the CPU unit?

  The main controller chassis incorporates 24 discrete DC inputs and 16 transistor outputs, totaling 40 built-in I/O points.

• What high-speed pulse output functionality does the controller support?

  The CPU provides 2 axes of high-speed pulse train outputs operating at frequencies up to 100 kHz for motion control.

• What operating power supply voltage is required for controller operation?

  The controller operates on an internal wide-range AC power supply accepting 100 to 240 VAC at 50/60 Hz.

• How many CP-series expansion units can be added to the CPU base?

  A maximum of 3 CP-series expansion units or expansion I/O units can be attached via the expansion bus port.

• What basic instruction execution speed is achieved by the CPU?

  The processing unit executes basic ladder instructions at a minimum speed of 0.55 microseconds per instruction.

• How many function block definitions can be stored in program memory?

  The application logic memory supports up to 128 function block definitions and up to 256 active instances.

• What shielding guidelines must be followed for pulse output wiring?

  Pulse output signal cables must use shielded twisted-pair lines terminated with 360-deg braid clamps to PE ground.
