Product Overview

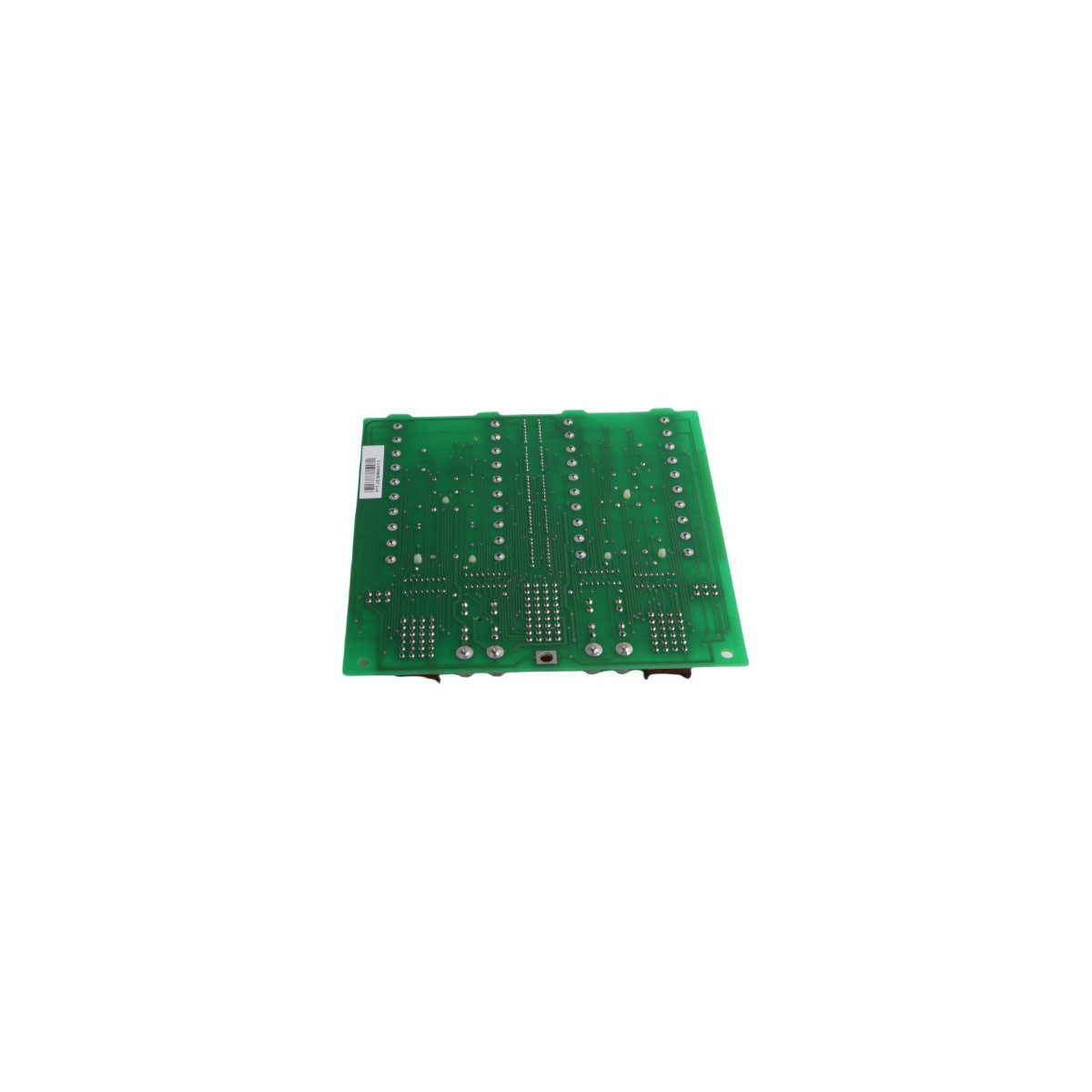

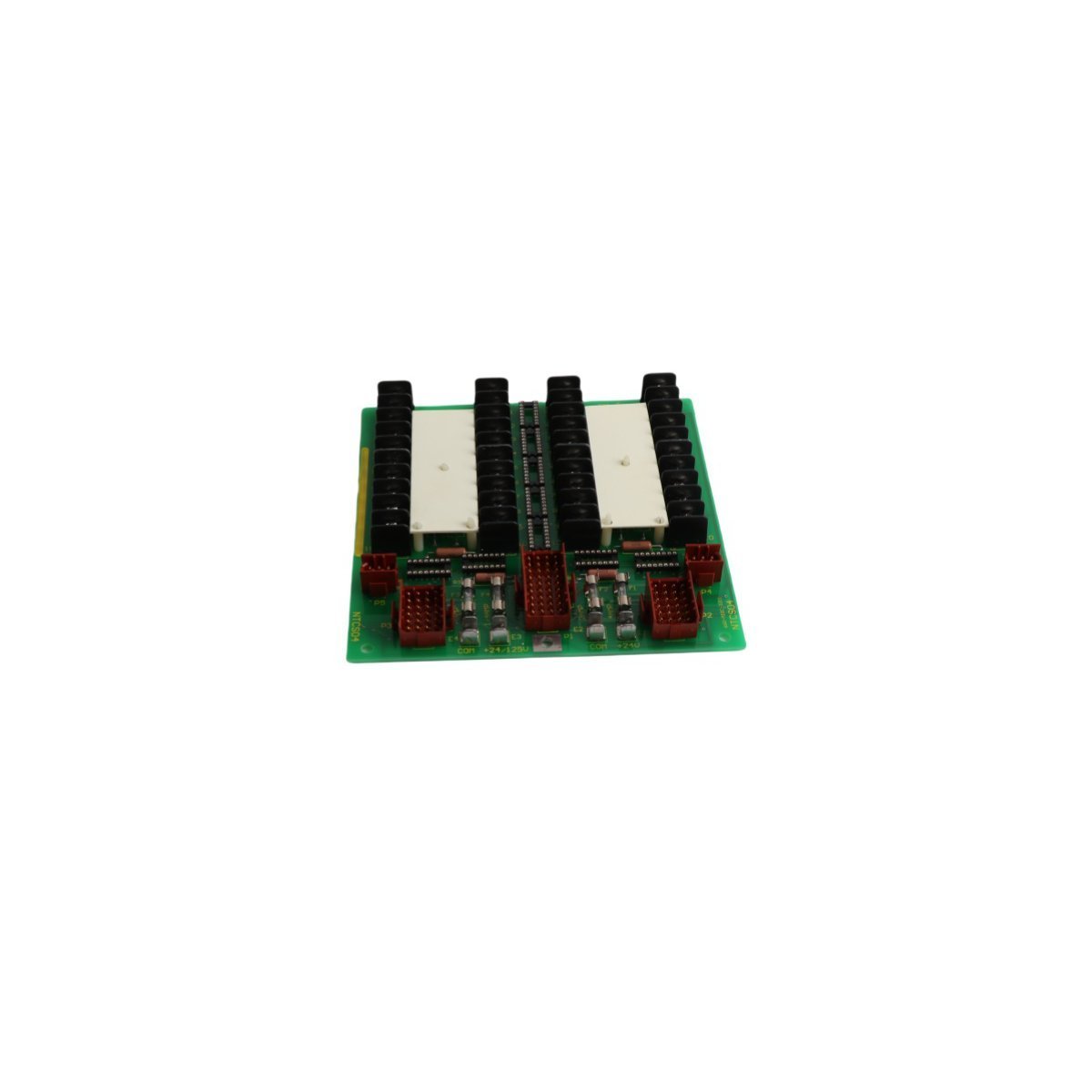

The NTCS04 is a specialized Control I/O Termination Unit engineered for the Bailey Infi 90 and Net 90 Distributed Control Systems (DCS). This module serves as a critical interface hardware, facilitating the physical connection between field wiring and system control modules. It is specifically designed to manage serial communication and station-level signaling, ensuring that data packets and control commands move accurately between the processing logic and the operational environment. By providing a centralized point for signal termination, the NTCS04 simplifies cabinet organization while maintaining the high signal integrity required for mission-critical industrial automation.

Critical Hardware Parameters

• Connectivity Suite: Features integrated support for dedicated control station links.

• Energy Management: Engineered with low-power consumption circuitry to reduce thermal load within enclosed racks.

• Physical Profile: Compact board design optimized for high-density DIN rail or mounting plate installation.

• Signal Routing: Supports diverse I/O configurations for both input and output data stream management.

Strategic Industrial Deployment

The NTCS04 is predominantly utilized in sectors where high-speed serial communication and reliable signal termination are vital for process safety. Typical applications include:

• Petrochemical Refineries: Managing the serial data exchange between local control stations and centralized processing units.

• Power Utility Management: Serving as the interface point for monitoring and controlling distribution parameters across large-scale grids.

• Water & Wastewater Treatment: Coordinating diverse I/O signals from remote field sensors and actuators within an Infi 90 framework.

• Manufacturing Facilities: Facilitating real-time control signal routing for high-speed automated production lines.

FAQ

Q: What specific communication protocols does the NTCS04 support?

A: The NTCS04 is equipped with dual RS-232-C serial ports, which are primarily used for interfacing with control stations and other peripheral serial devices within the Bailey environment.

Q: Is the NTCS04 compatible with modern Symphony Plus systems?

A: While designed for the Infi 90 and Net 90 series, it is often used in Symphony Plus systems that retain Infi 90 compatible communication loops and termination units.

Q: Does this termination unit provide galvanic isolation?

A: The unit is designed to provide stable signal termination; however, the level of isolation depends on the specific I/O module it is paired with. It acts as the physical conduit for these signals.

Q: How does the compact design of the NTCS04 benefit cabinet layout?

A: Its small footprint (18x17.6 cm) allows engineers to maximize I/O density within standard cabinets, reducing the overall space required for DCS hardware while maintaining easy access for maintenance.

Q: What are the primary indicators of a functioning NTCS04 unit?

A: Functionality is typically monitored via the control system software diagnostics, which track the status of the serial links and I/O signal continuity passing through the termination unit.
