Product Overview

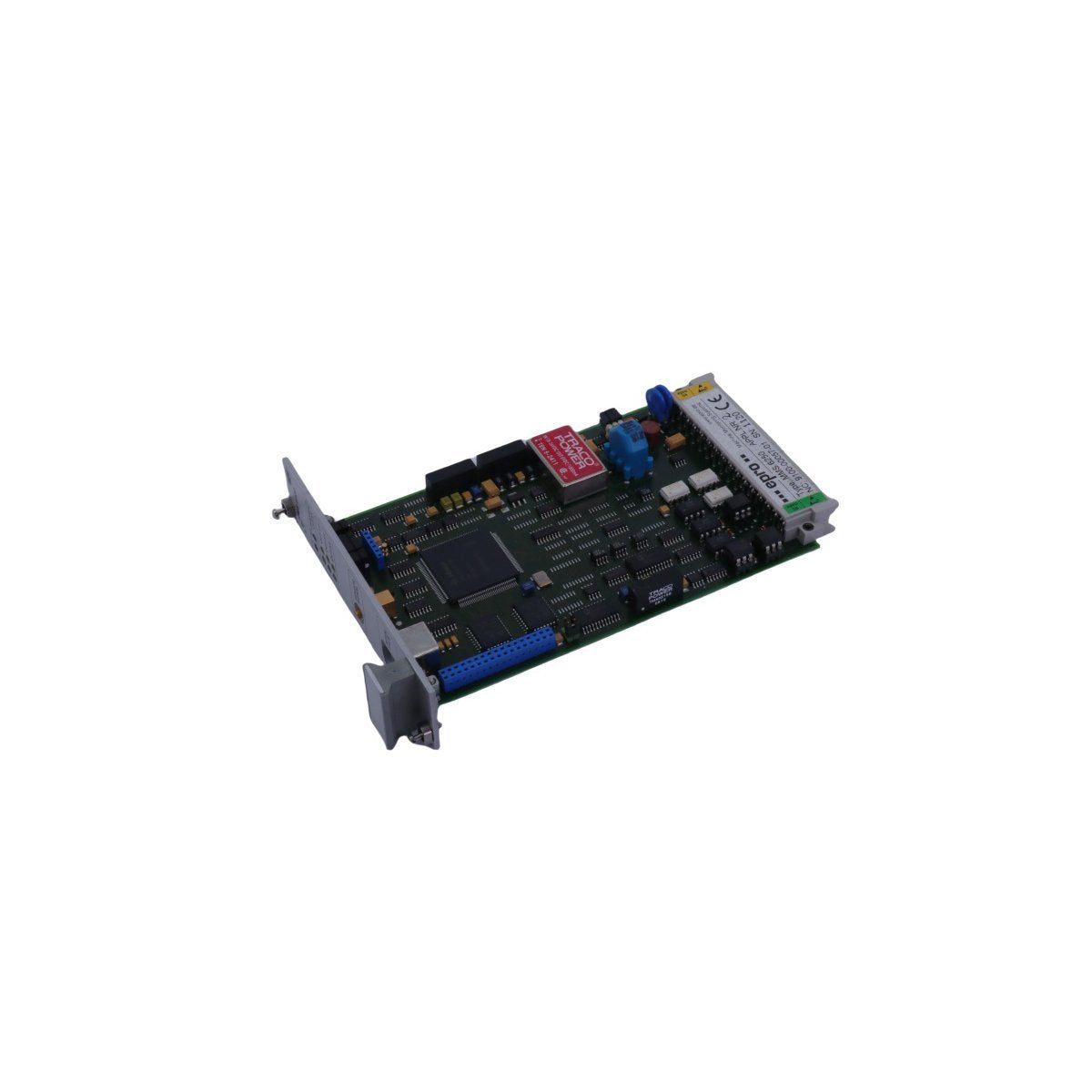

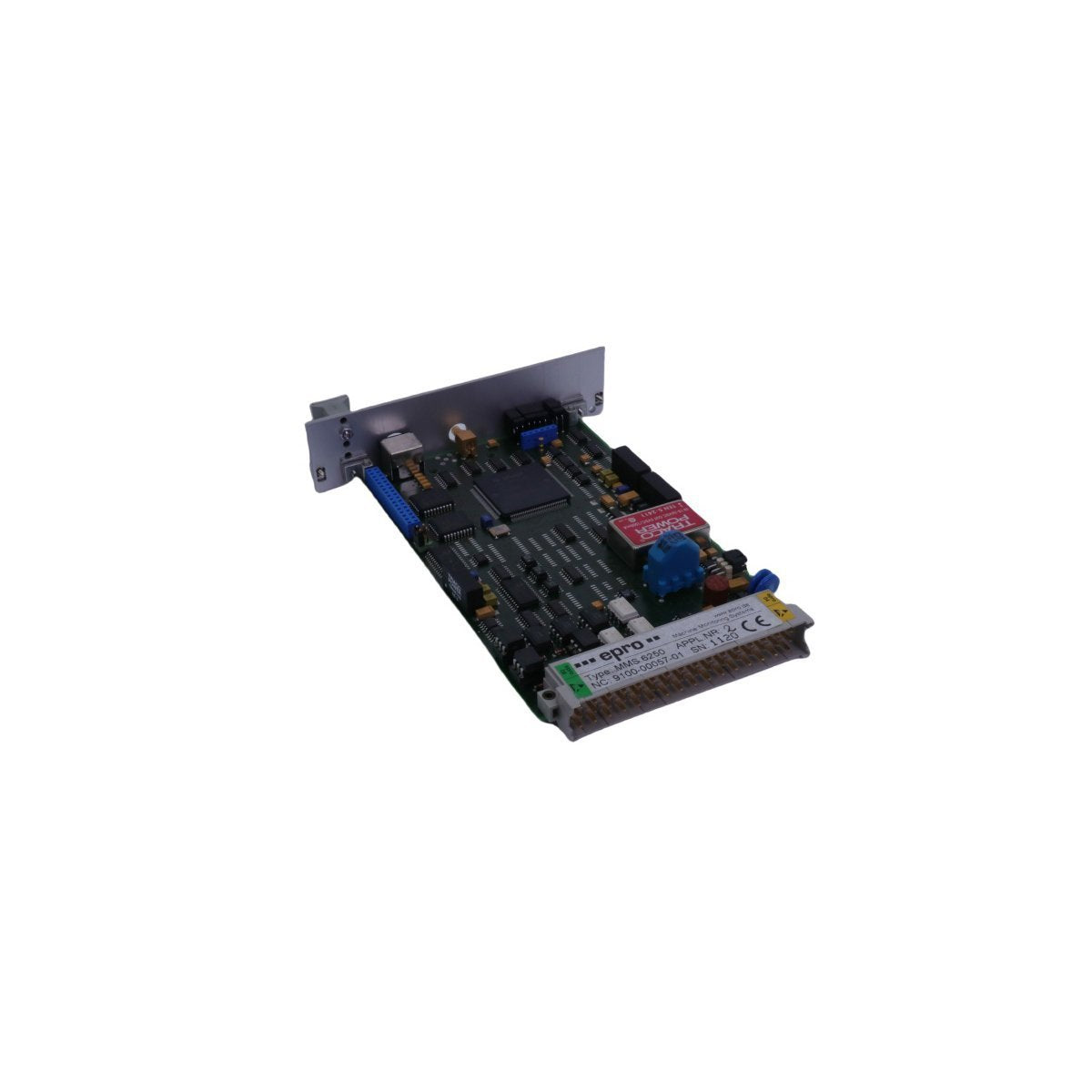

The MMS6250 is a precision-engineered Shaft Position Monitor Card developed by EPRO (an Emerson brand) for the specialized Machine Monitoring System (MMS) series. This dual-channel module is designed to provide continuous, high-accuracy measurement of axial shaft position—commonly referred to as thrust position—in high-speed rotating machinery. By monitoring the gap between the shaft collar and the thrust bearing, the MMS6250 acts as a critical safety barrier, detecting minute axial shifts that indicate bearing wear or impending mechanical failure.

This monitor card is essential for the protection of steam and gas turbines, centrifugal compressors, and large pumps within the power generation and petrochemical sectors. It facilitates the conversion of signals from eddy current displacement sensors into standardized industrial outputs, ensuring that any deviation from the calibrated shaft center is immediately communicated to the plant's Distributed Control System (DCS) or Emergency Shutdown (ESD) system.

Core Functionality and System Reliability

The Emerson MMS6250 utilizes advanced signal conditioning to filter out electronic noise while maintaining a fast response time required for turbomachinery protection. The card supports redundant sensor inputs to enhance system integrity and prevent nuisance trips. Integrated firmware includes comprehensive self-test (BITE) diagnostics, which continuously monitor the health of the connected transducers and the card’s internal circuitry.

Designed for rack-mounted installation, the MMS6250 features a ruggedized build suitable for environments characterized by high electromagnetic interference (EMI) and vibration. Its programmable logic allows engineers to define alert and danger setpoints, providing autonomous machine protection even if communication with the primary controller is interrupted. This deterministic performance makes the EPRO series a global standard for critical asset protection.

Technical Specifications

• Manufacturer: Emerson (EPRO)

• Model Number: MMS6250

• Module Type: Dual-Channel Shaft Position / Axial Thrust Monitor

• Measurement Principle: Eddy current displacement sensing

• Inputs: Supports up to two non-contacting displacement sensors

• Output Signals: 0/4...20 mA analog outputs; Binary alarm/trip contacts

• Resolution: High-precision 12-bit or better digital processing

• Power Requirements: Standard rack-based 24V DC backplane

• Operating Temperature: 0°C to +65°C

• Dimensions: 3.1 cm x 19 cm x 12.9 cm

• Weight: 0.2 kg

• Manufacturing Origin: USA

• Compliance: CE, CSA, and international machinery safety standards

Key Technical Characteristics

• Thrust Position Monitoring: Specialized for detecting axial displacement to prevent catastrophic rotor-to-stator contact.

• Autonomous Logic: Features independent alarm and trip relays that function regardless of external network status.

• Configuration Flexibility: Fully adjustable via Emerson configuration software, allowing for tailored calibration based on specific machine tolerances.

• Real-Time Diagnostics: Includes sensor fault detection and status indicators on the front panel for immediate troubleshooting.
