Product Overview

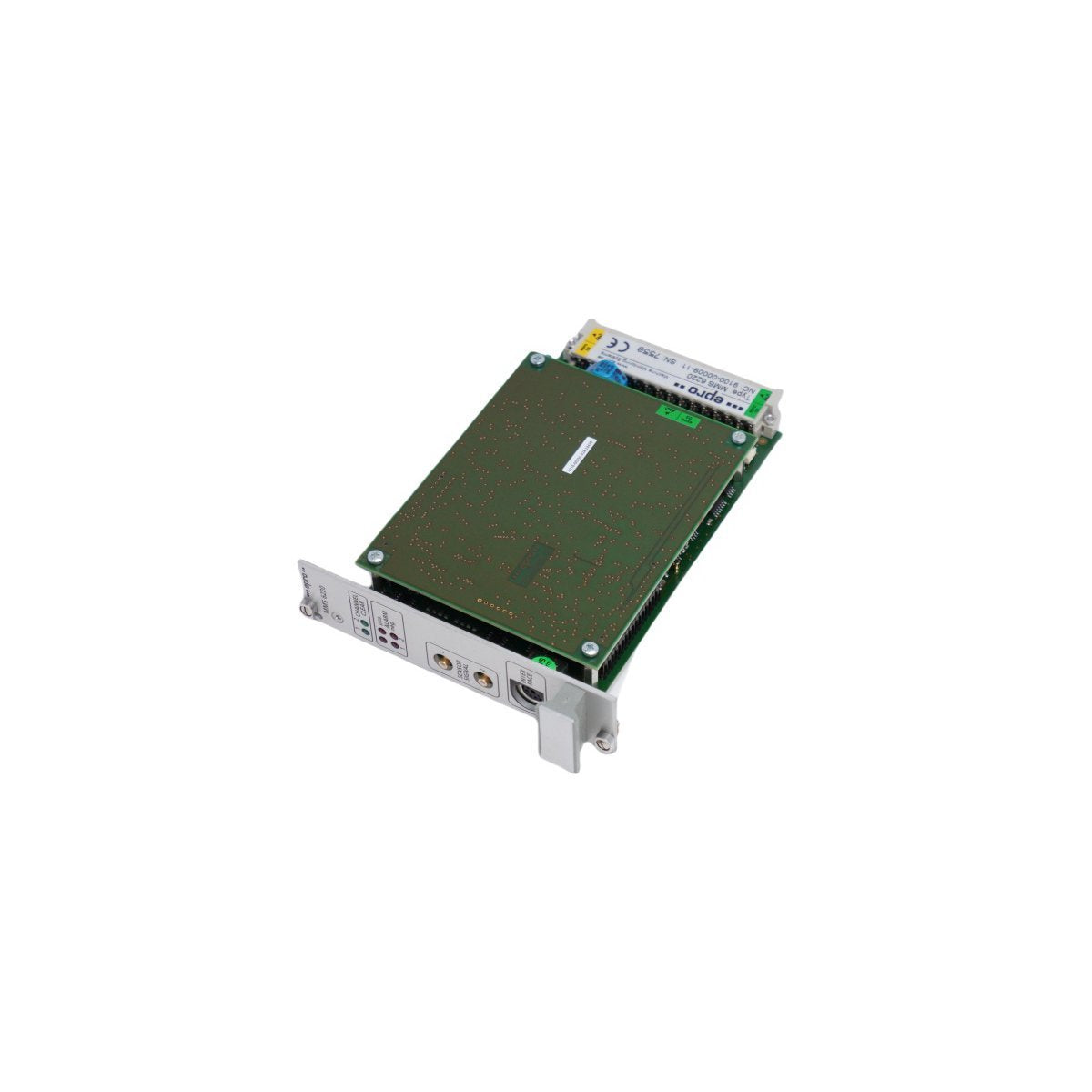

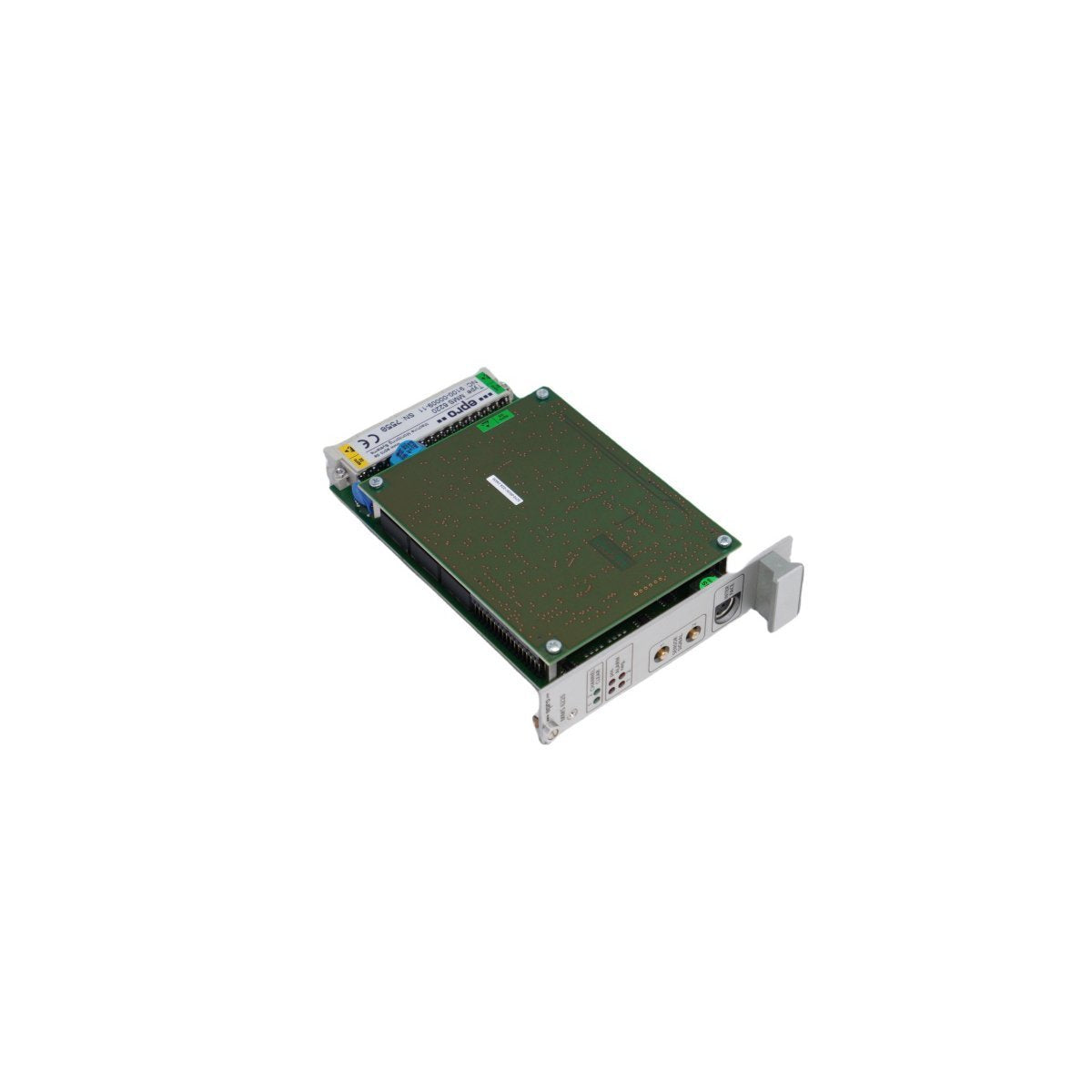

The Emerson EPRO MMS6220 is a precision-engineered, dual-channel monitoring module specifically designed to measure and analyze shaft eccentricity in large rotating machinery. Part of the globally recognized MMS 6000 Machine Monitoring System, this module is critical for detecting mechanical bowing or temporary thermal deformation of the shaft, particularly during the startup and "turning gear" phases of operation.

By utilizing non-contact eddy current sensing technology, the MMS6220 captures the peak-to-peak excursion of the shaft surface relative to its geometric center. This data is essential for preventing catastrophic damage caused by unbalanced forces or rotor-to-stator contact. The module serves as a primary protection layer for high-value assets like steam turbines and centrifugal compressors, ensuring they are not brought up to full speed while a shaft "bow" is present.

Technical Characteristics and Logic Configuration

The MMS6220 is built to provide deterministic machine health data under the most rigorous industrial conditions.

• Dual-Channel Input Logic: Supports two independent signal paths, allowing for simultaneous eccentricity monitoring at different bearing locations or providing redundant oversight for a single shaft.

• Peak-to-Peak Detection: Specialized algorithms calculate the maximum shaft displacement within a single revolution, even at extremely low rotational speeds (near 0 RPM).

• Sensor Versatility: Optimized for seamless integration with standard EPRO eddy current displacement probes and signal converters.

• Configurable Alarm Management: Features independent "Alert" and "Danger" relay thresholds with programmable delay times to filter out transient noise or mechanical runout.

• Analog and Digital Outputs: Provides 0/4...20 mA current outputs proportional to the eccentricity value for DCS integration, alongside RS232/485 communication for detailed diagnostic software analysis.

• System Integrity: Includes a continuous self-test (Built-in Test Equipment) that monitors sensor health, cable continuity, and internal hardware status, triggering a "Module OK" alert for operator confidence.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Number: MMS6220

• Function: Shaft Eccentricity Monitor

• Series Integration: MMS 6000 Machine Protection System

• Channels: 2 Independent Channels

• Mounting: Standard MMS 6000 Rack Interface

• Dimensions: 3.1 x 19 x 12.9 cm

• Weight: 0.2 kg

• HS Code: 8537101190

• Country of Origin: USA

Industrial Applications

The Emerson MMS6220 is a standard-setting component in sectors where machinery protection is non-negotiable:

• Power Generation: Monitoring thermal bowing in large steam and gas turbine rotors during warm-up cycles.

• Petrochemical & Refining: Safeguarding high-speed compressors and multi-stage process pumps from eccentric rotation damage.

• Steel & Mining: Managing the mechanical health of heavy-duty drive shafts in rolling mills and large crushers.

• Nuclear Energy: Providing critical vibration and eccentricity data for secondary-side rotating equipment.
