Product Overview

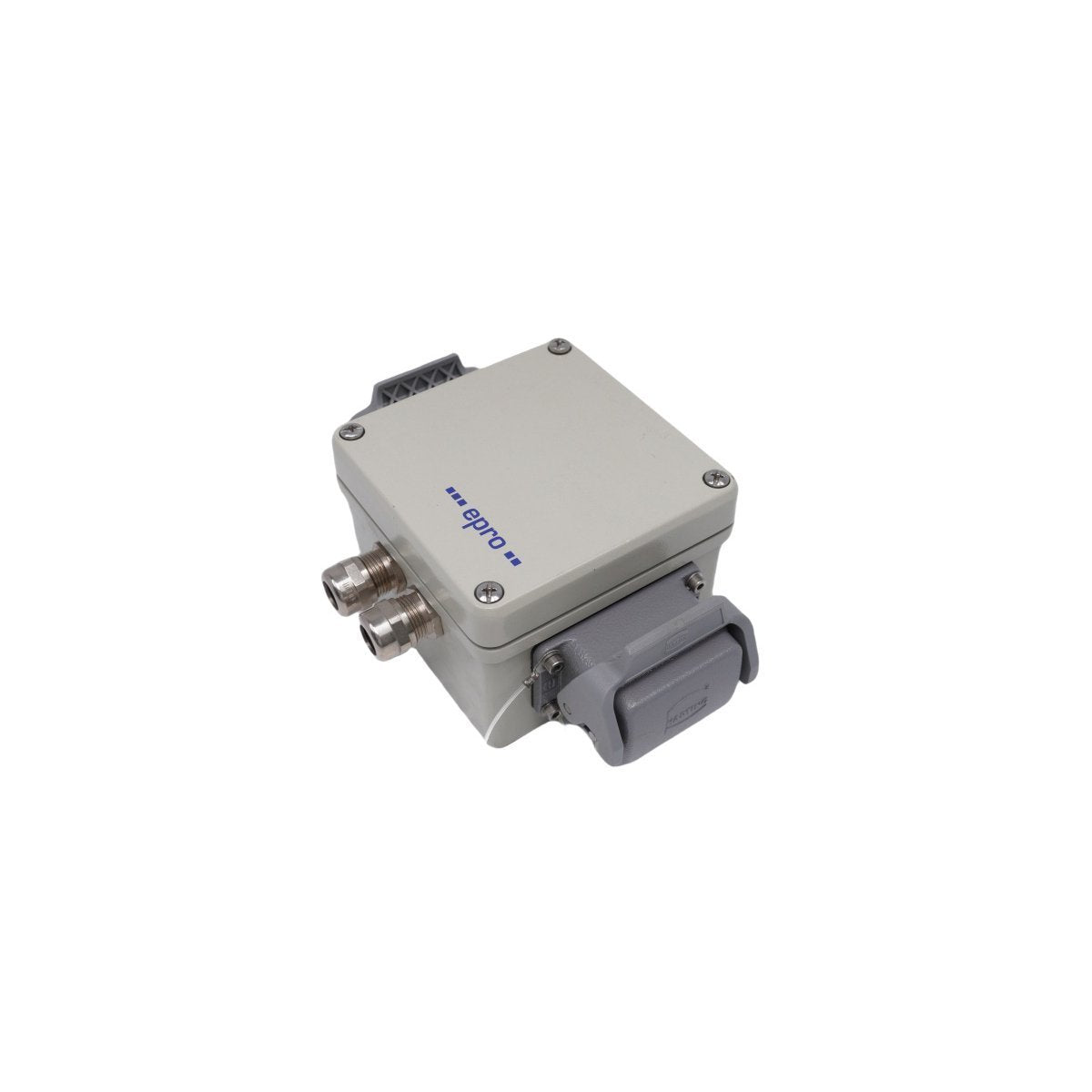

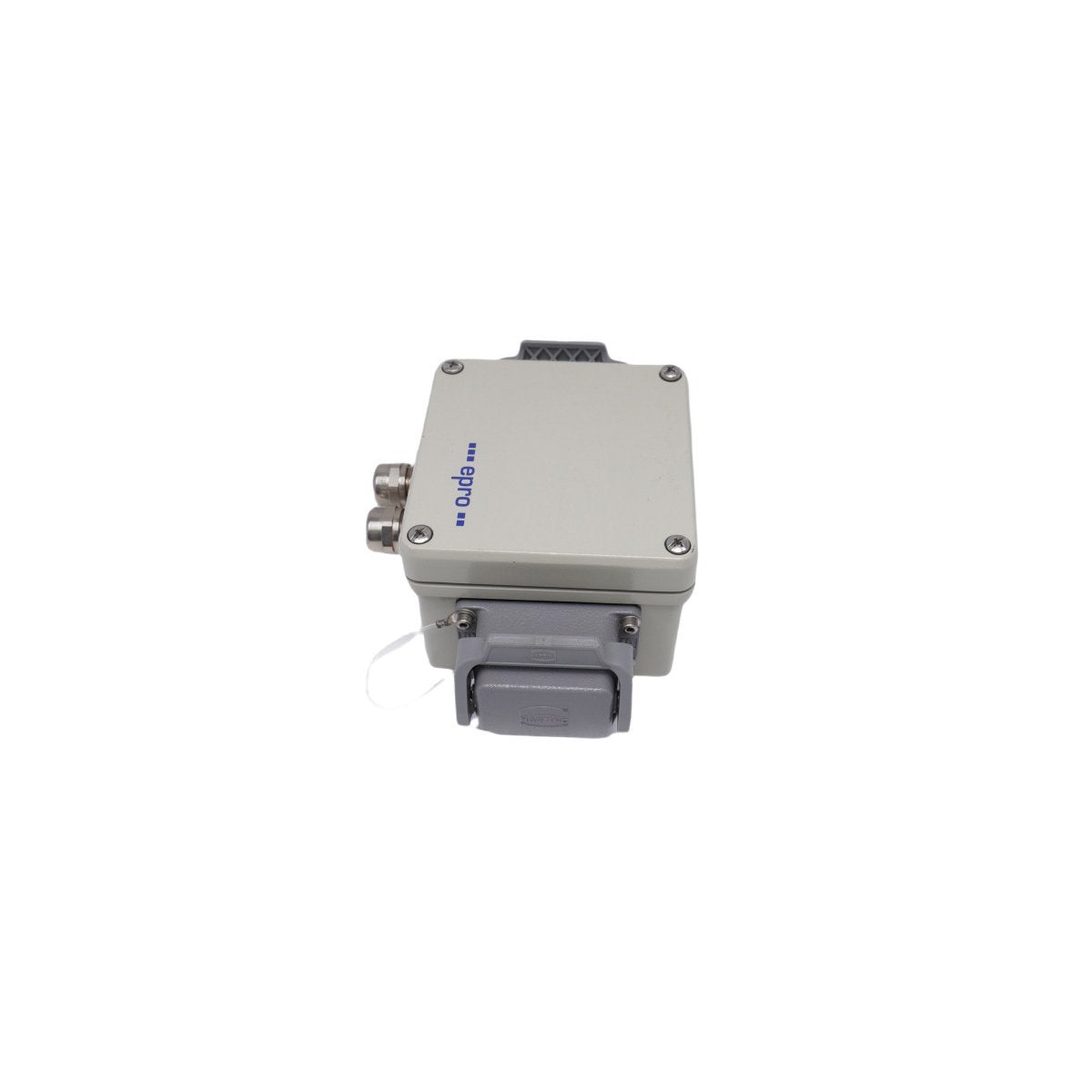

The Emerson EPRO MMS3120/022-100 is a high-precision, dual-channel vibration transmitter engineered for the continuous monitoring of absolute bearing vibration in rotating industrial machinery. As a core component of the Machine Monitoring System (MMS) series, this module converts complex mechanical vibration signals into standardized outputs suitable for Distributed Control Systems (DCS), PLCs, and dedicated plant asset management software.

By providing real-time oversight of vibration velocity or displacement, the MMS3120/022-100 facilitates early detection of mechanical anomalies such as imbalance, misalignment, or bearing wear. Its dual-channel architecture allows for simultaneous monitoring of two separate bearings or two axes on a single bearing housing, delivering a cost-effective and space-efficient solution for machinery protection.

Technical Characteristics and System Integration

The MMS3120/022-100 is designed for high-fidelity signal acquisition and long-term stability in extreme industrial environments.

• Dual-Channel Monitoring: Features two independent processing channels that can be configured to monitor absolute vibration, providing a comprehensive view of equipment health.

• Signal Conditioning: Sophisticated onboard filtering and integration circuitry convert seismic sensor inputs into linearized 4-20mA analog signals for seamless control system integration.

• Environmental Ruggedness: Engineered with heavy-duty encapsulation to resist high ambient temperatures, electromagnetic interference (EMI), and significant physical shock.

• Configurable Parameters: Supports software-based adjustment of frequency ranges, limit values, and alarm delays, allowing for precise tailoring to specific machinery specifications.

• Integrated Diagnostics: Features a built-in "OK" circuit that continuously monitors the integrity of the connected sensors and cable lines, triggering a system alert if a fault occurs.

• Compact DIN-Rail Mounting: Designed for space-saving installation within local junction boxes or centralized control cabinets, facilitating both new builds and site retrofits.

Technical Specifications

• Manufacturer: Emerson (EPRO Series)

• Model Identification: MMS3120/022-100

• Measurement Type: Dual-Channel Absolute Bearing Vibration

• Input Signal Type: Electrodynamic or Piezoelectric Seismic Sensors

• Output Interface: 4-20 mA DC (Proportional to vibration level)

• Dimensions: 16 x 16 x 12 cm

• Unit Weight: 0.8 kg

• Lifecycle Status: Discontinued (Legacy Support Available)

• Country of Origin: USA

Industrial Applications

The Emerson EPRO MMS3120/022-100 is a standard-setting transmitter for heavy-duty rotating assets in several key sectors:

• Oil & Gas Processing: Monitoring vibration on high-speed pumps and gas compressors in refining environments.

• Power Generation: Safeguarding steam and gas turbines through continuous bearing housing analysis.

• Chemical Manufacturing: Tracking the mechanical stability of large-scale blowers, mixers, and centrifuges.

• Heavy Utilities: Providing early warning systems for large cooling water pumps and industrial fan assemblies.
