Product Overview

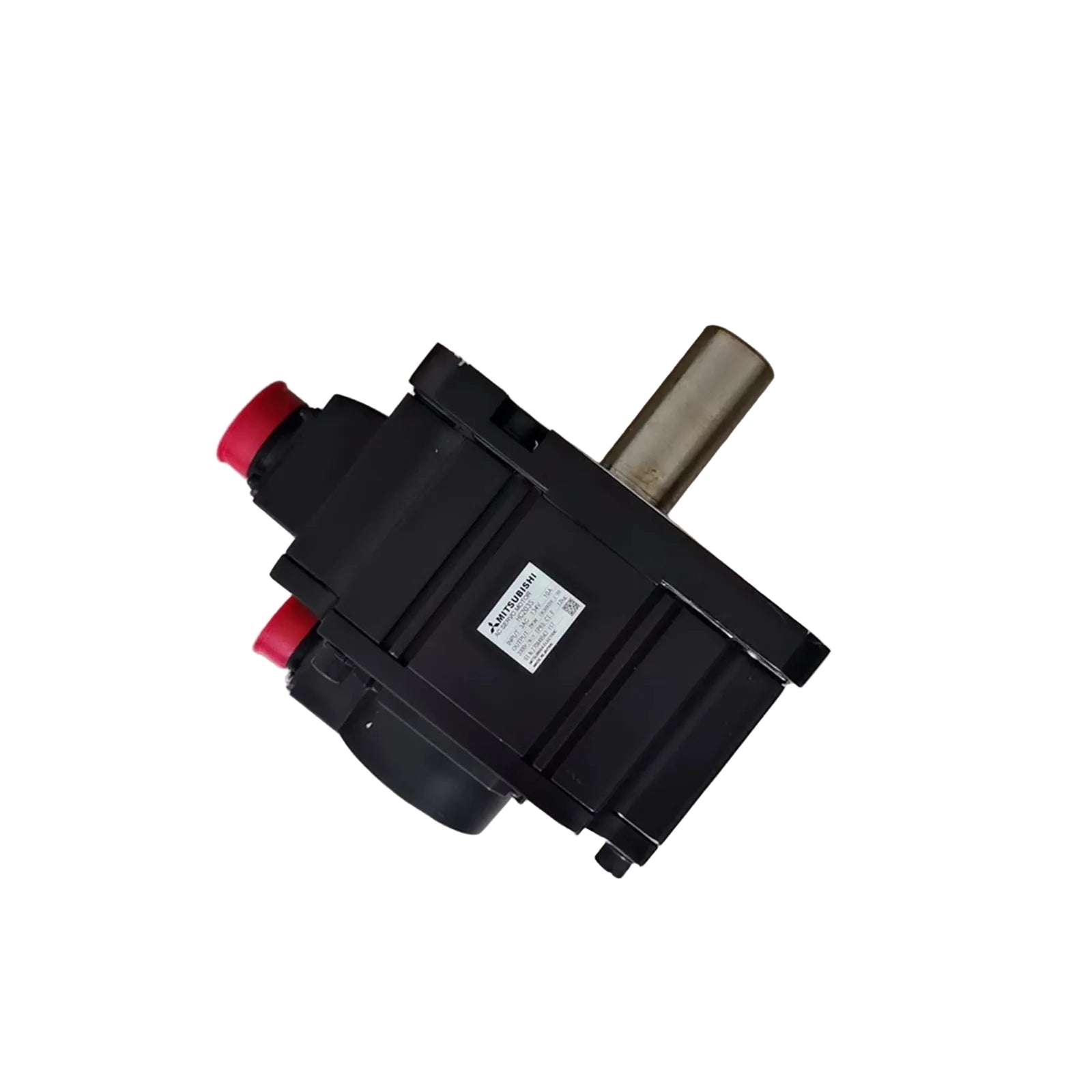

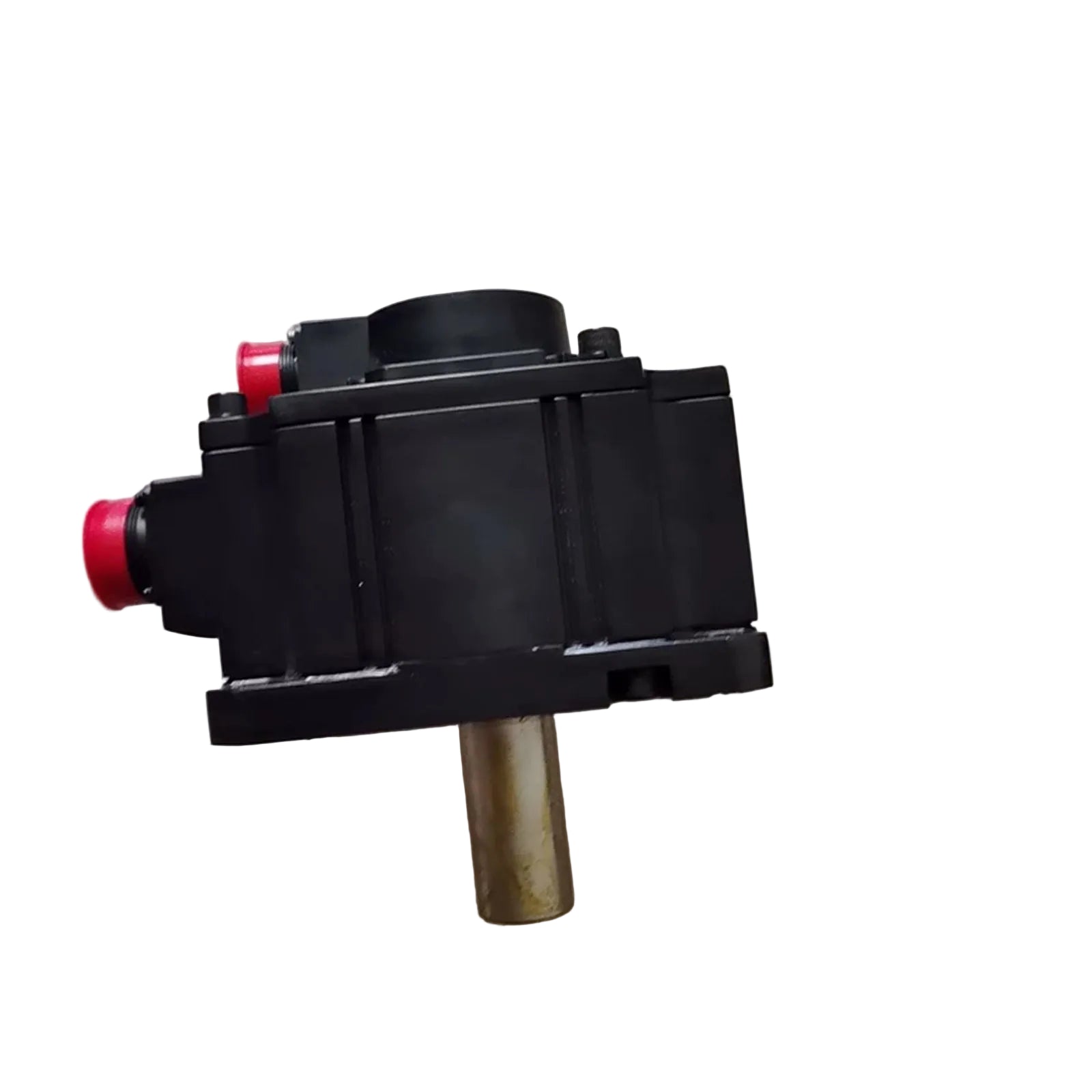

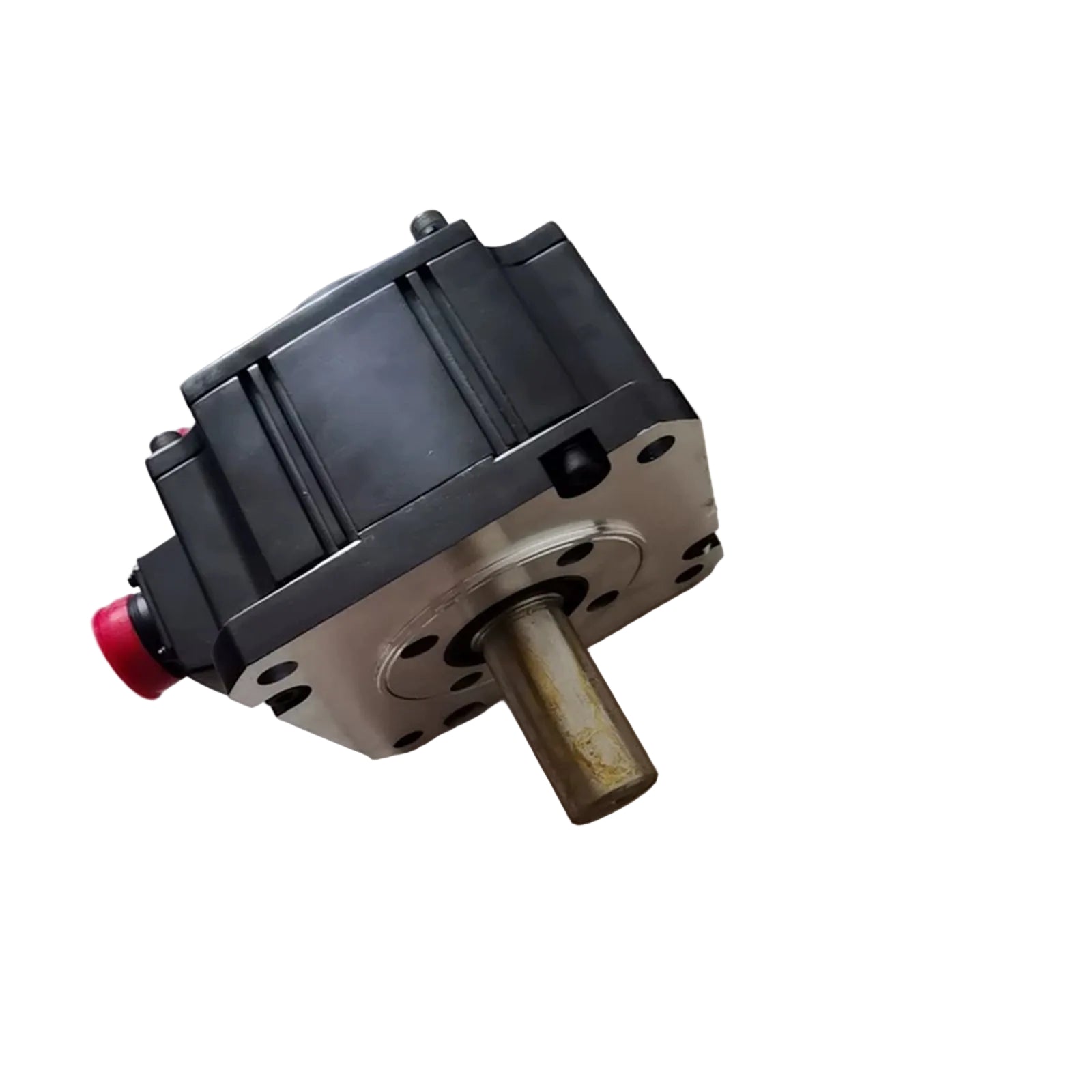

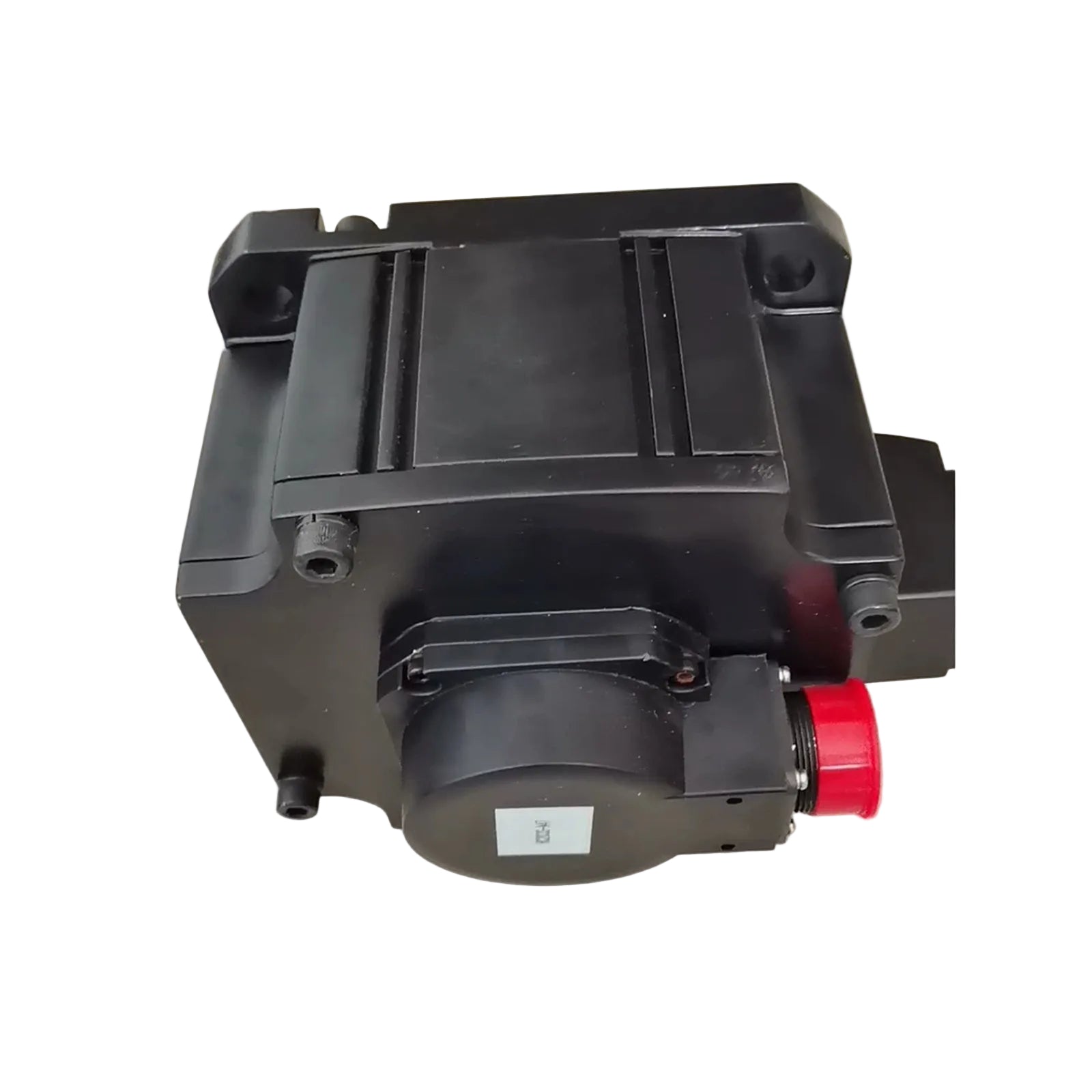

The HC203S AC Servo Motor is a cornerstone of the Mitsubishi Electric MELSERVO-H series, specifically engineered to deliver high-inertia stability and high-power density for demanding industrial automation. This 2.0kW motor excels in heavy-duty environments such as CNC machining centers, high-tension winding machines, and synchronized material handling systems. By utilizing high-performance permanent magnets and a robust encoder feedback system, the HC203S ensures precise positioning and exceptionally smooth torque delivery even at low speeds. Its architecture prioritizes thermal efficiency and mechanical durability, providing the 6.4 N•m rated torque necessary to drive heavy mechanical loads with surgical precision. This model serves as a reliable legacy solution for maintaining and upgrading existing high-speed production lines that require consistent, high-fidelity motion control.

Core Technical Advantages

High-Inertia Design for Load Stability

The HC203S features a high-inertia rotor construction (13.9 x 10⁻⁴ kg•m²) that provides superior control stability when driving large mechanical loads. This design effectively dampens vibration and compensates for load fluctuations, ensuring the motor maintains its commanded trajectory without the "hunting" effect common in lower-inertia alternatives.

Advanced Electromagnetic Architecture

Mitsubishi engineers utilized high-grade silicon steel laminations and precision-wound coils to minimize eddy current losses. This translates to higher efficiency and reduced heat generation during continuous high-speed operation, allowing the motor to maintain its performance envelope in poorly ventilated industrial cabinets.

Integrated High-Resolution Feedback

The motor integrates a high-resolution absolute encoder that provides real-time positional data to the servo amplifier. This closed-loop system eliminates cumulative errors and ensures that the drive system can recover its exact position after a power interruption, significantly reducing machine downtime and setup requirements.

Technical Specifications

Engineering Installation & Maintenance

For successful commissioning of the HC203S, engineers must verify the alignment between the motor shaft and the mechanical load. Use a flexible coupling to accommodate minor radial or angular misalignments, which prevents excessive bearing load and premature encoder failure. The 130 mm flange requires a 145 mm pitch circle diameter (PCD) for mounting; ensure the mounting plate is at least 15 mm thick to withstand the 19.1 N•m peak torque.

When connecting the power and encoder cables, ensure that the metal connectors are fully seated and tightened to maintain the IP65 seal against coolant and dust. Ground the motor frame directly to the machine's central grounding bus to mitigate EMI (Electromagnetic Interference). Periodically inspect the shaft end for signs of oil or grease accumulation, and allow at least 80 mm of clearance at the rear of the motor to prevent stress on the encoder connectors.

Engineering Advantages

Industrial-Grade Ruggedness

The HC203S features a fully sealed housing that meets IP65 standards, shielding internal components from the harsh realities of the factory floor. Whether exposed to metallic dust or incidental fluid splashes, the motor maintains its internal integrity, preventing the electrical shorts that plague lesser-built motors.

Seamless Legacy Integration

As part of the HC series, this motor offers a drop-in replacement path for older Mitsubishi motion systems. Its standardized flange dimensions and electrical characteristics allow facility managers to restore machine performance without expensive structural modifications or extensive PLC reprogramming.

Exceptional Torque-to-Size Ratio

Despite its robust 2.0kW output, the HC203S maintains a compact footprint relative to its power class. This allows machine designers to pack more power into smaller enclosures, facilitating the development of multi-axis machines with reduced total floor space requirements.

Delivery and Logistics

Delivery Time: 3-5 days when payment finish.

Shipping Partners: BY DHL / FEDEX / UPS.

Condition: Brand New, Original Factory Sealed.

Technical FAQs

Q1: Which Mitsubishi servo amplifier is compatible with the HC203S?

A1: The HC203S is typically paired with the MR-H series amplifiers (e.g., MR-H200A or MR-H200B). For modernizing legacy systems, ensure the amplifier's software version supports the HC motor parameters.

Q2: Does this model include a built-in electromagnetic brake?

A2: The standard HC203S does not include a brake. If your application involves a vertical axis where load-dropping is a concern, you would require the "B" variant (HC203SB).

Q3: Can I run this motor at its maximum speed (4500 RPM) continuously?

A3: The rated speed for continuous operation is 3000 RPM. While the motor can reach 4500 RPM for short durations (intermittent duty), continuous operation at maximum speed will lead to overheating and potential bearing degradation.

Q4: How do I handle a "Battery Voltage Low" alarm on the encoder?

A4: The absolute encoder relies on a battery within the servo amplifier to retain position data. If the alarm triggers, replace the battery in the amplifier while the power is ON to avoid losing the machine's zero-point reference.
