Product Overview

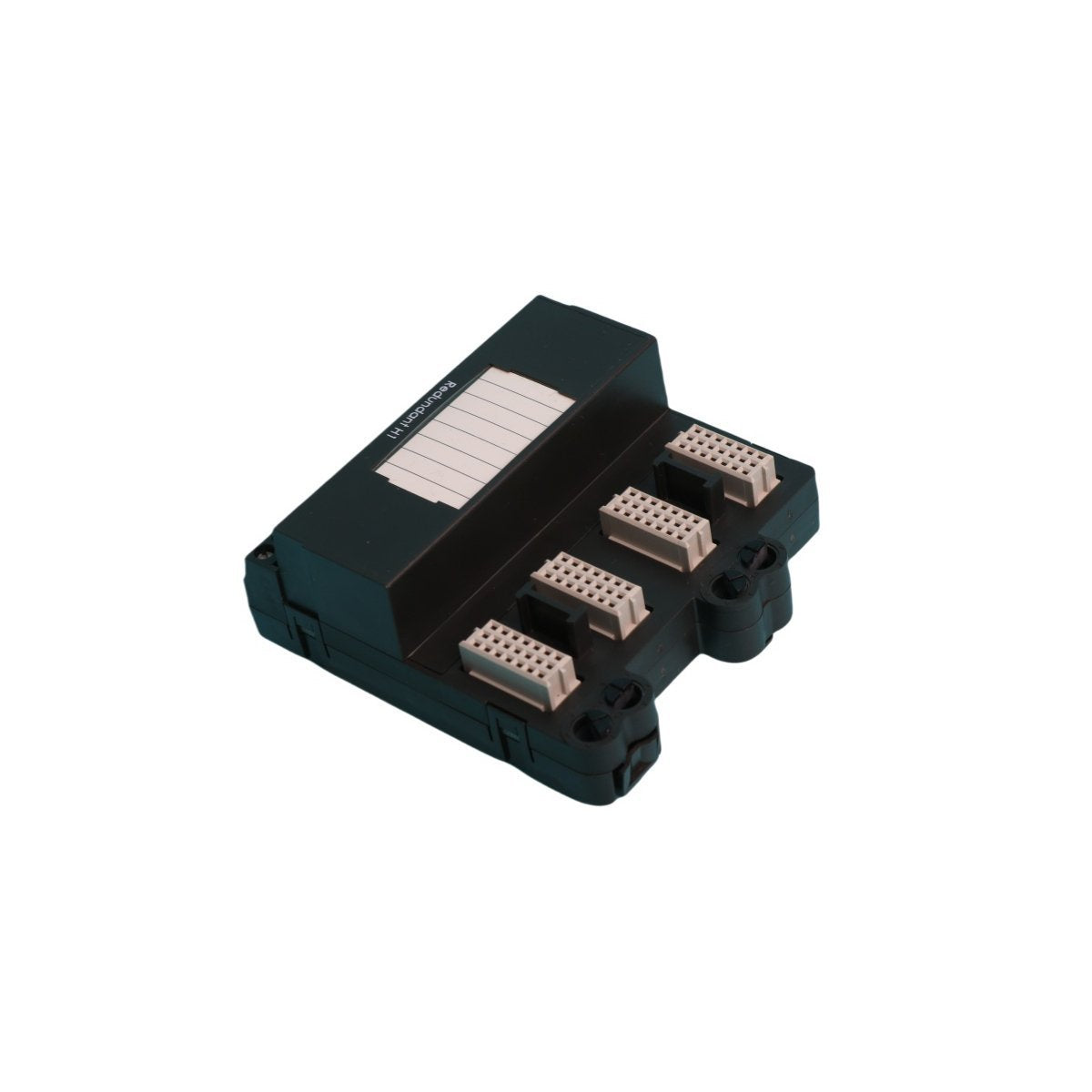

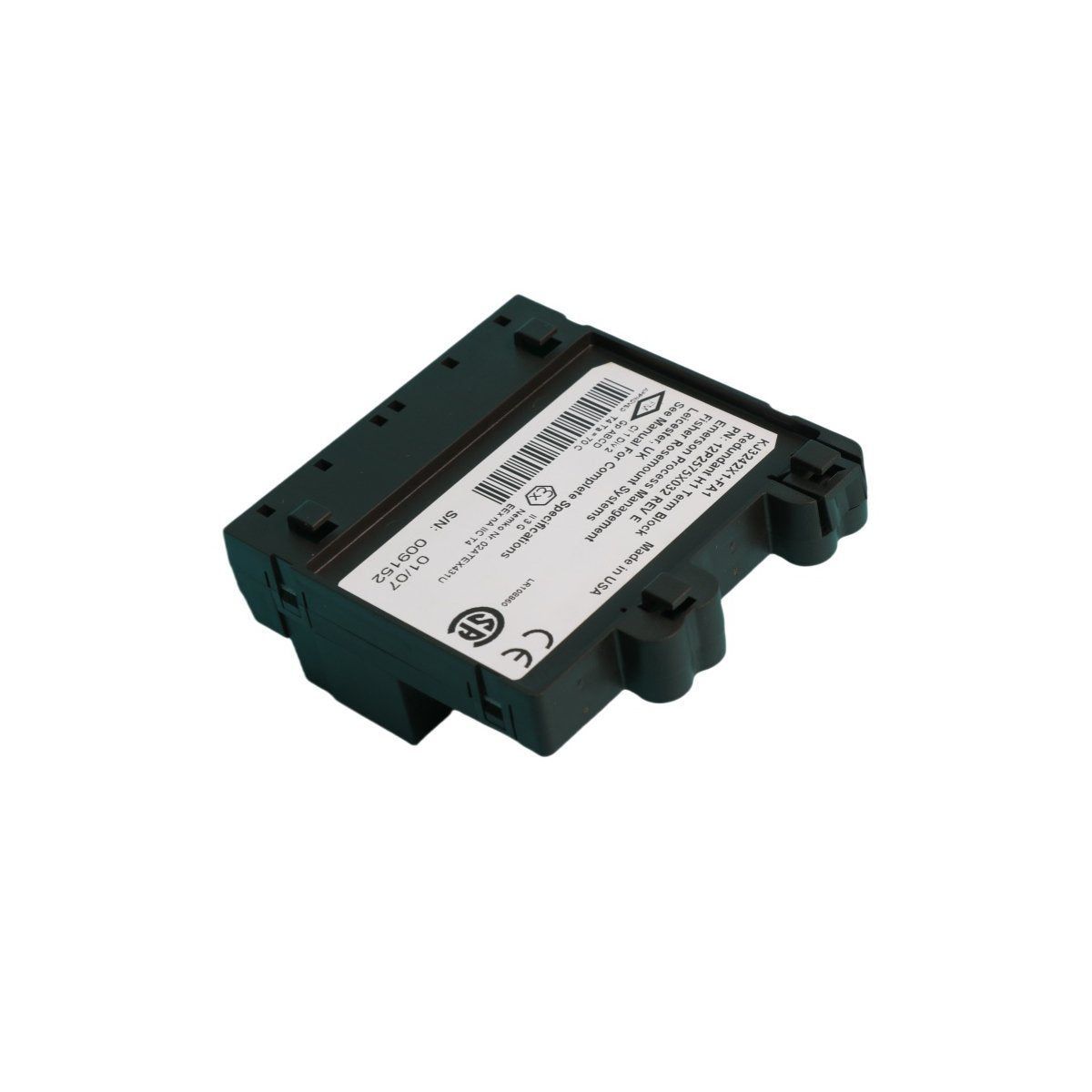

The Emerson KJ3242X1-FA1 (Part Number 12P2575X032) is a high-performance redundant H1 terminal block engineered for the DeltaV™ M-series I/O subsystem. This specialized interface component is designed to provide secure and fault-tolerant physical connections for FOUNDATION Fieldbus H1 networks. By facilitating a reliable bridge between field instruments and the DeltaV control architecture, it ensures continuous data transmission even in the event of a signal path failure. Its compact design and integrated D6 keying mechanism prevent installation errors and ensure precise alignment with compatible I/O modules, such as the VE4017P0 series.

Key Technical Characteristics

Built for extreme resilience, the KJ3242X1-FA1 is hardened against both mechanical and environmental stressors common in heavy industrial processing zones.

• Power Rating: Supports a maximum input of 35VDC at 500mA for Fieldbus H1 segments.

• Environmental Protection: Fully compliant with ISA-S71.04-1985 Class G3 standards for protection against corrosive airborne contaminants.

• Thermal Range: Operational capability across a broad spectrum from -40°C to +70°C.

• Shock and Vibration Resistance: Rated for 10g shock pulses (11ms) and vibration thresholds up to 0.7g at high frequencies (13.2–150Hz).

• Physical Construction: Compact 4.2 x 12.5 x 10.4 cm footprint with a weight of 0.1kg for high-density cabinet mounting.

• Connectivity: Optimized for redundant H1 Fieldbus communication, ensuring high availability for critical loops.

• Humidity Tolerance: Functional in 5% to 95% non-condensing relative humidity.

Industrial Applications

The 12P2575X032 terminal block is an essential component for distributed control systems where downtime is not an option. Its redundancy support makes it a standard choice for high-availability process automation.

• Oil and Gas Refining: Connecting hazardous area instrumentation to control rooms with high immunity to electrical interference.

• Chemical Processing: Reliable performance in corrosive environments where G3-rated hardware is required to prevent terminal degradation.

• Power Generation: Used in plant-wide Fieldbus networks to manage sensors and actuators in high-vibration areas near rotating machinery.

• Pharmaceutical Manufacturing: Ensures clean, deterministic communication for batch processing and regulatory compliance monitoring.
